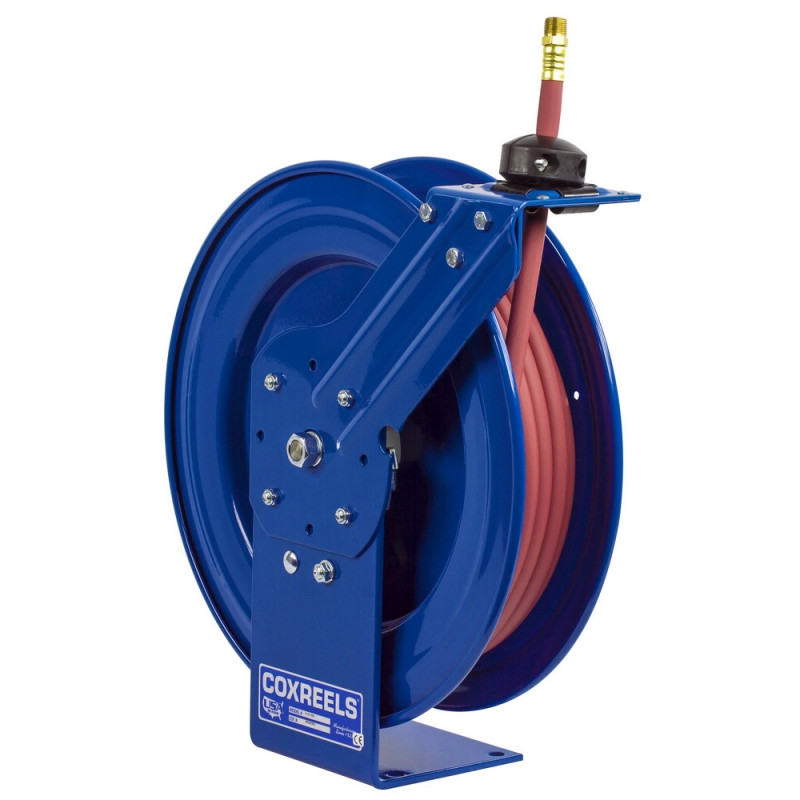

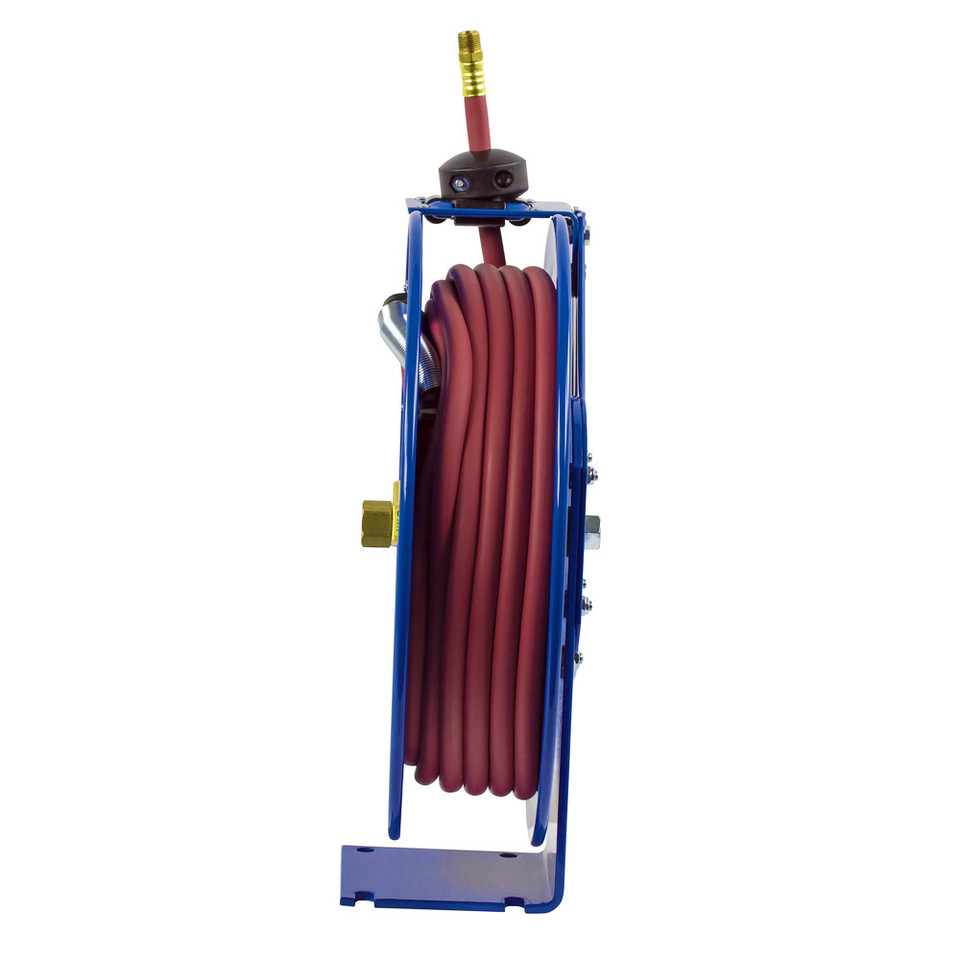

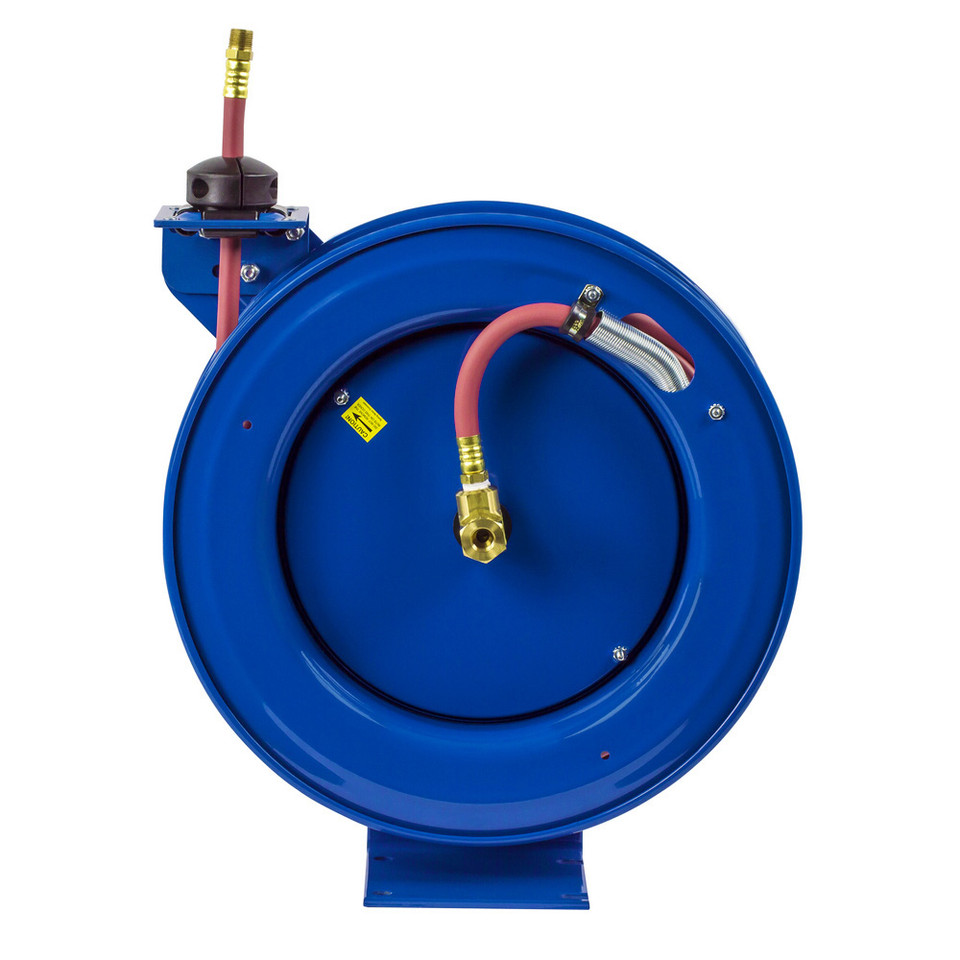

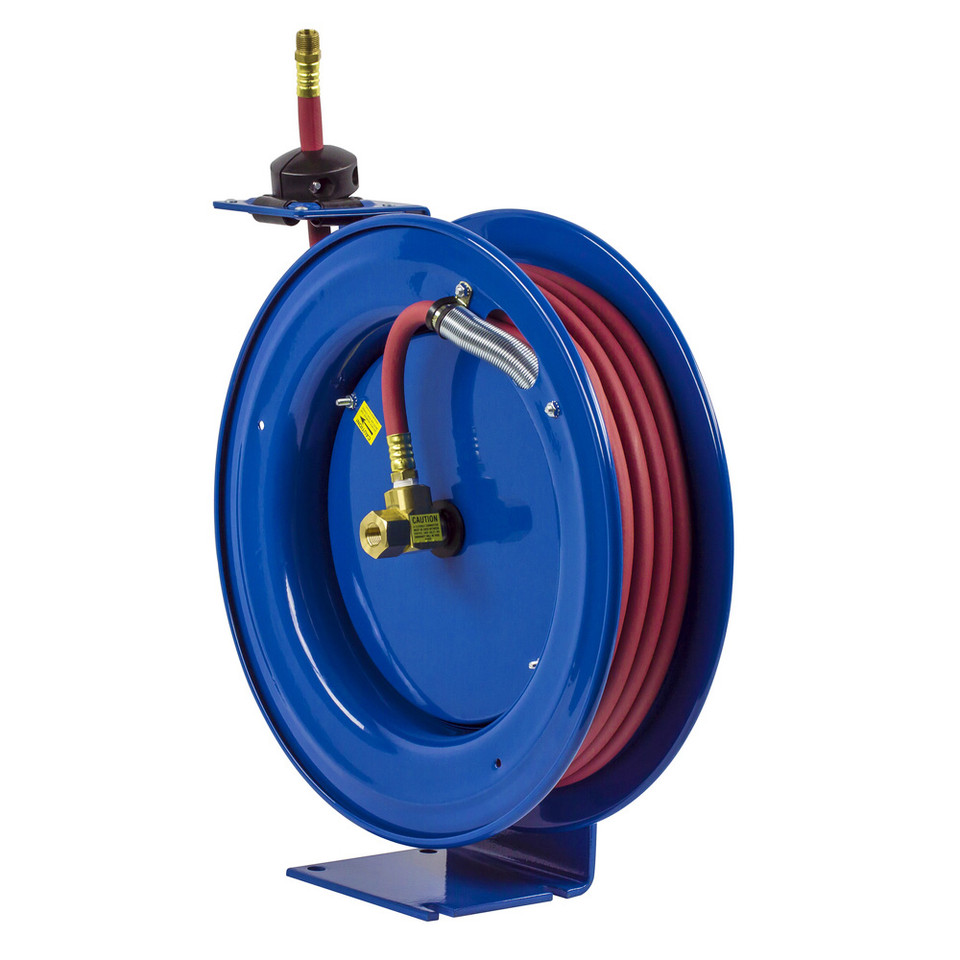

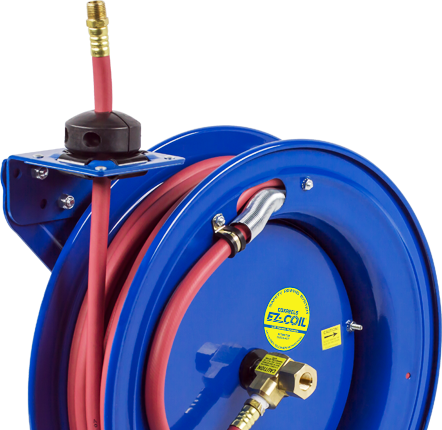

For low-pressure air and water service where the hose needs to return neatly after use, the Coxreels P-LP-350 Performance spring rewind hose reel gives shops, maintenance crews, washdown areas, and service bays a compact reel with hose already installed. Part of the P Series, this model includes 50 ft of 3/8" I.D. red PVC hose and is rated for 300 PSI, making it a practical choice for organizing low-pressure hose at fixed workstations, around equipment, or on service vehicles.
The P-LP-350 uses spring rewind, a spring-powered retraction system that pulls the hose back onto the reel after use. A multi-position lock ratchet lets the operator secure the hose at the desired working length, while the adjustable guide arm supports floor, wall, ceiling, vehicle, and overhead mounting positions. The single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, brass 90° full-flow NPT swivel, nitrile seals, adjustable rubber hose stop, and CPC powder coat finish help keep hose handling cleaner and more controlled in daily shop and maintenance environments.
Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-350 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Hose Type: LP Red PVC | Hose Tube/Cover: PVC | Reinforcement: Yarn | Temperature Range: -15°F to +150°F | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 43 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design helps retract hose after use, reducing loose hose on floors, benches, and vehicle beds.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post for mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
- Multi-position guide arm adjusts to wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support daily hose handling in commercial and maintenance settings.
Made in USA:
Applications:
- Shop air stations where 50 ft of 3/8" hose provides reach for inflating, blowing off parts, and connecting low-pressure pneumatic equipment.
- Maintenance bays and service departments that need automatic hose return to reduce floor clutter between tasks.
- Low-pressure washdown and water service areas where the hose material, pressure rating, and temperature range match the application.
- Vehicle, cart, bench, wall, or ceiling-mounted installations where the adjustable guide arm helps route hose payout from the correct direction.
- Facility, garage, and light industrial workspaces that need a compact spring rewind reel with hose already installed.
FAQs:
- Q: Does the Coxreels P-LP-350 include hose?
A: Yes. This model includes 50 ft of 3/8" I.D. low-pressure red PVC hose rated for 300 PSI. - Q: What does LP mean in the P-LP-350 model number?
A: LP indicates a low-pressure configuration. On this model, the installed hose is rated for 300 PSI and is used for compatible low-pressure air and water applications. - Q: Can the hose lock at different lengths?
A: Yes. The multi-position lock ratchet mechanism allows the hose to stop at the desired working length instead of retracting immediately. - Q: Can this reel be mounted on a wall or vehicle?
A: Yes. The adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions, provided the reel is mounted securely to a suitable surface. - Q: Is this reel suitable for high-pressure pressure washing?
A: No. The P-LP-350 is rated for 300 PSI low-pressure service. For high-pressure pressure washing, choose a reel and hose assembly rated for the pressure washer system.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
