For low-pressure air, water, or oil hose stations that need 3/8" hose capacity without a factory-installed hose, the Coxreels P-LPL-330 Low Pressure spring rewind hose reel provides retractable storage in the P Series platform. This less-hose model is sized for 3/8" I.D. hose with a 30 ft hose capacity and a 300 PSI maximum pressure rating, making it a flexible reel-only choice for maintenance benches, garages, service bays, fleet shops, and facility workstations where hose material and fittings will be selected separately.
The P-LPL-330 uses spring rewind, a spring-powered retraction system that returns compatible hose to the reel after use. A multi-position lock ratchet helps hold the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep mid-size low-pressure hose installations organized and easier to manage.

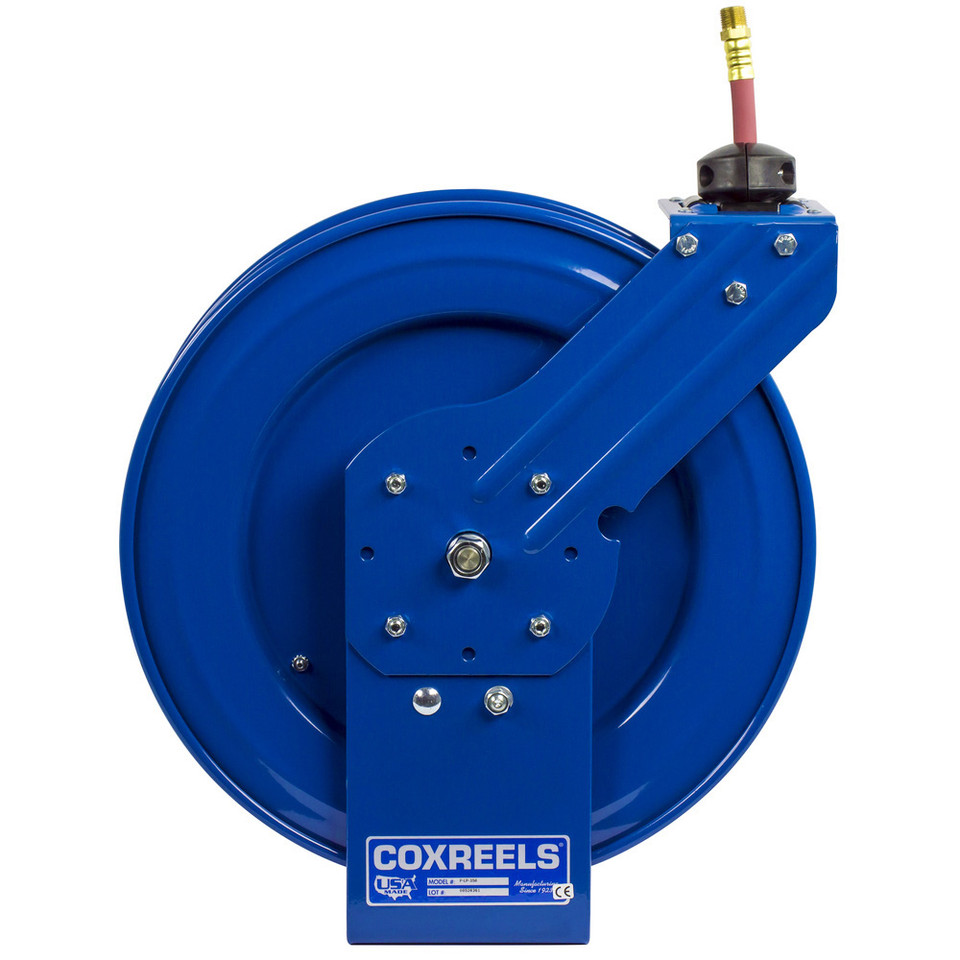

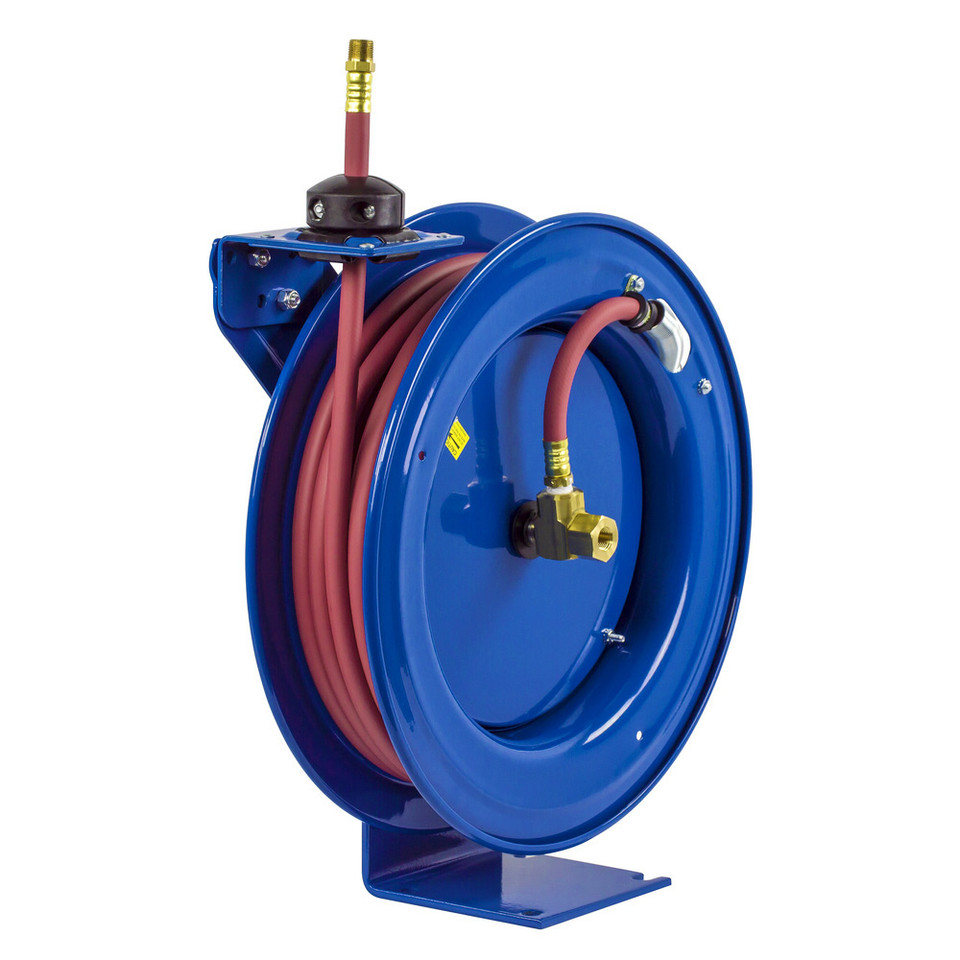

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-LPL-330 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 30 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Swivel Material: Solid Brass | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 33 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Less-hose configuration allows the buyer to install compatible hose selected for the application, fluid, fitting style, and replacement preference.
- Spring rewind design retracts compatible hose after use to help reduce loose hose around benches, bays, walkways, and workstations.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
Made in USA:
Applications:
- Shop air stations where 30 ft of 3/8" hose capacity provides moderate reach while allowing the hose style and fittings to be chosen separately.
- Maintenance benches, garages, and service bays where spring rewind storage helps keep air or water hose routed neatly between tasks.
- Low-pressure oil dispensing or transfer points when the installed hose, fittings, pressure rating, and fluid compatibility match the system requirements.
- Fleet and facility maintenance areas where a reel-only purchase supports custom hose installation, hose replacement, or standardized hose inventory.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-LPL-330 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The P-LPL-330 is sized for up to 30 ft of 3/8" I.D. hose with a 5/8" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: How is the P-LPL-330 different from the P-LP-330?
A: The P-LPL-330 is supplied without hose, while the P-LP-330 includes hose. Choose the less-hose model when hose material, fitting style, or fluid compatibility needs to be selected separately. - Q: How is the P-LPL-330 different from the P-LPL-335?
A: The P-LPL-330 is sized for 30 ft of hose capacity, while the P-LPL-335 is sized for 35 ft. Choose the 30 ft model when the workstation needs less hose reach and a slightly shorter hose setup is preferred. - Q: Is the P-LPL-330 suitable for pressure washing?
A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
