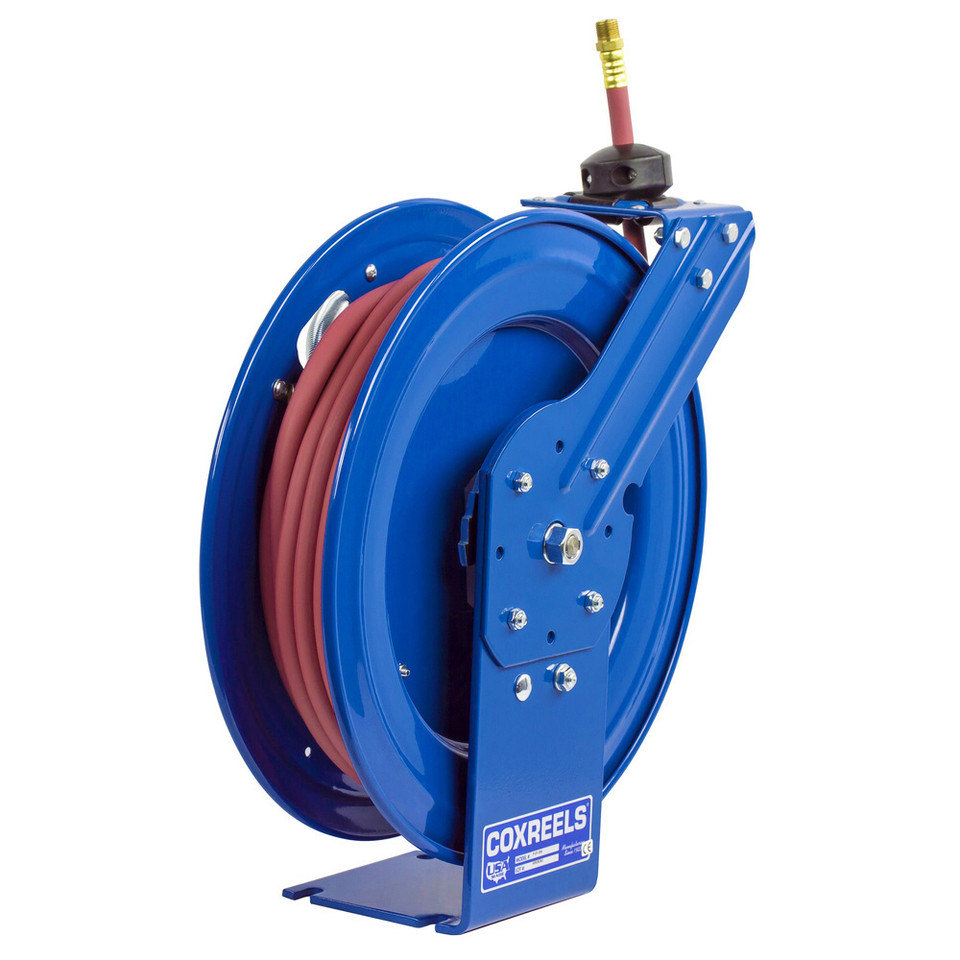

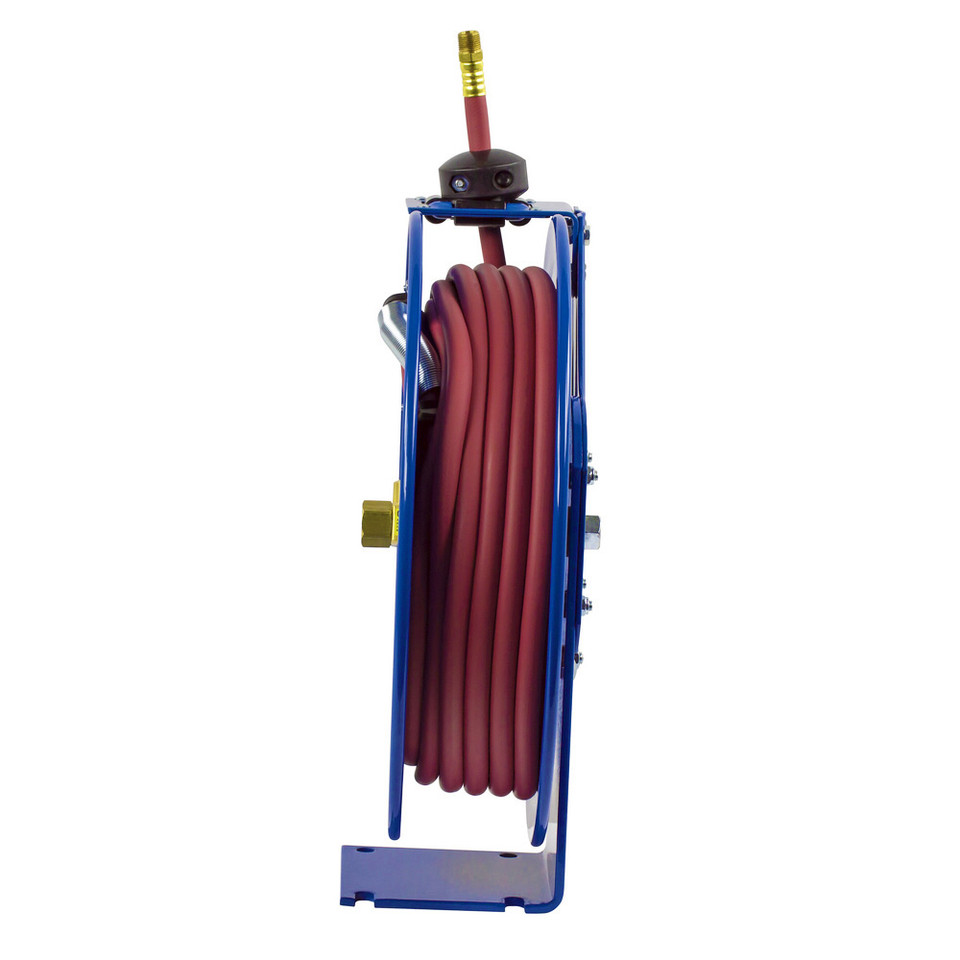

For high-pressure hose stations that need 3/8" flow capacity in a compact spring rewind reel, the Coxreels P-HP-325 High Pressure hose reel keeps hose stored, protected, and ready for service between tasks. Part of the P Series, this model includes 25 ft of 3/8" I.D. hose and is rated for 4,000 PSI, making it a practical choice for hydraulic oil service, grease and lubrication work, fleet maintenance, equipment service bays, and industrial MRO workstations where high-pressure hose needs to retract neatly after use.
The P-HP-325 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet lets the operator stop the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, high-pressure full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep high-pressure hose handling cleaner and more controlled in shop, garage, fleet, and maintenance environments.
Type: High Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-HP-325 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 25 ft | Max Pressure: 4,000 PSI | Hose Cover: Synthetic Rubber | Hose Tube: Polyester | Reinforcement: 2 Braid Steel Wire | Temperature Range: -40°F to +250°F | Swivel Material: Zinc Plated Steel | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 49 lb | Overall Dimensions: 7" W x 18.62" H x 17.12" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce loose high-pressure hose around benches, bays, walkways, and service areas.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a full-flow NPT swivel with zinc plated steel swivel material and nitrile swivel seals for high-pressure service.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in maintenance and service environments.
Made in USA:
Applications:
- Hydraulic oil service areas where 25 ft of 3/8" high-pressure hose helps reach pumps, fittings, equipment, and service points.
- Grease and lubrication stations where the 4,000 PSI rating matches the hose, fittings, fluid, and system requirements.
- Fleet and heavy equipment maintenance bays for controlled hose storage near trucks, lifts, pumps, reels, and service benches.
- Industrial maintenance and MRO workstations where spring rewind helps keep high-pressure hose organized between service tasks.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-HP-325 include hose?
A: Yes. This model includes 25 ft of 3/8" I.D. high-pressure hose and is rated for 4,000 PSI service. - Q: What does HP mean in the P-HP-325 model number?
A: HP indicates a high-pressure configuration. On this model, the reel is rated for 4,000 PSI and should only be used with compatible hose, fittings, fluids, and system pressure requirements. - Q: How is the P-HP-325 different from the P-HP-125?
A: The P-HP-325 uses 3/8" I.D. hose rated for 4,000 PSI, while the P-HP-125 uses 1/4" I.D. hose rated for 5,000 PSI. Choose based on the required hose diameter, pressure rating, and system compatibility. - Q: Can this reel be used for standard shop air or low-pressure water?
A: This reel is built as a high-pressure model, not a standard low-pressure air or water reel. For typical shop air or water service, a P-LP Series reel may be the better match. - Q: Can the hose lock at different working lengths?
A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email<s
