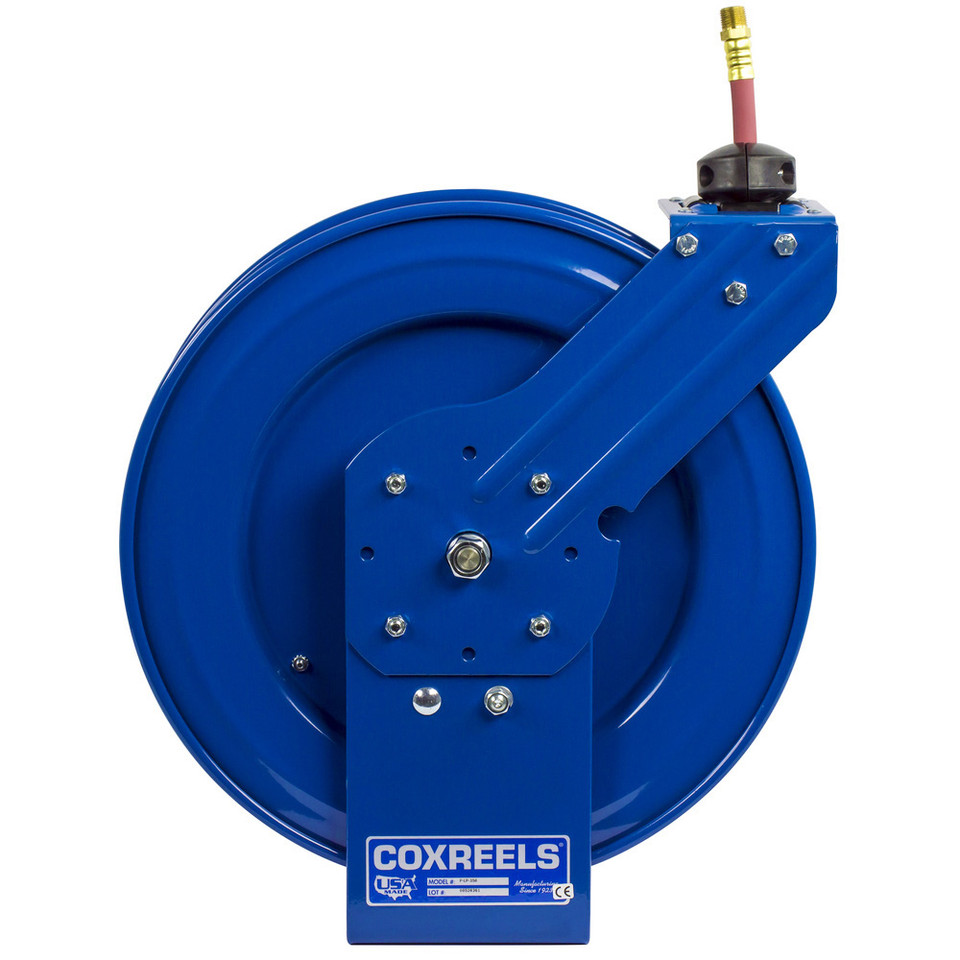

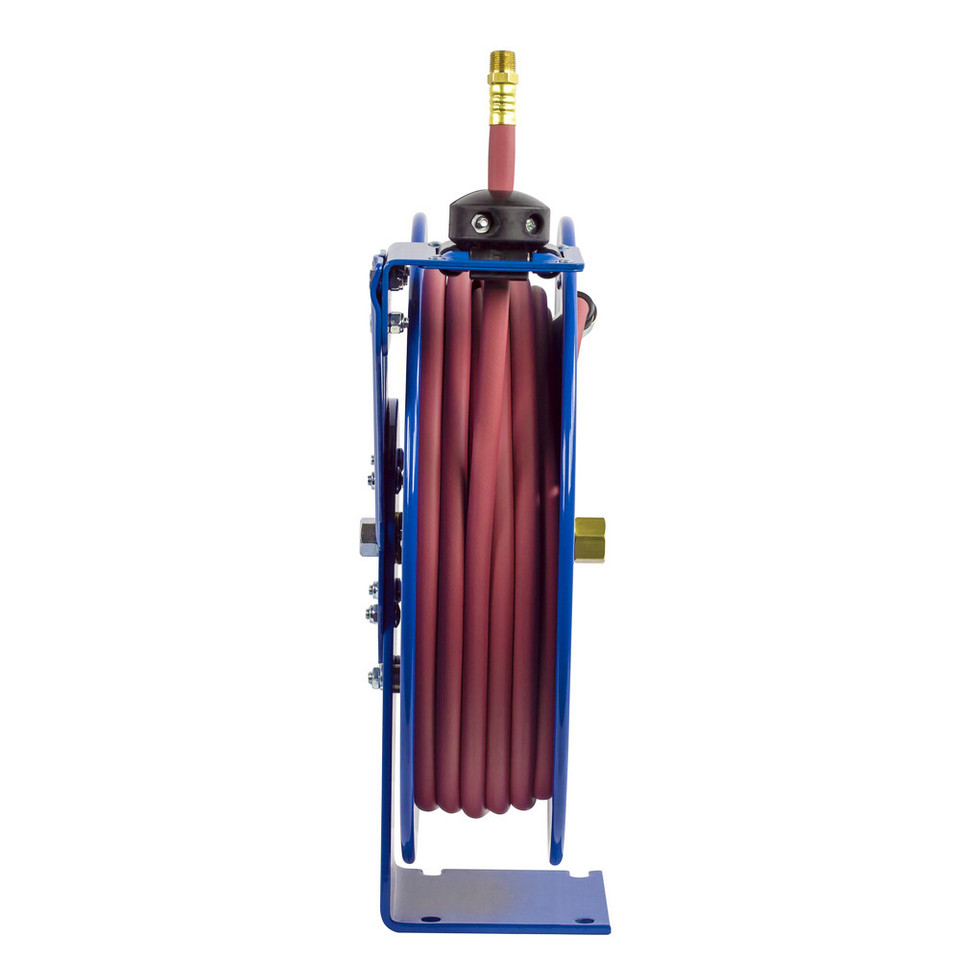

For close-range low-pressure air and water stations that need 1/2" hose without excess length, the Coxreels P-LP-415 Low Pressure spring rewind hose reel keeps hose stored neatly in the P Series platform. This model includes 15 ft of 1/2" I.D. hose and is rated for 300 PSI, making it a compact choice for benches, service bays, fleet shops, garages, facility maintenance areas, and light washdown points where a larger hose diameter is useful but longer hose would create clutter.
The P-LP-415 uses spring rewind, a spring-powered retraction system that returns the hose to the reel after use. A multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish support cleaner hose handling in compact shop, garage, fleet, and maintenance environments.
Type: Low Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-LP-415 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 15 ft | Max Pressure: 300 PSI | Service: Air, Water | Hose Color: Red | Hose Cover: PVC | Hose Tube: PVC | Reinforcement: Yarn | Temperature Range: -15°F to +150°F | Swivel Material: Solid Brass | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 41 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Spring rewind design retracts hose after use to help reduce loose hose around benches, bays, walkways, and service areas.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
- CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in commercial and maintenance settings.
Made in USA:
Applications:
- Shop air stations where 15 ft of 1/2" hose supports compatible low-pressure air tools, blow-off work, and inflation tasks close to the workstation.
- Maintenance benches and fleet service bays where automatic hose return helps keep the immediate work area cleaner between uses.
- Low-pressure water and light washdown points when the 300 PSI rating and -15°F to +150°F hose temperature range match the system requirements.
- Garage, facility, and light industrial workstations that need a larger 1/2" hose diameter without the extra reach of a 25 ft or 50 ft reel.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-LP-415 include hose?
A: Yes. This model includes 15 ft of 1/2" I.D. low-pressure hose and is rated for 300 PSI air and water service. - Q: What is the difference between the P-LP-415 and P-LP-425?
A: The P-LP-415 includes 15 ft of 1/2" hose, while the P-LP-425 includes 25 ft. Choose the P-LP-415 when the workstation only needs short reach and extra hose length would add unnecessary bulk. - Q: How is the P-LP-415 different from a 3/8" P-LP reel?
A: The P-LP-415 uses 1/2" I.D. hose instead of 3/8" hose. Choose the 1/2" model when the application benefits from the larger hose diameter and the shorter 15 ft length fits the workspace. - Q: Can the hose lock at different working lengths?
A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired length instead of having it retract immediately. - Q: Is the P-LP-415 suitable for pressure washing?
A: No. This reel is rated for 300 PSI low-pressure service. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email <a href="mailto:
