Coxreels P-LPL-335 Performance Spring Rewind Hose Reel | P Series | 3/8" Hose Diameter | 35' Hose Length | 300 Max PSI | Less Hose

For low-pressure hose stations that need more reach than a 25 ft reel but less bulk than a 50 ft setup, the Coxreels P-LPL-335 Performance spring rewind hose reel provides compact retractable storage without a factory-installed hose. Part of the P Series, this reel is sized for 3/8" I.D. hose with a 35 ft hose capacity and a 300 PSI maximum pressure rating, giving buyers a reel-only option for compatible air, water, washdown, maintenance, and general low-pressure fluid handling layouts.

The P-LPL-335 uses spring rewind, a spring-powered retraction system that helps return the hose to the reel after use. A multi-position lock ratchet lets the operator stop the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, solid brass 90° full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep hose storage cleaner and more controlled in shop, facility, garage, and service environments.

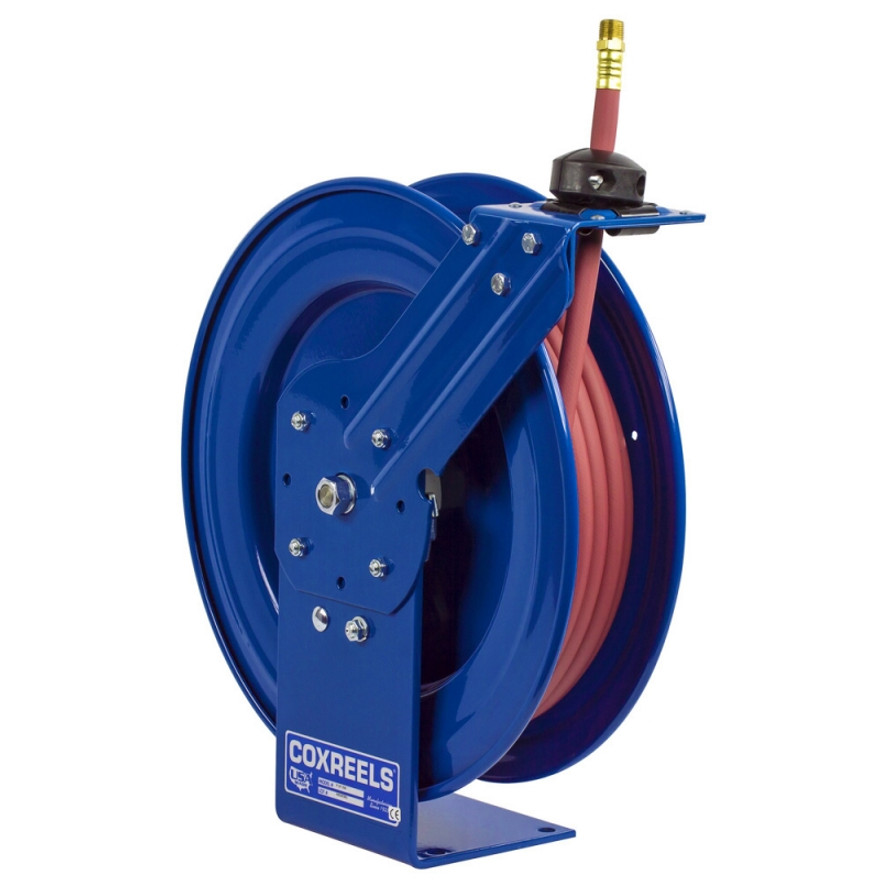

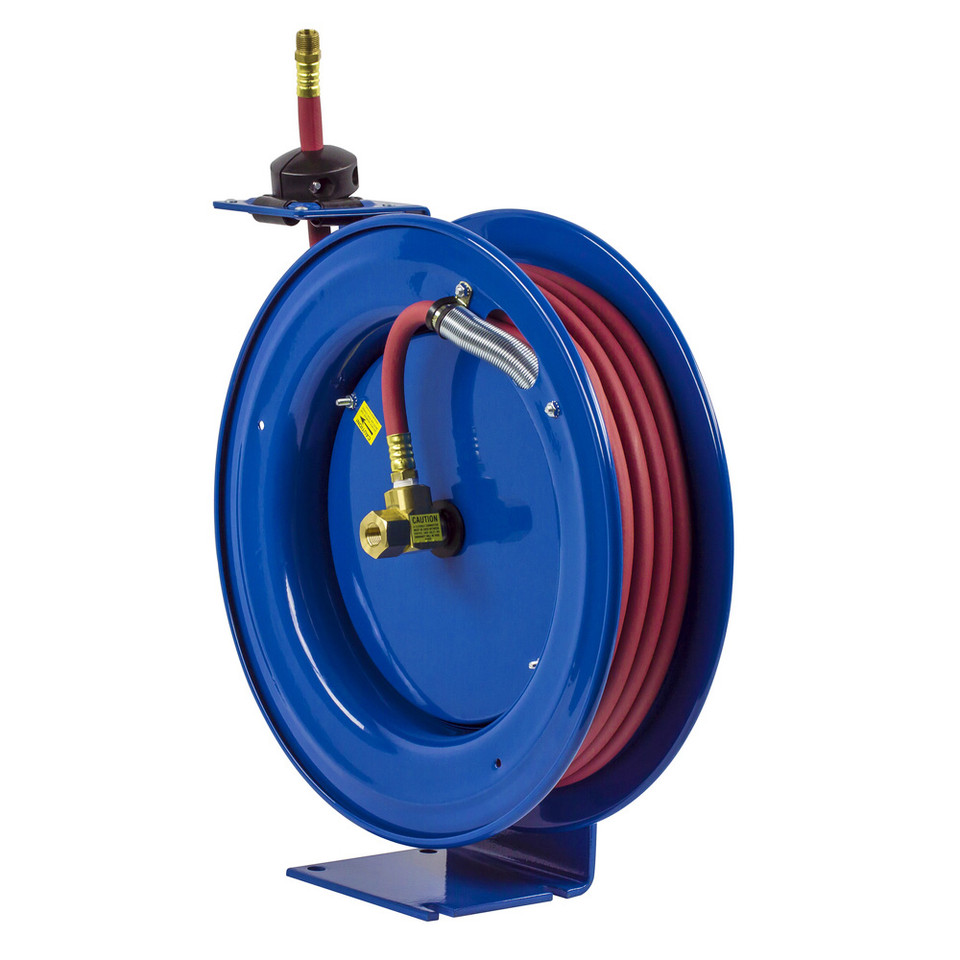

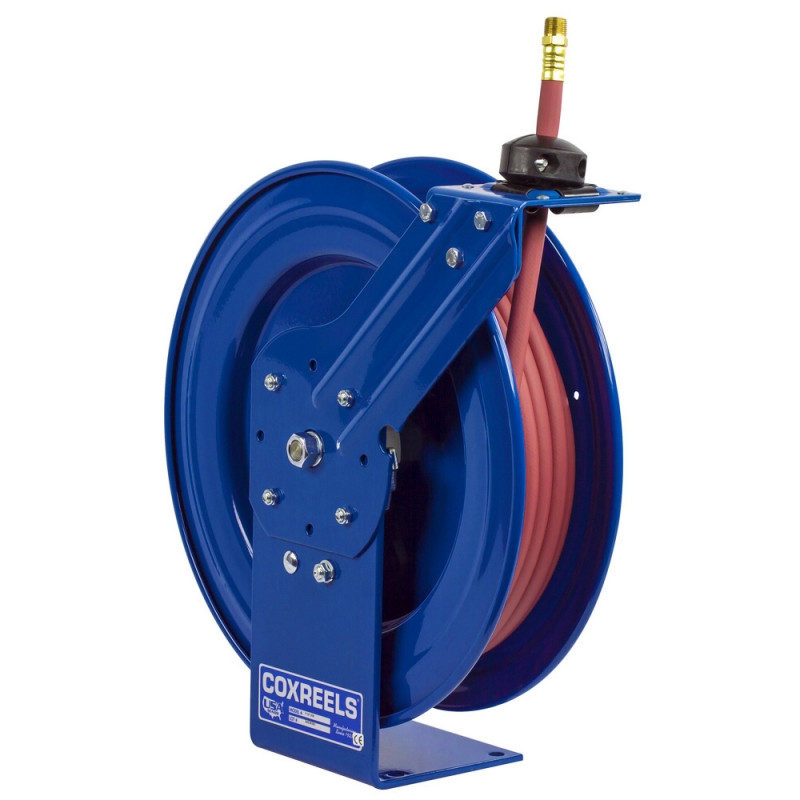

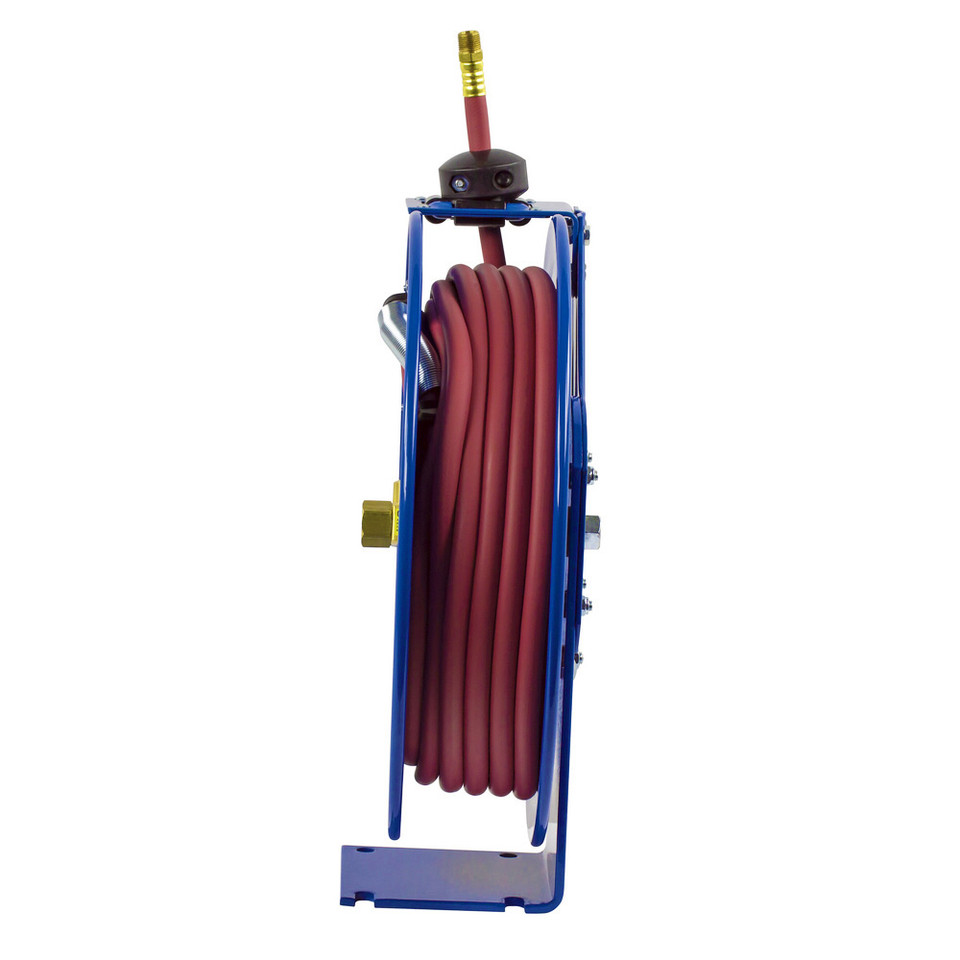

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: P Series | SKU: P-LPL-335 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 34 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• Spring rewind design helps retract compatible hose after use, reducing loose hose around workstations, walkways, benches, and service bays.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
• Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient maintenance.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during payout and rewind.
• Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• CPC powder coat finish, adjustable solid rubber hose stop, and rolled ribbed discs support routine hose handling in shop, maintenance, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Shop air stations where the buyer wants to install a specific 3/8" hose for low-pressure air service.
• Maintenance benches and service bays where spring rewind hose storage helps keep the immediate work area cleaner between jobs.
• Low-pressure water and washdown points when the selected hose, fittings, seals, and pressure rating match the system requirements.
• Garage, fleet, and facility workstations that need moderate hose reach without moving to a 50 ft reel.
• Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.

FAQs:

• Q: Does the Coxreels P-LPL-335 include hose?
  A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed.
• Q: What hose size is this reel built to accept?
  A: The P-LPL-335 is sized for up to 35 ft of 3/8" I.D. hose with a 5/8" hose O.D. Using hose with a different outside diameter may change the amount of hose the reel can hold.
• Q: How is the P-LPL-335 different from the P-LP-335?
  A: The P-LPL-335 is supplied without hose, while the P-LP-335 includes hose. Choose the P-LPL-335 when you want to install your own compatible hose or match hose material to a specific service requirement.
• Q: Can this reel lock the hose at different lengths?
  A: Yes. The multi-position lock ratchet mechanism secures the hose at the desired working length so the operator does not need to hold constant pull tension during use.
• Q: Is this reel suitable for pressure washing?
  A: No. This is a 300 PSI low-pressure reel. For pressure washing, choose a reel and hose assembly rated for the pressure washer's operating pressure.
