For medium-pressure lubrication and hydraulic service areas where the hose needs to be selected separately, the Coxreels P-MPL-425 Medium Pressure spring rewind hose reel provides retractable storage in the P Series platform. This less-hose model is sized for 1/2" I.D. hose with a 25 ft hose capacity and a 2,500 PSI maximum pressure rating, making it a flexible reel-only choice for grease, hydraulic oil, lubrication, fleet maintenance, equipment service, and compatible medium-pressure fluid handling applications.
The P-MPL-425 uses spring rewind, a spring-powered retraction system that returns compatible hose to the reel after use. A multi-position lock ratchet helps hold the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting positions. Its single pedestal steel frame, 1" solid steel axle, lubricated precision bearings, full-flow NPT swivel, nitrile swivel seals, adjustable rubber hose stop, and CPC powder coat finish help keep 1/2" medium-pressure hose installations organized and easier to manage.

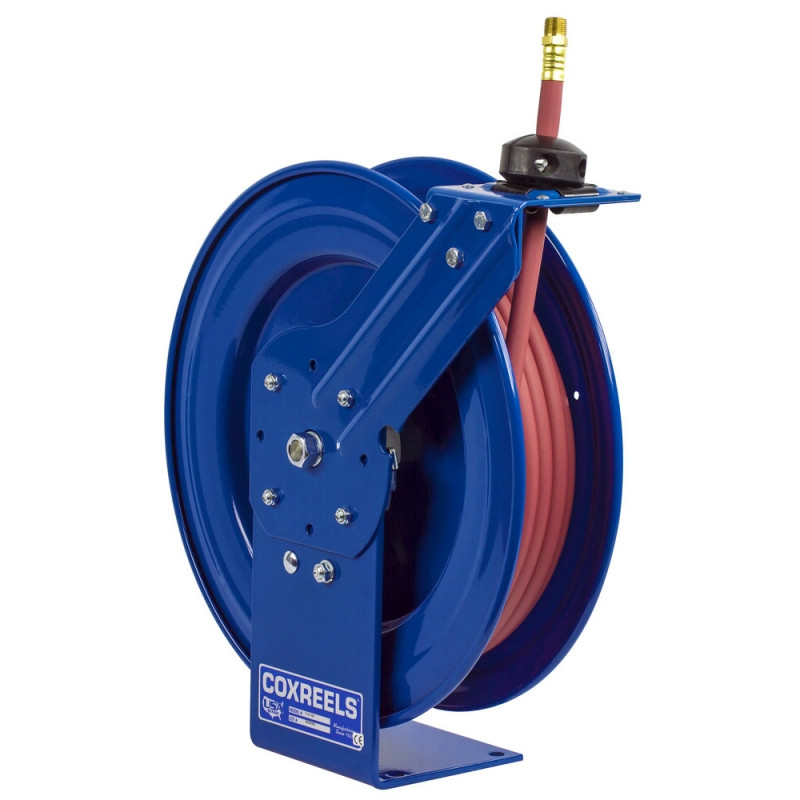

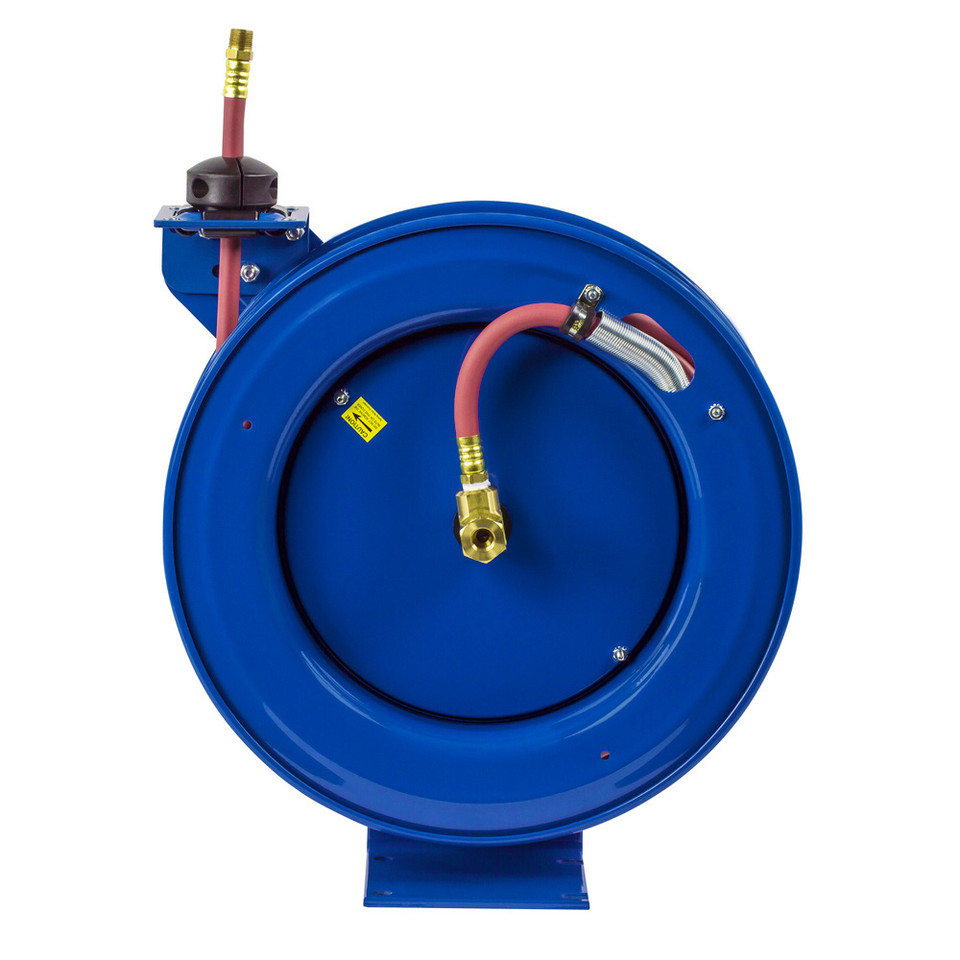

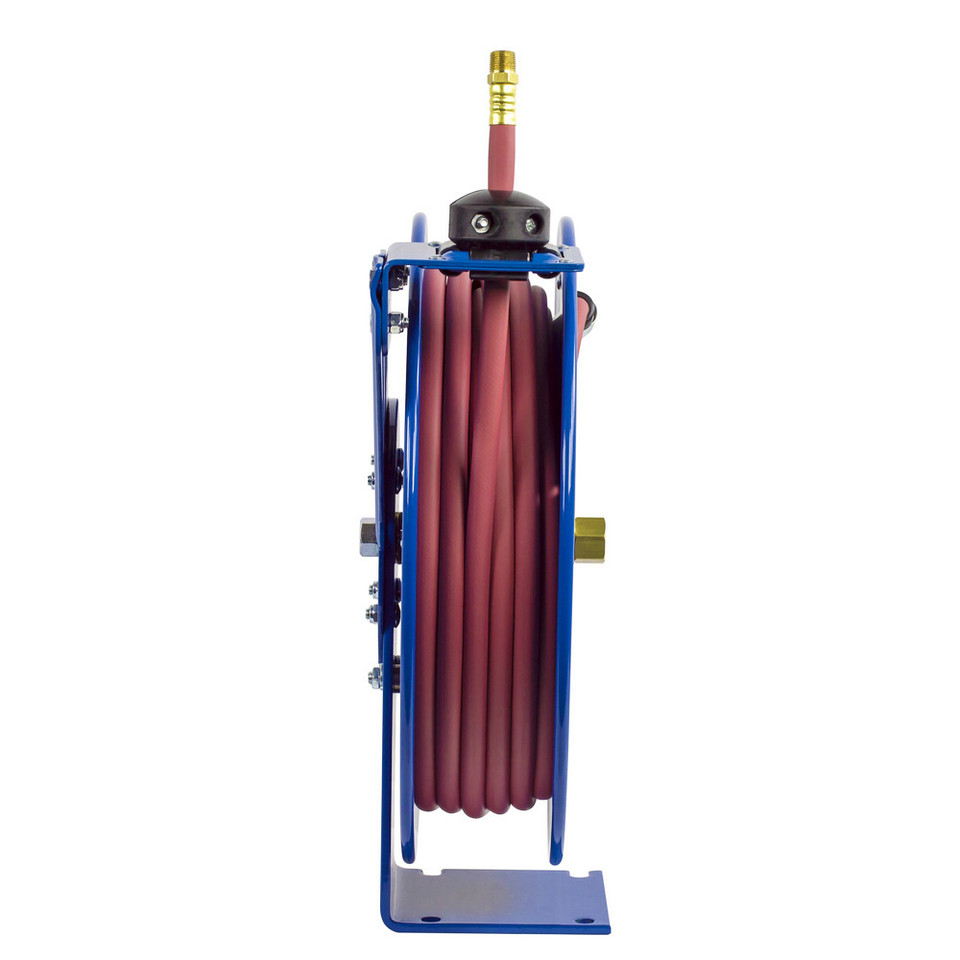

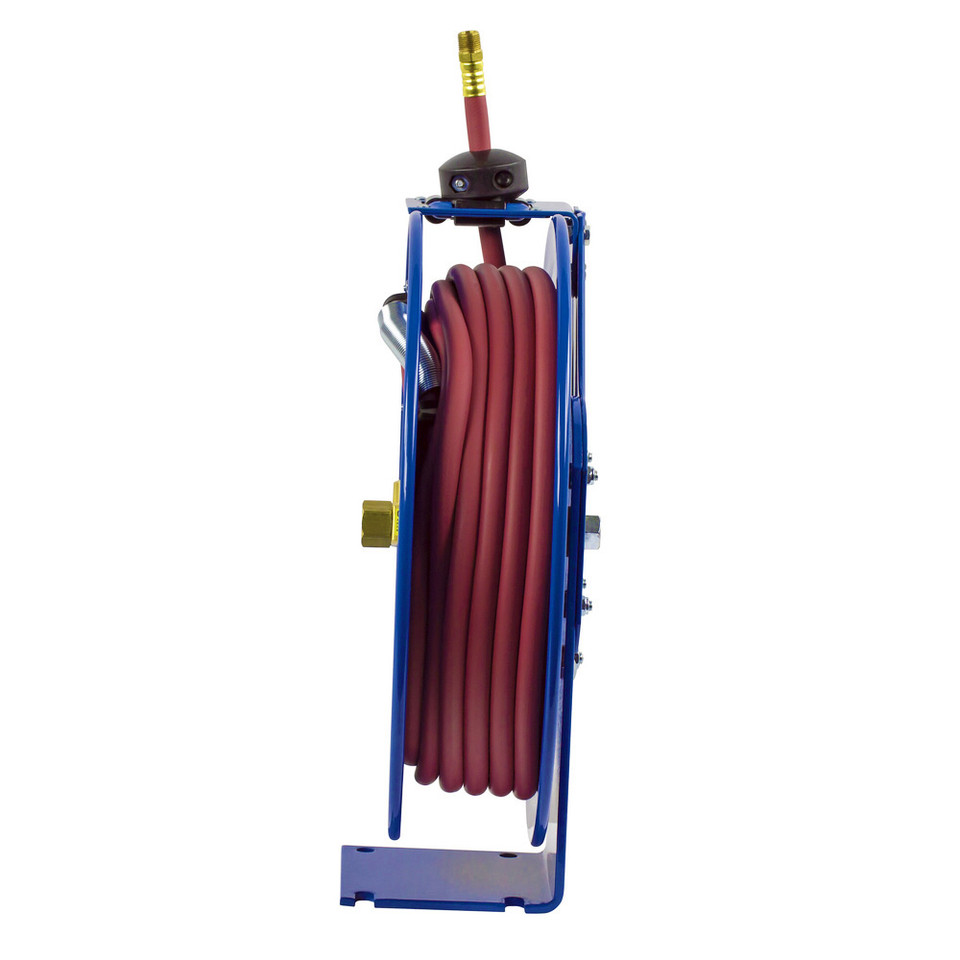

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Medium Pressure Spring Rewind Hose Reel | Series: P Series | SKU: P-MPL-425 | Configuration: Less Hose | Hose Included: No | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Capacity: 25 ft | Max Pressure: 2,500 PSI | Service: Grease, Hydraulic Oil, Lubrication | Swivel Seals: Nitrile | Rewind Type: Spring Rewind | Ship Weight: 42 lb | Overall Dimensions: 7" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y
Features:
- Less-hose configuration allows the buyer to install compatible medium-pressure hose selected for the application, fitting style, fluid compatibility, and replacement preference.
- Spring rewind design retracts compatible hose after use to help reduce loose hose around service bays, vehicle lifts, lubrication points, and maintenance work areas.
- Medium-pressure configuration supports compatible lubrication, grease, and hydraulic oil systems when the installed hose, fittings, fluid requirements, and system pressure match the reel rating.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during use.
- Enclosed factory tuned cartridge-style spring motor is lubricated and removable for safe, convenient service.
- External fluid path uses a full-flow NPT swivel with nitrile swivel seals for fluid transfer through the reel.
- Sturdy single pedestal design with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
- Multi-position guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
Made in USA:
Applications:
- Grease and lubrication stations where 25 ft of 1/2" hose capacity provides controlled reach while allowing hose selection to match the service requirements.
- Hydraulic oil service areas where the selected hose, fittings, and fluid compatibility match the 2,500 PSI reel rating.
- Fleet, truck, and equipment maintenance bays where spring rewind storage helps keep medium-pressure hose routed neatly between service tasks.
- Industrial MRO workstations where a reel-only purchase supports custom hose installation, hose replacement, or standardized hose inventory.
- Wall, floor, ceiling, vehicle, bench, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
FAQs:
- Q: Does the Coxreels P-MPL-425 include hose?
A: No. This is a less-hose model, so it is supplied as the reel only and does not include hose installed. - Q: What hose size is this reel designed to hold?
A: The P-MPL-425 is sized for up to 25 ft of 1/2" I.D. hose with a 13/16" hose O.D. Using hose with a different outside diameter may change the usable hose capacity. - Q: What does MPL mean in the model number?
A: MPL indicates a medium-pressure, less-hose configuration. This reel is rated for 2,500 PSI, but the buyer must install compatible hose and fittings before use. - Q: How is the P-MPL-425 different from the P-MP-425?
A: The P-MPL-425 is supplied without hose, while the P-MP-425 includes hose. Choose the less-hose model when hose material, fitting style, or fluid compatibility needs to be selected separately. - Q: How is the P-MPL-425 different from the P-MPL-430?
A: The P-MPL-425 is sized for 25 ft of hose capacity, while the P-MPL-430 is sized for 30 ft. Choose the 25 ft model when the workstation needs the same 1/2" hose size with less hose to manage.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil.
|
|||||||||
| P-LP-125 | 1/4" | 1/2" | 25 | 300 | 27 | EZ-P-LP-125 | P-LPL-125 | 24 | 1 |
| P-LP-130 | 1/4" | 1/2" | 30 | 300 | 27 | - | P-LPL-130 | 24 | 1 |
| P-LP-135 | 1/4" | 1/2" | 35 | 300 | 28 | EZ-P-LP-135 | P-LPL-135 | 25 | 1 |
| P-LP-140 | 1/4" | 1/2" | 40 | 300 | 38 | - | P-LPL-140 | 34 | 3 |
| P-LP-150 | 1/4" | 1/2" | 50 | 300 | 40 | EZ-P-LP-150 | P-LPL-150 | 35 | 3 |
| P-LP-325 | 3/8" | 5/8" | 25 | 300 | 28 | EZ-P-LP-325 | P-LPL-325 | 25 | 2 |
| P-LP-330 | 3/8" | 5/8" | 30 | 300 | 37 | EZ-P-LP-330 | P-LPL-330 | 33 | 3 |
| P-LP-335 | 3/8" | 5/8" | 35 | 300 | 38 | EZ-P-LP-335 | P-LPL-335 | 34 | 3 |
| P-LP-340 | 3/8" | 5/8" | 40 | 300 | 39 | - | P-LPL-340 | 34 | 3 |
| P-LP-350 | 3/8" | 5/8" | 50 | 300 | 43 | EZ-P-LP-350 | P-LPL-350 | 36 | 3 |
| P-LP-415 | 1/2" | 3/4" | 15 | 300 | 41 | - | P-LPL-415 | 38 | 4 |
| P-LP-425 | 1/2" | 3/4" | 25 | 300 | 44 | - | P-LPL-425 | 39 | 4 |
| P-LP-430 | 1/2" | 3/4" | 30 | 300 | 45 | EZ-P-LP-430 | P-LPL-430 | 40 | 4 |
| P-LP-450 | 1/2" | 3/4" | 50 | 300 | 48 | EZ-P-LP-450 | P-LPL-450 | 43 | 4 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 212°F (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-MP-320 | 3/8" | 1-1/16" | 20 | 3,000 | 46 | - | P-MPL-320 | 41 | 4 |
| P-MP-325 | 3/8" | 1-1/16" | 25 | 3,000 | 49 | - | P-MPL-325 | 42 | 4 |
| P-MP-330 | 3/8" | 1-1/16" | 30 | 3,000 | 51 | - | P-MPL-330 | 43 | 4 |
| P-MP-335 | 3/8" | 1-1/16" | 35 | 3,000 | 52 | - | P-MPL-335 | 43 | 4 |
| P-MP-420 | 1/2" | 13/16" | 20 | 2,500 | 47 | - | P-MPL-420 | 41 | 4 |
| P-MP-425 | 1/2" | 13/16" | 25 | 2,500 | 49 | EZ-P-MP-425 | P-MPL-425 | 42 | 4 |
| P-MP-430 | 1/2" | 13/16" | 30 | 2,500 | 51 | EZ-P-MP-430 | P-MPL-430 | 43 | 4 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 212°F. (If used with water, synthetic fluids 135°F max.)
|
|||||||||
| P-HP-120 | 1/4" | 9/16" | 20 | 5,000 | 46 | - | P-HPL-120 | 41 | 4 |
| P-HP-125 | 1/4" | 9/16" | 25 | 5,000 | 48 | EZ-P-HP-125 | P-HPL-125 | 42 | 4 |
| P-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 50 | - | P-HPL-130 | 43 | 4 |
| P-HP-135 | 1/4" | 9/16" | 35 | 5,000 | 51 | - | P-HPL-135 | 43 | 4 |
| P-HP-320 | 3/8" | 1-1/16" | 20 | 4,000 | 47 | - | P-HPL-320 | 41 | 4 |
| P-HP-325 | 3/8" | 1-1/16" | 25 | 4,000 | 49 | EZ-P-HP-325 | P-HPL-325 | 42 | 4 |
| P-HP-330 | 3/8" | 1-1/16" | 30 | 4,000 | 51 | - | P-HPL-330 | 43 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
