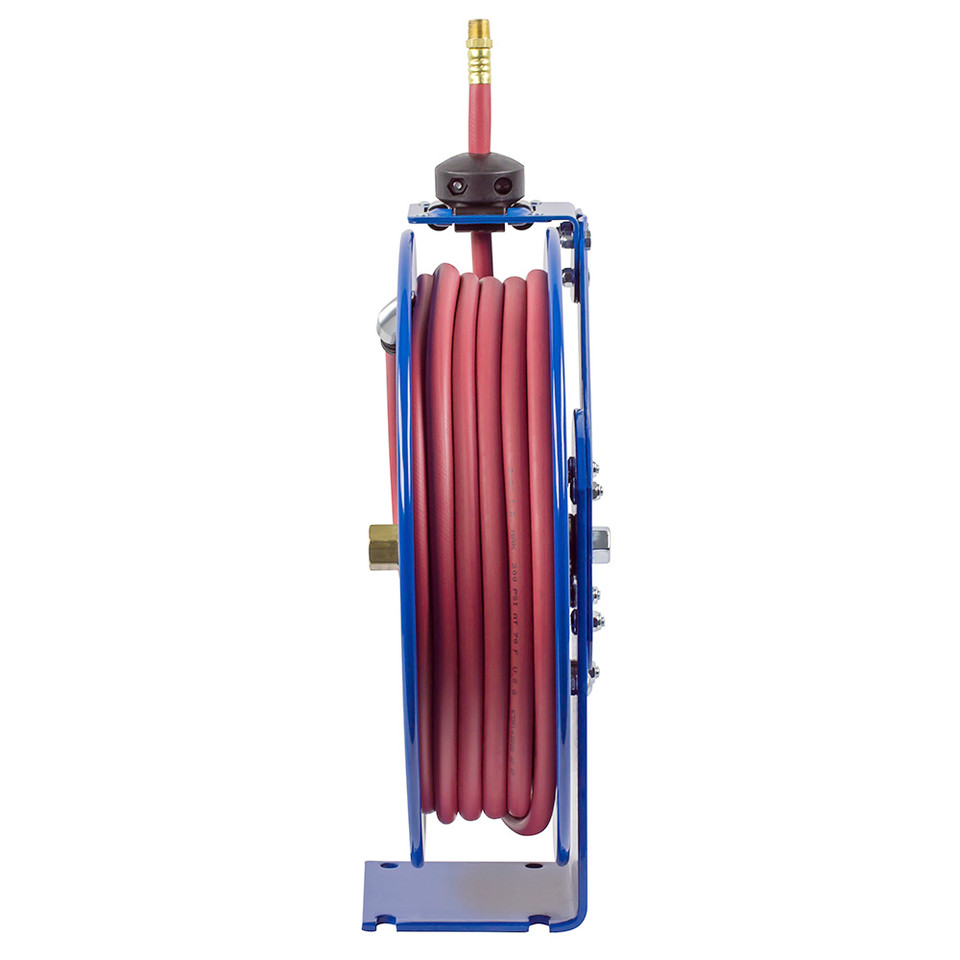

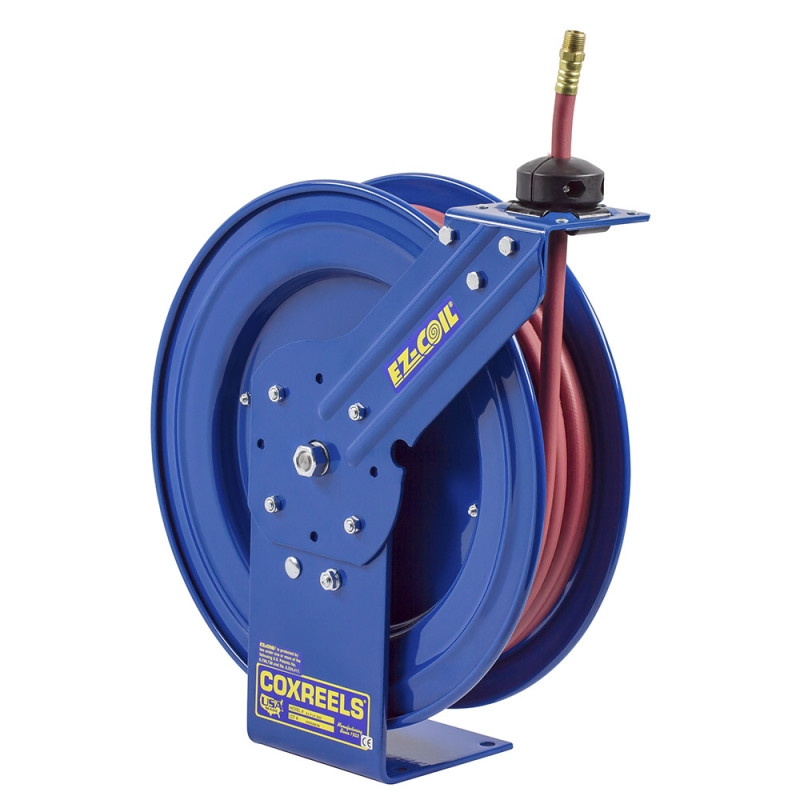

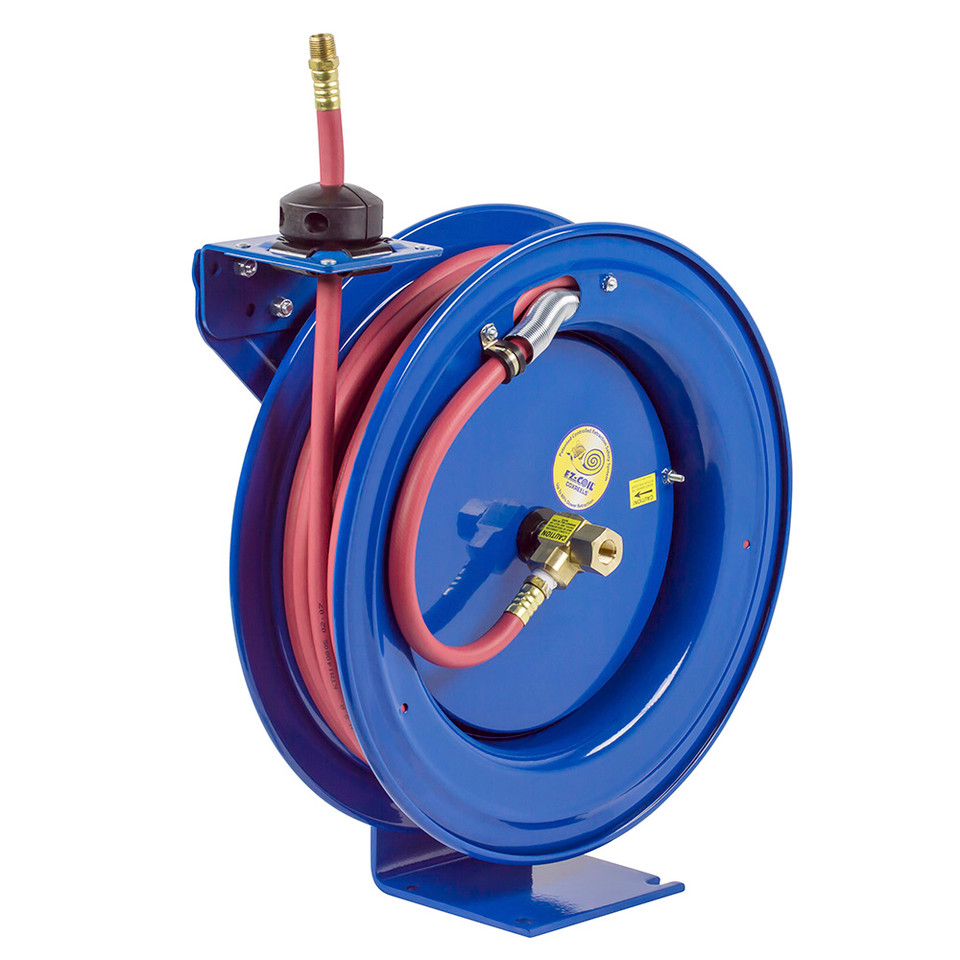

Coxreels EZ-P-LP-350 Performance Spring Rewind Hose Reel | EZ-P Series | 3/8" Hose Diameter | 50' Hose Length | 300 Max PSI

For shops, service bays, washdown stations, and mobile work areas where hose needs to retract more slowly and safely, the Coxreels EZ-P-LP-350 Performance spring rewind hose reel adds Coxreels' EZ-Coil controlled retraction system to the standard P Series platform. Part of the EZ-P Series, this model includes 50 ft of 3/8" I.D. low-pressure hose and is rated for 300 PSI, making it a practical air and water reel for daily maintenance, facility service, and general shop use.

EZ-Coil is Coxreels' patented safety system that retracts the hose up to 80% slower than conventional spring driven reels, helping reduce hose whip and giving the operator more control during rewind. The multi-position lock ratchet secures the hose at the desired working length, while the adjustable guide arm supports wall, floor, ceiling, vehicle, and overhead mounting. A solid 1/4" steel base, 1" solid steel axle, lubricated precision bearings, brass 90° full-flow NPT swivel, nitrile swivel seals, and CPC powder coat finish help this reel stand up to everyday commercial and maintenance use.

Type: EZ-Coil Spring Rewind Hose Reel | Series: EZ-P Series | SKU: EZ-P-LP-350 | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Service: Air, Water | Maximum Temperature: 150°F | Swivel Seals: Nitrile | Rewind Type: EZ-Coil Spring Rewind | Ship Weight: 43 lb | Overall Dimensions: 6.75" W x 18.63" H x 17.13" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y

Features:

• EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels.
• Spring rewind design helps return hose neatly to the reel after use, reducing loose hose around work areas.
• Multi-position lock ratchet mechanism secures the hose at the desired working length.
• Enclosed, factory tuned cartridge-style spring motor is lubricated and removable for maintenance.
• Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support reliable retraction and locking.
• External fluid path uses a machined solid brass 90° full-flow NPT swivel inlet with nitrile swivel seals.
• Sturdy single pedestal reel with solid one-piece heavy gauge 1/4" steel base and support post provides mounting stability.
• Multi-position guide arm adjusts to wall, floor, ceiling, vehicle, and overhead mounting positions.

Made in USA:

2 Year Warranty

Applications:

• Shop air stations where 50 ft of 3/8" hose supports inflating, blow-off work, and connection to compatible low-pressure air tools or accessories.
• Maintenance bays and service departments where slower controlled retraction helps reduce hose whip during rewind.
• Low-pressure water and washdown points where the 300 PSI pressure rating and 150°F maximum temperature match the application.
• Vehicle, cart, bench, wall, floor, ceiling, or overhead installations where the adjustable guide arm helps route hose payout from the correct direction.
• Facility, garage, and light industrial workspaces that need a hose-included spring rewind reel for cleaner hose storage between tasks.

FAQs:

• Q: Does the Coxreels EZ-P-LP-350 include hose?
  A: Yes. This model includes 50 ft of 3/8" I.D. low-pressure hose and is rated for 300 PSI air and water service.
• Q: What makes the EZ-P-LP-350 different from the standard P-LP-350?
  A: The EZ-P-LP-350 includes Coxreels' EZ-Coil controlled retraction system. It retracts the hose up to 80% slower than a conventional spring driven reel, helping reduce sudden snap-back during rewind.
• Q: Can this reel lock the hose at different lengths?
  A: Yes. The multi-position lock ratchet mechanism allows the operator to stop the hose at the desired working length instead of having it retract immediately.
• Q: Can this reel be used for pressure washing?
  A: No. The EZ-P-LP-350 is rated for 300 PSI low-pressure air and water service. For pressure washing, choose a hose reel and hose assembly rated for the pressure washer's operating pressure.
• Q: What mounting orientations are supported?
  A: The guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions. The reel should always be mounted securely to a suitable surface with enough clearance for hose payout and rewind.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
