Coxreels P-MPL-325 Medium Pressure Spring Rewind Hose Reel | P Series | 3/8" Hose Diameter | 25' Hose Length | 3000 Max PSI | less hose

When a single-station medium-pressure reel needs a little more reach without stepping up to a wall-spanning unit, the Coxreels P-MPL-325 delivers 25 feet of 3/8-inch Hose Capacity at 3,000 PSI — five extra feet over the P-MPL-320 for the same pressure class and bore size. It's a P Series Spring Rewind Hose Reel (a self-retracting reel that pulls hose back automatically when released) shipped without hose so you can fit your own 3/8-inch I.D. line with an 11/16-inch O.D. The 3,000 PSI maximum working pressure (a tenfold jump over low-pressure shop-air reels) covers high-pressure water, hydraulic oil supply, and pressure washing duty at temperatures up to 212°F. The reel is sized for SAE 100R16 #1 single-wire-braid hose specs — a reinforced construction that handles cycling pressure without ballooning or kinking under load. The added 5 feet over the P-MPL-320 is the practical difference between reaching one workstation and reaching around it. The "less hose" configuration lets you match hose material, fittings, and color to your specific service.

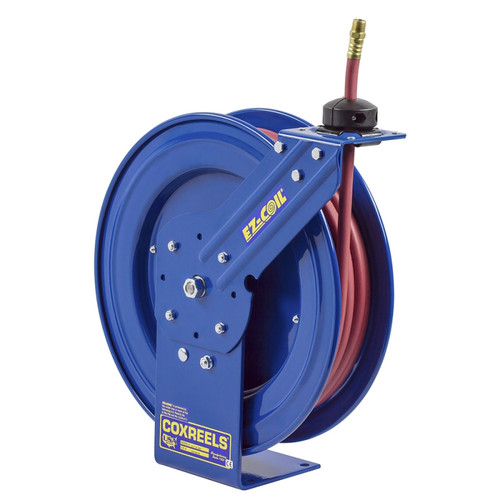

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Hose Reel | Series: P | Configuration: Less Hose | Pressure Class: Medium Pressure | Hose I.D. (in.): 3/8 | Hose O.D. (in.): 11/16 | Hose Capacity (ft.): 25 | Max PSI: 3,000 | Max Temperature (°F): 212 | Service: Air / Water / Oil | Compatible Hose Standard: SAE 100R16 #1 (single wire braid) | Approx. Weight (lbs.): 42 | Size Index: 4

Features:

• Spring rewind retraction returns the hose to the reel automatically after use
• 3,000 PSI maximum working pressure for medium-pressure water, oil, and pressure-wash applications
• 212°F temperature rating supports hot water service (135°F max with synthetic fluids)
• Single-wire-braid hose path matches SAE 100R16 #1 reinforced hose specs
• Shipped less hose — fit your own 3/8-inch I.D. hose with 11/16-inch O.D. up to 25 feet
• 25-foot capacity for medium-reach work zones — one step up from the 20-foot P-MPL-320
•

Made in USA:

2 Year Warranty

Applications:

• Pressure washing & wash-down stations — hot- and cold-water pressure-wash bays where the operator needs to circle a vehicle, equipment, or wash pad
• Hydraulic service & test benches — oil supply drops for hydraulic test stands and component flushing stations with multiple test ports within a 25-foot radius
• Fleet & heavy equipment service — high-pressure fluid delivery covering both sides of a service bay or the working perimeter of a piece of equipment
• Industrial maintenance & MRO — medium-pressure utility drops in plants, foundries, and fabrication shops where standard 300 PSI reels are underrated
• Mobile service trucks & trailers — truck-mounted pressure-wash and fluid-service reels for field service rigs and mobile detailing operations

FAQs:

• Q: Why does the model say "less hose" — what's in the box? A: "Less hose" means the reel ships bare without any hose installed. You purchase the hose separately and fit it to the reel. This lets you select hose material, fitting type, and color for your specific service. If you want a complete unit with the standard SAE 100R16 #1 hose pre-installed, the matching model is the P-MP-325.
• Q: What hose specs do I need to match? A: Fit a hose with 3/8-inch inside diameter, 11/16-inch outside diameter, and up to 25 feet in length. Coxreels furnishes the matching with-hose reel using SAE 100R16 #1 single-wire-braid hose, so use that standard (or better) to meet the 3,000 PSI rating and 212°F temperature limit. The 212°F maximum drops to 135°F when running synthetic fluids — confirm hose compatibility with your specific fluid.
• Q: Should I choose the 20-foot P-MPL-320 or the 25-foot P-MPL-325? A: Both reels are identical in pressure class (3,000 PSI), bore (3/8-inch I.D.), and service rating — only the hose capacity differs. Choose the 20-foot P-MPL-320 for fixed single-station work where extra hose creates clutter. Choose the 25-foot P-MPL-325 when the operator needs to walk a wider perimeter — around a vehicle, across both sides of a service bay, or to multiple test ports on a hydraulic bench.
• Q: What's the difference between low-pressure and medium-pressure P Series reels? A: Low-pressure P Series reels (P-LP / P-LPL models) cap at 300 PSI and 150°F — sized for shop air, water, and oil at standard utility pressures. Medium-pressure reels (P-MP / P-MPL) step up to 3,000 PSI and 212°F, with a reinforced hose path matched to single-wire-braid hose. Choose medium-pressure for pressure washing, hydraulic supply, and any service above 300 PSI.
• Q: Can this reel handle fuel or gasoline? A: No — the P-MPL-325 is rated for air, water, and oil service only. For fuel delivery, select a Coxreels reel built with fuel-compatible seals. Using this reel with gasoline, diesel, or E85 can damage the swivel and create a leak hazard.

Looking for more information about the Coxreels Hose Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Hose Reels, please call (800) 608-5210 or email info@intlairtool.com
