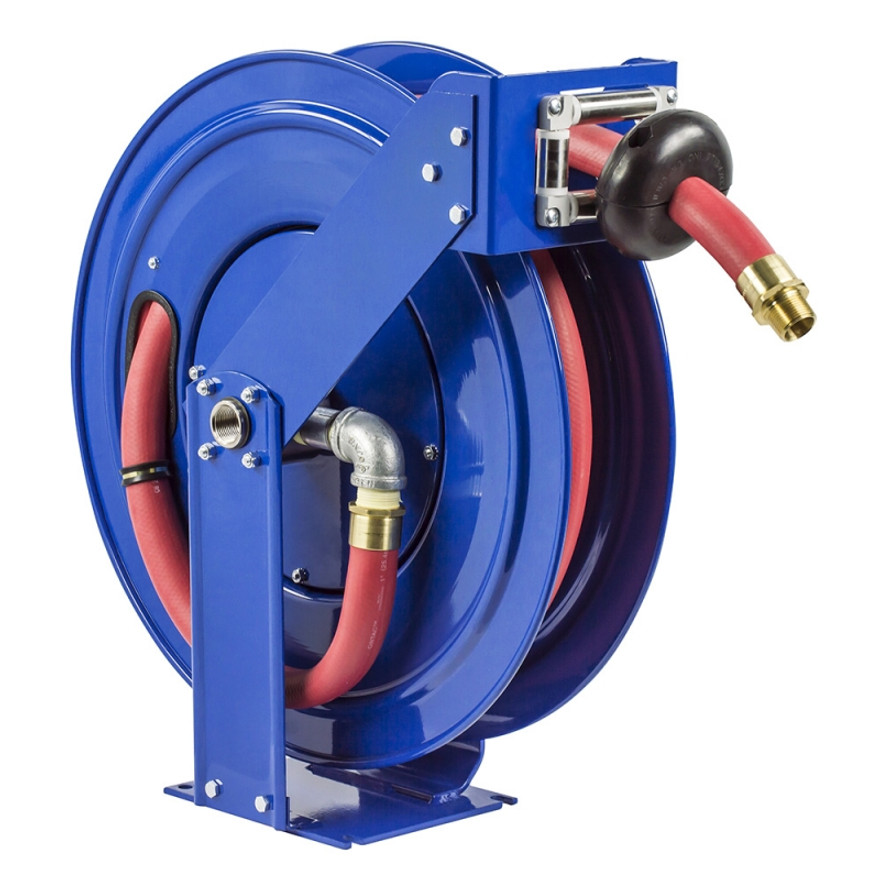

For mobile fuel delivery and bulk dispensing work that needs a 1" hose with extra reach, the Coxreels TSHF-N-650 Fuel T Series spring rewind hose reel keeps hose payout controlled and storage organized between transfers. This model includes a 1" I.D. fuel dispensing hose with a 50 ft hose length and 300 PSI maximum pressure rating, giving fuel/lube trucks, tank trucks, fuel storage systems, and ground support equipment a larger-diameter hose package for compatible non-aromatic fuel service.
The TSHF-N-650 is built on Coxreels' Fuel T Series dual pedestal platform with Super Hub triple axle support, meaning the reel uses a reinforced three-point support structure to reduce vibration and strengthen the reel during vehicle-mounted and off-road use. The supplied fuel hose is intended for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil, with a catalog-listed hose temperature range of -20°F to +190°F. A multi-position lock ratchet secures the hose at the selected working length, while the enclosed cartridge-style spring motor retracts the hose after dispensing.
Type: Spring Rewind Fuel Hose Reel | Series: Fuel T Series | Model: TSHF-N-650 | Hose Included: Yes | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Length: 50 ft | Max Pressure: 300 PSI | Fuel Compatibility: Non-Aromatic Fuels | Swivel: Electroless Nickel Plated Steel on 1" Models | Swivel Seals: Nitrile | Approx. Weight: 98 lbs | Size Index: 3
Features:
- Fuel dispensing hose is designed to convey non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- 1" hose I.D. supports larger-diameter fuel delivery than 3/4" Fuel T Series configurations.
- 50 ft hose length provides extended reach around fuel trucks, storage tanks, dispensing points, and service areas.
- 300 PSI maximum pressure rating supports compatible low-pressure fuel dispensing applications.
- Electroless nickel plated steel swivel is specified on 1" models for fuel dispensing service.
- Nitrile swivel seals are used in the Fuel Series reel construction.
- Dual pedestal frame with Coxreels Super Hub triple axle support helps improve reel stability in mobile applications.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- Stainless steel rollers on 3/4" and 1" models help guide hose payout and rewind.
- Solid one-piece, heavy gauge 1/4" steel base and support posts provide a stable mounting structure.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fuel/lube trucks dispensing diesel, kerosene, fuel oil, or heating oil in fleet maintenance and field service operations.
- Tank trucks and bulk liquid handling vehicles requiring a spring rewind reel for organized fuel hose storage.
- Fuel storage and dispensing systems where a 1" hose and 50 ft reach are needed around pumps, tanks, or transfer points.
- Aircraft refueling and ground support operations using compatible non-aromatic fuel dispensing setups.
- Marine, ship refueling, offshore, and vehicle refueling locations where hose storage must stay controlled between transfers.
- Utility, mechanic, and service vehicles needing a truck-mount style fuel hose reel for mobile delivery work.
FAQs:
- Q: Does the Coxreels TSHF-N-650 include the hose?
A: Yes. The TSHF-N-650 is supplied with a 1" I.D. x 50 ft fuel dispensing hose. It is not the less-hose TSHL-N-650-BXN model. - Q: What fuels is this reel intended to handle?
A: The Fuel Series hose is designed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. Do not assume compatibility with aromatic fuels unless the reel is a catalog-listed -GS model or the application is confirmed by Coxreels. - Q: What is the difference between TSHF-N-650 and TSHF-N-635?
A: Both models use a 1" I.D. fuel dispensing hose and are rated to 300 PSI. The TSHF-N-650 includes 50 ft of hose, while the TSHF-N-635 includes 35 ft of hose. - Q: Why choose a 1" fuel hose reel instead of a 3/4" model?
A: A 1" hose is typically selected when the fuel transfer setup calls for larger hose capacity than a 3/4" reel. The exact flow rate depends on the pump, fittings, fuel type, and system layout. - Q: Can the guide arm be repositioned?
A: Yes. The Fuel T Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the hose payout direction to match the installation.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
