Built for fuel storage, dispensing, and mobile service systems, the Coxreels TSHL-N-650-BXN Supreme Duty Spring Rewind Hose Reel provides controlled hose payout and rewind for low-pressure fuel transfer setups. This T-Fuel Series reel is configured for 1" I.D. hose with up to 50 ft of hose capacity and a 300 PSI maximum pressure rating, giving fuel/lube trucks, tank trucks, and refueling stations a compact reel format for managing larger-diameter hose without leaving loose hose on the ground.
The T Series dual-pedestal frame adds the support needed for truck-mounted and high-use installations, while the spring rewind mechanism retracts hose automatically after use. Nitrile swivel seals are used for fuel dispensing applications, and the reel is intended for non-aromatic fuel service such as diesel, kerosene, fuel oil, and heating oil when paired with compatible hose and fittings.

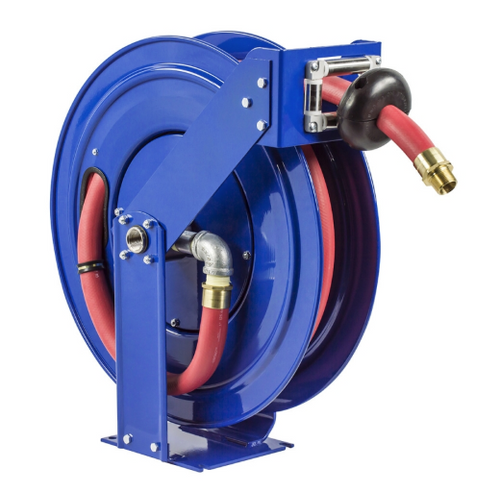

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Fuel Hose Reel | Series: T-Fuel Series | Configuration: Less Hose | Hose I.D.: 1" | Max Hose O.D.: 1-1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Swivel: Electroless nickel-plated steel 90° full-flow NPT swivel on 1" models | Swivel Seals: Nitrile | Overall Dimensions: 12" W x 25-1/2" H x 24" L | Base: 8" x 9" | Mounting Pattern: 7" x 8" | Approx. Weight: 77 lbs
Features:
- Supreme-duty dual-pedestal T Series frame provides added support for vehicle, floor, wall, ceiling, and overhead mounting layouts.
- Spring rewind operation helps retract hose after fuel transfer, reducing loose hose on shop floors, service trucks, and dispensing areas.
- Machined 90° full-flow NPT swivel supports fuel dispensing flow while helping reduce restriction through the reel connection.
- Nitrile swivel seals are used for fuel dispensing applications involving compatible non-aromatic fuels.
- Enclosed cartridge-style spring motor is factory tuned and removable for safer, more convenient service.
- Multi-position lock ratchet mechanism secures hose at the desired working length during fueling or transfer tasks.
- CNC-spun ribbed discs with rolled edges help protect the hose path and add structural strength to the reel assembly.
- CPC powder coat finish helps resist chips and rust in shop, fleet, and mobile service environments.
Made in USA:
Applications:
- Fuel/lube trucks used for field service, equipment refueling, and mobile maintenance routes.
- Tank trucks and bulk liquid handling systems where controlled hose storage is needed between fuel transfers.
- Fuel storage and dispensing systems handling compatible non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil.
- Ground support and aircraft refueling operations where 1" hose capacity and spring rewind hose control are required.
- Fleet maintenance yards, agricultural service areas, and construction equipment fueling stations using low-pressure fuel delivery hose.
FAQs:
- Q: What does less hose mean on the TSHL-N-650-BXN?
A: Less hose means the reel is supplied without hose installed. The buyer must provide compatible 1" I.D. fuel hose separately and must not exceed the listed 1-1/2" maximum hose outside diameter. - Q: What fuels can this reel be used with?
A: Coxreels lists the Fuel Series for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Always confirm hose, seal, and fitting compatibility with the fluid being dispensed before installation. - Q: Is this reel suitable for gasoline or aromatic fuels?
A: This model is listed for non-aromatic fuel service. Coxreels identifies -GS models for aromatic fuel hose applications, so confirm the correct reel and hose package before using the reel with gasoline or aromatic fuels. - Q: Can this reel be mounted on a service truck?
A: Yes, the T Series frame is commonly used in vehicle and fuel/lube truck applications. The guide arm can be positioned for multiple mounting orientations, but the mounting surface must support the reel, hose, and operating loads. - Q: What hose size should be used with this reel?
A: This reel is sized for 1" I.D. hose with a listed 1-1/2" maximum hose O.D. and 50 ft capacity. Using a larger hose O.D. may reduce capacity or interfere with proper winding.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
