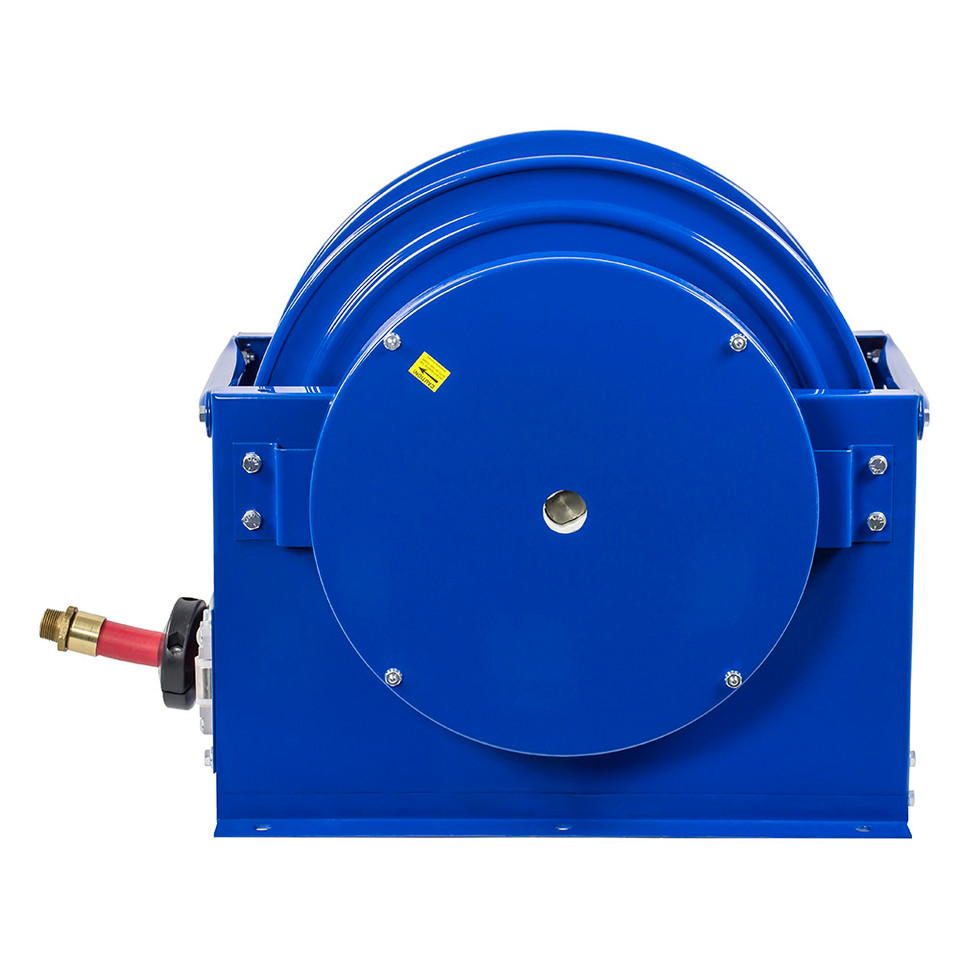

When fuel dispensing work requires a 1" hose with longer reach than a 50 ft reel, the Coxreels SLPF-675 Single Hose Spring Rewind Hose Reel provides organized hose handling in the SP-Fuel Series box-style frame. This model includes a 1" I.D. fuel dispensing hose with a 75 ft hose length and 300 PSI maximum pressure rating, making it a practical option for fuel/lube trucks, tank trucks, bulk dispensing systems, aircraft refuelers, and fuel storage installations handling compatible non-aromatic fuels.
The SLPF-675 is built on Coxreels' SP Series spring rewind platform, which is designed for single product delivery applications requiring larger hose diameters and added frame support. The supplied fuel hose is intended for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil, with a catalog-listed hose temperature range of -20°F to +190°F. Its 1" configuration uses an electroless nickel plated steel 90° swivel, while the spring rewind mechanism and lock ratchet help control hose payout, working length, and return between fuel transfers.
Type: Single Hose Spring Rewind Fuel Hose Reel | Series: SP-Fuel Series | Model: SLPF-675 | Hose Included: Yes | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Length: 75 ft | Max Pressure: 300 PSI | Fuel Compatibility: Non-Aromatic Fuels | Swivel: Electroless Nickel Plated Steel 90° Swivel | Swivel Seals: Nitrile | Approx. Weight: 193 lbs | Size Index: 11
Features:
- Fuel dispensing hose is designed to convey non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- 1" hose I.D. supports larger fuel transfer hose capacity than 3/4" SP-Fuel Series configurations.
- 75 ft hose length provides extended reach around fuel trucks, storage tanks, pumps, aircraft service areas, and transfer points.
- 300 PSI maximum pressure rating supports compatible low-pressure fuel dispensing applications.
- Electroless nickel plated steel 90° swivel is specified for 1" models in the Fuel Series construction.
- Nitrile swivel seals are specified for Fuel Series reel service.
- SP Series box-style frame with reinforced steel cross supports provides added strength and stability for larger hose storage.
- Reel adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- Heavy gauge 1/4" steel base supports stable mounting in stationary or vehicle-mounted applications.
- Long-lasting self-lubricated flange bearings support smooth reel rotation during hose payout and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide and protect the hose during operation.
- Cast iron lock ring with non-sparking bronze pawl secures hose at the selected working length.
Made in USA:
Applications:
- Fuel/lube trucks dispensing diesel, kerosene, fuel oil, or heating oil where a 1" hose and 75 ft reach are needed.
- Tank trucks and bulk liquid handling vehicles requiring organized hose storage in a reinforced box-style reel.
- Fuel storage and dispensing systems where the reel may be mounted farther from pumps, tanks, or transfer points.
- Aircraft refueling and ground support operations using compatible non-aromatic fuel dispensing setups.
- Fleet yards, vehicle refueling areas, and maintenance facilities managing larger fuel hose around service equipment.
- Marine, ship refueling, offshore, and petroleum handling locations where long-reach hose storage must remain controlled between transfers.
FAQs:
- Q: Does the Coxreels SLPF-675 include the hose?
A: Yes. The SLPF-675 is supplied with a 1" I.D. x 75 ft fuel dispensing hose. It is not the less-hose SLPL-675 model. - Q: What fuels is this hose reel intended to handle?
A: The Fuel Series hose is designed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. Do not assume compatibility with aromatic fuels unless the reel is a catalog-listed -GS model or the application is confirmed by Coxreels. - Q: What is the difference between SLPF-675 and SLPF-650?
A: Both are SP-Fuel Series reels with 1" I.D. hose and a 300 PSI rating. The SLPF-675 includes 75 ft of hose, while the SLPF-650 includes 50 ft of hose. - Q: How is SLPF-675 different from SLPL-675?
A: The SLPF-675 includes the 75 ft fuel hose installed on the reel. The SLPL-675 is the less-hose version and is supplied as the reel without hose installed. - Q: Why choose the SP-Fuel Series for a 1" x 75 ft hose reel?
A: The SP-Fuel Series uses a reinforced box-style frame suited to larger hose diameters and longer hose storage. It is useful when a compact single pedestal reel does not provide enough capacity for the fuel transfer layout.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
