Built for controlled fuel hose storage on service trucks, tank trucks, ground support equipment, and bulk fuel dispensing systems, the Coxreels SLPL-550 provides a reel-only setup for buyers who need to install their own compatible hose. This SP-Fuel Series spring rewind reel uses spring-powered retraction to pull hose back onto the drum after use, helping keep fuel transfer areas cleaner and reducing loose hose on the floor or vehicle deck. With a 3/4" hose I.D. capacity, 50 ft hose capacity, and 300 PSI maximum pressure rating, it is sized for low-pressure fuel dispensing applications where hose control and mounting flexibility matter.
The SLPL-550 uses a sturdy box-style frame with a reinforced steel structure, a heavy gauge 1/4" steel base, and Coxreels' enclosed cartridge-style spring motor for practical serviceability. The 90° full-flow NPT swivel uses National Pipe Thread connections and supports smoother fluid transfer through the reel body. Pair this reel with properly rated fuel hose selected for the fluid, pressure, hose outside diameter, and fitting requirements of the application.

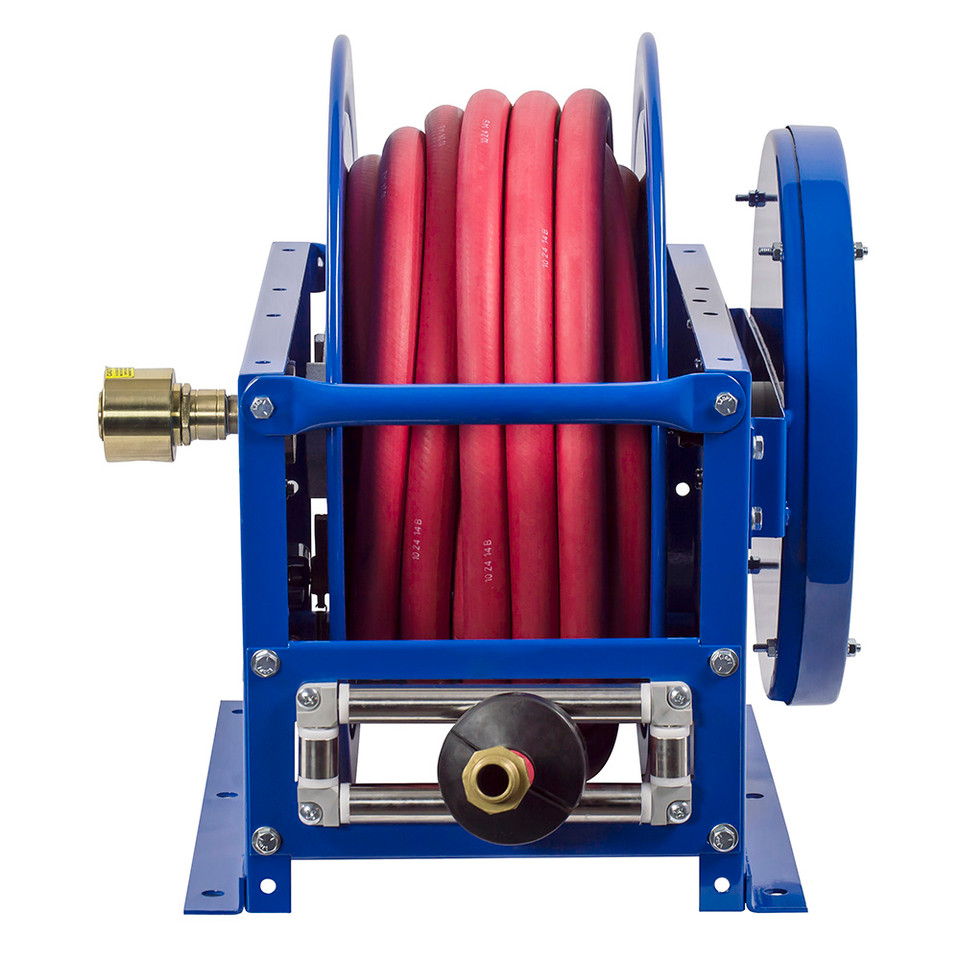

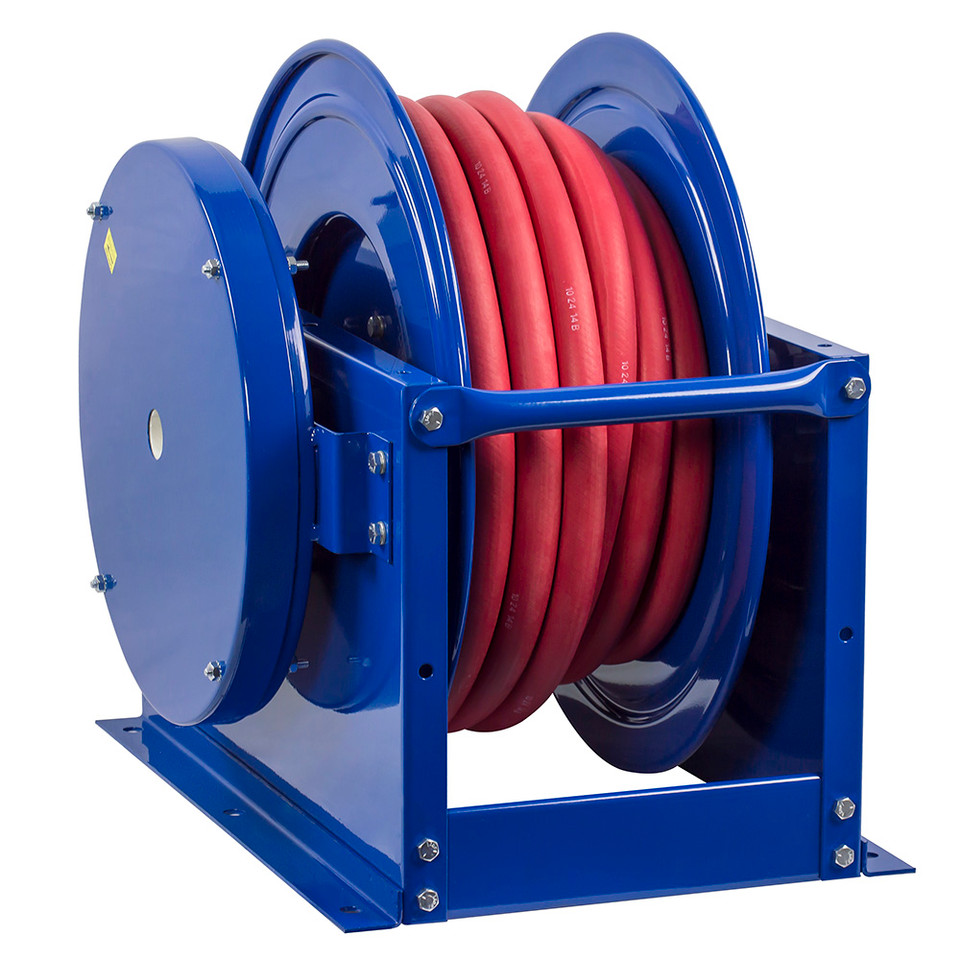

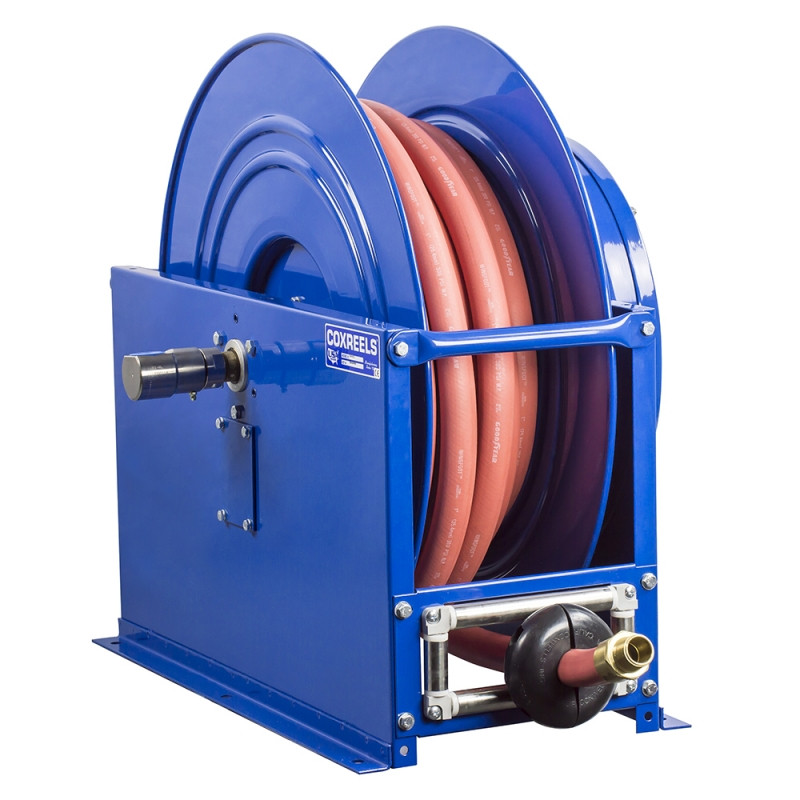

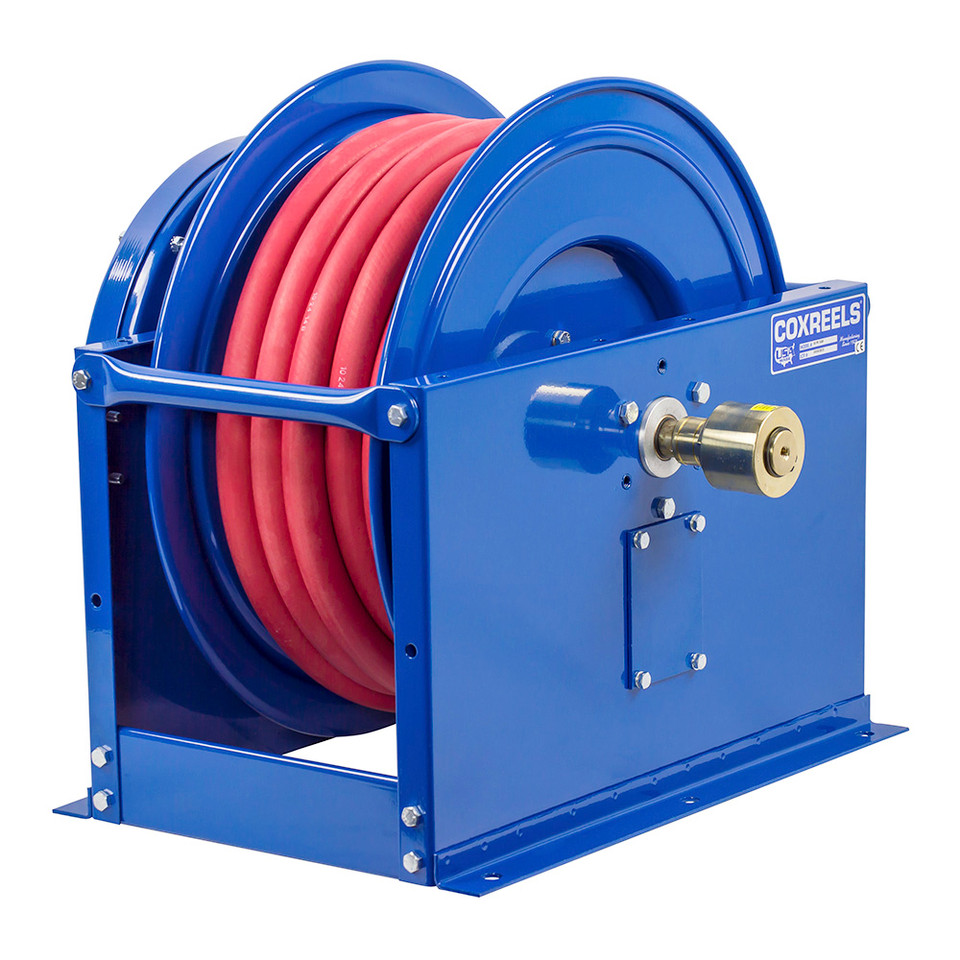

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP-Fuel Series | Model: SLPL-550 | Configuration: Less Hose | Hose I.D.: 3/4" | Hose Capacity: 50 ft | Max Hose O.D.: 1-1/16" | Max Pressure: 300 PSI | Hose Included: No | Swivel: Solid brass 90° full-flow NPT | Swivel Seals: Nitrile | Approx. Ship Weight: 86 lbs
Features:
- Less-hose configuration allows the buyer to install compatible fuel hose matched to the sites fluid type, fittings, and routing requirements.
- Spring rewind operation helps return hose to the reel after dispensing, reducing loose hose around fueling stations, trucks, and equipment areas.
- Machined solid brass 90° full-flow NPT swivel supports fuel dispensing applications and uses nitrile seals.
- Sturdy box-style frame design gives the reel a stable structure for larger hose handling in low-pressure fuel transfer setups.
- Heavy gauge 1/4" steel base and reinforced steel frame support mounting on wall, floor, vehicle, or overhead positions.
- Enclosed factory tuned and matched cartridge-style spring motor is lubricated and removable for service access.
- Cast iron lock ring with non-sparking bronze pawl and multi-position lock ratchet mechanism secures hose at the desired working length.
- Self-lubricated flange bearings and 1" stainless steel pinch-proof rollers help guide hose payout and rewind.
Made in USA:
Applications:
- Fuel/lube trucks and tank trucks for managing compatible fuel hose during diesel, kerosene, fuel oil, or heating oil transfer.
- Bulk fuel storage and dispensing systems where a reel-only configuration is preferred for custom hose selection.
- Utility and fleet service vehicles that need controlled hose storage without loose coils in the truck body.
- Ground support and aircraft refueling equipment when hose, fittings, and fluid compatibility are verified before installation.
- Marine, offshore, and shipyard fuel handling stations that require organized hose payout and rewind for low-pressure fuel service.
FAQs:
- Q: What does "less hose" mean on the Coxreels SLPL-550?
A: It means this reel is supplied without hose installed. The buyer must provide compatible fuel hose separately and confirm the hose I.D., hose O.D., pressure rating, fittings, and fluid compatibility before use. - Q: What hose size should be used with this reel?
A: The SLPL-550 is listed for 3/4" hose I.D. and 50 ft hose capacity. To obtain the listed capacity, do not exceed the listed 1-1/16" maximum hose O.D. - Q: Can this reel be used for diesel fuel dispensing?
A: Yes, Coxreels lists the Fuel Series for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Because this SKU is supplied less hose, the installed hose must also be rated for the specific fluid being transferred. - Q: Can the SLPL-550 be mounted on a truck or service vehicle?
A: Yes, the SP-style frame adjusts to wall, floor, vehicle, and overhead mounting positions. The mounting surface must be strong enough for the reel weight, hose weight, and pull forces during payout. - Q: Is this the right reel if I want a complete ready-to-use hose reel?
A: No, this SKU is a less-hose model. Choose a factory hose-equipped model or order compatible hose separately if you need a complete fuel dispensing hose reel setup.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
