Built for fuel storage and dispensing systems, fuel/lube trucks, aircraft refuelers, and tank truck service, the Coxreels TSHL-N-575-BXN T-Fuel Series spring rewind hose reel provides controlled hose storage for 3/4" I.D. fuel hose up to 75 ft long. Its 300 PSI working pressure rating suits low-pressure fuel dispensing applications where hose control, routing, and reel mounting flexibility matter as much as flow capacity.
This Supreme Duty dual pedestal reel uses a spring rewind mechanism, which retracts hose by stored spring tension after use, and a multi-position lock ratchet to secure the hose at the desired payout length. The machined brass 90° full-flow NPT swivel supports fuel dispensing service, while the adjustable guide arm allows installation on wall, floor, ceiling, bench, truck, or vehicle-mounted layouts.

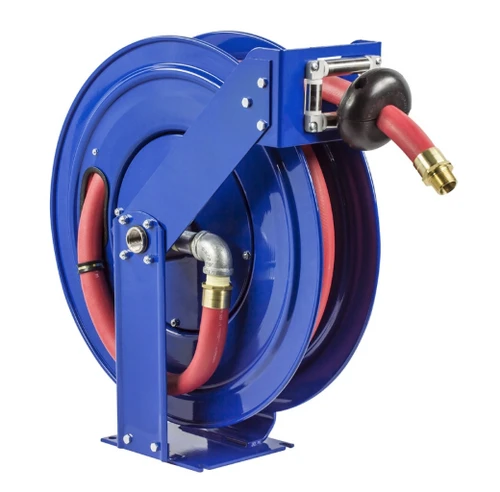

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Fuel Hose Reel | Series: T-Fuel Series | Configuration: Less Hose | Model: TSHL-N-575-BXN | Hose I.D.: 3/4" | Hose Capacity: 75 ft | Max Pressure: 300 PSI | Reel Inlet: 3/4" FNPT | Hose Outlet: 3/4" MNPT | Swivel Material: Brass | Seal Type: Nitrile | Mounting: Bench, Floor, Truck, Wall, Ceiling | Overall Dimensions: 24" L x 12" W x 25-1/2" H | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y | Approx. Ship Weight: 73 lb
Features:
- Machined from solid brass 90° full-flow NPT swivel inlet supports fuel dispensing applications while helping maintain fluid path efficiency.
- Nitrile swivel seals are used for compatibility with listed non-aromatic fuel applications such as diesel, kerosene, fuel oil, and heating oil.
- Adjustable multi-position guide arm supports wall, floor, ceiling, bench, truck, and vehicle mounting layouts.
- Solid one-piece 1/4" steel base and support post provide a stable dual pedestal frame for mobile and stationary fuel dispensing systems.
- 1" solid steel axle with lubricated precision bearings promotes smooth reel rotation during hose payout and rewind.
- Enclosed, factory-tuned cartridge-style spring motor is removable for safer, more convenient maintenance.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during dispensing.
- CPC powder coat finish, rolled edges, and ribbed discs help protect the reel structure in shop, truck, and service environments.
Made in USA:
Applications:
- Fuel/lube service trucks - managing fuel hose during mobile equipment service, fleet maintenance, and field fueling routes.
- Aircraft ground support - mounting on refuelers or service vehicles where hose payout control and organized rewind are required.
- Bulk liquid handling transport - hose storage for diesel, kerosene, fuel oil, and heating oil transfer setups within the reel pressure rating.
- Fuel storage and dispensing systems - stationary hose management for shops, yards, terminals, and maintenance facilities.
- Truck and vehicle-mounted installations - spring rewind storage where hose must stay controlled between dispensing operations.
FAQs:
- Q: What does less hose mean on the TSHL-N-575-BXN?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose separately and verify the hose outside diameter, pressure rating, and fuel compatibility before installation. - Q: What fuels is this Coxreels T-Fuel reel intended to handle?
A: The T-Fuel Series is listed for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Do not use it with unverified chemicals, solvents, or fuels outside the manufacturer's stated compatibility. - Q: Can this reel be mounted on a truck or service vehicle?
A: Yes. The adjustable guide arm supports vehicle and truck mounting along with wall, floor, ceiling, and bench layouts, provided the mounting surface is strong enough and the reel is installed according to Coxreels instructions. - Q: Does this reel include a leader hose or dispensing nozzle?
A: No confirmed source data was provided showing a leader hose, nozzle, or hose assembly included with this less-hose model. Plan on supplying compatible hose and dispensing accessories separately. - Q: Why does the swivel specification matter for fuel dispensing?
A: The 90° full-flow brass NPT swivel helps route fuel through the reel while allowing the drum to rotate during hose payout and rewind. This helps reduce hose twisting and supports cleaner hose handling during transfer work.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
