When a compact fuel reel is needed for short, controlled dispensing runs, the Coxreels SHFL-N-525 provides a Heavy Duty SH-Fuel Series spring rewind reel platform without factory-installed hose. This SH-Fuel Series model is sized for 3/4" hose I.D., 25 ft hose capacity, and a 300 PSI maximum pressure rating, making it useful for fuel/lube trucks, tank trucks, utility vehicles, and fixed fuel storage systems where the reel is mounted close to the dispensing point.
The SHFL-N-525 is supplied less hose, allowing the buyer to choose a compatible fuel hose for the intended fluid, fitting style, hose outside diameter, pressure rating, and temperature requirements. Coxreels' SH Series uses the Super Hub dual axle support system, which helps increase reel stability, reduce vibration, and strengthen the reel structure during operation. The reel also uses a machined solid brass 90° full-flow NPT swivel, with NPT meaning National Pipe Thread, a common threaded pipe connection used in fuel and fluid handling systems.

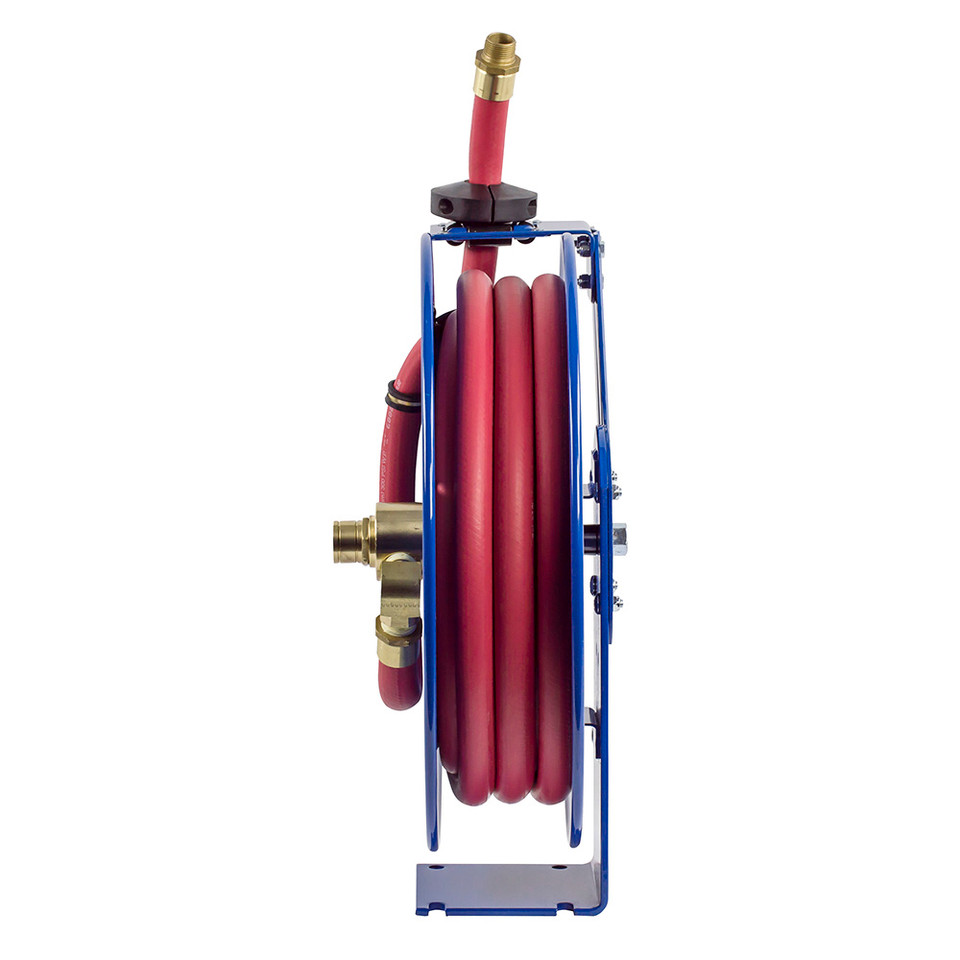

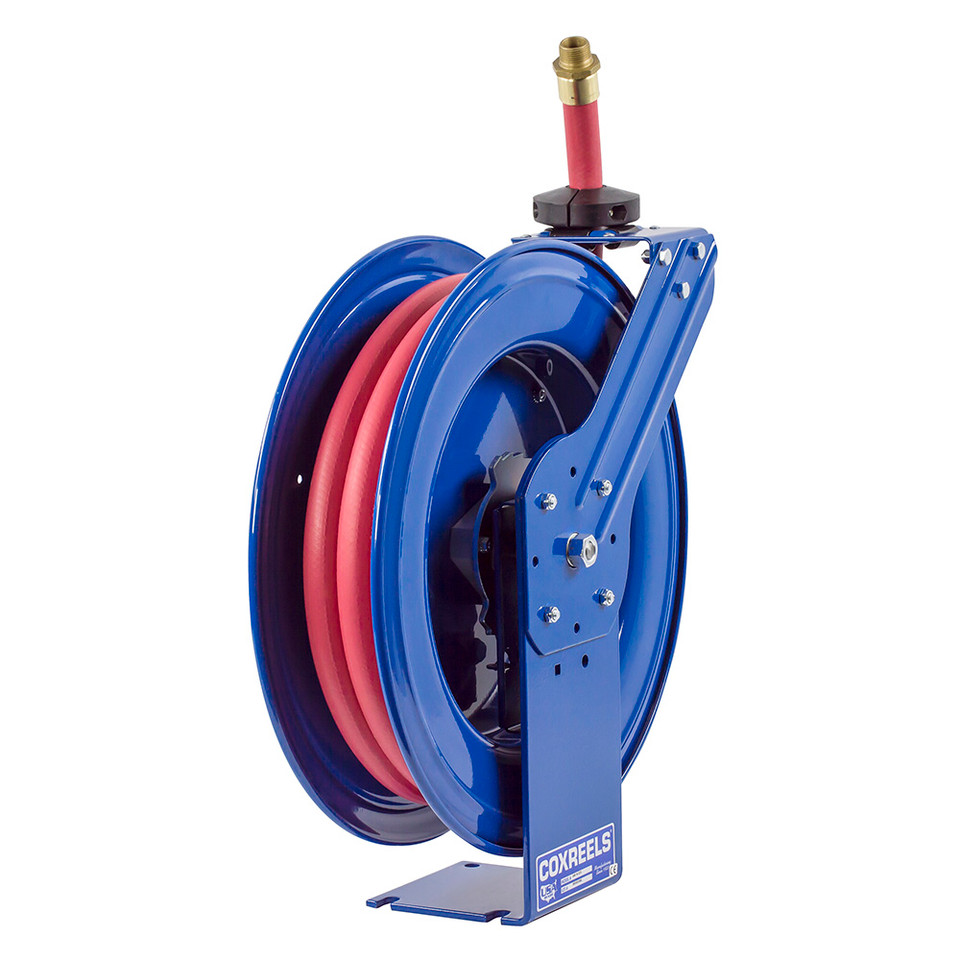

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Heavy Duty Spring Rewind Hose Reel | Series: SH-Fuel Series | Model: SHFL-N-525 | Configuration: Less Hose | Hose I.D.: 3/4" | Max Hose O.D.: 1-3/16" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Solid brass 90° full-flow NPT | Swivel Seals: Nitrile | SH-Fuel Size Index: 1 | Approx. Ship Weight: 45 lbs
Features:
- Less-hose configuration lets installers select compatible 3/4" fuel hose for the specific fluid, fittings, pressure rating, and hose routing path.
- 25 ft hose capacity keeps the reel compact for short fuel dispensing runs close to a pump, tank, truck bed, or service skid.
- External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports fuel dispensing applications.
- Nitrile swivel seals are specified for the fuel dispensing swivel assembly.
- Sturdy single pedestal reel features Coxreels' Super Hub dual axle support system for added reel stability during payout and rewind.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation on service trucks, skids, and fixed dispensing stations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting structure.
- 1" solid steel axle, lubricated precision bearings, enclosed cartridge-style spring motor, stainless steel spring and pawl, zinc plated ratchet, and multi-position lock ratchet mechanism help control hose extension and rewind.
Made in USA:
Applications:
- Fuel/lube trucks and service vehicles where a short 3/4" hose run keeps dispensing work close to the truck or skid.
- Tank trucks and bulk liquid handling transport services that need controlled hose payout and storage between stops.
- Fuel storage and dispensing systems using compatible hose for diesel, kerosene, fuel oil, heating oil, or other approved non-aromatic fuel service.
- Utility, fleet, and maintenance yards where spring rewind hose control helps reduce loose hose around vehicles and equipment.
- Aircraft refueling, marine, ship refueling, and offshore service areas when the selected hose, fittings, and fluid compatibility are confirmed before installation.
FAQs:
- Q: What does "less hose" mean on the Coxreels SHFL-N-525?
A: It means this SKU is supplied as the reel only, without hose installed. The buyer must provide compatible 3/4" hose separately and verify hose O.D., pressure rating, temperature range, fittings, and fuel compatibility before use. - Q: How is the SHFL-N-525 different from the SHF-N-525?
A: The SHFL-N-525 is the less-hose version for buyers who want to install their own compatible hose. The SHF-N-525 is the hose-equipped companion model in the same SH-Fuel Series. - Q: What fuels can this reel be used with?
A: Coxreels lists the Fuel Series for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Because this model does not include hose, the hose and fittings selected by the buyer must also be rated for the specific fuel being transferred. - Q: Is this the EZ-Coil version?
A: No. The SHFL-N-525 is the standard spring rewind model. Coxreels notes that EZ-Coil® controlled rewind options use an 'EZ-' prefix on eligible less-hose models. - Q: Can the SHFL-N-525 be mounted on a service truck?
A: Yes, the guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. The mounting surface should be checked for the reel weight, hose weight, and pull forces created during payout.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
