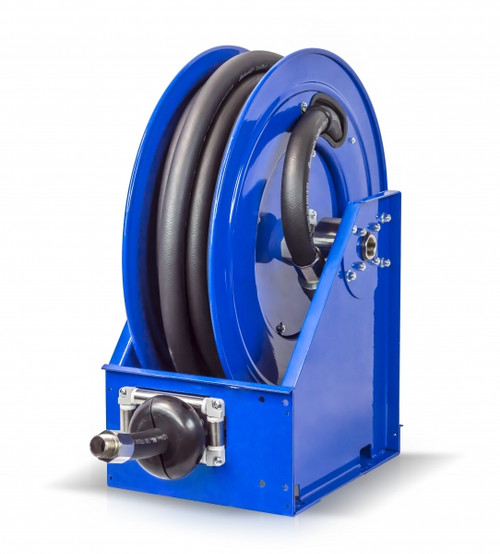

Built for fuel transfer work in service trucks, equipment yards, ground support operations, and fuel storage systems, the Coxreels XTMF-LP-575 XTM Fuel Series Spring Rewind Hose Reel provides controlled hose payout and automatic rewind for 3/4" I.D. fuel hose up to 75 ft. Its 300 PSI rating supports low-pressure fuel dispensing applications where hose management, frame strength, and reliable retraction matter as much as flow capacity.
The XTMF-LP-575 is part of Coxreels' Extreme Duty XTM Fuel Series, built with a fully welded box frame, stainless steel rollers, a 1" solid steel axle, and a machined brass 90° full-flow NPT swivel inlet for fuel dispensing. The reel is equipped for non-aromatic fuel service such as diesel, kerosene, fuel oil, and heating oil, giving fleet, utility, and mobile fueling teams a stronger hose handling platform for rough operating environments.
Type: Spring Rewind Fuel Hose Reel | Series: XTM Fuel Series | Model: XTMF-LP-575 | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 75 ft | Max Pressure: 300 PSI | Approx. Weight: 101 lbs | Overall Dimensions: 10-1/8" W x 26-1/8" H x 24-1/16" L | Base: 10" x 15" | Mounting Pattern: 8-29/32" x 10" | Service: Non-aromatic fuels
Features:
- Machined from solid brass 90° full-flow NPT swivel inlet supports fuel dispensing applications with a smoother flow path through the reel.
- Nitrile swivel seals are used for the specified fuel service on this non-GS model.
- Fuel dispensing hose is intended for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- Fully welded box frame construction with welded seams and redundant flanges helps the reel hold up in truck-mounted, mobile, and high-use fueling environments.
- Stainless steel rollers on all models help guide hose during payout and rewind while reducing wear at the reel opening.
- 1" solid steel axle with dual lubricated precision bearings provides stable rotation during repeated hose extension and retraction.
- Enclosed factory tuned and matched cartridge-style spring motor rewinds hose without requiring a separate power source.
- Multi-position lock ratchet mechanism secures the hose at the desired working length during fueling tasks.
Made in USA:
Applications:
- Fleet and service truck fueling for diesel transfer, equipment top-off, and organized hose storage on mobile fueling rigs.
- Fuel/lube trucks used in construction, mining, agriculture, and off-road equipment maintenance.
- Fuel storage and dispensing systems where long hose reach and controlled rewind help keep work areas cleaner and safer.
- Ground support and aircraft refueling operations using compatible non-aromatic fuel service requirements.
- Tank truck and bulk liquid handling setups that need a reinforced reel frame for repeated daily hose handling.
FAQs:
- Q: What fuels can the Coxreels XTMF-LP-575 handle?
A: This reel is intended for non-aromatic fuel applications such as diesel, kerosene, fuel oil, and heating oil. For gasoline or aromatic fuel service, confirm the correct gasoline-compatible model before ordering. - Q: Does the XTMF-LP-575 include hose?
A: Yes. The XTMF-LP-575 is listed as a fuel hose model with 3/4" I.D. hose and 75 ft hose length. It is not a less-hose reel. - Q: What does spring rewind mean?
A: Spring rewind means the reel uses an internal spring motor to retract the hose after use. This helps reduce manual winding time and keeps excess hose off the floor or truck deck. - Q: Can this reel be mounted on a fuel truck or service vehicle?
A: Yes, the XTM Fuel Series is commonly used on fuel/lube trucks, service trucks, and fuel dispensing systems when the reel size, mounting pattern, hose length, and fuel compatibility match the installation. - Q: What is the mounting footprint for this model?
A: The XTMF-LP-575 uses a 10" x 15" base with an 8-29/32" x 10" mounting pattern. Verify available mounting space and structure before installation.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
