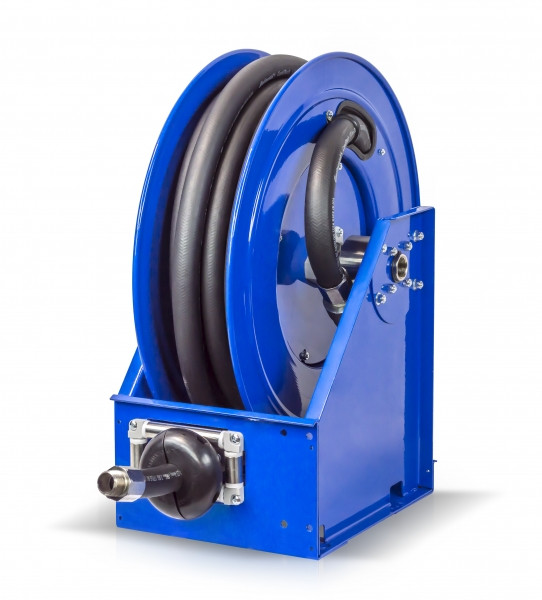

Built for fuel dispensing systems exposed to tough shop, field, and fleet environments, the Coxreels XTMF-LP-550-GS XTM Fuel Series Extreme Duty spring rewind hose reel provides controlled hose storage for gasoline and fuel transfer applications. This model includes a 3/4" I.D. x 50 ft hose, giving operators practical reach around fuel storage systems, service trucks, tank trucks, and ground support equipment. The 300 PSI maximum pressure rating supports low-pressure fuel dispensing service, while the spring rewind mechanism helps return the hose to the reel after use for a cleaner, safer work area.
The XTM Fuel Series combines a fully welded box frame, integral roller bracket, stainless steel rollers, and Coxreels’ cartridge-style spring motor into a compact reel built for demanding fuel handling locations. The -GS gasoline hose configuration is intended for aromatic fuel service, with a machined solid brass 90° full-flow NPT swivel, nitrile swivel seals, and a grounding washer used on gasoline models. For buyers replacing open hose storage or upgrading a fuel/lube truck, the XTMF-LP-550-GS helps keep dispensing hose protected, accessible, and properly managed between transfers.
Type: Extreme Duty Spring Rewind Hose Reel | Series: XTM Fuel Series | Model: XTMF-LP-550-GS | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Max Pressure: 300 PSI | Approx. Ship Weight: 101 lbs | Swivel: Machined solid brass 90° full-flow NPT | Swivel Seals: Nitrile | Service: Fuel dispensing / gasoline hose configuration
Features:
- Fully welded box frame construction with welded seams and redundant flanges for use in tough fuel dispensing environments.
- Machined solid brass 90° full-flow NPT swivel supports fuel dispensing applications with unrestricted flow through the swivel path.
- Gasoline model configuration includes a grounding washer to support electrical continuity through the reel assembly.
- Stainless steel rollers on all models help guide the hose during pullout and rewind while reducing wear at the hose path.
- Accessible stainless steel pawl and pawl spring on the ratchet locking mechanism simplify service access when maintenance is required.
- Enclosed, factory-tuned cartridge-style spring motor delivers reliable spring rewind operation and protects the spring assembly.
- Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support dependable retraction and hose locking performance.
- Rolled edges and ribbed discs provide added strength, hose protection, and safer handling around the reel opening.
Made in USA:
Applications:
- Fuel/lube trucks used for field refueling, mobile service, and off-road equipment support.
- Fuel storage and dispensing systems where hose must stay controlled between transfer operations.
- Tank truck and bulk liquid handling setups requiring a spring rewind reel with a boxed frame configuration.
- Ground support equipment and fleet service areas handling gasoline or compatible fuel dispensing tasks.
- Maintenance shops and service yards replacing loose fuel hose storage with a mounted reel-and-hose assembly.
FAQs:
- Q: Does the XTMF-LP-550-GS include hose?
A: Yes. This model includes a 3/4" I.D. x 50 ft hose for fuel dispensing service. Confirm the fuel type, pressure, and fitting requirements before installation. - Q: What does the GS suffix mean?
A: On Coxreels fuel models, the -GS configuration refers to the gasoline hose version. It is used where the hose and reel configuration must support aromatic fuel dispensing applications. - Q: What fuels can this reel be used with?
A: Coxreels fuel dispensing reels are used for fuel transfer applications, and -GS models are intended for aromatic fuels such as gasoline. Always verify hose compatibility with the exact fuel being dispensed before use. - Q: Why choose an XTM box-frame reel instead of a single-pedestal fuel reel?
A: The XTM Series uses a fully welded box frame with an integral roller bracket, making it a stronger enclosed-frame choice for harsh fuel dispensing locations, service trucks, and field equipment. - Q: What mounting space is required for this reel?
A: The reel measures 10.13" wide x 26.13" high x 24.06" long, with an 8.91" x 10" mounting pattern and 10" x 15" base. Check these dimensions against the truck, tank, wall, or skid mounting surface before ordering.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
