When a 35 ft fuel reel does not provide enough working reach, the Coxreels TSHFL-N-550 gives installers a 50 ft Supreme Duty spring rewind reel platform for custom hose installation. Part of the T-Fuel Series, this less-hose reel is sized for 3/4" hose I.D., 50 ft hose capacity, and a 300 PSI maximum pressure rating, making it a strong fit for low-pressure fuel dispensing layouts on fuel/lube trucks, tank trucks, utility vehicles, and fixed fuel storage systems.
The TSHFL-N-550 is supplied without hose, allowing the buyer to select compatible fuel hose for the required fluid, fittings, hose outside diameter, temperature range, and installation route. Its T Series dual pedestal frame uses Coxreels' Super Hub triple axle support system to help reduce vibration and strengthen the reel structure during mobile use. A machined solid brass 90° full-flow NPT swivel supports fuel dispensing service, with NPT meaning National Pipe Thread, a common threaded pipe connection used in fluid handling systems.

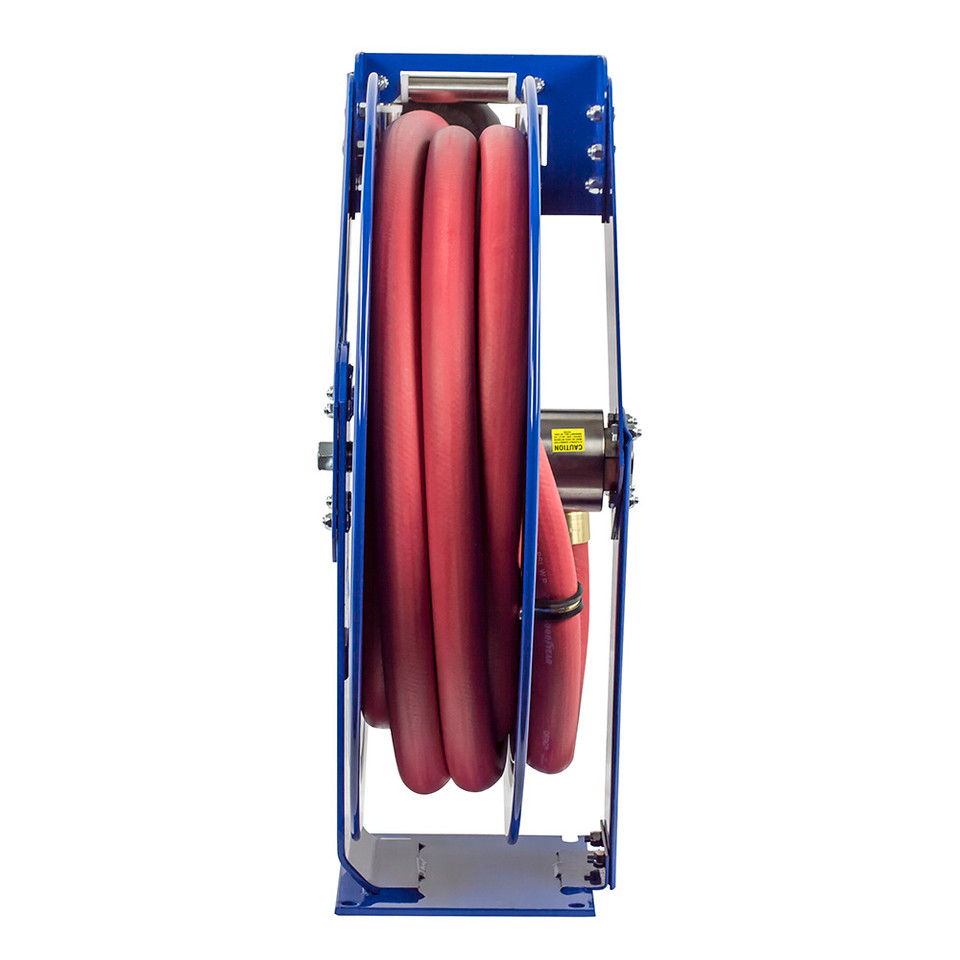

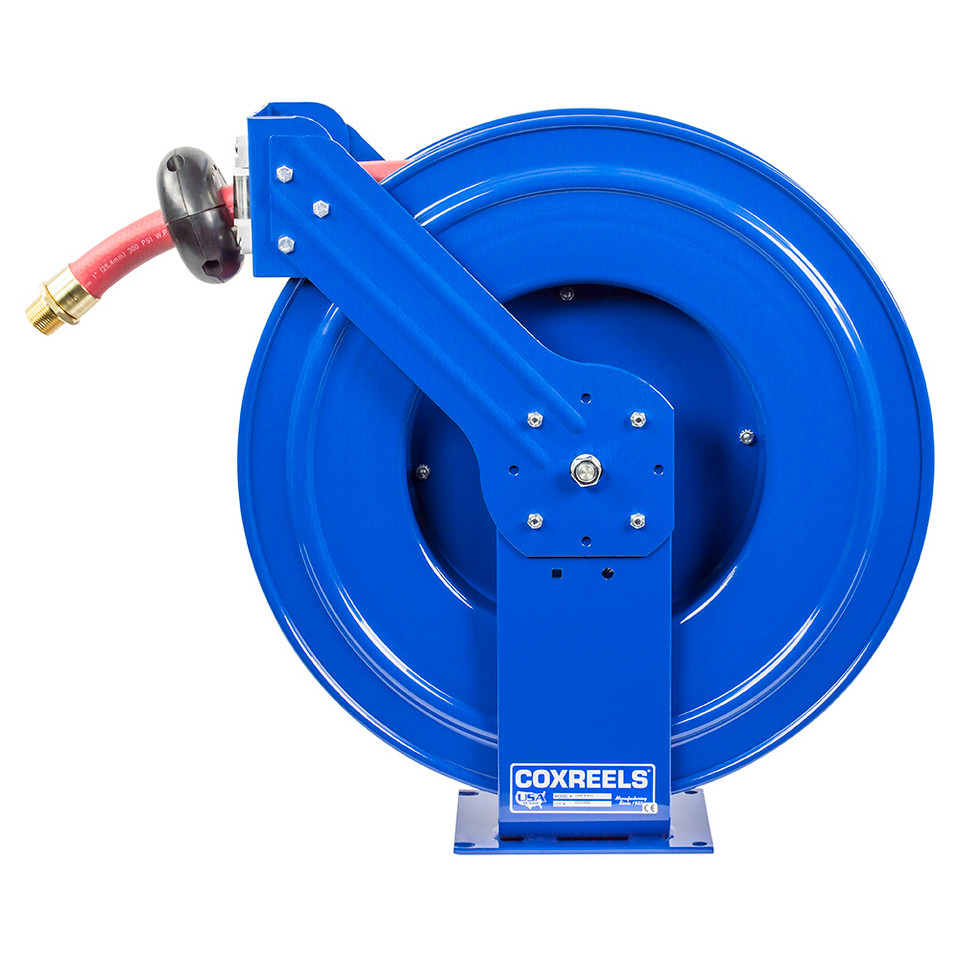

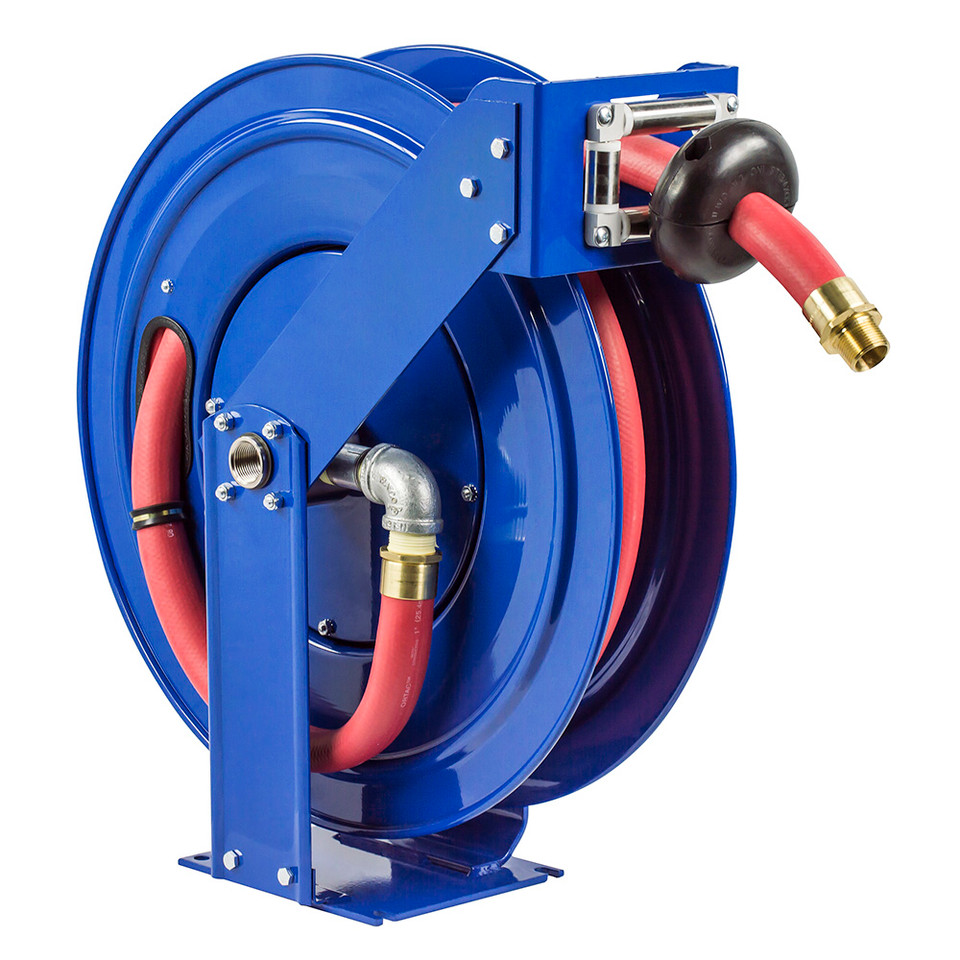

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T-Fuel Series | Model: TSHFL-N-550 | Configuration: Less Hose | Hose I.D.: 3/4" | Max Hose O.D.: 1-3/16" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Solid brass 90° full-flow NPT | Swivel Seals: Nitrile | T-Fuel Size Index: 2 | Approx. Ship Weight: 70 lbs
Features:
- Less-hose configuration lets the installer choose compatible 3/4" fuel hose for the intended fuel, fitting layout, and dispensing setup.
- 50 ft hose capacity provides additional reach compared with the 35 ft model while keeping the same compact T-Fuel size index.
- Machined solid brass 90° full-flow NPT swivel inlet supports fuel dispensing applications.
- Nitrile swivel seals are specified for the fuel dispensing swivel assembly.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation on trucks, skids, service bays, and fixed systems.
- Solid one-piece, heavy gauge 1/4" steel base and support post help stabilize the reel during hose payout and rewind.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation in daily use.
- Enclosed factory tuned and matched cartridge-style spring motor, non-corrosive stainless steel spring and pawl, zinc plated ratchet, and multi-position lock ratchet mechanism secure hose at the desired working length.
Made in USA:
Applications:
- Fuel/lube trucks and service vehicles that need 50 ft of controlled hose reach for field fueling and fluid transfer work.
- Tank trucks and bulk liquid handling transport services where hose must be stored securely between delivery stops.
- Fuel storage and dispensing systems handling compatible non-aromatic fuels such as diesel, kerosene, fuel oil, or heating oil.
- Utility, fleet, and ground support equipment areas where spring rewind hose control helps reduce loose hose around vehicles and equipment.
- Aircraft refueling, marine, ship refueling, and offshore fuel handling applications when hose, fittings, and fluid compatibility are verified before installation.
FAQs:
- Q: What does "less hose" mean on the Coxreels TSHFL-N-550?
A: It means this SKU is supplied as the reel only, without hose installed. The buyer must provide compatible 3/4" fuel hose separately and confirm the hose O.D., pressure rating, fittings, temperature range, and fluid compatibility before use. - Q: How is the TSHFL-N-550 different from the TSHFL-N-535?
A: Both are 3/4" T-Fuel Series less-hose reels rated to 300 PSI, but the TSHFL-N-550 holds 50 ft of hose while the TSHFL-N-535 holds 35 ft. Choose the 50 ft model when the reel must reach farther from the truck, tank, skid, or dispensing point. - Q: What is the maximum hose outside diameter for this reel?
A: Coxreels lists the TSHFL-N-550 for 3/4" I.D. hose with a maximum hose O.D. of 1-3/16". Do not exceed the listed hose O.D. if the reel must hold the full 50 ft hose length. - Q: Can this reel be used for diesel fuel dispensing?
A: Yes, Coxreels lists its Fuel Series reels for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Because this model is supplied without hose, the selected hose and fittings must also be rated for the specific fuel being transferred. - Q: Can the TSHFL-N-550 be mounted on a truck or overhead?
A: Yes, the T-Fuel guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. The mounting surface should be checked for the 70 lb reel weight, added hose weight, and pull forces created during payout.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
