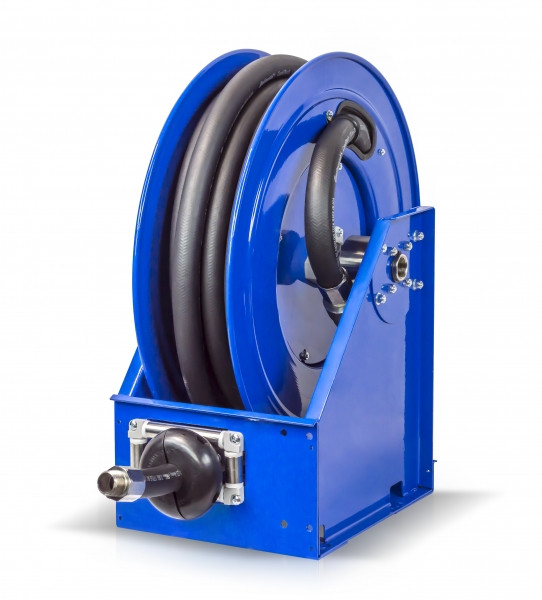

Built for gasoline dispensing and other aromatic fuel transfer applications, the Coxreels XTMF-LP-650-GS XTM Fuel Series Spring Rewind Hose Reel gives fuel service crews a reinforced hose handling platform with 1" I.D. hose, 50 ft hose length, and a 300 PSI working pressure rating. The larger 1" hose diameter supports higher-volume fueling setups than smaller 3/4" reels, while the spring rewind mechanism retracts hose automatically to reduce loose hose on truck beds, shop floors, and fuel dispensing stations.
The GS suffix identifies this model as the gasoline-service version, with fuel dispensing hose intended to convey aromatic fuels. The XTMF-LP-650-GS is built on Coxreels' Extreme Duty XTM Fuel Series platform, using box-frame construction, stainless steel rollers, a 1" solid steel axle, dual lubricated precision bearings, and a fuel-service swivel arrangement suited to the 1" model size. It is a strong fit for fuel/lube trucks, utility fleets, tank trucks, refueling stations, and bulk liquid handling setups where reach, hose control, and fuel compatibility all need to be confirmed before installation.
Type: Spring Rewind Fuel Hose Reel | Series: XTM Fuel Series | Model: XTMF-LP-650-GS | Configuration: Gasoline Service | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Length: 50 ft | Max Pressure: 300 PSI | Approx. Weight: 114 lbs | Overall Dimensions: 12-3/4" W x 26-1/8" H x 24-1/16" L | Base: 12-3/4" x 15" | Mounting Pattern: 11-11/16" x 10" | Service: Aromatic fuels
Features:
- GS gasoline-service configuration includes fuel dispensing hose for aromatic fuel applications.
- Electroless nickel plated steel swivel is used on 1" fuel reel models for fuel dispensing service.
- Nitrile swivel seals support the reel's listed fuel service requirements.
- Non-sparking mechanism helps support safer operation in fuel handling environments when the reel is used as specified.
- Fully welded box frame construction with welded seams and redundant flanges provides a rigid support structure for mobile and fixed fueling systems.
- Stainless steel rollers help guide the hose during extension and rewind, reducing abrasion at the reel opening.
- 1" solid steel axle and dual lubricated precision bearings provide smooth, stable drum rotation during repeated hose pulls.
- Enclosed factory tuned and matched cartridge-style spring motor retracts hose without requiring electric, hydraulic, or pneumatic rewind power.
Made in USA:
Applications:
- Vehicle refueling systems where 1" hose capacity and gasoline-service compatibility are required.
- Fuel/lube trucks used for field fueling of construction equipment, fleet vehicles, generators, and service machinery.
- Tank trucks and bulk fuel transfer setups that need controlled hose payout and spring rewind hose recovery.
- Fuel storage and dispensing systems where aromatic fuel compatibility must be matched to the hose and reel configuration.
- Utility, fleet, and ground support operations that need a compact 50 ft fuel hose reel with a reinforced XTM box frame.
FAQs:
- Q: What does the GS suffix mean on XTMF-LP-650-GS?
A: GS identifies the gasoline-service version. On Coxreels fuel hose models, GS versions are specified for aromatic fuel service, while standard fuel hose models are listed for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil. - Q: Does this reel include hose?
A: Yes. The XTMF-LP-650-GS is listed with hose included, with 1" I.D., 1-1/2" O.D., and 50 ft hose length. It is not a less-hose reel. - Q: What is the benefit of a 1" fuel hose compared with a 3/4" hose?
A: A 1" hose is typically selected when the dispensing system needs more flow capacity than a smaller 3/4" hose can provide. Always match hose size to pump output, nozzle size, fuel type, and system pressure. - Q: Can this reel be mounted on a service truck?
A: Yes, when the truck structure and mounting location support the reel's size and weight. This model has a 12-3/4" x 15" base and an 11-11/16" x 10" mounting pattern that should be checked against the planned installation. - Q: Is this reel appropriate for diesel only?
A: The GS version is selected when aromatic fuel compatibility is needed. For diesel-only or other non-aromatic fuel applications, compare against the standard XTMF-LP-650 model to avoid buying more hose compatibility than the job requires.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
