When a larger 1" fuel transfer hose needs full working reach from a fixed reel location, the Coxreels SLPL-675 provides the longest 1" less-hose configuration in the SP-Fuel lineup. This SP-Fuel Series single hose spring rewind reel is sized for 1" hose I.D., 75 ft hose capacity, and a 300 PSI maximum pressure rating, giving service trucks, fuel/lube skids, and bulk dispensing stations a reel platform for longer low-pressure transfer runs without selecting a smaller hose size.
The SLPL-675 is supplied less hose, so the installer can specify hose around the exact fluid, fitting style, pressure rating, hose outside diameter, temperature range, and routing path required for the job. Spring rewind operation pulls hose back onto the drum after use, helping keep fueling areas, truck beds, and shop floors organized. For 1" models, Coxreels specifies an electroless nickel plated steel 90° full-flow NPT swivel, with NPT meaning National Pipe Thread, a common threaded pipe connection standard used in fuel and fluid handling systems.

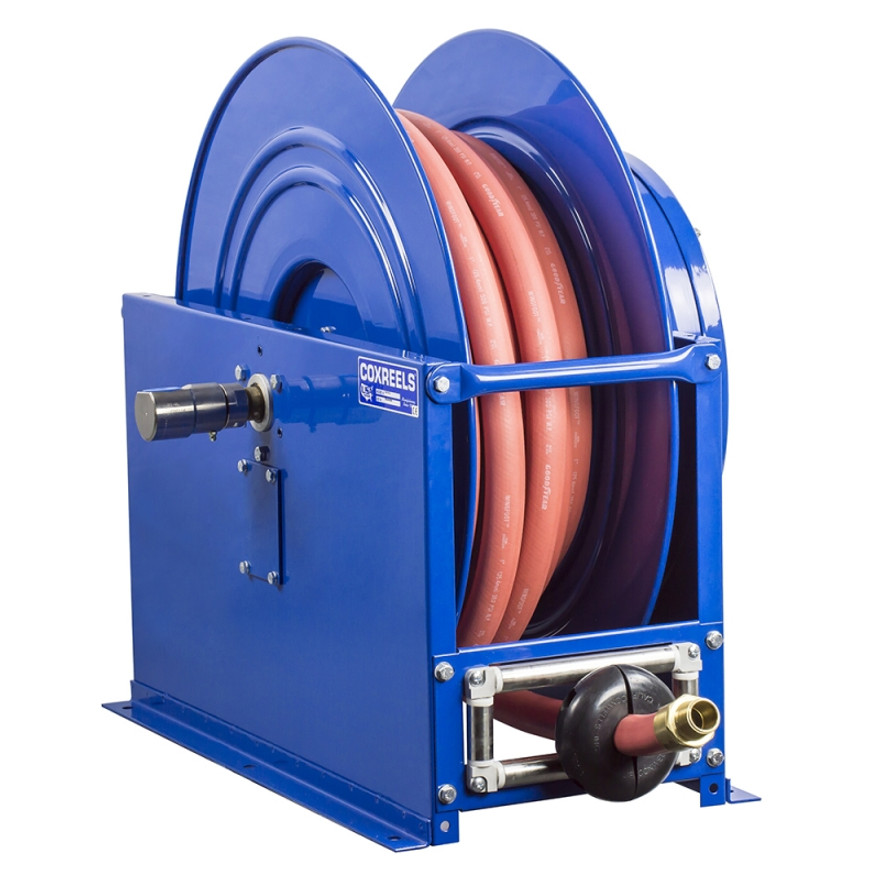

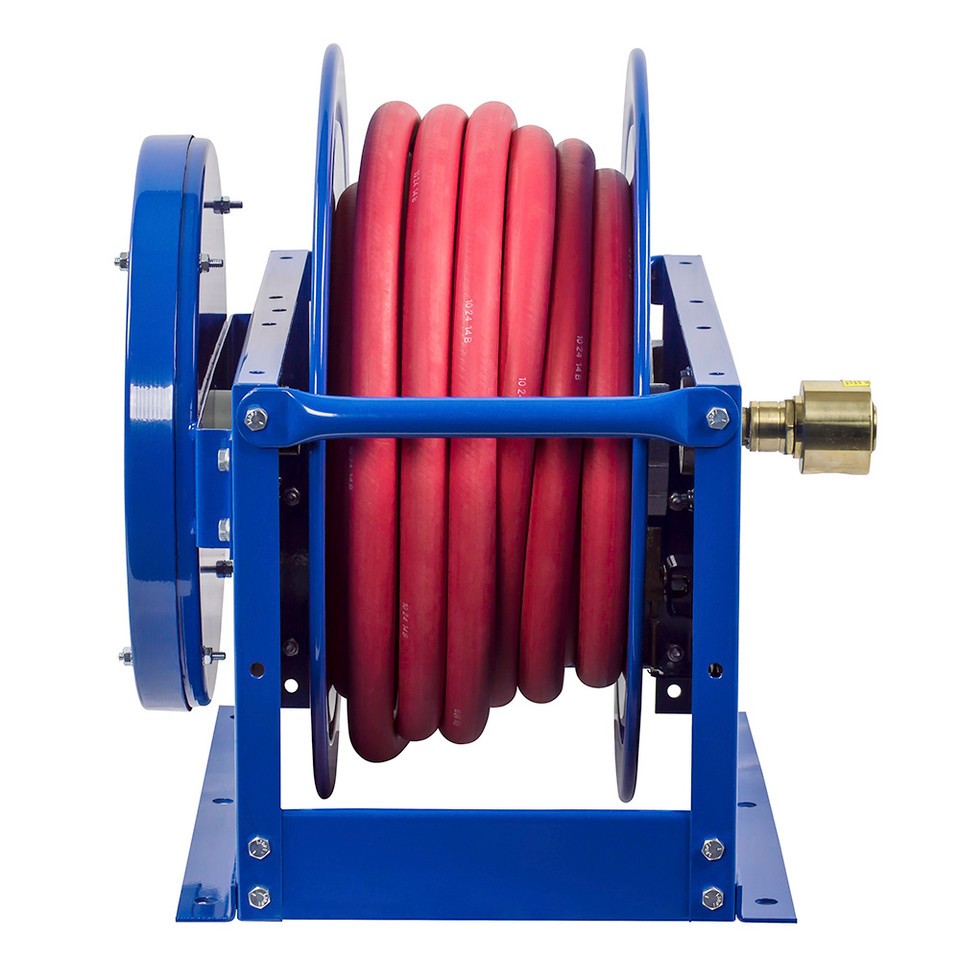

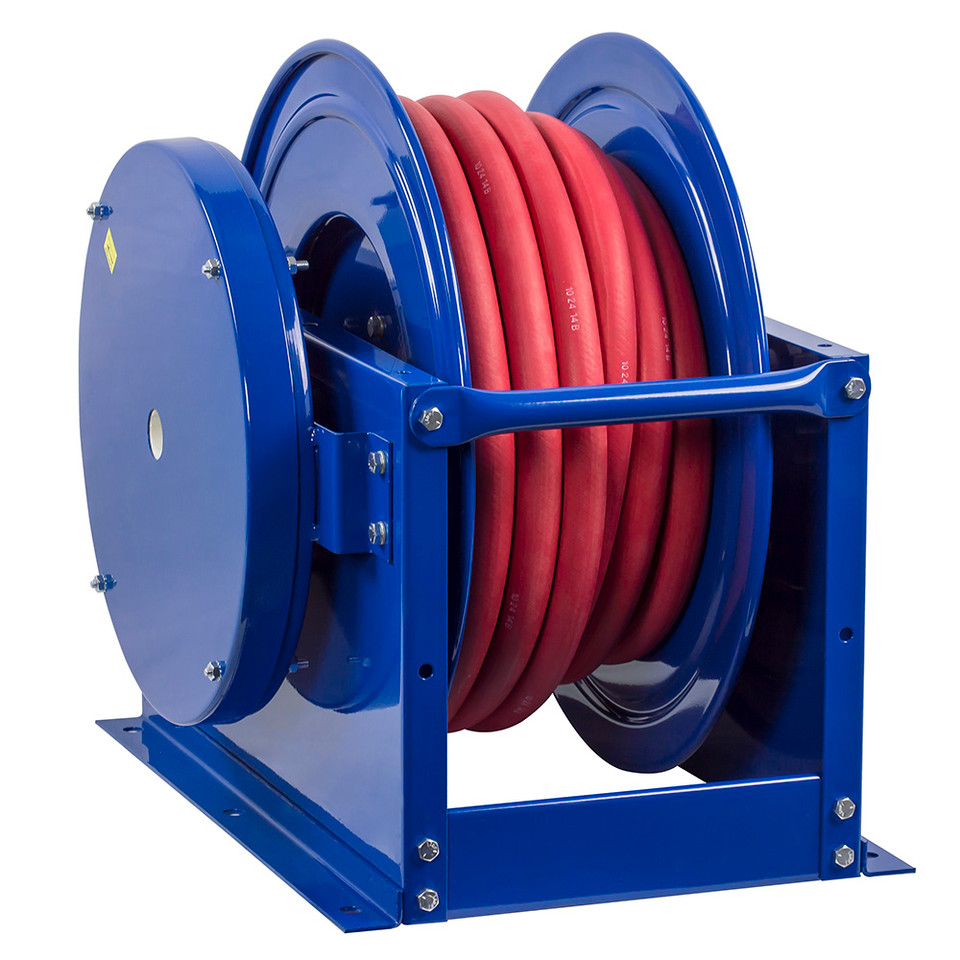

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP-Fuel Series | Model: SLPL-675 | Configuration: Less Hose | Hose I.D.: 1" | Max Hose O.D.: 1-1/2" | Hose Capacity: 75 ft | Max Pressure: 300 PSI | Inlet/Outlet NPT: 1" | SP Series Size Index: 6 | Swivel: Electroless nickel plated steel 90° full-flow NPT | Approx. Ship Weight: 148 lbs
Features:
- Less-hose configuration gives installers control over hose selection for fuel, water, or compatible low-pressure transfer applications.
- 1" hose I.D. capacity supports larger-volume delivery compared with smaller 3/4" hose reel configurations.
- 75 ft hose capacity provides the longest listed 1" low-pressure less-hose reach in the SP Series lineup.
- Electroless nickel plated steel 90° full-flow NPT swivel is specified on 1" models for fluid routing through the rotating reel assembly.
- Sturdy box-style frame with steel cross supports at all four corners helps support larger hose during payout and rewind.
- Heavy gauge 1/4" steel base allows installation in wall, floor, vehicle, and overhead mounting positions.
- Self-lubricated flange bearings and 1" stainless steel pinch-proof rollers support smooth rotation and guided hose movement.
- Enclosed factory tuned and matched cartridge-style spring motor, non-corrosive stainless steel pawl spring, cast iron lock ring, non-sparking bronze pawl, and multi-position lock ratchet mechanism help control hose extension and retraction.
Made in USA:
Applications:
- Fuel/lube trucks and service skids where 1" hose and longer reach are needed for dispensing around equipment, tanks, and vehicles.
- Bulk liquid handling and fuel storage stations using compatible low-pressure hose for diesel, kerosene, fuel oil, or heating oil transfer.
- Fleet maintenance yards and construction service areas where the reel can stay mounted while operators reach multiple fueling points.
- Tank trucks and utility vehicles that need organized hose storage between delivery stops or field service work.
- Aircraft refueling, marine, offshore, and shipyard fuel handling applications when hose, fittings, and fluid compatibility are verified before installation.
FAQs:
- Q: What does "less hose" mean on the Coxreels SLPL-675?
A: It means this SKU is supplied as the reel only, without hose installed. The buyer must provide compatible 1" hose separately and confirm hose outside diameter, pressure rating, temperature rating, fittings, and fluid compatibility before use. - Q: How is the SLPL-675 different from the SLPL-650?
A: Both are 1" SP-Fuel Series less-hose reels rated to 300 PSI, but the SLPL-675 holds 75 ft of hose while the SLPL-650 holds 50 ft. Choose the SLPL-675 when the reel must reach farther around a truck, tank, bay, or equipment staging area. - Q: What hose outside diameter can this reel accept?
A: Coxreels lists this model for 1" I.D. hose with a maximum hose O.D. of 1-1/2". To obtain the full 75 ft capacity, do not exceed the listed maximum hose outside diameter. - Q: Can this reel be used for diesel fuel service?
A: Coxreels lists its fuel dispensing reels for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Because this model is supplied without hose, the selected hose and fittings must also be rated for the specific fuel being transferred. - Q: Can the SLPL-675 be mounted on a service truck or overhead?
A: Yes, the SP Series frame supports vehicle, wall, floor, and overhead mounting positions. The installer should verify the mounting surface for the reel weight, hose weight, and pull forces created during hose payout.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
