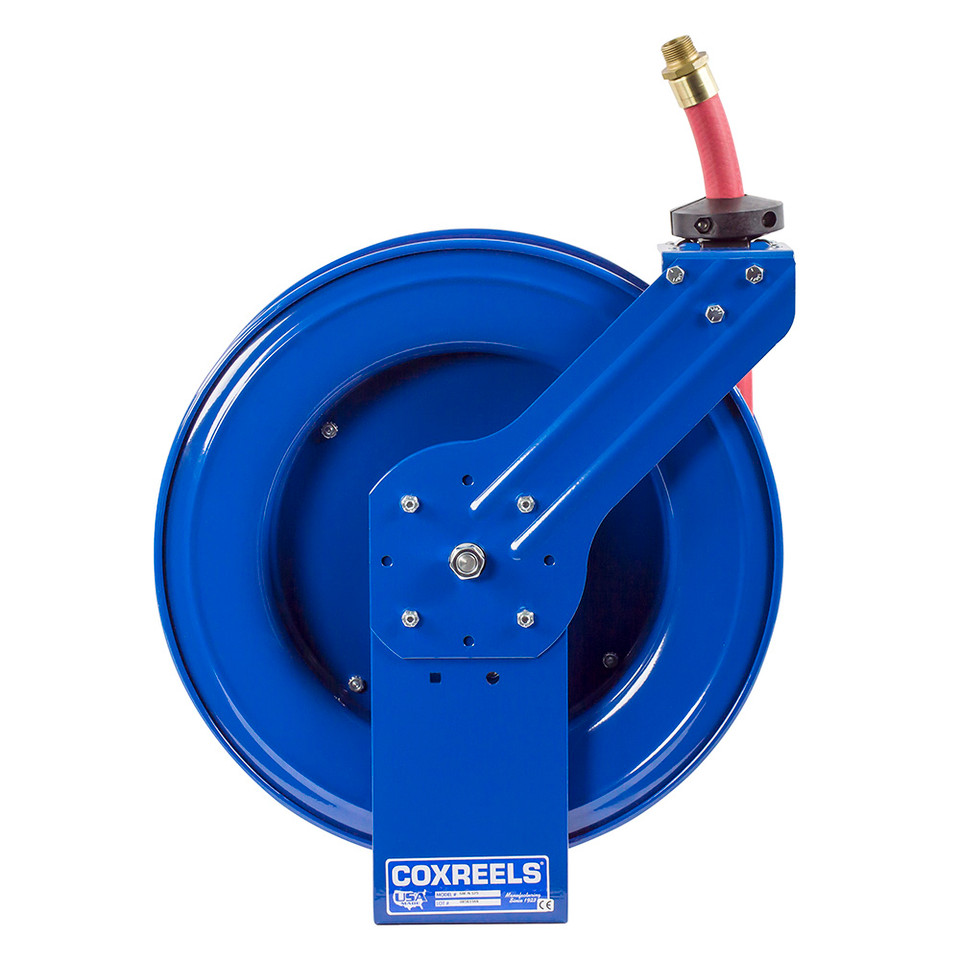

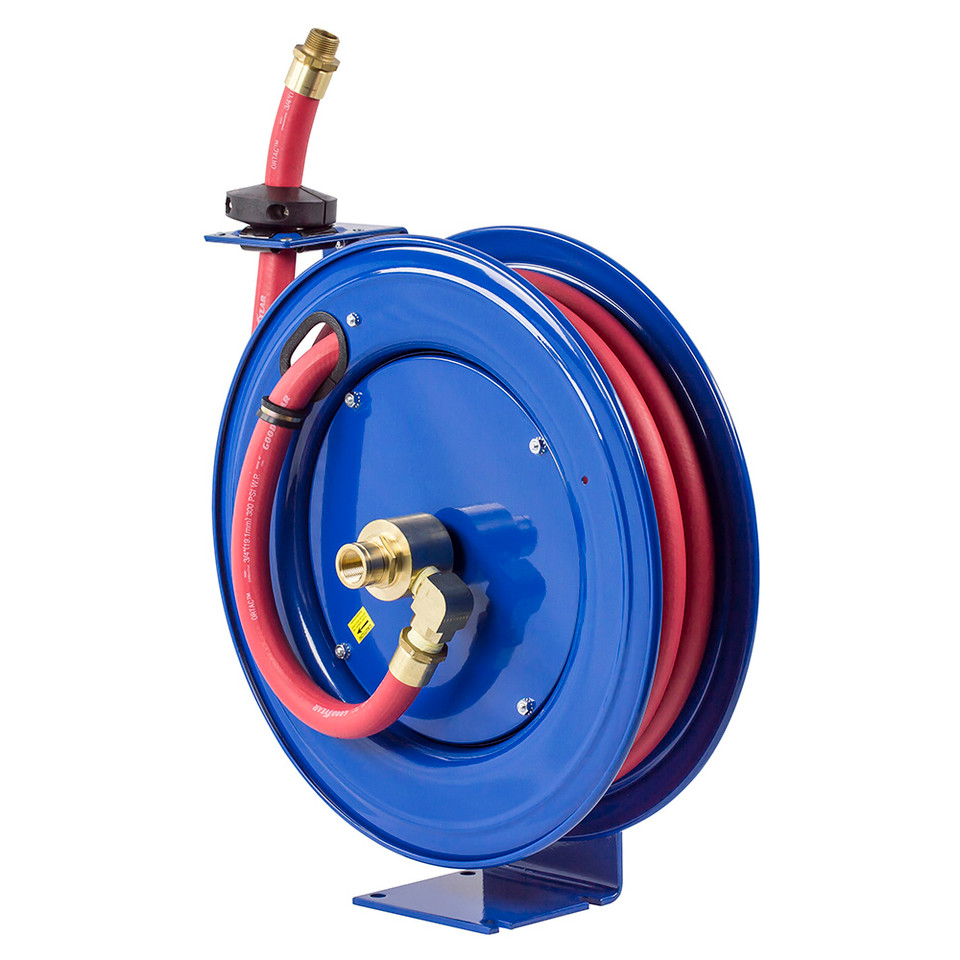

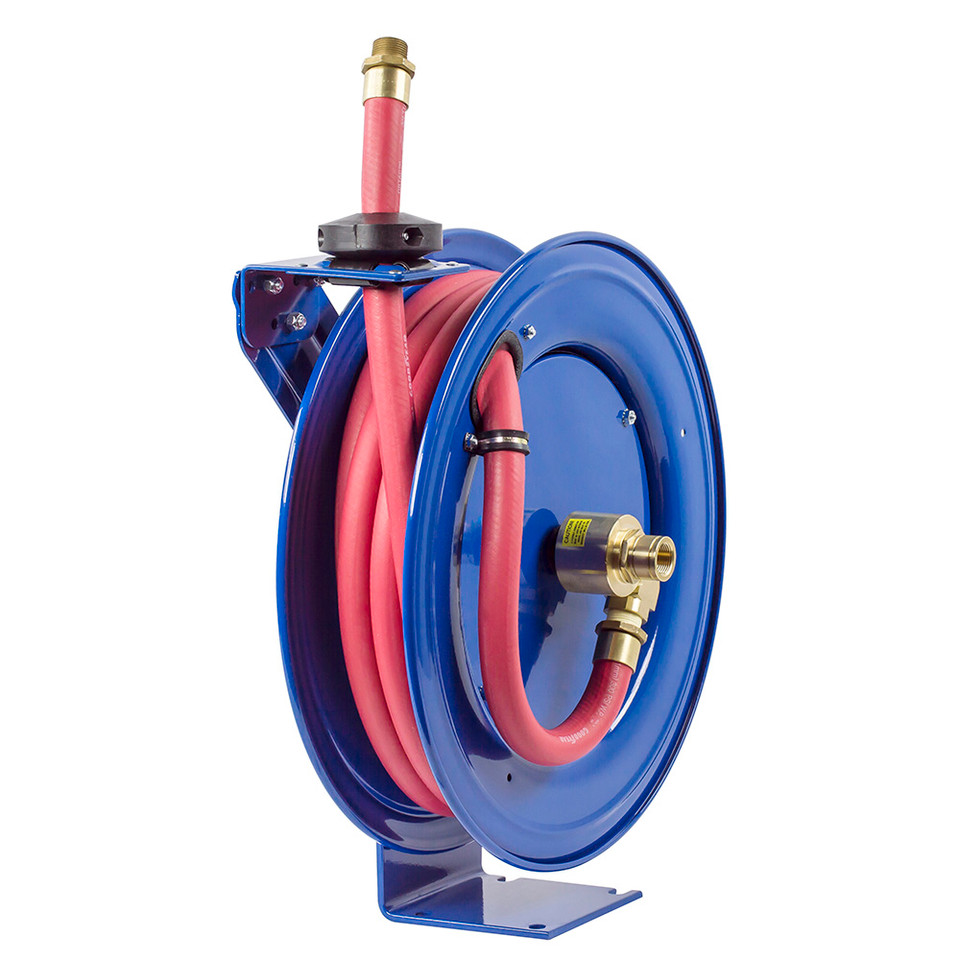

When fuel transfer work needs a compact spring rewind reel with a shorter hose reach, the Coxreels SHF-N-525 Fuel SH Series hose reel keeps dispensing hose stored, controlled, and ready for use. This model includes a 3/4" I.D. fuel dispensing hose with a 25 ft hose length and 300 PSI maximum pressure rating, making it a practical choice for fuel/lube trucks, utility vehicles, fuel storage systems, and compact dispensing stations handling compatible non-aromatic fuels.
The SHF-N-525 is built on Coxreels' Fuel SH Series single pedestal spring rewind platform with Super Hub dual axle support, meaning the reel uses a double-support hub system to improve stability, reduce vibration, and strengthen the reel structure during operation. The supplied fuel hose is intended for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil, with a catalog-listed hose temperature range of -20°F to +190°F. A multi-position lock ratchet secures the hose at the desired working length, while the enclosed cartridge-style spring motor retracts the hose after dispensing.
Type: Spring Rewind Fuel Hose Reel | Series: Fuel SH Series | Model: SHF-N-525 | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-3/16" | Hose Length: 25 ft | Max Pressure: 300 PSI | Fuel Compatibility: Non-Aromatic Fuels | Swivel: Machined Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Approx. Weight: 52 lbs | Size Index: 1
Features:
- Fuel dispensing hose is designed to convey non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- 3/4" hose I.D. and 25 ft hose length provide controlled dispensing reach for compact fuel transfer setups.
- 300 PSI maximum pressure rating supports compatible low-pressure fuel dispensing applications.
- Machined from solid brass 90° full-flow NPT swivel inlet supports fuel dispensing flow through the reel.
- Nitrile swivel seals are specified for the Fuel Series reel construction.
- Single pedestal frame features Coxreels' Super Hub dual axle support system for improved stability during operation.
- Guide arm adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide stable mounting support.
- 1" solid steel axle and lubricated precision bearings support smooth hose payout and rewind.
- Enclosed factory tuned and matched cartridge-style spring motor supports automatic hose retraction.
- Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support spring rewind operation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
Made in USA:
Applications:
- Fuel/lube trucks dispensing diesel, kerosene, fuel oil, or heating oil in field service and fleet maintenance work.
- Utility and mechanic vehicles requiring a compact fuel hose reel with controlled spring rewind storage.
- Fuel storage and dispensing systems where a 25 ft hose length is sufficient for nearby transfer points.
- Tank trucks and bulk liquid handling transport services using compatible non-aromatic fuel dispensing setups.
- Aircraft refueling and ground support operations where reel size and hose reach must fit the service area.
- Marine, ship refueling, offshore, and vehicle refueling locations where organized fuel hose storage helps keep dispensing areas cleaner between transfers.
FAQs:
- Q: Does the Coxreels SHF-N-525 include the hose?
A: Yes. The SHF-N-525 is supplied with a 3/4" I.D. x 25 ft fuel dispensing hose. It is not the less-hose SHFL-N-525 model. - Q: What fuels is this reel intended to handle?
A: The Fuel Series hose is designed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. Do not assume compatibility with aromatic fuels unless the reel is a catalog-listed -GS model or the application is confirmed by Coxreels. - Q: What is the difference between SHF-N-525 and TSHF-N-535?
A: The SHF-N-525 is a Fuel SH Series single pedestal reel with 25 ft of 3/4" hose. The TSHF-N-535 is a Fuel T Series dual pedestal reel with 35 ft of 3/4" hose and a larger frame for longer reach and heavier mounting conditions. - Q: Why choose the Fuel SH Series for a shorter hose reel?
A: The SH Series provides a sturdy single pedestal reel with Super Hub dual axle support in a compact size. It is useful when the dispensing point is close enough for a 25 ft hose and a larger dual pedestal T Series reel is not required. - Q: Can the guide arm be repositioned?
A: Yes. The SH Series guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, allowing the hose payout direction to match the installation.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
