Built for fuel dispensing systems, fuel/lube trucks, aircraft refuelers, and tank truck service, the Coxreels TSHL-N-635-BXN T-Fuel Series spring rewind hose reel provides controlled storage for 1" I.D. fuel hose up to 35 ft long. Its 300 PSI maximum pressure rating supports low-pressure fuel transfer applications where hose capacity, mounting layout, and fluid compatibility need to be confirmed before installation.
This Supreme Duty dual pedestal reel is supplied in a Less Hose configuration, allowing the buyer to install a compatible fuel hose that matches the reel capacity and the dispensing application. The spring rewind mechanism retracts hose using stored spring tension, while the multi-position lock ratchet holds the hose at the desired working length during fueling, service, or transfer work.

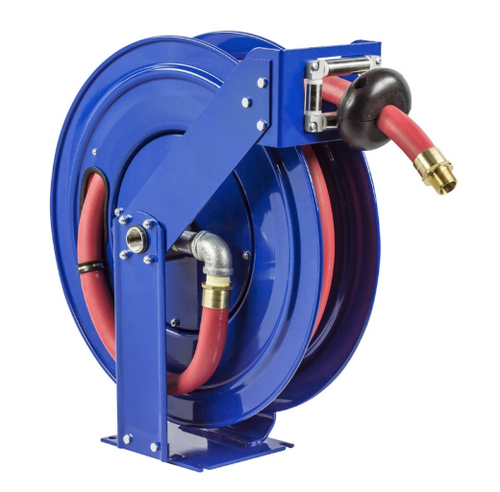

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Fuel Hose Reel | Series: T-Fuel Series | Configuration: Less Hose | Model: TSHL-N-635-BXN | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Inlet: 1" FNPT | Swivel Material: Brass | Seal Material: Nitrile | Finish: Powder Coated | Bearing Type: 1" Permanently Lubricated Precision Bearings | Mounting Size: 7" x 8" | Base Size: 8" x 9" | Overall Dimensions: 24" L x 10" W x 25-1/2" H | Approx. Ship Weight: 71 lb
Features:
- Spring rewind operation retracts the hose after use, helping keep fueling areas cleaner and reducing loose hose on floors, truck beds, or service platforms.
- Supreme Duty dual pedestal frame provides stable reel support for truck-mounted and stationary fuel dispensing installations.
- Machined brass 90° full-flow NPT swivel inlet supports fuel transfer while allowing the reel drum to rotate during payout and rewind.
- Nitrile seal material is used for listed non-aromatic fuel service, including diesel, kerosene, fuel oil, and heating oil applications.
- 1" permanently lubricated precision bearings promote smooth drum rotation and reduce routine bearing maintenance requirements.
- Multi-position lock ratchet secures the hose at the desired payout length for controlled dispensing.
- Adjustable guide arm supports wall, floor, ceiling, bench, truck, and vehicle mounting orientations.
- Powder coated steel construction helps protect the reel frame in fleet, fuel service, and maintenance environments.
Made in USA:
Applications:
- Fuel/lube service trucks - managing 1" fuel hose during mobile equipment service, route fueling, and fleet maintenance work.
- Aircraft ground support - mounting on refuelers or service vehicles where controlled hose payout and rewind are needed.
- Bulk liquid handling transport - organizing fuel transfer hose on tank trucks and dispensing systems within the reel's pressure rating.
- Maintenance yards and fleet shops - storing fuel hose at diesel dispensing stations, service bays, and equipment fueling points.
- Vehicle-mounted fuel systems - keeping hose contained between jobs while supporting wall, floor, ceiling, bench, truck, or vehicle installation layouts.
FAQs:
- Q: What does less hose mean on this Coxreels T-Fuel reel?
A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1" I.D. hose separately and verify that the hose outside diameter, pressure rating, length, and fuel compatibility match the reel and application. - Q: What fuels can this reel be used with?
A: Coxreels T-Fuel Series reels are intended for listed non-aromatic fuel applications such as diesel, kerosene, fuel oil, and heating oil. Do not use the reel with unverified fuels, solvents, or chemicals outside the manufacturer's stated compatibility. - Q: Can the TSHL-N-635-BXN be mounted on a truck?
A: Yes. The adjustable guide arm supports truck and vehicle mounting along with wall, floor, ceiling, and bench layouts. The mounting surface must be strong enough to support the reel, hose, and operating loads. - Q: Does this reel include a nozzle, leader hose, or fuel hose?
A: No. This is a less-hose model, so hose and dispensing accessories are not included unless added separately at the time of purchase. - Q: Why is the hose outside diameter important?
A: Hose outside diameter affects how much hose the reel can safely and neatly store. For this model, the listed capacity is based on 35 ft of hose with a 1-1/2" outside diameter.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
