When a low-pressure fuel or water delivery system needs a larger hose diameter in a shorter, more controlled reel package, the Coxreels SLPL-625 gives installers a spring rewind reel-only platform for custom hose selection. Part of the SP-Fuel Series, this single hose reel is built for 1" hose I.D., 25 ft hose capacity, and a 300 PSI maximum pressure rating, making it useful where higher-volume transfer is needed but the hose run does not require a 50 ft or 75 ft reel.
The SLPL-625 is supplied less hose, allowing the buyer to choose compatible hose for the intended fluid, fitting style, pressure rating, temperature range, and installation layout. The spring rewind mechanism retracts hose back onto the drum after use, while the box-style steel frame, reinforced cross supports, and heavy gauge 1/4" steel base provide a stable mounting structure. On this 1" model, Coxreels uses an electroless nickel plated steel 90° full-flow NPT swivel, with NPT meaning National Pipe Thread for common threaded pipe connections used in fluid handling systems.

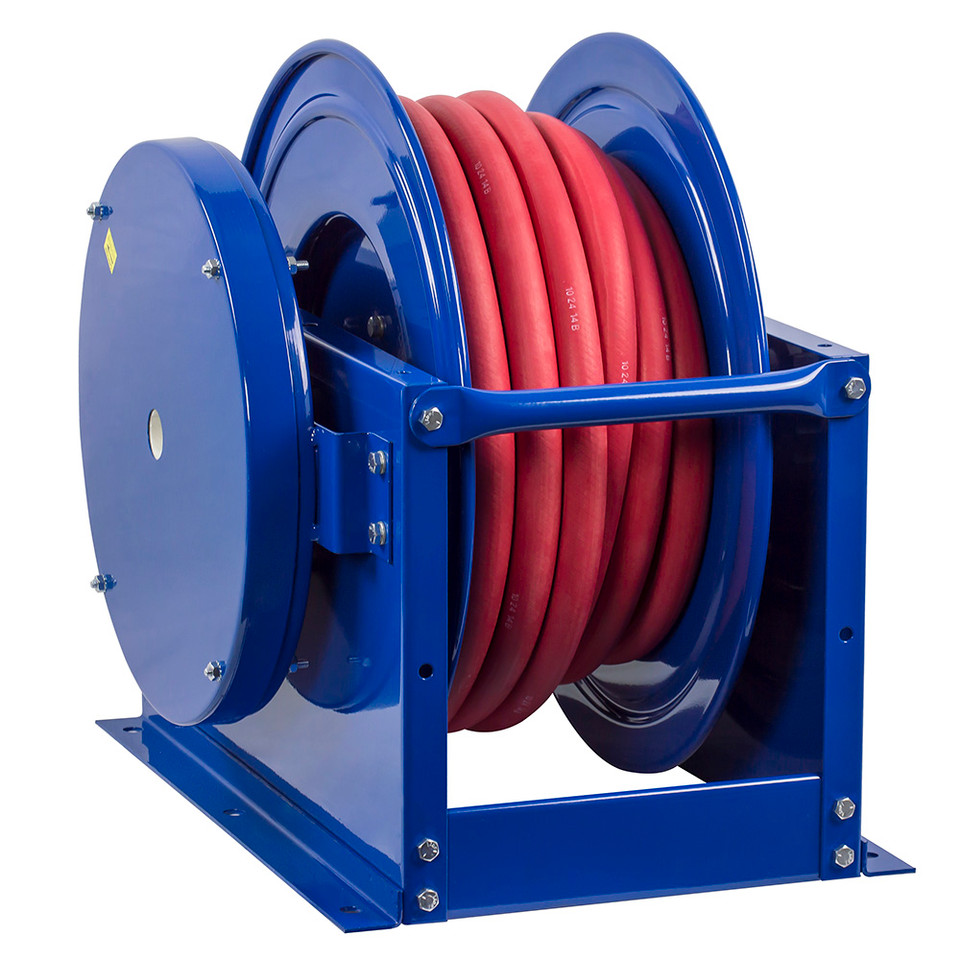

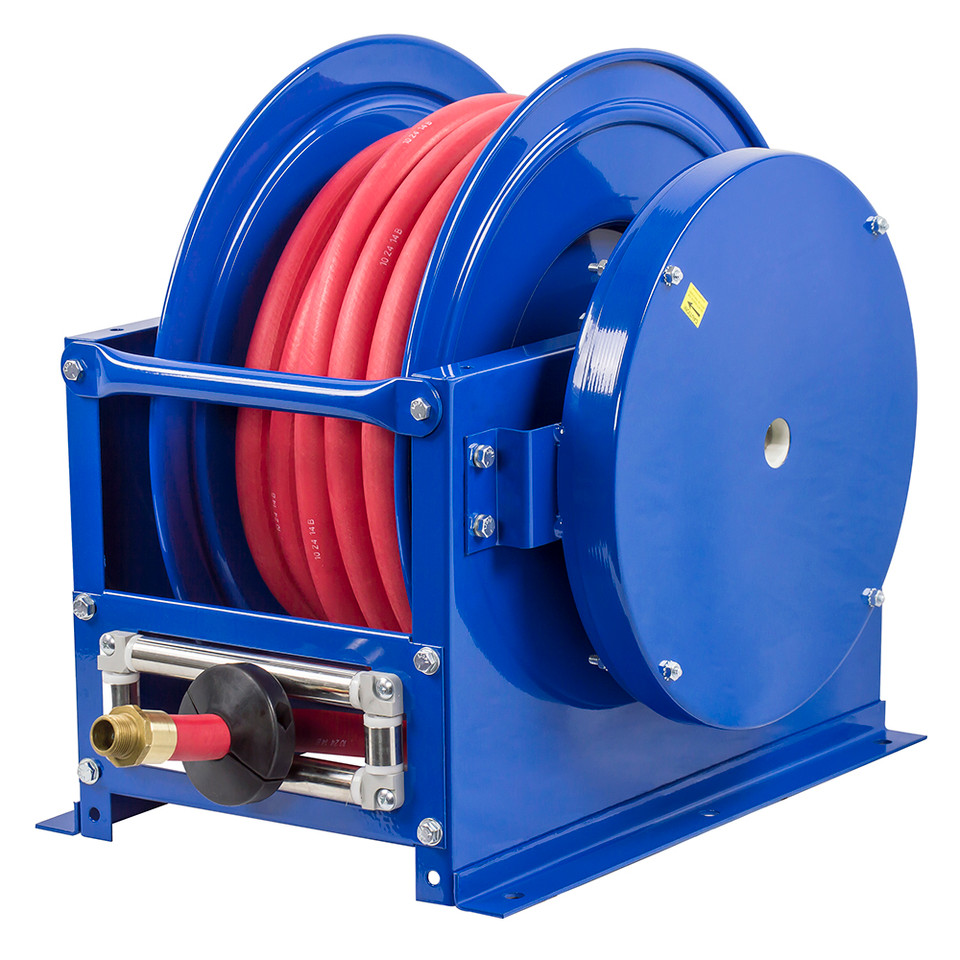

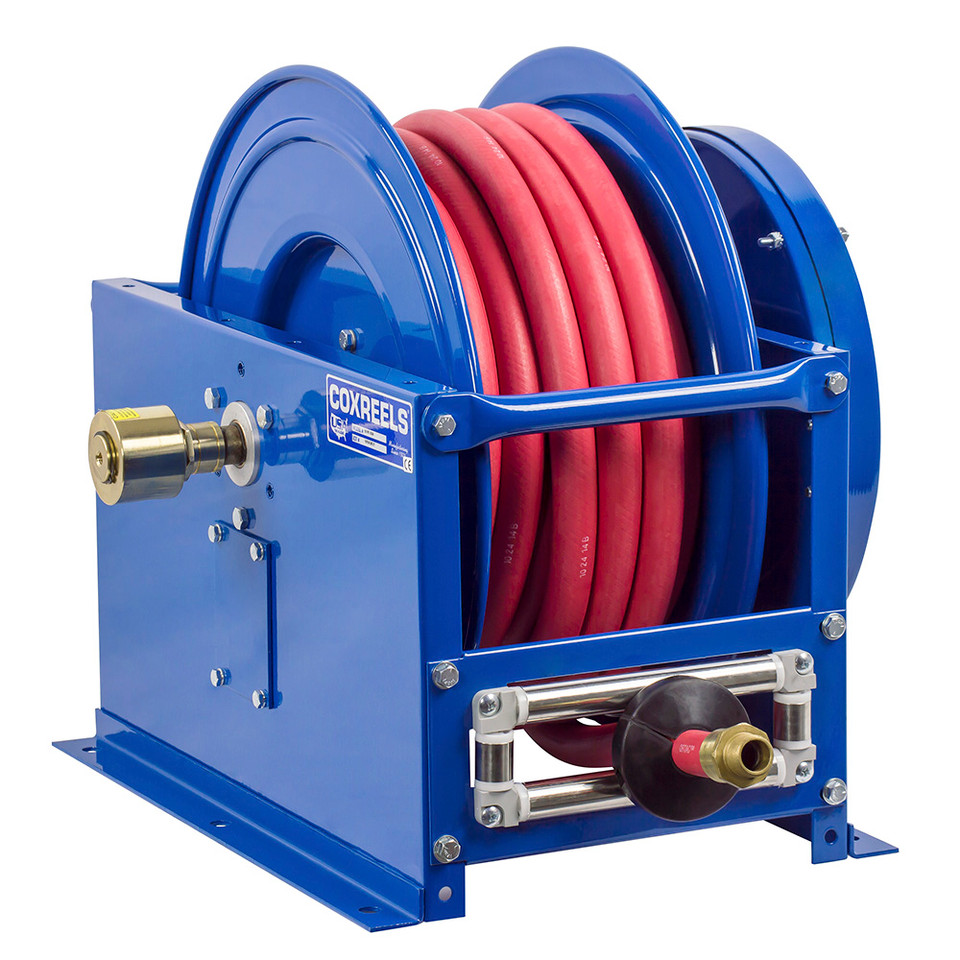

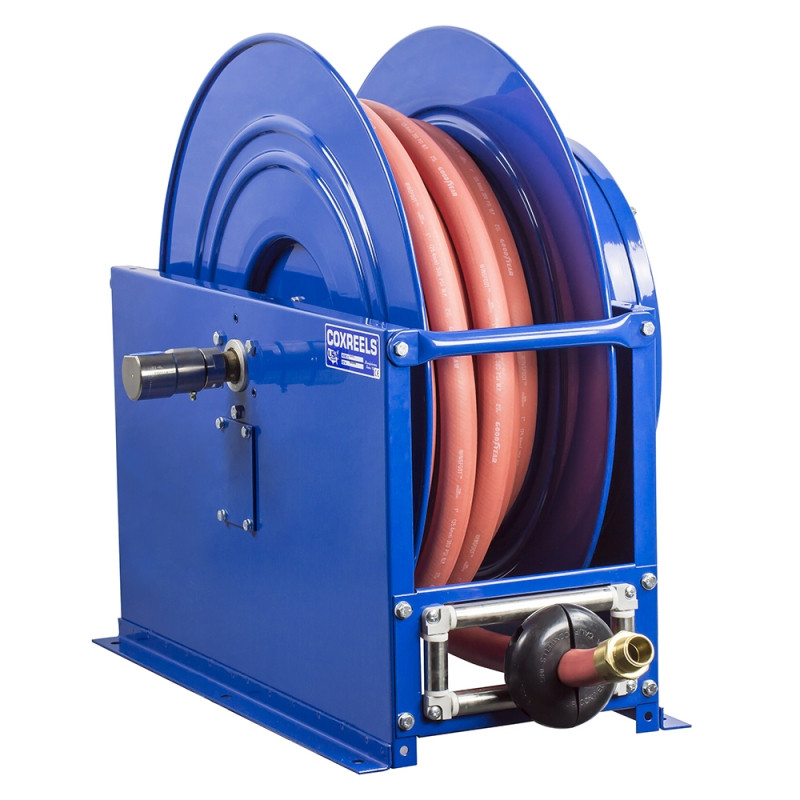

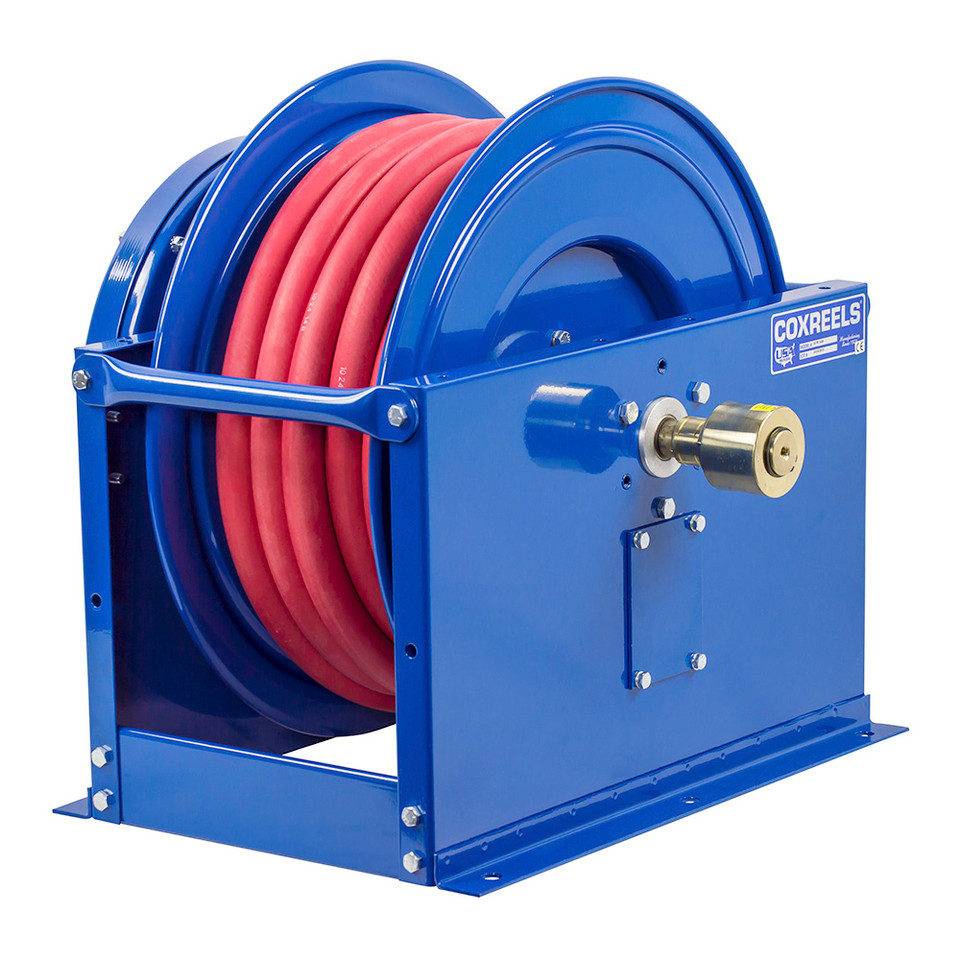

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP-Fuel Series | Model: SLPL-625 | Configuration: Less Hose | Hose I.D.: 1" | Max Hose O.D.: 1-1/2" | Hose Capacity: 25 ft | Max Pressure: 300 PSI | Inlet/Outlet NPT: 1" | Swivel: Electroless nickel plated steel 90° full-flow NPT | Swivel Seals: AFLAS | Approx. Ship Weight: 90 lbs
Features:
- Less-hose configuration lets the installer choose hose matched to the required fluid, pressure, fittings, and routing needs.
- 1" hose I.D. capacity supports larger-volume transfer compared with smaller 1/2" and 3/4" hose configurations.
- 25 ft hose capacity helps keep the reel compact where the dispensing point is close to the tank, pump, or service area.
- Electroless nickel plated steel 90° full-flow NPT swivel is used on 1" models for fluid routing through the reel assembly.
- AFLAS swivel seals are specified on 1" models for the swivel sealing system.
- Sturdy box-style frame design with steel cross supports at all four corners provides added rigidity during hose payout and rewind.
- Reel adjusts to wall, floor, vehicle, and overhead positions for flexible installation on trucks, skids, service bays, and fixed dispensing stations.
- Enclosed factory tuned and matched cartridge-style spring motor, cast iron lock ring, non-sparking bronze pawl, and multi-position lock ratchet mechanism help control hose extension and rewind.
Made in USA:
Applications:
- Fuel delivery and lube skids where a short 1" hose run is preferred for controlled dispensing near the pump or tank.
- Service, mechanic, and utility vehicles that need organized storage for larger diameter hose without carrying extra unused length.
- Bulk handling and general industrial transfer stations using compatible low-pressure hose for fuel, water, or other approved fluids.
- Construction, railroad, and fleet maintenance operations where hose must be secured between fueling or fluid transfer tasks.
- Aircraft, marine, offshore, and shipyard service areas that require a reel-only platform for custom hose and fitting selection.
FAQs:
- Q: What does "less hose" mean on the Coxreels SLPL-625?
A: It means this SKU is supplied as the reel only, without hose installed. The buyer must provide compatible 1" hose separately and confirm hose O.D., pressure rating, media compatibility, temperature rating, and fittings before use. - Q: Why choose the SLPL-625 instead of a 3/4" SP-Fuel reel?
A: The SLPL-625 is sized for 1" hose, which is typically selected when the system needs a larger internal flow path. A 3/4" reel may be more appropriate when the installation needs a smaller, lighter hose assembly or longer hose capacity within the same reel family. - Q: How much hose will this reel hold?
A: Coxreels lists the SLPL-625 for 25 ft of 1" I.D. hose with a maximum hose O.D. of 1-1/2". Do not exceed the listed hose O.D. if the reel must hold the full rated length. - Q: Can this reel be mounted on a service truck?
A: Yes, the SP Series frame adjusts to vehicle, wall, floor, and overhead mounting positions. The mounting surface should be checked for the reel weight, hose weight, and pull forces created during hose payout. - Q: Is the SLPL-625 ready to dispense fuel when it arrives?
A: No. This is a less-hose reel, so hose, fittings, nozzle, and any other dispensing components must be selected separately for the application.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
