When a fuel dispensing setup needs more reach without moving the truck, tank, or dispensing point, the Coxreels SLPL-575 provides a reel-only spring rewind platform with 75 ft hose capacity for longer low-pressure transfer runs. Part of the SP-Fuel Series, this single hose reel is built for larger hose diameters and supports 3/4" hose I.D. at a 300 PSI maximum pressure rating, making it a practical choice for fuel delivery, lube trucks, fleet service areas, and bulk handling systems where hose organization is part of the installation.
The SLPL-575 is supplied less hose, giving installers flexibility to select a compatible hose for the required fuel, fitting style, hose outside diameter, and service temperature. Spring rewind operation retracts the hose after use, while the sturdy box-style frame, heavy gauge 1/4" steel base, and reinforced steel structure help support vehicle, floor, wall, or overhead mounting. A machined solid brass 90° full-flow NPT swivel uses National Pipe Thread connections to route fluid through the reel while allowing the drum to rotate during payout and rewind.

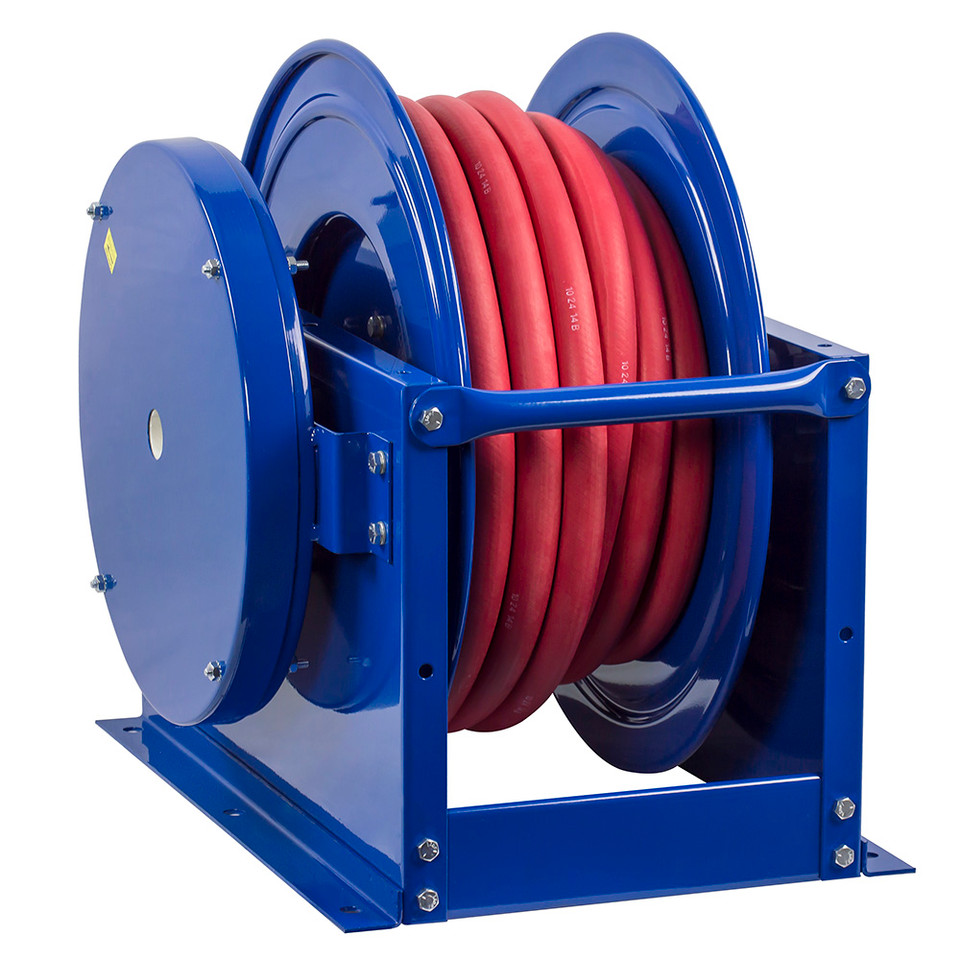

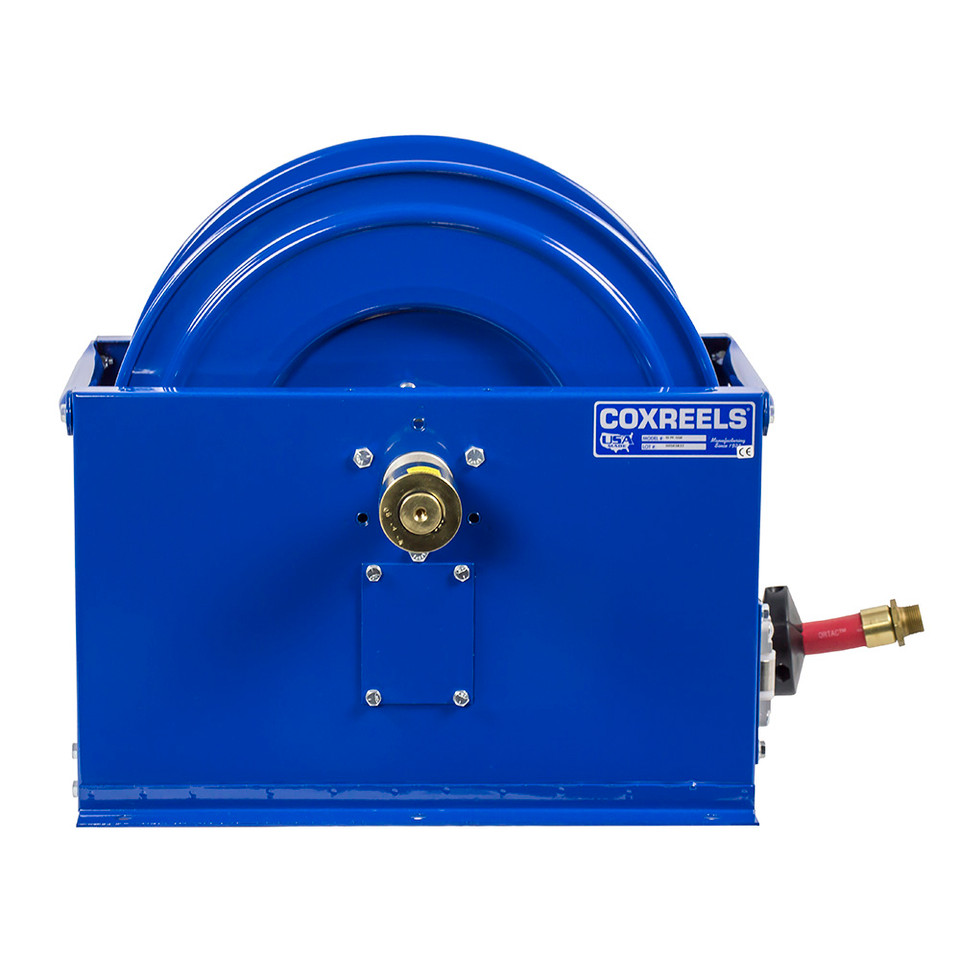

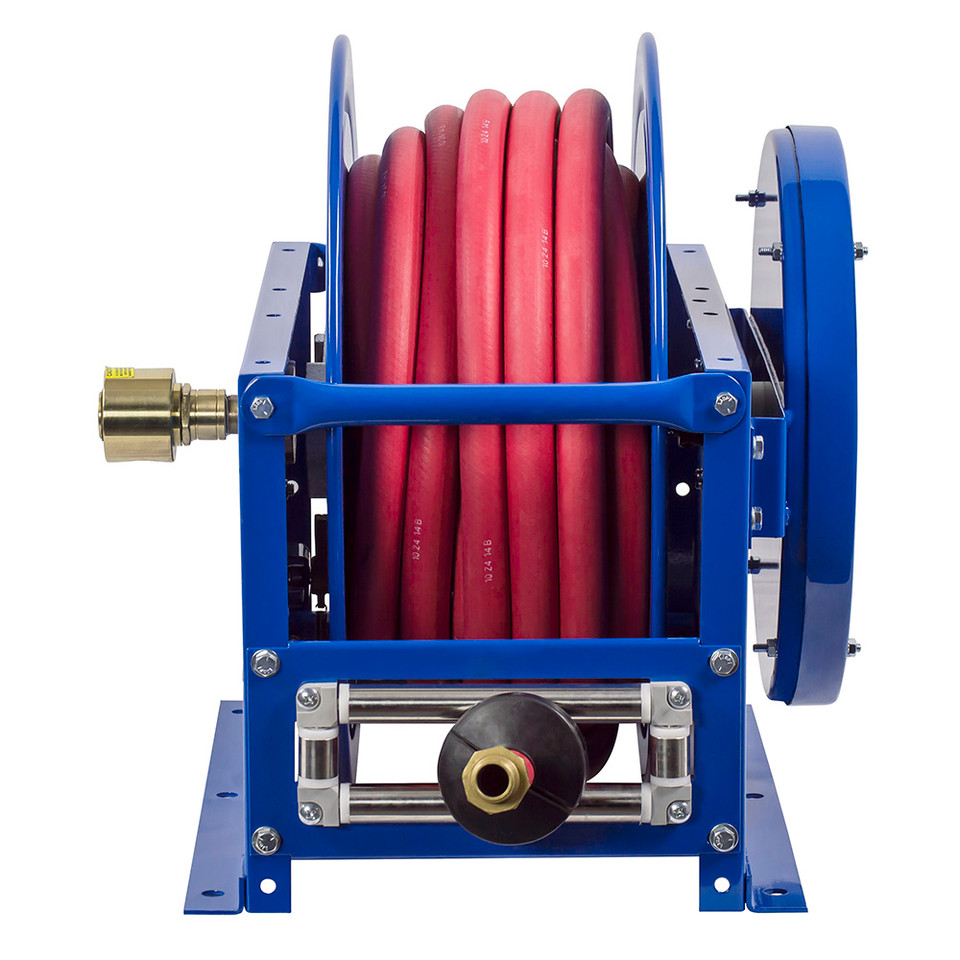

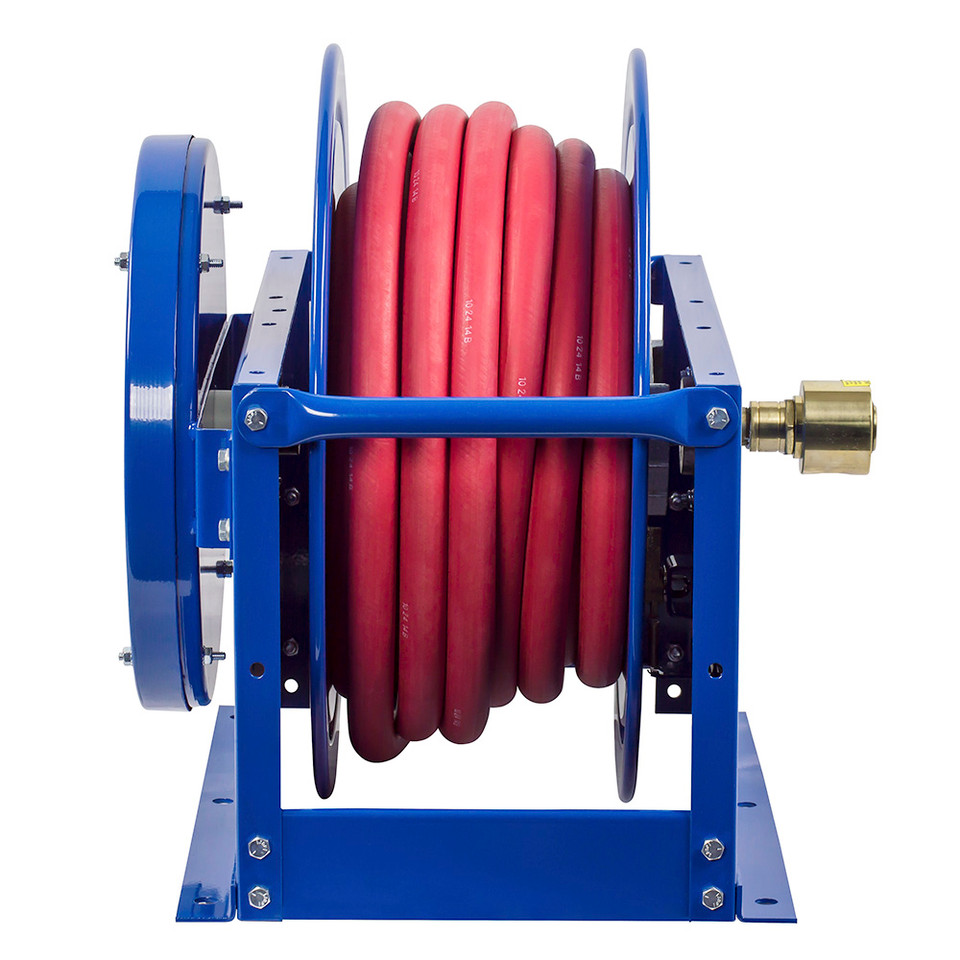

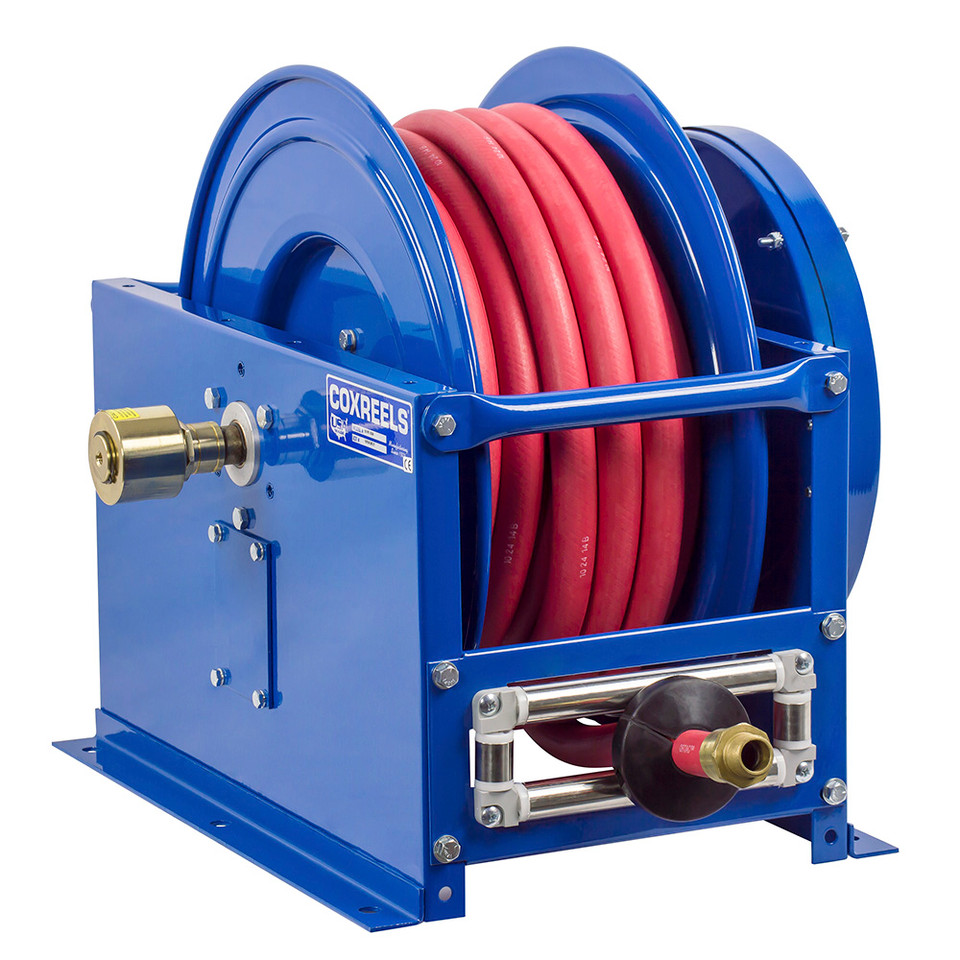

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Hose Reel | Series: SP-Fuel Series | Model: SLPL-575 | Configuration: Less Hose | Hose I.D.: 3/4" | Max Hose O.D.: 1-1/16" | Hose Capacity: 75 ft | Max Pressure: 300 PSI | Inlet/Outlet NPT: 3/4" | Size Index: 3 | Approx. Ship Weight: 117 lbs
Features:
- Less-hose configuration supports custom hose selection for fuel transfer systems, service vehicles, and stationary dispensing locations.
- 75 ft hose capacity provides added working radius compared with shorter 50 ft reel configurations.
- Machined from solid brass 90° full-flow NPT swivel inlets for reliable fluid routing through the reel assembly.
- Nitrile swivel seals support common low-pressure fuel and fluid transfer applications when paired with compatible hose and media.
- Sturdy box-style frame design with heavy duty steel cross supports at all four corners for added rigidity.
- Reel adjusts to wall, floor, vehicle, and overhead positions for flexible installation on trucks, skids, shops, and service bays.
- Long lasting self-lubricated flange bearings promote smooth drum rotation during hose payout and rewind.
- Multi-position lock ratchet mechanism secures the hose at the desired length while the enclosed cartridge-style spring motor powers rewind.
Made in USA:
Applications:
- Fuel delivery trucks and lube skids for managing longer hose runs during diesel, kerosene, heating oil, or fuel oil dispensing.
- Fleet maintenance and service vehicle builds where hose storage needs to stay organized between stops.
- Bulk handling and general industrial fluid transfer stations using compatible low-pressure hose and fittings.
- Aircraft and ground support maintenance areas where extended hose reach helps serve equipment without repositioning the reel.
- Marine, offshore, construction, and railroad service operations that need controlled payout and rewind for larger diameter hose.
FAQs:
- Q: What does "less hose" mean on the SLPL-575?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately and verify hose I.D., hose O.D., pressure rating, fittings, temperature rating, and media compatibility before installation. - Q: How is the SLPL-575 different from the SLPL-550?
A: The SLPL-575 is the longer 75 ft capacity version for 3/4" hose, while the SLPL-550 is listed for 50 ft. Choose the SLPL-575 when the reel mounting point is farther from the dispensing area or equipment being serviced. - Q: What hose outside diameter can be used?
A: Coxreels lists this model for hose up to 1-1/16" O.D. Do not exceed the listed hose outside diameter if you need the reel to hold the full 75 ft hose length. - Q: Can this reel be mounted on a truck?
A: Yes, the reel adjusts to vehicle, wall, floor, and overhead mounting positions. The installer should confirm the mounting surface can support the reel weight, hose weight, and pulling forces during hose payout. - Q: Is this reel ready to dispense fuel out of the box?
A: No. This is a less-hose reel, so it is not a complete hose assembly. Compatible hose, fittings, and any dispensing accessories must be selected separately for the intended fuel or fluid service.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
