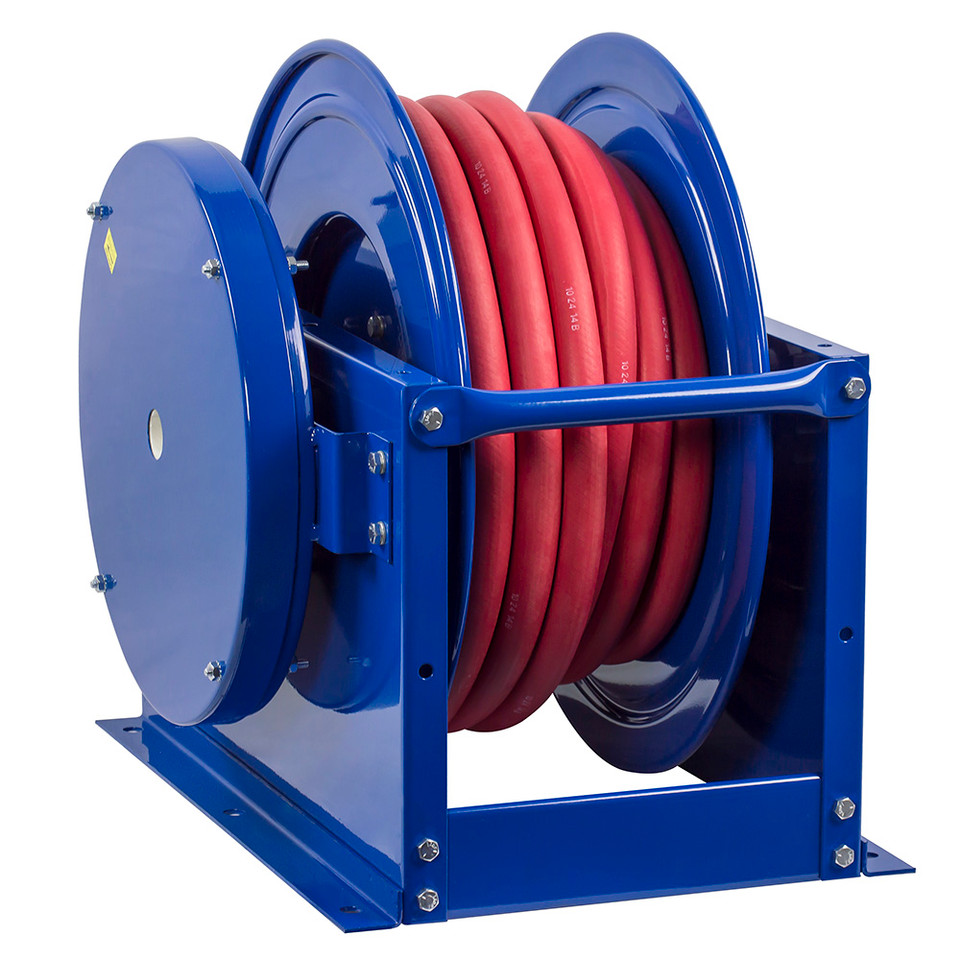

For fuel dispensing applications that need a box-style spring rewind reel with 50 ft of hose reach, the Coxreels SLPF-550 Fuel SP Series hose reel keeps fuel hose organized, supported, and ready for transfer work. This model includes a 3/4" I.D. fuel dispensing hose with a 50 ft hose length and 300 PSI maximum pressure rating, making it a practical fit for fuel storage systems, fuel/lube trucks, tank trucks, aircraft refuelers, and bulk liquid handling vehicles using compatible non-aromatic fuels.
The SLPF-550 is built on Coxreels' SP Series "Single Product Delivery" spring rewind platform, which uses a reinforced box-style frame to support larger hose diameters and low-to-medium pressure fluid delivery. The supplied fuel hose is designed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil, with a catalog-listed hose temperature range of -20°F to +190°F. A multi-position lock ratchet secures the hose at the desired working length, while the enclosed cartridge-style spring motor retracts the hose after dispensing.
Type: Spring Rewind Fuel Hose Reel | Series: Fuel SP Series | Model: SLPF-550 | Hose Included: Yes | Hose I.D.: 3/4" | Hose O.D.: 1-1/16" | Hose Length: 50 ft | Max Pressure: 300 PSI | Fuel Compatibility: Non-Aromatic Fuels | Swivel: Machined Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Approx. Weight: 99 lbs | Size Index: 7
Features:
- Fuel dispensing hose is designed to convey non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- 3/4" hose I.D. and 50 ft hose length provide practical reach for fuel trucks, storage tanks, dispensing points, and service areas.
- 300 PSI maximum pressure rating supports compatible low-pressure fuel dispensing applications.
- Machined from solid brass 90° full-flow NPT swivel inlet supports fuel dispensing flow through the reel.
- Box-style frame design with reinforced steel cross supports adds strength and stability for larger hose storage.
- Reel adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- Long-lasting self-lubricated flange bearings support smooth reel rotation during hose payout and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide the hose and protect it during operation.
- Enclosed factory tuned and matched cartridge-style spring motor supports automatic hose retraction.
- Cast iron lock ring with non-sparking bronze pawl secures hose at the selected working length.
Made in USA:
Applications:
- Fuel/lube trucks dispensing diesel, kerosene, fuel oil, or heating oil in field service and fleet maintenance operations.
- Fuel storage and dispensing systems where a 50 ft hose reach is needed around pumps, tanks, and transfer points.
- Tank trucks and bulk liquid handling transport vehicles requiring a box-style reel for organized fuel hose storage.
- Aircraft refueling and ground support operations using compatible non-aromatic fuel dispensing setups.
- Vehicle refueling areas, fleet yards, and maintenance facilities managing fuel hose around service equipment.
- Marine, ship refueling, offshore, and petroleum handling locations where hose control and reel placement are important to the workflow.
FAQs:
- Q: Does the Coxreels SLPF-550 include the hose?
A: Yes. The SLPF-550 is supplied with a 3/4" I.D. x 50 ft fuel dispensing hose. It is not the less-hose SLPL-550 model. - Q: What fuels is this hose reel intended to handle?
A: The Fuel Series hose is designed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. Do not assume compatibility with aromatic fuels unless the reel is a catalog-listed -GS model or the application is confirmed by Coxreels. - Q: What is the difference between SLPF-550 and SLPL-550?
A: The SLPF-550 includes 50 ft of 3/4" fuel dispensing hose. The SLPL-550 is the less-hose version and is supplied as the reel without hose installed. - Q: Why choose the Fuel SP Series instead of the Fuel SH or Fuel T Series?
A: The Fuel SP Series uses a reinforced box-style frame built for single product delivery and larger hose storage. It is a good choice when the application benefits from the added frame support and mounting footprint of the SP platform. - Q: Can the reel be mounted on a wall, floor, vehicle, or overhead location?
A: Yes. The SP Series reel adjusts to wall, floor, vehicle, and overhead positions, allowing the hose payout direction to be matched to the installation.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Single Spring Rewind Fuel Hose Reel
- Series
- Fuel SP Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/16
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- Yes
- Width (in.)
- 19.63
- Height (in.)
- 20.5
- Length (in.)
- 22.88
- Mounting Pattern (in.)
- 14M
- Mounting Pattern (in.)
- 18.5N
- Base (in.)
- 15.38X
- Base (in.)
- 21.5Y
