When fuel hose needs to stay controlled on a truck, skid, or fixed dispensing system, the Coxreels TSHFL-N-535 provides a Supreme Duty T-Fuel Series reel platform for custom hose installation. This T-Fuel Series spring rewind hose reel is built for 3/4" hose I.D., 35 ft hose capacity, and a 300 PSI maximum pressure rating, making it a practical fit for shorter low-pressure fuel transfer runs where a dual pedestal reel frame is preferred over a single pedestal or box-style reel.
The TSHFL-N-535 is supplied less hose, giving installers the flexibility to choose compatible fuel hose for the required fluid, fittings, hose outside diameter, pressure rating, and temperature range. The spring rewind mechanism retracts hose onto the drum after use, while the T Series dual pedestal frame and Super Hub triple axle support help increase reel stability during payout and rewind. A machined solid brass 90° full-flow NPT swivel supports fuel dispensing service, with NPT referring to National Pipe Thread, a common threaded pipe connection used in fluid handling systems.

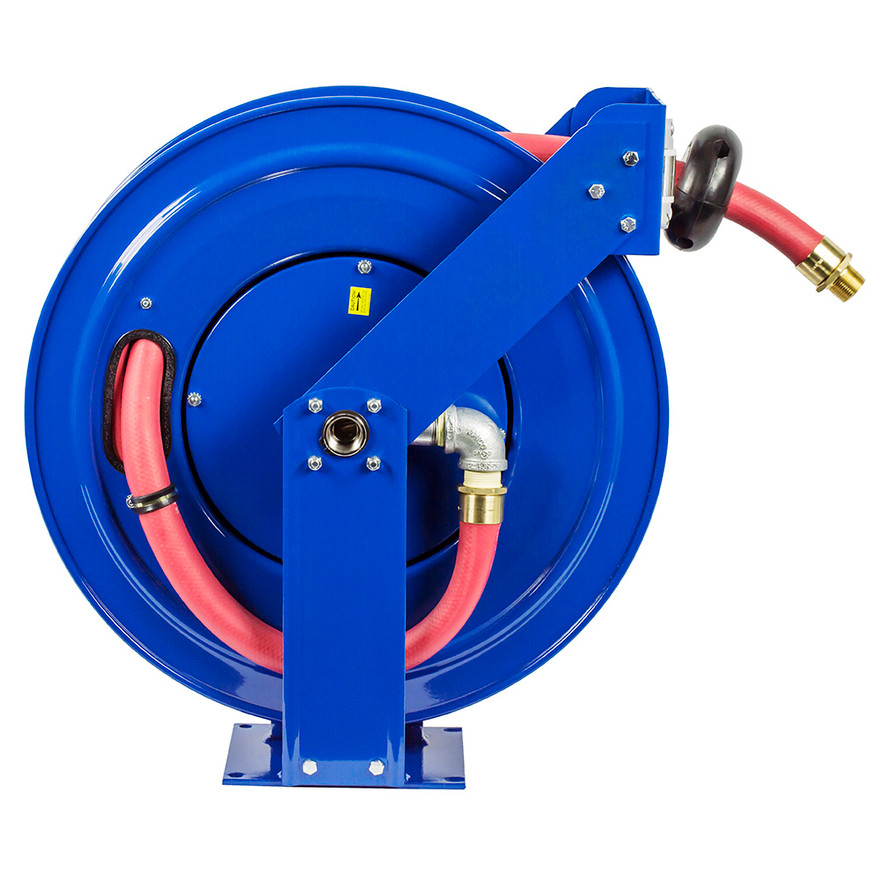

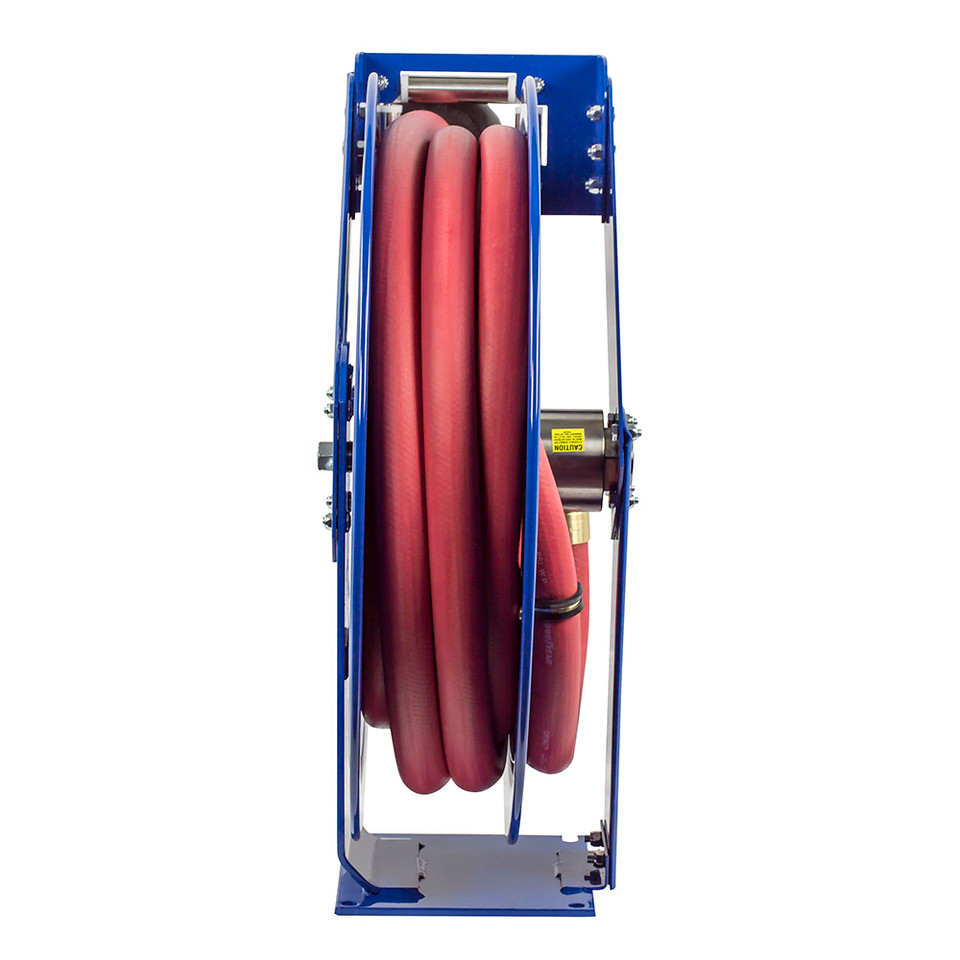

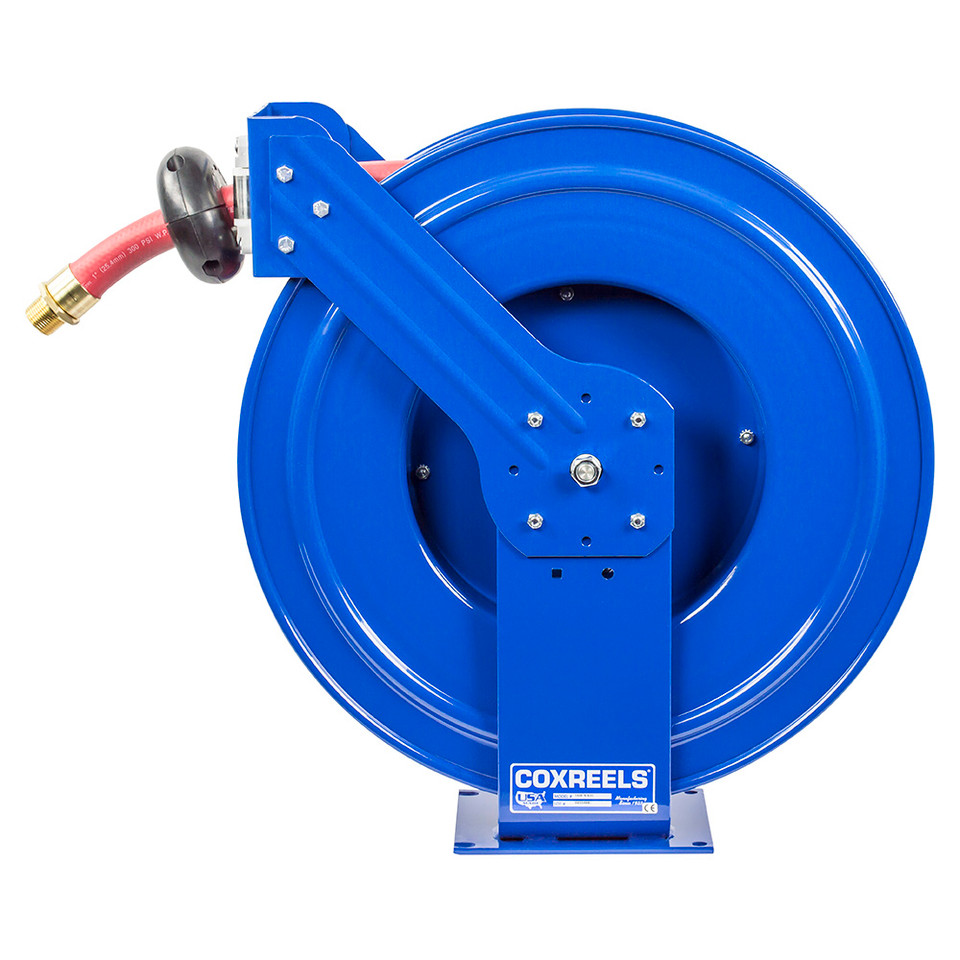

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Supreme Duty Spring Rewind Hose Reel | Series: T-Fuel Series | Model: TSHFL-N-535 | Configuration: Less Hose | Hose I.D.: 3/4" | Max Hose O.D.: 1-3/16" | Hose Capacity: 35 ft | Max Pressure: 300 PSI | Hose Included: No | Swivel: Solid brass 90° full-flow NPT | Swivel Seals: Nitrile | T Series Size Index: 2 | Approx. Ship Weight: 67 lbs
Features:
- Less-hose configuration allows the installer to select compatible 3/4" fuel hose for the fluid, fitting style, routing path, and site requirements.
- 35 ft hose capacity keeps the reel compact while still providing controlled reach around tanks, trucks, skids, and dispensing points.
- Machined from solid brass 90° full-flow NPT swivel inlet for fuel dispensing applications.
- Swivel seals are nitrile for the fuel dispensing swivel assembly.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation in shops, service trucks, and fixed fuel systems.
- Solid one-piece heavy gauge 1/4" steel base and support post provide maximum stability for T Series reel mounting.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation during hose payout and rewind.
- Enclosed factory tuned and matched cartridge-style spring motor, non-corrosive stainless steel spring and pawl, zinc plated ratchet, and multi-position lock ratchet mechanism secure hose at the desired working length.
Made in USA:
Applications:
- Vehicle refueling stations where a short 3/4" hose run keeps dispensing areas cleaner and easier to manage.
- Fuel/lube trucks and service skids that need spring rewind hose control without a factory-installed hose.
- Fuel storage and dispensing systems handling compatible non-aromatic fuels such as diesel, kerosene, fuel oil, or heating oil.
- Tank trucks and bulk liquid handling transport services where controlled hose payout helps reduce loose hose between stops.
- Aircraft refueling, marine, ship refueling, and offshore service areas when hose, fittings, and media compatibility are confirmed before installation.
FAQs:
- Q: What does "less hose" mean on the Coxreels TSHFL-N-535?
A: It means this reel is supplied without hose installed. The buyer must provide compatible 3/4" fuel hose separately and verify the hose O.D., pressure rating, fittings, temperature range, and fluid compatibility before use. - Q: What is the difference between TSHF-N-535 and TSHFL-N-535?
A: The TSHF-N-535 is the hose-equipped version, while the TSHFL-N-535 is the less-hose version. Choose the TSHFL-N-535 when you need the reel only and plan to install your own compatible hose. - Q: Can this reel be used for diesel fuel dispensing?
A: Yes, Coxreels lists the Fuel Series for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Because this SKU does not include hose, the installed hose and fittings must also be rated for the specific fuel being transferred. - Q: How much hose will the TSHFL-N-535 hold?
A: This model is listed for 35 ft of 3/4" I.D. hose with a maximum hose O.D. of 1-3/16". Do not exceed the listed hose outside diameter if the reel must hold the full rated length. - Q: Can this T-Fuel reel be mounted on a vehicle?
A: Yes, the guide arm adjusts for wall, floor, vehicle, and overhead mounting positions. The mounting surface should be checked for the 67 lb reel weight, the added hose weight, and the pull forces created during payout.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
