When a fuel dispensing system needs the SP-Fuel Series frame but the hose must be selected separately, the Coxreels SLPL-5100 Single Hose Spring Rewind Hose Reel provides a less-hose reel configuration for custom fuel transfer setups. This SP-Fuel Series reel is sized for 3/4" I.D. hose with up to 100 ft hose capacity and a 300 PSI maximum pressure rating when properly matched with compatible hose, making it suitable for fuel/lube trucks, bulk dispensing systems, tank trucks, aircraft refueling support, and fuel storage installations using approved non-aromatic fuel hose.
The SLPL-5100 is the less-hose version of the SLPF-5100, giving buyers the SP Series box-style frame without a factory-installed hose. This is useful when a facility needs to install a specific hose brand, hose end configuration, or replacement hose that meets the reel's listed capacity. The reel uses a spring rewind mechanism for automatic hose return, a multi-position lock ratchet to hold hose at the desired working length, and a reinforced steel frame designed for single product delivery applications such as fuel and other compatible low-to-medium pressure fluids.

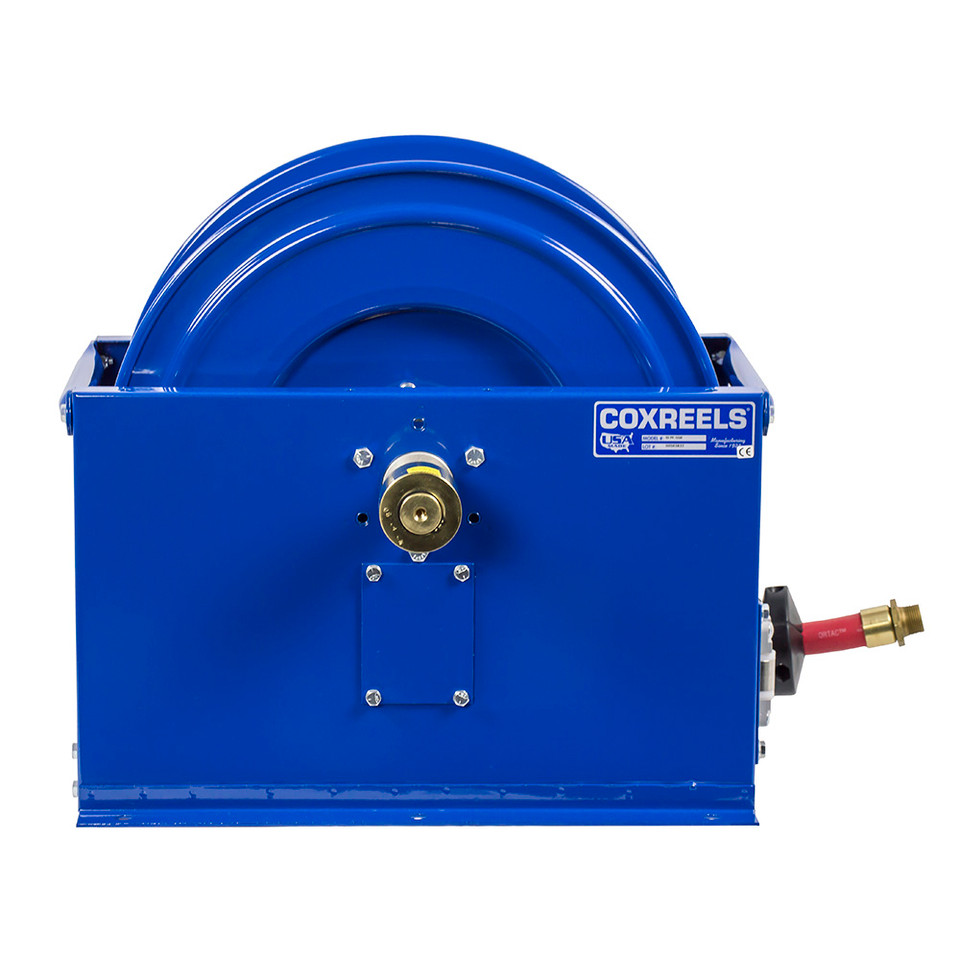

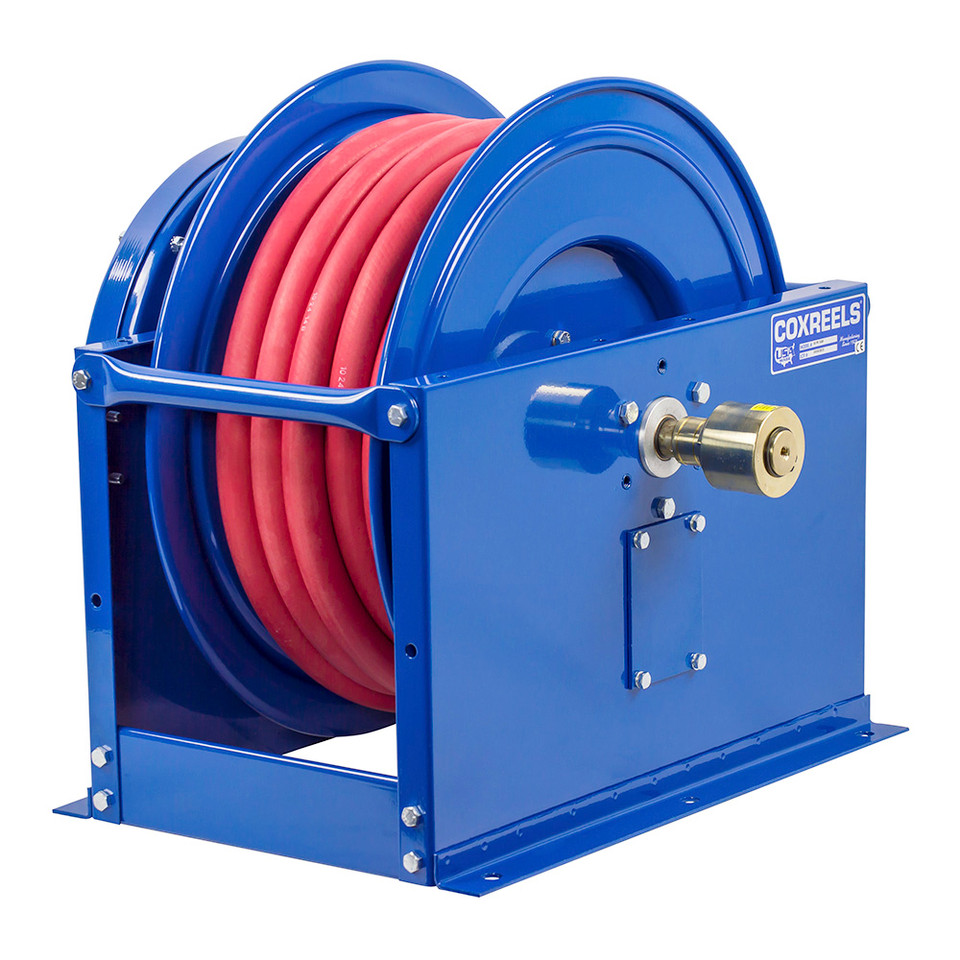

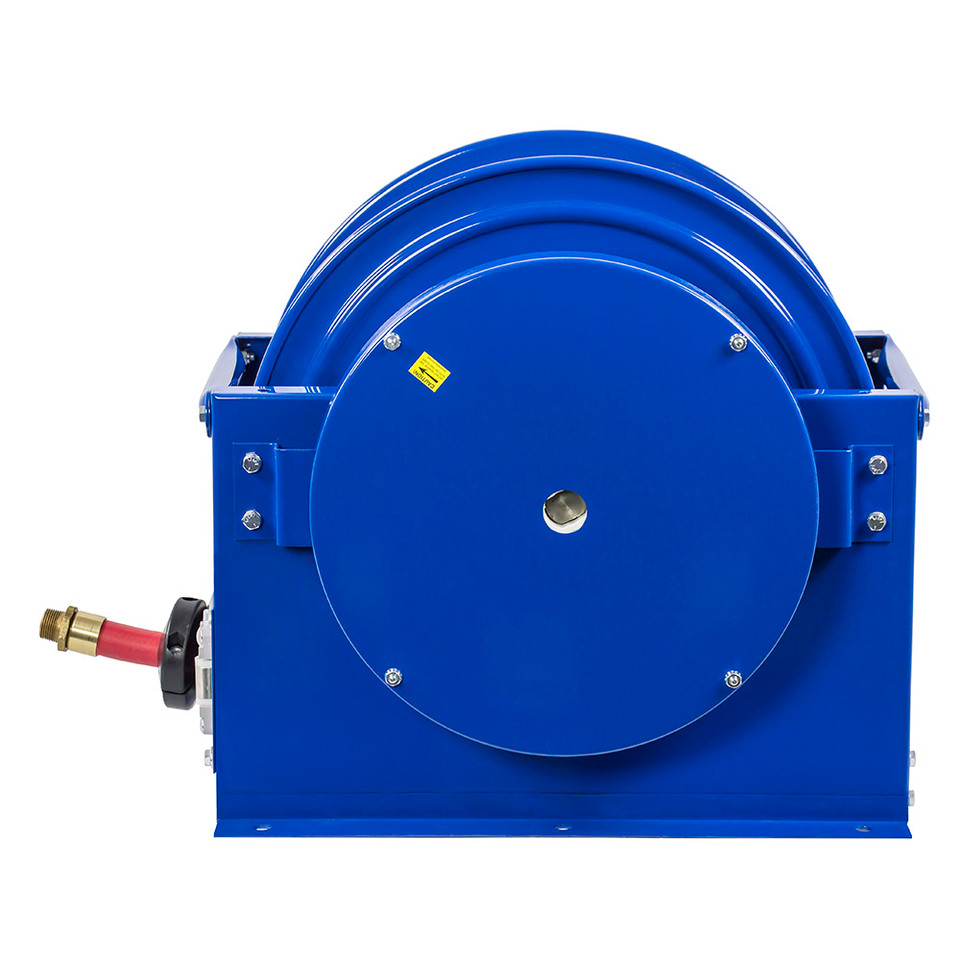

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Single Hose Spring Rewind Fuel Hose Reel | Series: SP-Fuel Series | Model: SLPL-5100 | Configuration: Less Hose | Hose Included: No | Hose I.D. Capacity: 3/4" | Maximum Hose O.D.: 1-1/16" | Hose Capacity: 100 ft | Max Pressure: 300 PSI | Fuel Compatibility: Non-Aromatic Fuels with Compatible Hose | Swivel: Machined Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Approx. Weight: 126 lbs | Size Index: 8
Features:
- Less-hose configuration allows the buyer to install compatible 3/4" fuel dispensing hose separately.
- 100 ft hose capacity supports long-reach fuel transfer layouts where the reel may be mounted away from the dispensing point.
- Maximum listed hose O.D. is 1-1/16"; do not exceed the listed hose O.D. when trying to obtain the full 100 ft capacity.
- 300 PSI maximum pressure rating supports compatible low-pressure fuel dispensing applications when the hose and system components are properly matched.
- Machined from solid brass 90° full-flow NPT swivel inlet supports fuel flow through the reel assembly.
- Nitrile swivel seals are specified for the Fuel Series reel construction.
- SP Series box-style frame is designed for single product delivery applications requiring larger hose storage.
- Reinforced steel cross supports add strength and rigidity across all four corners of the frame.
- Reel adjusts to wall, floor, vehicle, and overhead mounting positions for installation flexibility.
- Long-lasting self-lubricated flange bearings support smooth reel rotation during hose payout and rewind.
- Heavy duty 1" stainless steel pinch-proof rollers help guide and protect the hose during operation.
- Cast iron lock ring with non-sparking bronze pawl secures hose at the selected working length.
Made in USA:
Applications:
- Fuel/lube trucks where a 100 ft 3/4" fuel hose must be selected or installed separately.
- Bulk fuel storage and dispensing systems requiring a spring rewind reel without factory-installed hose.
- Tank trucks and bulk liquid handling transport vehicles using custom hose assemblies for fuel transfer.
- Aircraft refueling and ground support operations that require a specific compatible hose configuration.
- Fleet yards, vehicle refueling areas, and maintenance facilities managing long-reach fuel hose around pumps and tanks.
- Marine, ship refueling, offshore, and petroleum handling locations where hose selection is controlled by the application or site standard.
FAQs:
- Q: Does the Coxreels SLPL-5100 include hose?
A: No. The SLPL-5100 is a less-hose reel. It is supplied as the reel only, and the buyer must provide compatible 3/4" fuel dispensing hose separately. - Q: What does "less hose" mean for this SP-Fuel Series reel?
A: It means the reel is supplied without hose installed. This allows the user to select a hose that matches the fuel type, hose O.D., pressure rating, fittings, and site requirements. - Q: How is SLPL-5100 different from SLPF-5100?
A: The SLPL-5100 is the less-hose model with an approximate weight of 126 lbs. The SLPF-5100 is the hose-included version with 100 ft of 3/4" fuel dispensing hose installed. - Q: What hose size can this reel accept?
A: This reel is listed for 3/4" I.D. hose with a maximum hose O.D. of 1-1/16" and up to 100 ft capacity. Do not exceed the listed hose O.D. if the full capacity is required. - Q: What fuels can this reel be used with?
A: The Fuel Series is intended for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil when paired with compatible hose and system components. Hose compatibility must be confirmed separately because this model does not include hose.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
