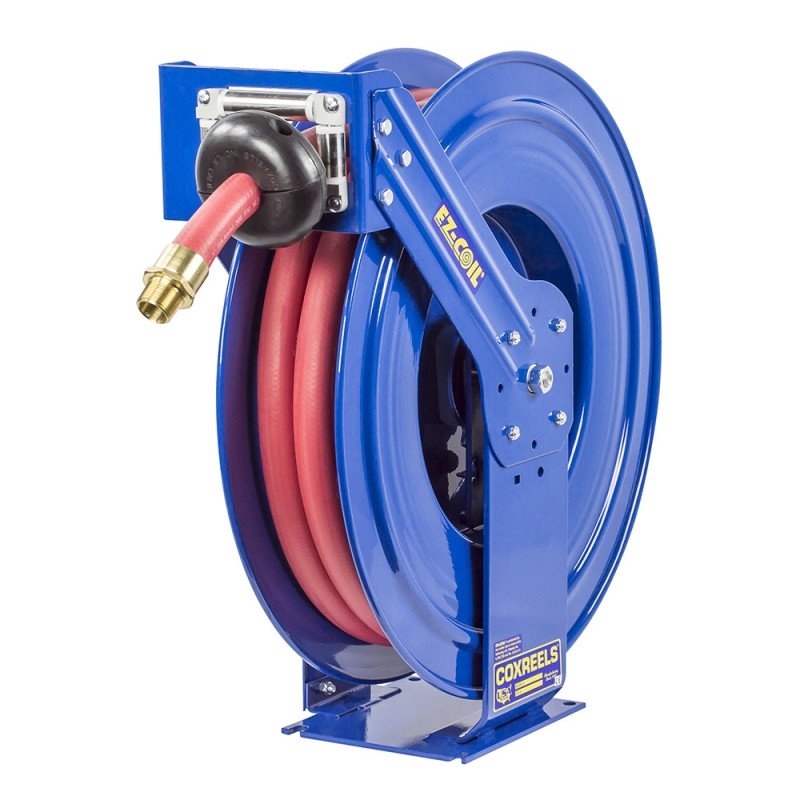

Built for fuel dispensing stations, lube trucks, tank trucks, and ground support equipment, the Coxreels EZ-TSHF-535 Fuel EZ-T Series Supreme Duty Spring Rewind Hose Reel provides controlled hose handling for 3/4" I.D. fuel hose with a 35 ft hose length and 300 PSI maximum pressure rating. This model is supplied with fuel dispensing hose and uses Coxreels’ EZ-Coil controlled rewind system, which slows hose retraction compared with standard spring rewind reels to help reduce hose whip, improve operator control, and keep transfer areas better organized.
The Fuel EZ-T Series combines Coxreels’ supreme-duty dual pedestal T Series frame with fuel-specific components for non-aromatic fuel transfer. A solid brass 90° full-flow NPT swivel supports fuel dispensing flow, while nitrile swivel seals provide compatibility for listed non-aromatic fuel service. The reel is built for applications that require durable hose storage, repeatable payout, and reliable rewind control around diesel, kerosene, fuel oil, and heating oil dispensing systems.
Type: Fuel Spring Rewind Hose Reel | Series: Fuel EZ-T Series | Model: EZ-TSHF-535 | Hose I.D.: 3/4" | Hose O.D.: 1 3/16" | Hose Length: 35 ft | Hose Included: Yes | Max Pressure: 300 PSI | Service: Non-Aromatic Fuels | Compatible Fluids: Diesel, Kerosene, Fuel Oil, Heating Oil | Swivel: Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Overall Dimensions: 9.38" W x 25.5" H x 24" L | Mounting Pattern: 7" M x 8" N | Base: 8" X x 9" Y | Ship Weight: 91 lbs
Features:
- EZ-Coil controlled rewind system retracts up to 80% slower than conventional reels for more controlled hose return.
- Fuel dispensing hose is included and rated for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- Solid brass 90° full-flow NPT swivel supports fuel transfer flow through the reel.
- Nitrile swivel seals are used for listed fuel dispensing applications.
- Supreme-duty dual pedestal T Series frame uses Coxreels’ Super Hub support system to strengthen reel structure and reduce vibration during use.
- Solid one-piece 1/4" steel base and support posts provide a rigid mounting platform for shop, vehicle, and skid-mounted installations.
- Guide arm adjusts to wall, floor, vehicle, ceiling, and overhead positions for flexible hose payout direction.
- Non-sparking mechanism and CPC powder coat finish support durability in fuel handling environments.
Made in USA:
Applications:
- Fuel and lube trucks - managing dispensing hose for mobile fuel delivery and field service routes.
- Fleet maintenance facilities - supporting diesel and heating oil transfer around truck, bus, municipal, and equipment service bays.
- Tank trucks and bulk liquid handling - keeping 35 ft of fuel hose organized on storage and dispensing systems.
- Ground support and aircraft refueling operations - providing controlled hose payout and rewind for listed non-aromatic fuel applications.
- Construction, agriculture, and equipment yards - storing fuel transfer hose for generators, loaders, tractors, compressors, and other diesel-powered machinery.
FAQs:
- Q: Does the EZ-TSHF-535 include hose?
A: Yes. This model is supplied with 35 ft of 3/4" I.D. fuel dispensing hose. - Q: What fuels can this reel handle?
A: The Fuel EZ-T Series hose is listed for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. For aromatic fuels, confirm whether a -GS fuel hose model is required before ordering. - Q: What does EZ-Coil mean on this Coxreels model?
A: EZ-Coil is Coxreels’ controlled rewind system. It slows hose retraction compared with conventional spring rewind reels, helping improve control as the hose returns to the reel. - Q: Can this reel be mounted on a truck or service vehicle?
A: Yes. The T Series guide arm can be positioned for vehicle mounting, and the dual pedestal frame is suited for rugged mobile applications when properly installed. - Q: Is this reel for DEF service?
A: No. This listing is for a Fuel EZ-T Series reel for non-aromatic fuel dispensing. DEF service requires a DEF Series reel with DEF-compatible stainless steel swivel and Viton seals.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
