Coxreels SLPL-650 Single Hose Spring Rewind Hose Reel | SP-Fuel Series | 1" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

When a fuel or water transfer point needs the flow path of larger hose plus more working reach than a compact 25 ft reel, the Coxreels SLPL-650 provides a spring rewind reel-only platform for custom hose installation. Part of the SP-Fuel Series, this single hose reel is sized for 1" hose I.D., 50 ft hose capacity, and a 300 PSI maximum pressure rating, making it well suited for low-pressure, higher-volume dispensing layouts on fuel trucks, lube skids, fleet service areas, and fixed transfer stations.

The SLPL-650 is supplied less hose, so installers can choose hose that matches the fluid, fittings, hose outside diameter, pressure rating, and temperature requirements of the job. Its spring rewind mechanism helps return hose neatly to the reel after use, reducing loose hose around vehicles, tanks, pumps, and shop floors. Coxreels equips the 1" models with an electroless nickel plated steel 90° swivel, while the NPT connection refers to National Pipe Thread, a common threaded connection standard used in fluid handling systems.

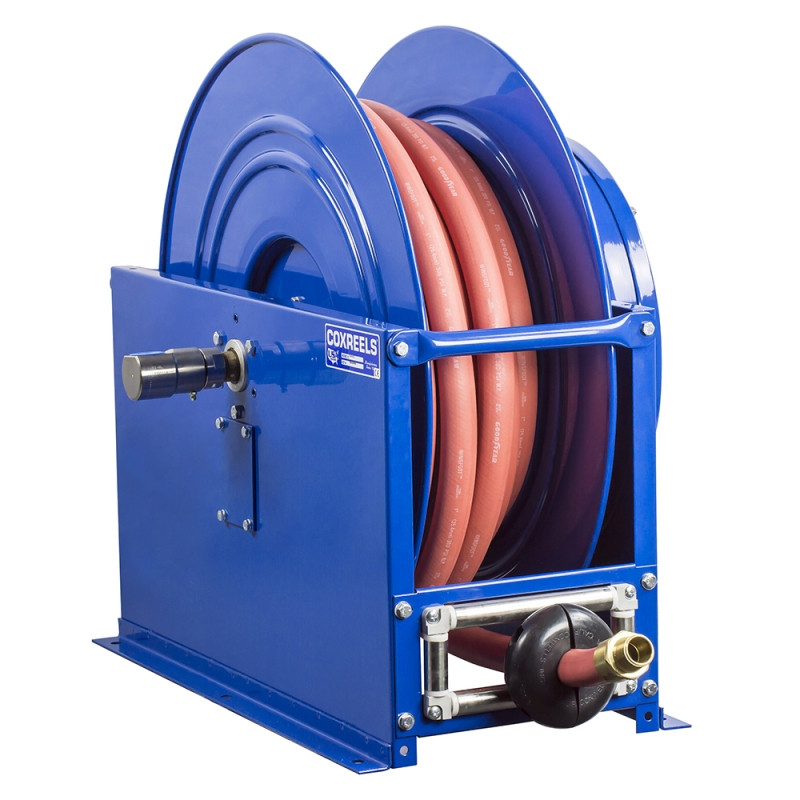

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Single Hose Spring Rewind Hose Reel | Series: SP-Fuel Series | Model: SLPL-650 | Configuration: Less Hose | Hose I.D.: 1" | Max Hose O.D.: 1-1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Inlet/Outlet NPT: 1" | Size Index: 5 | Swivel: Electroless nickel plated steel 90° full-flow NPT | Swivel Seals: AFLAS | Approx. Ship Weight: 109 lbs

Features:

• Less-hose reel configuration allows custom hose selection for fuel, water, and compatible low-pressure transfer systems.
• 1" hose I.D. capacity supports larger-volume fluid movement compared with smaller 1/2" and 3/4" hose reel configurations.
• 50 ft hose capacity gives operators more reach around trucks, tanks, pumps, and work areas without stepping up to the longer 75 ft model.
• Electroless nickel plated steel 90° swivel is specified on 1" models for routing fluid through the rotating reel assembly.
• AFLAS swivel seals are used on 1" models as part of the swivel sealing system.
• Sturdy box-style frame with steel cross supports at all four corners helps maintain reel rigidity during hose payout and rewind.
• Heavy gauge 1/4" steel base supports wall, floor, vehicle, and overhead mounting positions.
• Enclosed factory tuned and matched cartridge-style spring motor, cast iron lock ring, non-sparking bronze pawl, and multi-position lock ratchet mechanism help control hose extension and retraction.

Made in USA:

2 Year Warranty

Applications:

• Fuel delivery and lube trucks where 1" hose is needed for transfer work but a 50 ft reach is enough for most stops.
• Fleet maintenance yards and service bays for organizing larger hose assemblies used around equipment, tanks, and vehicles.
• Bulk handling and general industrial transfer stations using compatible hose for low-pressure fuel, water, or approved fluid movement.
• Construction, railroad, and utility operations that need hose stored securely between fueling or fluid service tasks.
• Marine, offshore, shipyard, and ground support settings where custom hose and fittings must be selected around the installation.

FAQs:

• Q: What does "less hose" mean on the Coxreels SLPL-650?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible 1" hose separately and verify the hose O.D., pressure rating, temperature rating, fittings, and fluid compatibility before installation.
• Q: How does the SLPL-650 compare with the SLPL-625?
  A: Both are 1" SP-Fuel Series less-hose reels rated to 300 PSI, but the SLPL-650 holds 50 ft of hose while the SLPL-625 holds 25 ft. Choose the SLPL-650 when the reel must remain farther from the dispensing point or equipment being serviced.
• Q: What is the maximum hose outside diameter for this reel?
  A: Coxreels lists the SLPL-650 for hose up to 1-1/2" O.D. To obtain the full 50 ft capacity, do not exceed the listed maximum hose outside diameter.
• Q: Can this reel be used for diesel or fuel oil service?
  A: The SP-Fuel Series is listed for low-pressure fuel and water applications, including fuel delivery uses. Because this SKU does not include hose, the installed hose and fittings must also be rated for diesel, fuel oil, kerosene, or the specific fluid being transferred.
• Q: Can the SLPL-650 be mounted overhead or on a vehicle?
  A: Yes, the SP Series frame adjusts to wall, floor, vehicle, and overhead mounting positions. The installer should confirm the mounting surface can handle the reel weight, hose weight, and pulling forces during payout.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
