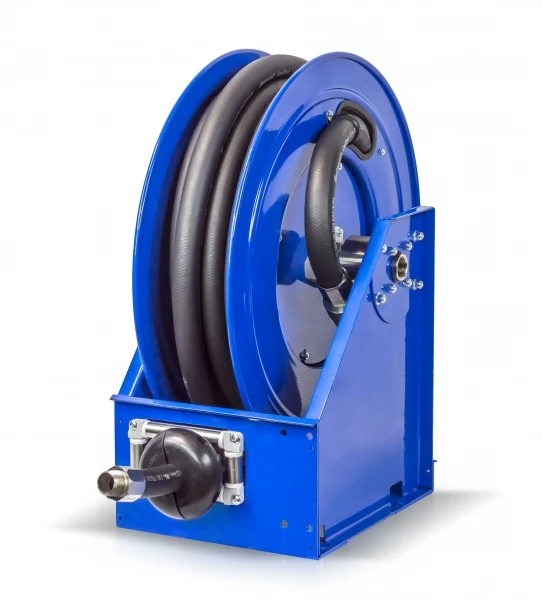

When larger-volume fuel delivery needs the enclosed strength of an Extreme Duty reel, the Coxreels XTMF-LP-650 provides a 1" XTM Fuel Series spring rewind hose reel for tough mobile and fixed dispensing locations. This reel is equipped with 50 ft of 1" I.D. fuel dispensing hose and is rated for 300 PSI maximum pressure, giving fuel/lube trucks, off-road service crews, mining operations, and fleet maintenance yards controlled hose reach for low-pressure fuel transfer without leaving heavy hose loose around the work area.
The XTM Fuel Series combines Coxreels' fully welded box frame construction with an integral roller bracket, stainless steel rollers, and a 1" solid steel axle supported by dual lubricated precision bearings. The supplied hose is intended for non-aromatic fuels such as diesel, kerosene, fuel oil, and heating oil, with a listed hose temperature range of -20°F to +190°F. On 1" models, Coxreels specifies an electroless nickel plated steel 90° full-flow NPT swivel, with NPT meaning National Pipe Thread, a common threaded connection standard used in fuel and fluid handling systems.
Type: Extreme Duty Spring Rewind Hose Reel | Series: XTM Fuel Series | Model: XTMF-LP-650 | Hose Included: Yes | Hose I.D.: 1" | Hose O.D.: 1-1/2" | Hose Length: 50 ft | Max Pressure: 300 PSI | Swivel: Electroless nickel plated steel 90° full-flow NPT | Swivel Seals: Nitrile | Fuel Hose Temperature Range: -20°F to +190°F | XTM Fuel Size Index: 6 | Approx. Ship Weight: 114 lbs
Features:
- Equipped with 50 ft of 1" fuel dispensing hose for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil.
- 1" hose I.D. supports higher-volume fuel transfer compared with smaller 3/4" fuel reel configurations.
- Fully welded box frame construction with welded seams and redundant flanges supports harsh mobile, off-road, and service truck environments.
- Electroless nickel plated steel 90° full-flow NPT swivel is specified on 1" models for routing fuel through the reel assembly.
- Nitrile swivel seals are used for the fuel dispensing swivel assembly.
- Stainless steel rollers help guide the larger hose during payout and rewind while reducing wear at the reel opening.
- 1" solid steel axle and dual lubricated precision bearings support smooth, stable drum rotation.
- Enclosed factory tuned and matched cartridge-style spring motor, accessible stainless steel pawl and pawl spring, zinc plated ratchet, and multi-position lock ratchet mechanism secure hose at the desired working length.
Made in USA:
Applications:
- Fuel/lube trucks and field service skids where a supplied 1" hose is needed for low-pressure fuel delivery.
- Mining, construction, and off-road equipment service where reels are exposed to vibration, dirt, and frequent mobile use.
- Heavy equipment maintenance yards for controlled diesel, kerosene, fuel oil, or heating oil transfer near machines and tanks.
- Fleet, railroad, and utility service operations where spring rewind hose control helps keep service vehicles organized between jobs.
- General industrial fuel storage and dispensing systems that need an Extreme Duty reel frame for larger fuel hose handling.
FAQs:
- Q: Does the Coxreels XTMF-LP-650 include hose?
A: Yes. This model includes 50 ft of 1" I.D. fuel dispensing hose and is not a less-hose reel. - Q: What fuels can the supplied hose handle?
A: Coxreels lists the fuel dispensing hose for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. For gasoline or aromatic fuel service, verify the correct -GS model or compatible hose configuration before ordering. - Q: How is the XTMF-LP-650 different from the XTMF-LP-550?
A: The XTMF-LP-650 is the 1" hose version, while the XTMF-LP-550 uses 3/4" hose. Choose the 1" model when the fuel transfer system requires a larger internal hose diameter and matching 1" fluid path. - Q: What makes the XTM Fuel Series different from the T-Fuel Series?
A: The XTM Fuel Series uses a fully welded box frame with an integral roller bracket and stainless steel rollers for tougher mobile and off-road environments. The T-Fuel Series uses a Supreme Duty dual pedestal frame, while the XTM Fuel Series is the enclosed Extreme Duty option. - Q: What does the 300 PSI rating mean?
A: The 300 PSI rating is the maximum working pressure listed for this low-pressure fuel reel. The pump, hose, swivel, fittings, nozzle, and other dispensing components should all be selected so the full system stays within the rated pressure limit.
| HOSE | EZ-COIL | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | |
| FUEL HOSE SH SERIES | |||||||||
| SHF-N-525 | 3/4" | 1 3/16" | 25 | 300 | 52 | EZ-SHF-525 | *SHFL-N-525 | 45 | 1 |
| FUEL HOSE T SERIES | |||||||||
| TSHF-N-535 | 3/4" | 1 3/16" | 35 | 300 | 77 | EZ-TSHF-535 | TSHFL-N-535 | 67 | 2 |
| TSHF-N-550 | 3/4" | 1 3/16" | 50 | 300 | 83 | EZ-TSHF-550 | *TSHFL-N-550 | 70 | 2 |
| TSHF-N-575 | 3/4" | 1 3/16" | 75 | 300 | 93 | - | TSHL-N-575-BXN | 73 | 3 |
| TSHF-N-635 | 1" | 1 1/2" | 35 | 300 | 92 | - | TSHL-N-635-BXN | 71 | 4 |
| TSHF-N-650 | 1" | 1 1/2" | 50 | 300 | 98 | - | TSHL-N-650-BXN | 77 | 3 |
| FUEL HOSE XTM SERIES | |||||||||
| XTMF-LP-550 | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-550-GS | 3/4" | 1 1/16" | 50 | 300 | 94 | - | - | - | 5 |
| XTMF-LP-575 | 3/4" | 1 1/16" | 75 | 300 | 101 | - | - | - | 5 |
| XTMF-LP-650 | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| XTMF-LP-650-GS | 1" | 1 1/2" | 50 | 300 | 114 | - | - | - | 6 |
| FUEL HOSE SP SERIES | |||||||||
| SLPF-550 | 3/4" | 1 1/16" | 50 | 300 | 99 | - | SLPL-550 | 86 | 7 |
| SLPF-575 | 3/4" | 1 1/16" | 75 | 300 | 136 | - | SLPL-575 | 117 | 8 |
| SLPF-5100 | 3/4" | 1 1/16" | 100 | 300 | 151 | - | SLPL-5100 | 126 | 8 |
| SLPF-625 | 1" | 1 1/2" | 25 | 300 | 106 | - | SLPL-625 | 90 | 9 |
| SLPF-650 | 1" | 1 1/2" | 50 | 300 | 139 | - | SLPL-650 | 109 | 10 |
| SLPF-675 | 1" | 1 1/2" | 75 | 300 | 193 | - | SLPL-675 | 148 | 11 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
