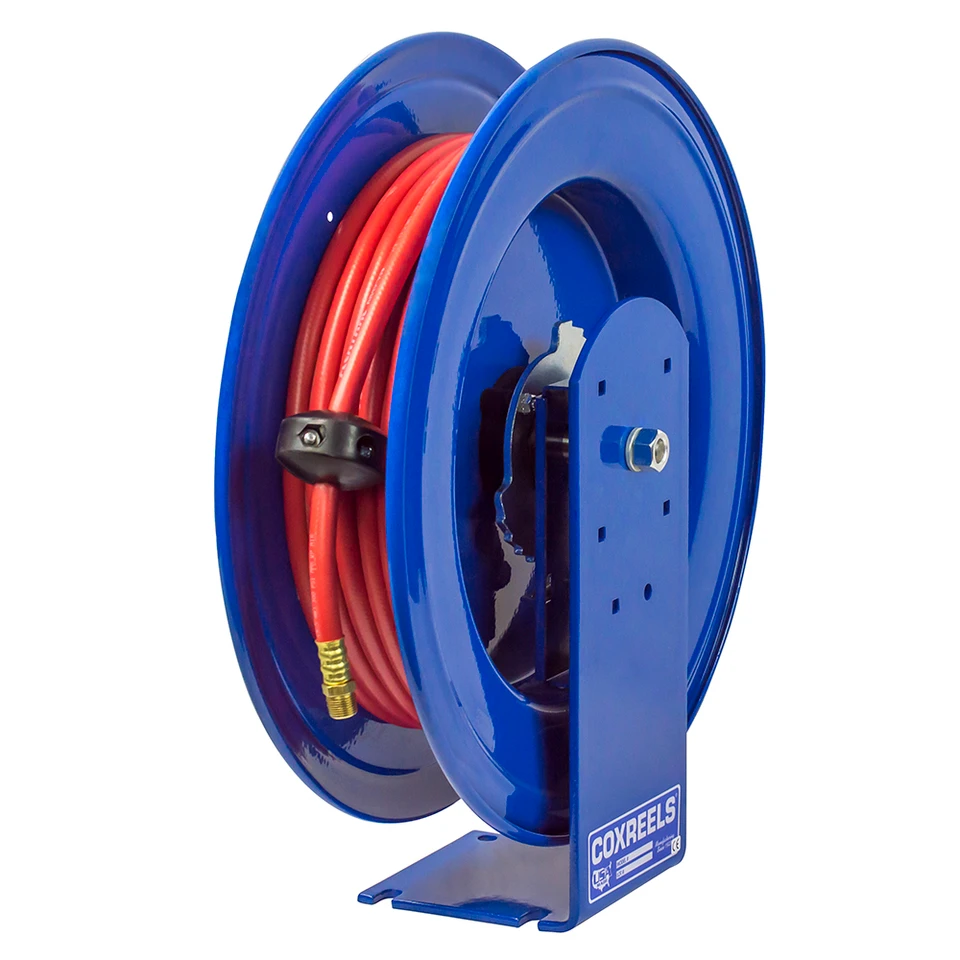

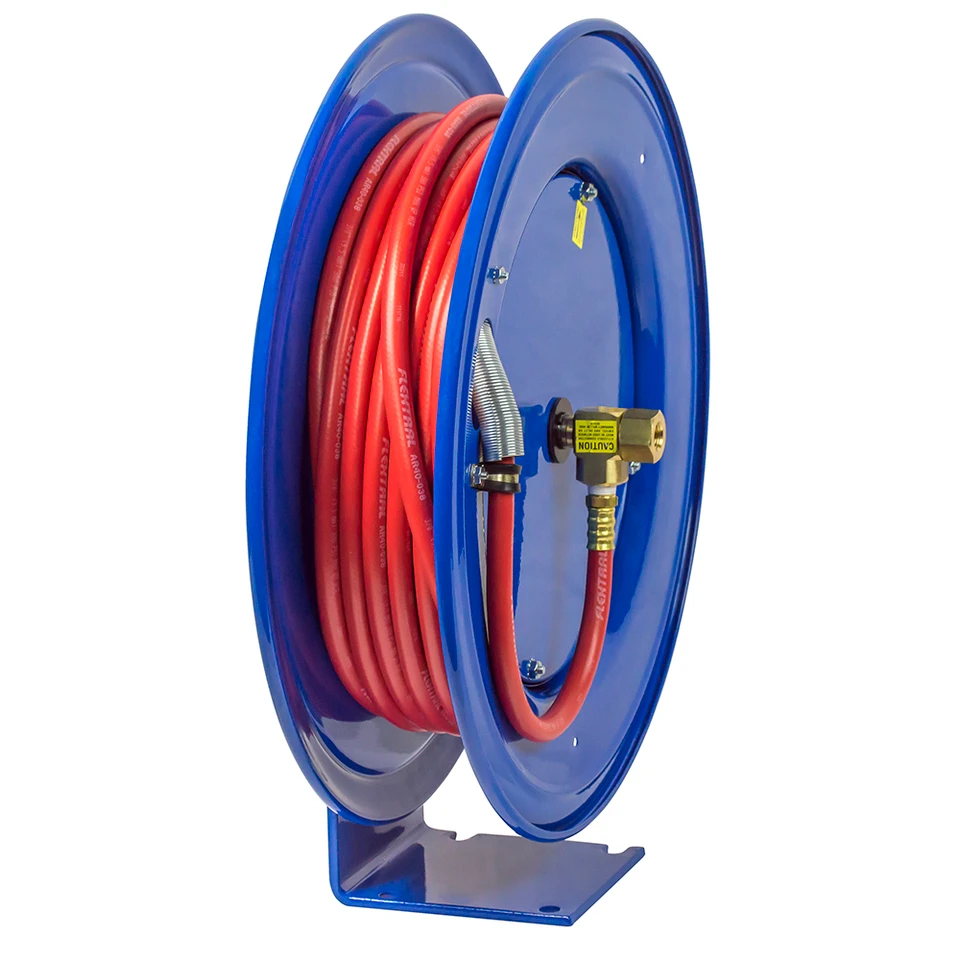

Designed to protect hose assemblies while providing convenient automatic hose management, the Coxreels E-LP-450 spring rewind enclosed cabinet hose reel combines dependable spring-powered hose retrieval with the added protection of a fully enclosed cabinet. Featuring the E Series, a 1/2" hose diameter, 50 ft hose length, and a 300 PSI maximum operating pressure, this reel is ideal for automotive service facilities, maintenance departments, manufacturing plants, and commercial workshops where protected hose storage helps extend hose life while maintaining a clean, organized workspace. Its spring rewind mechanism automatically retracts the hose after use, reducing manual handling and improving operational efficiency.
Supplied with a factory-installed hose, the E-LP-450 is ready for immediate installation and operation. The enclosed cabinet helps shield the hose and internal reel components from dirt, dust, debris, and incidental damage while maintaining a professional appearance and keeping the hose neatly stored between uses.
Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Hose I.D.: 1/2" | Hose Length: 50 ft | Max Pressure: 300 PSI | Rewind: Spring Rewind
Features:
- Spring rewind mechanism automatically retracts the hose for smooth, controlled storage after use.
- Fully enclosed cabinet helps protect the hose and reel components from dirt, debris, moisture, and accidental damage.
- Supplied with a factory-installed 50-foot, 1/2-inch hose for quick installation and immediate use.
- Rated for operating pressures up to 300 PSI for compressed air and other compatible low-pressure applications.
- Compact enclosed design helps maintain an organized work area while reducing hose wear.
- E Series construction provides dependable hose management for commercial and industrial service environments.
Made in USA:
Applications:
- Compressed air distribution in automotive repair shops and fleet maintenance facilities.
- Industrial manufacturing plants requiring protected hose storage and organized workstations.
- Maintenance departments servicing machinery and production equipment.
- Commercial workshops where enclosed hose reels improve cleanliness and workplace appearance.
- General industrial facilities utilizing compatible low-pressure air and fluid transfer systems.
FAQs:
- Q: Does this reel include a hose?
A: Yes. The E-LP-450 is supplied with a factory-installed 50-foot, 1/2-inch hose for immediate installation and operation. - Q: Why choose an enclosed cabinet hose reel?
A: The enclosed cabinet helps protect the hose and reel components from dirt, debris, and accidental damage while maintaining a clean, professional appearance. - Q: How does the spring rewind mechanism operate?
A: The internal spring automatically retracts the hose after use, reducing manual winding and keeping the hose neatly stored. - Q: What is the maximum operating pressure?
A: The reel is rated for applications up to 300 PSI when used with the supplied hose and compatible system components.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| E-LP-330 | 3/8" | 5/8" | 30 | 300 | 33 | EZ-E-LP-330 | E-LPL-330 | 29 | 1 |
| E-LP-350 | 3/8" | 5/8" | 50 | 300 | 46 | EZ-E-LP-350 | E-LPL-350 | 40 | 2 |
| E-LP-430 | 1/2" | 3/4" | 30 | 300 | 41 | EZ-E-LP-430 | E-LPL-430 | 36 | 1 |
| E-LP-450 | 1/2" | 3/4" | 50 | 300 | 50 | EZ-E-LP-450 | E-LPL-450 | 42 | 2 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| E-MP-330 | 3/8" | 5/8" | 30 | 3,000 | 47 | EZ-E-MP-330 | E-MPL-330 | 39 | 1 |
| E-MP-350 | 3/8" | 5/8" | 50 | 3,000 | 61 | EZ-E-MP-350 | E-MPL-350 | 49 | 2 |
| E-MP-430 | 1/2" | 3/4" | 30 | 2,500 | 47 | EZ-E-MP-430 | E-MPL-430 | 39 | 1 |
| E-MP-450 | 1/2" | 3/4" | 50 | 2,500 | 63 | EZ-E-MP-450 | E-MPL-450 | 49 | 2 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and
hydraulic oil applications. Maximum Temperature 250°F. |
|||||||||
| E-HP-130 | 1/4" | 9/16" | 30 | 5,000 | 46 | EZ-E-HP-130 | E-HPL-130 | 39 | 3 |
| E-HP-150 | 1/4" | 9/16" | 50 | 5,000 | 60 | EZ-E-HP-150 | E-HPL-150 | 49 | 4 |
| E-HP-330 | 3/8" | 11/16" | 30 | 4,000 | 47 | EZ-E-HP-330 | E-HPL-330 | 39 | 3 |
| E-HP-350 | 3/8" | 11/16" | 50 | 4,000 | 61 | EZ-E-HP-350 | E-HPL-350 | 49 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
