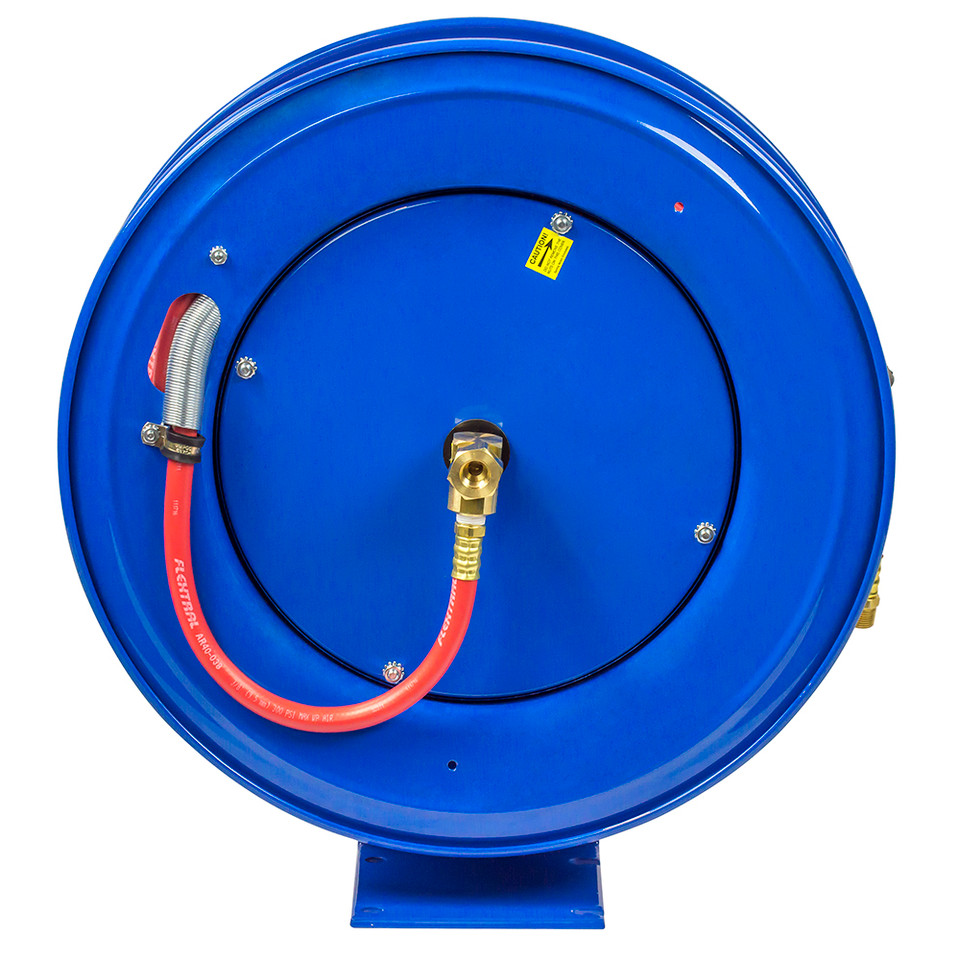

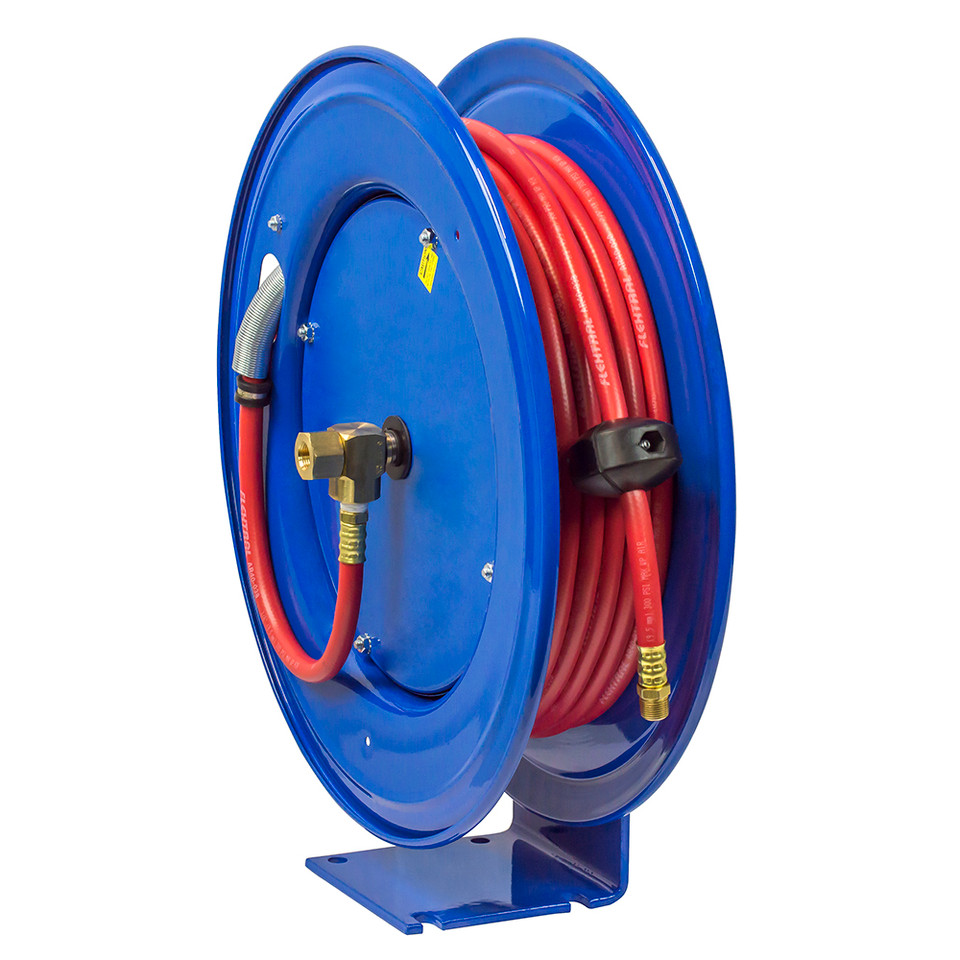

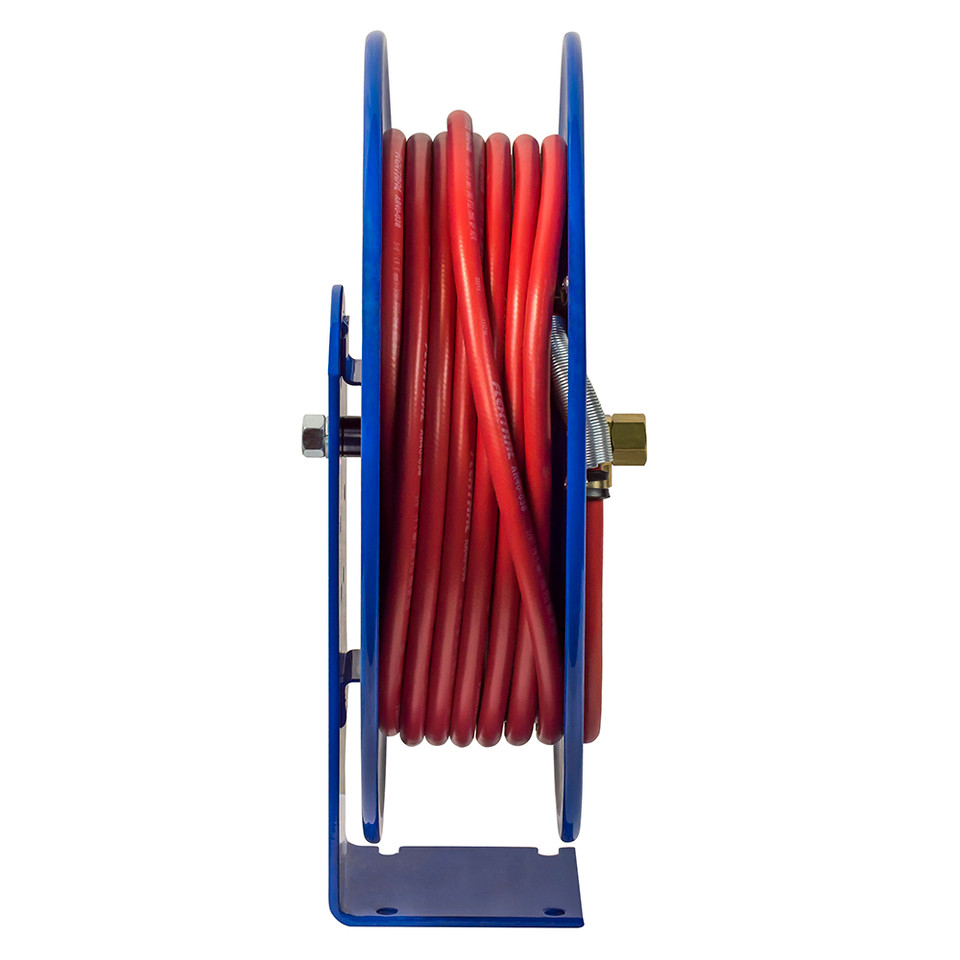

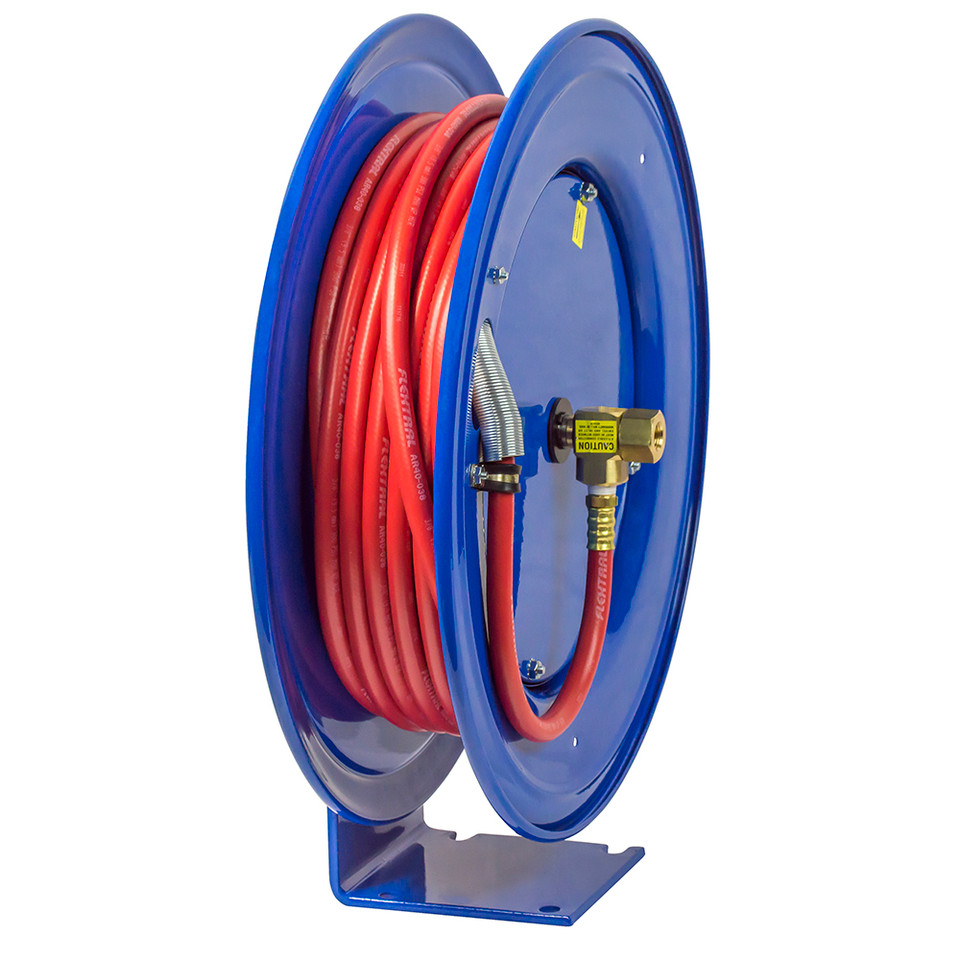

Coxreels E-HP-350 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 3/8" Hose Diameter | 50' Hose Length | 4000 Max PSI

Built for longer-reach high-pressure hose storage in enclosed cabinet installations, the Coxreels E-HP-350 is a spring rewind hose reel from the E Series. This model is supplied with 3/8" I.D. hose, a 50 ft hose length, and a 4000 PSI maximum pressure rating, making it a practical choice for compatible grease and hydraulic oil service where a larger hose diameter and extended reach are needed at the workstation.

The E Series cabinet format supports clean single-reel mounting or expandable multiple-reel bank layouts in fleet shops, lubrication stations, industrial maintenance areas, and production facilities. Its spring rewind mechanism retracts the hose after use to help keep high-pressure lines stored off the floor, while the multi-position lock ratchet holds the hose at selected working lengths. With 50 ft of 3/8" hose, the E-HP-350 gives users more working range across bays, benches, and equipment service areas without relocating the reel.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-HP-350 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 50 ft | Max Pressure: 4000 PSI | Service: Grease, Hydraulic Oil | Hose Included: Yes | Hose Type: S.A.E. 100R16 #1 or #2 Wire Braid | Max Temperature: 250°F | Reel Inlet: 3/8" FNPT | Hose Outlet: 3/8" MNPT | Swivel Material: Zinc Plated Steel | Seal Type: Nitrile | Overall Dimensions: 9.25" W x 21" H x 19.63" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 61 lbs

Features:

• 4000 PSI high-pressure rating supports compatible grease and hydraulic oil service when pressure, fluid type, temperature, fittings, and hose requirements match the reel.
• 3/8" I.D. x 50 ft hose configuration provides extended reach and a larger hose diameter than 1/4" high-pressure models.
• S.A.E. 100R16 #1 or #2 wire braid hose supports high-pressure grease and hydraulic oil applications.
• Spring rewind operation retracts hose after use, helping keep high-pressure hose stored neatly between service tasks.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Expandable enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• External fluid path with zinc plated steel 90° full-flow NPT swivel supports high-pressure hose connection and seal maintenance.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where 50 ft of 3/8" high-pressure hose helps reach around lifts, lube bays, service lanes, and repair stations.
• Industrial maintenance and MRO departments that need enclosed 4000 PSI hose storage near machinery, benches, and hydraulic service points.
• Lubrication stations where retractable hose access helps keep grease delivery lines organized between service tasks.
• Manufacturing and production facilities using cabinet-mounted reel banks for controlled point-of-use fluid delivery.
• Equipment maintenance areas where longer high-pressure hose reach supports hydraulic oil service within the reel's rated limits.

FAQs:

• Q: Does the Coxreels E-HP-350 include hose?
  A: Yes. The E-HP-350 is supplied with 3/8" I.D. x 50 ft high-pressure hose. Coxreels uses related HPL model designations for less-hose versions.
• Q: What is this high-pressure reel used for?
  A: This model is used for compatible grease and hydraulic oil service within its 4000 PSI pressure rating. Always confirm fluid type, system pressure, temperature, hose compatibility, seal compatibility, and fitting requirements before installation.
• Q: How is the E-HP-350 different from the E-HP-330?
  A: Both models use 3/8" I.D. hose and are rated to 4000 PSI. The E-HP-350 provides 50 ft of hose for longer reach, while the E-HP-330 uses a shorter 30 ft hose length for closer point-of-use mounting.
• Q: Can this reel be used for shop air or water?
  A: This HP configuration is intended for grease and hydraulic oil service. For air or water service, select a compatible Coxreels low-pressure or medium-pressure model with the correct hose, seals, and pressure rating.
• Q: When should I choose the 50 ft version instead of a 30 ft model?
  A: Choose the 50 ft version when the reel must reach across larger bays, around vehicles, or between nearby service points. A 30 ft model may be better when the reel is mounted directly beside the lubrication or hydraulic service area.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
