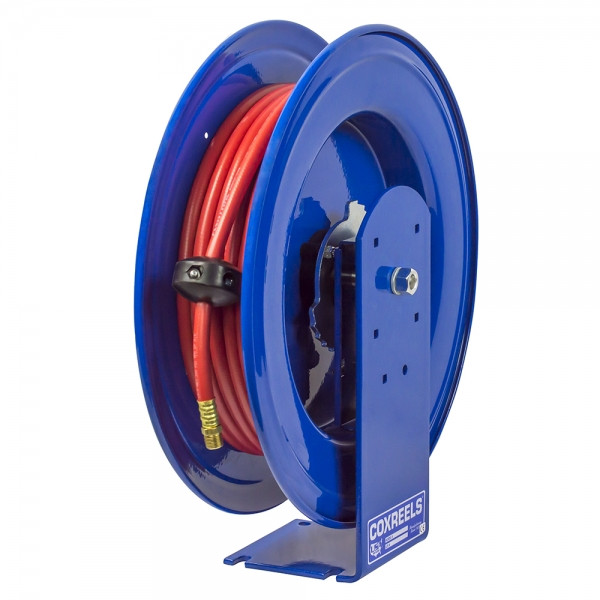

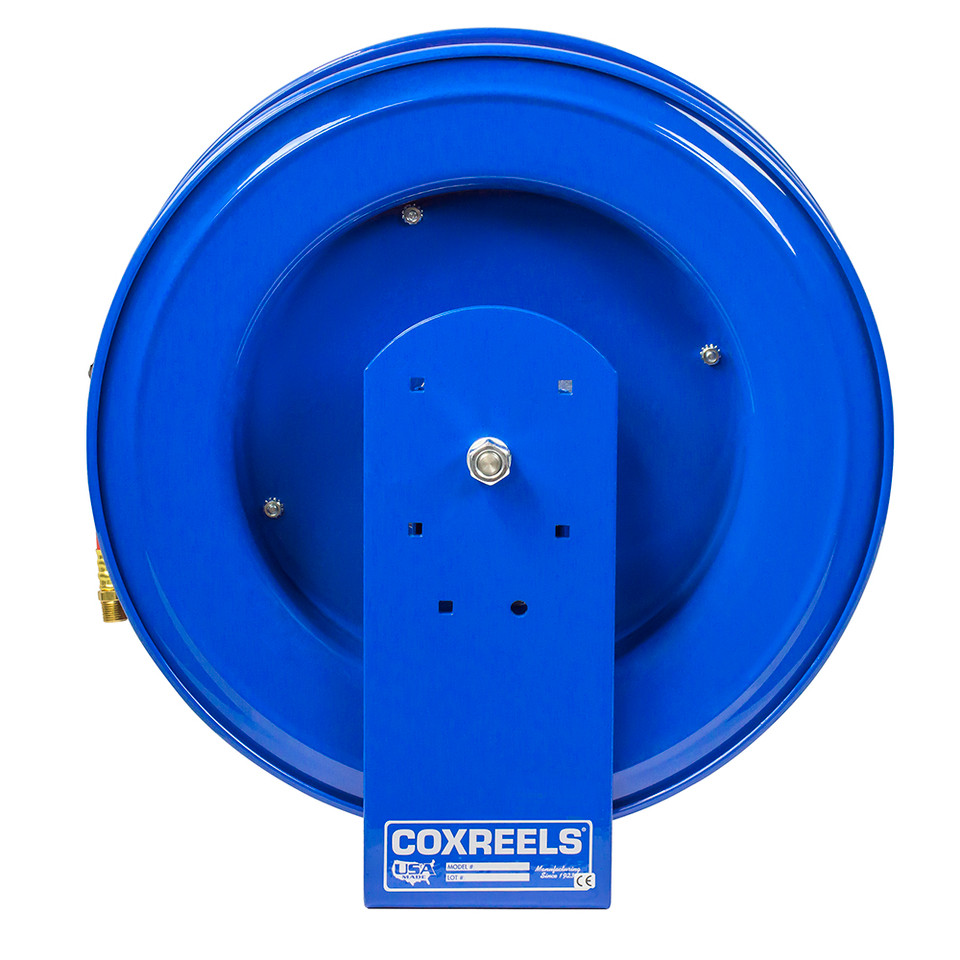

Coxreels E-HP-330 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 3/8" Hose Diameter | 30' Hose Length | 4000 Max PSI

Built for compact high-pressure hose storage in enclosed cabinet installations, the Coxreels E-HP-330 is a spring rewind hose reel from the E Series. This model is supplied with 3/8" I.D. hose, a 30 ft hose length, and a 4000 PSI maximum pressure rating, making it a practical choice for compatible grease and hydraulic oil service where a larger 3/8" hose size is needed for high-pressure fluid delivery at the workstation.

The E Series enclosed cabinet format helps create a clean, organized installation for fleet shops, lubrication stations, maintenance departments, and production facilities. Its spring rewind mechanism retracts the hose after use to help keep high-pressure lines stored off the floor, while the multi-position lock ratchet holds the hose at the selected working length. The supplied high-pressure hose is suitable for grease and hydraulic oil applications when fluid type, fittings, temperature, and system pressure match the reel specifications.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-HP-330 | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 30 ft | Max Pressure: 4000 PSI | Service: Grease, Hydraulic Oil | Hose Included: Yes | Hose Type: S.A.E. 100R16 #1 or #2 Wire Braid | Max Temperature: 250°F | Reel Inlet: 3/8" FNPT | Hose Outlet: 3/8" MNPT | Swivel Material: Zinc Plated Steel | Seal Type: Nitrile | Overall Dimensions: 7" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 47 lbs

Features:

• 4000 PSI high-pressure rating supports compatible grease and hydraulic oil service when pressure, temperature, fittings, and media requirements match the reel.
• 3/8" I.D. x 30 ft hose configuration provides a larger hose size than 1/4" high-pressure models while keeping the reel compact for point-of-use mounting.
• S.A.E. 100R16 #1 or #2 wire braid hose supports high-pressure grease and hydraulic oil applications.
• Spring rewind operation retracts hose after use, helping keep high-pressure hose stored neatly between service tasks.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Expandable enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• External fluid path with zinc plated steel 90° full-flow NPT swivel supports high-pressure hose connection and seal maintenance.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where 3/8" high-pressure grease or hydraulic oil hose is needed near lifts, lube bays, and repair stations.
• Industrial maintenance and MRO departments that need enclosed 4000 PSI hose storage close to machinery, benches, or service points.
• Lubrication stations where retractable hose access helps keep grease delivery lines organized between service tasks.
• Manufacturing and production facilities using cabinet-mounted reel banks for controlled point-of-use fluid delivery.
• Equipment maintenance areas where a compact 30 ft high-pressure hose reel supports hydraulic oil service within the reels rated limits.

FAQs:

• Q: Does the Coxreels E-HP-330 include hose?
  A: Yes. The E-HP-330 is supplied with 3/8" I.D. x 30 ft high-pressure hose. Coxreels uses related HPL model designations for less-hose versions.
• Q: What is this high-pressure reel used for?
  A: This model is used for compatible grease and hydraulic oil service within its 4000 PSI pressure rating. Always confirm fluid type, system pressure, temperature, hose compatibility, seal compatibility, and fitting requirements before installation.
• Q: How is the E-HP-330 different from the E-HP-130?
  A: The E-HP-330 uses a 3/8" I.D. hose and is rated to 4000 PSI, while the E-HP-130 uses a smaller 1/4" I.D. hose and is rated to 5000 PSI. Choose based on the required hose size, pressure rating, and flow needs of the application.
• Q: Can this reel be used for shop air or water?
  A: This HP configuration is intended for grease and hydraulic oil service. For air or water service, select a compatible Coxreels low-pressure or medium-pressure model with the correct hose, seals, and pressure rating.
• Q: When should I choose a 30 ft hose reel?
  A: A 30 ft hose length is a good fit when the reel is mounted near the lubrication point, hydraulic service area, bench, or machine. For larger bays or longer pulls around equipment, confirm the distance from the mounting location to the farthest service point before ordering.
