Coxreels E-MPL-330 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 3/8" Hose Diameter | 30' Hose Length | 3000 Max PSI | Less Hose

Built for medium-pressure hose storage where the buyer needs to install a specific hose, the Coxreels E-MPL-330 is a spring rewind enclosed cabinet hose reel from the E Series. This less-hose model is configured for 3/8" I.D. hose, supports a 30 ft hose capacity, and is rated for 3000 PSI maximum pressure, making it a practical reel body for compatible air, water, or oil service when the installed hose, fittings, seals, and media match the application requirements.

The enclosed cabinet format helps create a cleaner, more organized installation than an open-frame reel, especially in fleet maintenance bays, lube stations, production work areas, and MRO workstations. Because this model is supplied less hose, it gives the buyer flexibility to choose a 3/8" medium-pressure hose suited to the fluid, temperature, fitting style, and working pressure of the system. The spring rewind mechanism retracts hose after use, while the lock ratchet holds the hose at selected working lengths during service.

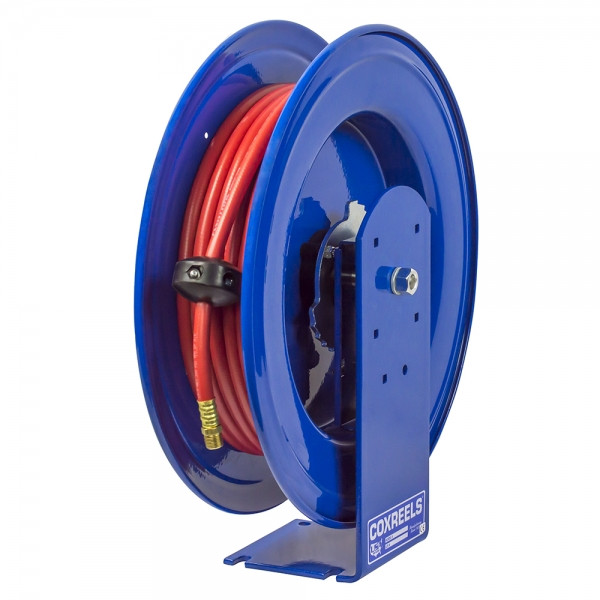

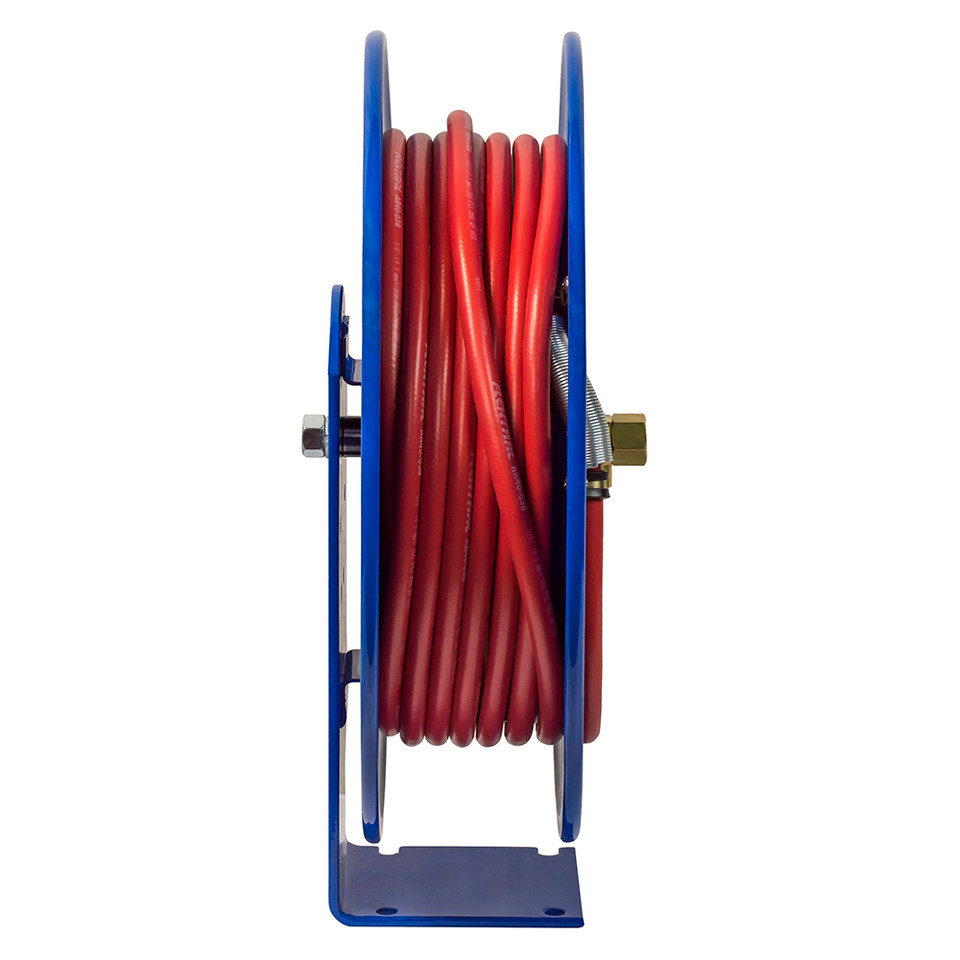

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-MPL-330 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 30 ft | Max Pressure: 3000 PSI | Service: Air, Water, Oil | Rewind Type: Spring Rewind | Cabinet Style: Enclosed

Features:

• Less-hose configuration allows the buyer to install a compatible 3/8" medium-pressure hose selected for the application, service media, temperature range, and fitting requirements.
• 3000 PSI medium-pressure rating supports compatible air, water, or oil service when the installed hose and fittings are rated accordingly.
• 30 ft hose capacity works well for compact point-of-use installations where the reel is mounted near the service area.
• Spring rewind operation retracts hose after use, helping reduce loose hose around benches, lifts, machines, and walkways.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations in service and maintenance areas.
• 3/8" hose capacity provides a compact medium-pressure setup for shops that need pressure capability without stepping up to a larger hose diameter.
• Cabinet-style reel housing helps present a cleaner finished appearance than exposed hose storage or open-frame reel placement.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service areas where a compact medium-pressure reel is needed for buyer-selected air, water, or oil hose.
• Industrial maintenance and MRO stations that need enclosed 3000 PSI hose storage close to benches, machines, or repair zones.
• Lubrication and fluid service points where retractable hose management helps keep service lines stored neatly between jobs.
• Manufacturing and production cells using enclosed cabinet reel banks to organize multiple point-of-use service lines.
• Garage and workshop installations where a less-hose reel lets the user choose a compatible 3/8" hose before putting the reel into service.

FAQs:

• Q: Does the Coxreels E-MPL-330 include hose?
  A: No. This is a less-hose model, meaning the reel is supplied without hose installed. The 3/8" diameter and 30 ft listing refers to the compatible hose size and capacity.
• Q: What does less hose mean?
  A: It means the buyer must provide and install a compatible hose separately. The hose must match the reel capacity, 3000 PSI pressure rating, fitting requirements, temperature range, and intended service media.
• Q: How is the E-MPL-330 different from the E-MP-330?
  A: The E-MPL-330 is supplied without hose, while the E-MP-330 is the hose-included version. Both are configured around 3/8" x 30 ft medium-pressure service, but the MPL version gives the buyer flexibility to choose the hose.
• Q: Can this reel be used for oil service?
  A: Yes, when the selected hose, fittings, and seals are compatible with the oil type, temperature, and pressure of the system. Always verify media compatibility before installation.
• Q: When should I choose the 30 ft capacity instead of a 50 ft reel?
  A: Choose the 30 ft capacity when the reel is mounted close to the work area and a shorter hose run keeps the station cleaner. A 50 ft reel may be better when the hose must reach across larger bays or around equipment.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
