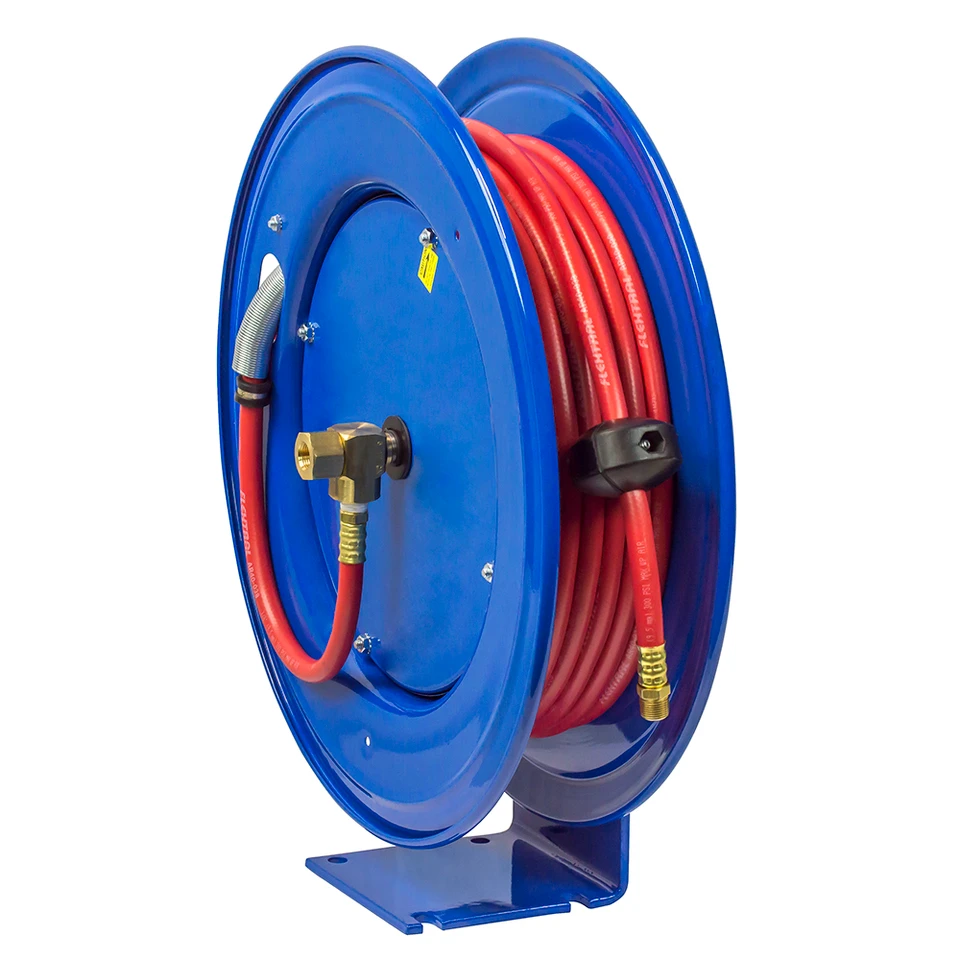

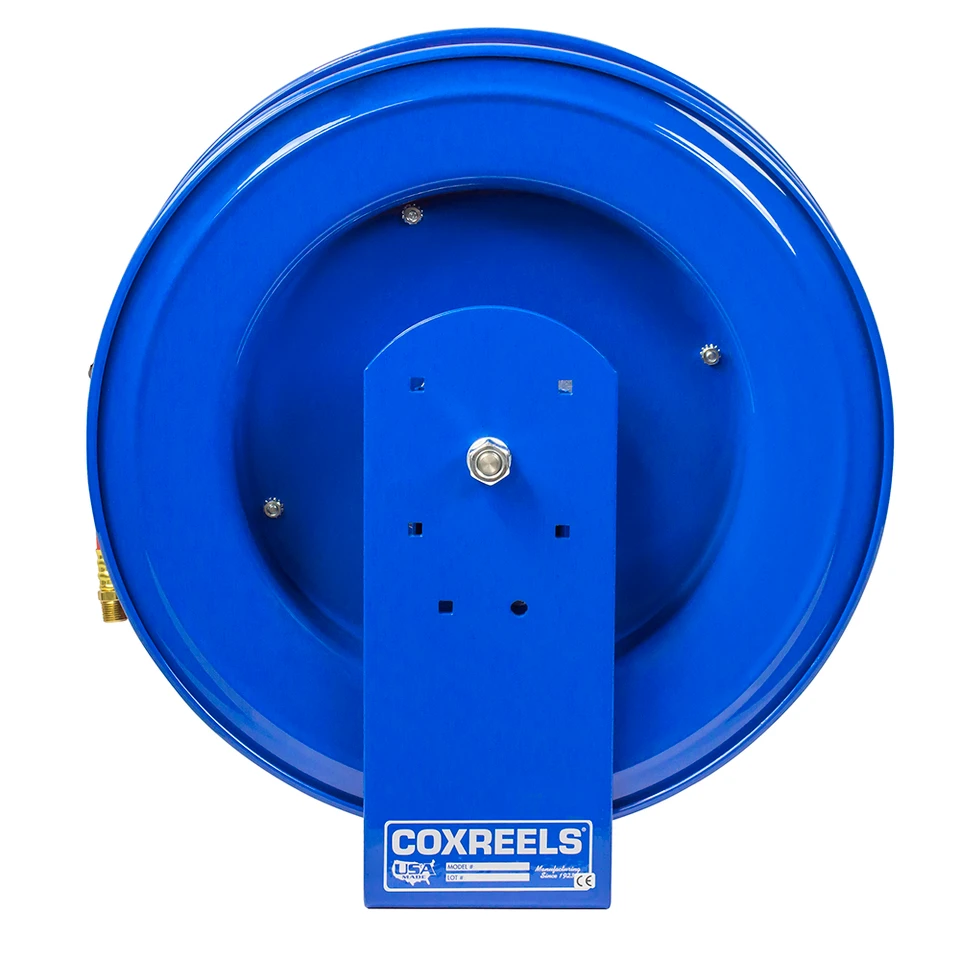

Coxreels E-MP-450 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/2" Hose Diameter | 50' Hose Length | 2500 Max PSI

Built for longer-reach medium-pressure hose service in enclosed cabinet installations, the Coxreels E-MP-450 is a spring rewind enclosed cabinet hose reel from the E Series. This model is supplied with 1/2" I.D. hose, a 50 ft hose length, and a 2500 PSI maximum pressure rating, giving maintenance shops, fleet facilities, and production areas a cabinet-style reel for compatible air, water, and oil service where both reach and flow matter.

The E Series enclosed cabinet format helps create a cleaner installation than open-frame reel placement, especially when multiple reels are grouped together for point-of-use media delivery. The spring rewind mechanism retracts the hose after use, and the multi-position lock ratchet lets the user hold the hose at selected working lengths. With a 1/2" hose diameter and 50 ft reach, this reel is well suited for service bays, lube stations, maintenance benches, and equipment areas where the mounting point is not directly beside the job.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-MP-450 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Hose Material: Rubber | Max Temperature: 250°F | Reel Inlet: 1/2" FNPT | Hose Outlet: 1/2" MNPT | Swivel Material: Brass | Seal Type: Nitrile | Overall Dimensions: 8.75" W x 21" H x 19.63" L | Mounting: Bench, Ceiling, Floor, Wall, Vehicle | Approx. Ship Weight: 63 lbs

Features:

• Enclosed E Series cabinet design supports clean single-reel installations or organized multiple-reel bank systems.
• 2500 PSI medium-pressure rating supports compatible air, water, and oil service when system pressure, temperature, and media requirements match the reel.
• 1/2" I.D. hose supports greater flow than smaller 3/8" hose configurations when the supply line, fittings, and connected equipment are sized accordingly.
• 50 ft hose length provides extended reach across service bays, workstations, lube areas, benches, and equipment maintenance zones.
• Spring rewind operation retracts hose after use, helping reduce loose hose around walkways, lifts, and production work areas.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Machined solid brass 90° full-flow NPT swivel with nitrile seals supports air, water, and oil service where material compatibility is confirmed.
• Powder coated steel construction, permanently lubricated precision bearings, rolled edges, and ribbed discs support everyday use in shop and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service bays where 50 ft of 1/2" medium-pressure hose reach helps cover lifts, service lanes, and nearby equipment.
• Industrial maintenance and MRO departments that need enclosed 2500 PSI hose storage for air, water, or oil service at the point of use.
• Quick lube and lubrication stations where retractable hose access helps keep oil or fluid delivery lines stored cleanly between jobs.
• Manufacturing plants and facilities using cabinet-mounted reel banks to organize multiple service lines in production or repair areas.
• Garage and workshop installations where longer hose reach, automatic rewind, and cabinet-style storage improve daily hose handling.

FAQs:

• Q: Does the Coxreels E-MP-450 include hose?
  A: Yes. The E-MP-450 is supplied with 1/2" I.D. x 50 ft medium-pressure hose. Coxreels uses related less-hose model designations for versions supplied without hose.
• Q: What is the difference between the E-MP-450 and E-MP-430?
  A: Both models use 1/2" I.D. hose and are rated to 2500 PSI. The E-MP-450 provides 50 ft of hose for longer reach, while the E-MP-430 uses a shorter 30 ft hose length for closer point-of-use installations.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure reel configuration is listed for air, water, and oil service. Always confirm oil type, temperature, seal compatibility, pressure requirements, and hose suitability before installation.
• Q: What does the lock ratchet do?
  A: The lock ratchet allows the hose to be pulled out and held at selected working lengths. A controlled pull releases the latch so the spring rewind mechanism can retract the hose back onto the reel.
• Q: When should I choose a 50 ft hose reel instead of a 30 ft model?
  A: Choose the 50 ft version when the reel must reach across larger bays, around vehicles, or between nearby workstations. A 30 ft reel may be better when the mounting location is close to the job and less hose on the floor is preferred.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
