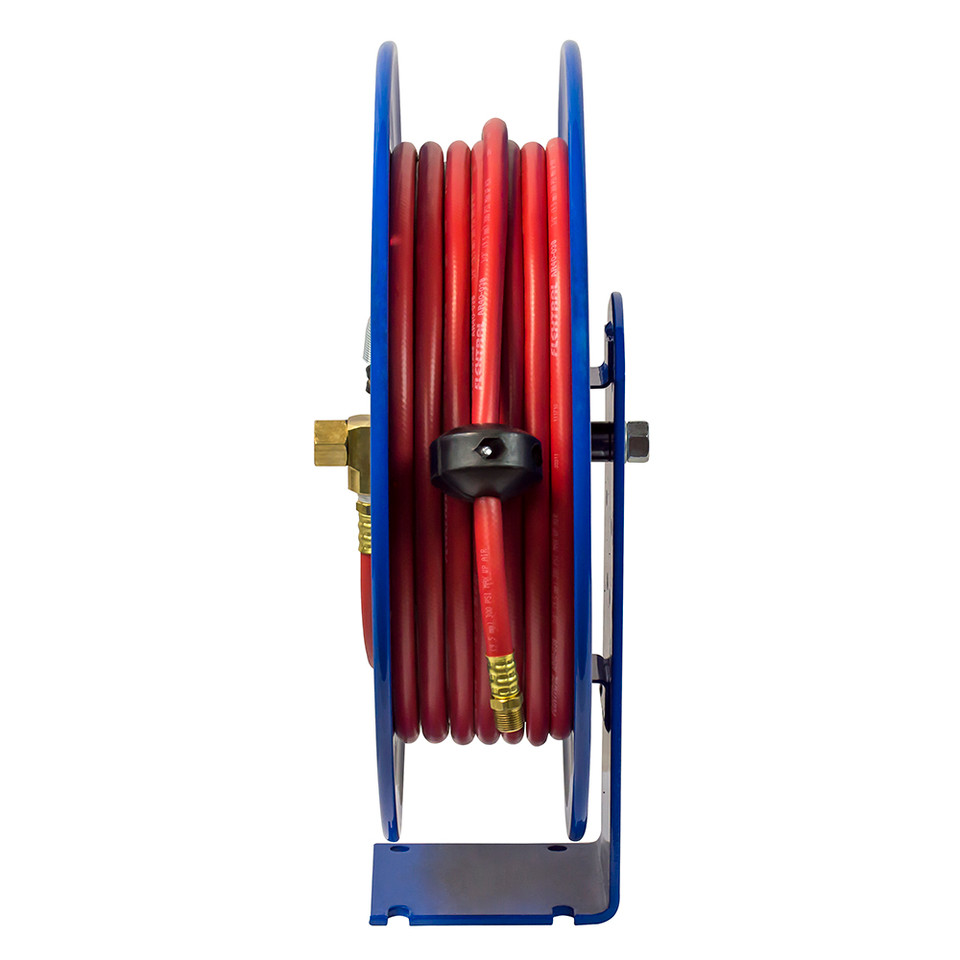

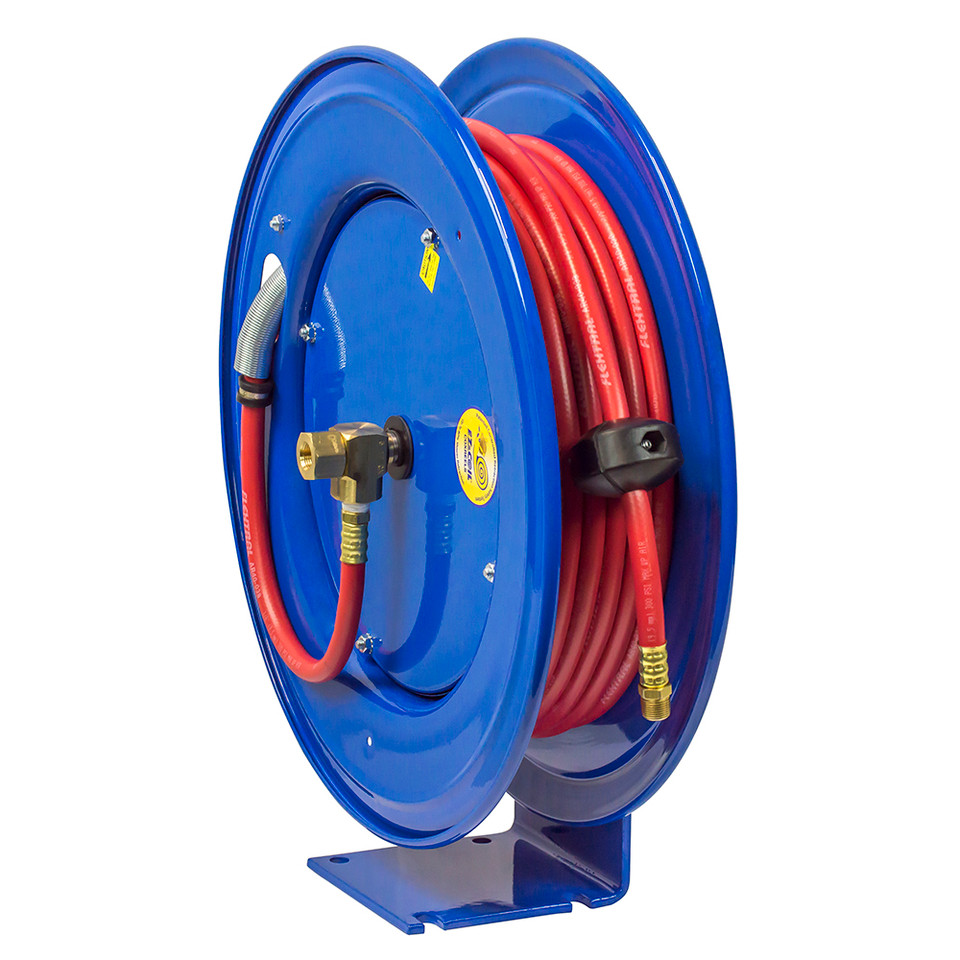

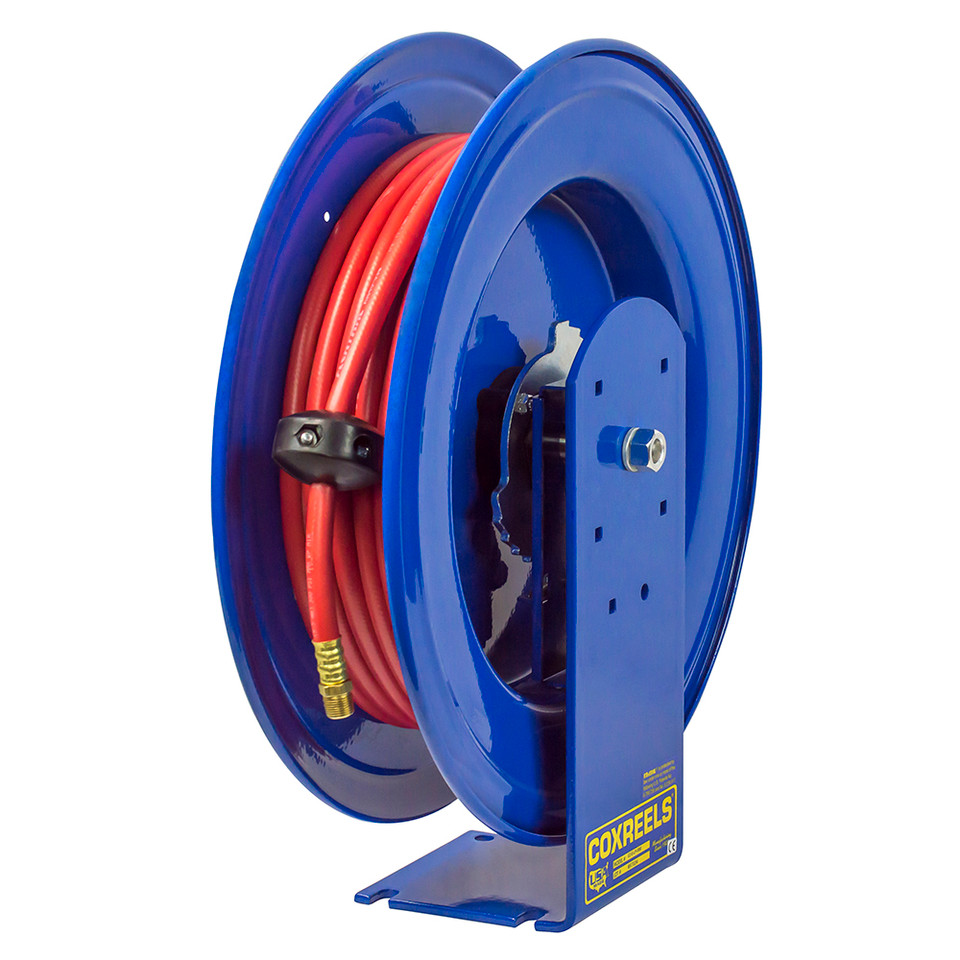

Coxreels EZ-E-MP-450 Spring Rewind Enclosed Cabinet Hose Reel | EZ-E Series | 1/2" Hose Diameter | 50' Hose Length | 2500 Max PSI

Built for longer-reach medium-pressure hose handling in enclosed cabinet installations, the Coxreels EZ-E-MP-450 is an EZ-Coil spring rewind hose reel from the EZ-E Series. This model is supplied with 1/2" I.D. hose, a 50 ft hose length, and a 2500 PSI maximum pressure rating, giving service bays, fleet shops, and maintenance departments a higher-flow medium-pressure reel for compatible air, water, and oil service.

The EZ-E Series combines Coxreels enclosed metal cabinet format with EZ-Coil controlled retraction, which slows hose return compared with conventional spring rewind reels. This controlled rewind helps reduce sudden hose snap-back after the latch is released, while the cabinet-style housing gives the installation a cleaner appearance than open-frame reel mounting. With a 1/2" hose diameter and 50 ft reach, the EZ-E-MP-450 is well suited for work areas where the reel must cover larger service zones without sacrificing organized hose storage.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: EZ-E Series | Model: EZ-E-MP-450 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 50 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Hose Type: Standard One-Wire Braid | Hose Specification: Exceeds SAE R1 | Max Temperature: 250°F | Rewind Type: EZ-Coil Controlled Spring Rewind | Overall Dimensions: 8.75" W x 21" H x 19.63" L | Mounting Pattern: 4" M x 5" N | Base Size: 5" x 6" | Approx. Ship Weight: 63 lbs

Features:

• EZ-Coil controlled retraction slows hose return up to 80% compared with conventional spring driven reels for more controlled rewind operation.
• Expandable enclosed metal cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• 2500 PSI medium-pressure rating supports compatible air, water, and oil service when the system pressure, media, and temperature requirements match the reel.
• 1/2" I.D. hose supports greater flow than smaller 3/8" hose configurations when the supply line, fittings, and connected equipment are sized accordingly.
• 50 ft hose length provides extended reach across service bays, benches, lube areas, maintenance zones, and equipment workstations.
• Standard one-wire braid hose exceeds SAE R1 specifications for medium-pressure service.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports easier seal maintenance and hose installation.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service bays where 50 ft of 1/2" medium-pressure hose helps reach around lifts, service lanes, and nearby equipment.
• Industrial maintenance and MRO departments that need enclosed 2500 PSI hose storage for compatible air, water, or oil service.
• Lubrication and fluid service stations where retractable hose access helps keep oil or service lines stored cleanly between jobs.
• Manufacturing and production areas using cabinet reel banks to organize service lines at the point of use.
• Garage and workshop installations where controlled rewind, longer reach, and enclosed cabinet storage help reduce loose hose around benches and walkways.

FAQs:

• Q: Does the Coxreels EZ-E-MP-450 include hose?
  A: Yes. The EZ-E-MP-450 is supplied with 1/2" I.D. x 50 ft medium-pressure hose. Coxreels uses related MPL model designations for less-hose versions.
• Q: What is the difference between EZ-E-MP-450 and E-MP-450?
  A: Both models share the same 1/2" x 50 ft medium-pressure configuration and 2500 PSI rating. The EZ-E-MP-450 adds Coxreels EZ-Coil controlled retraction system, which slows hose return compared with the standard E-MP model.
• Q: Why choose a 1/2" hose reel instead of a 3/8" model?
  A: A 1/2" hose can support greater flow than a 3/8" hose when the supply line, fittings, and connected equipment are sized properly. Choose the larger hose size when volume flow matters more than using the smallest hose possible.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure configuration is listed for air, water, and oil service. Always confirm oil type, temperature, pressure, hose construction, seal compatibility, and fitting requirements before installation.
• Q: When should I choose the 50 ft version instead of a 30 ft reel?
  A: Choose the 50 ft version when the reel must reach across larger bays, around vehicles, or between nearby workstations. A 30 ft reel may be better when the mounting location is close to the job and less hose on the floor is preferred.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
