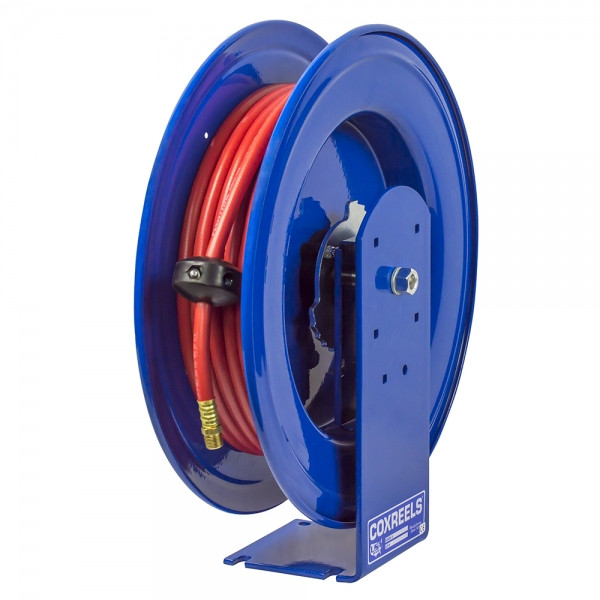

Coxreels E-HP-130 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/4" Hose Diameter | 30' Hose Length | 5000 Max PSI

Built for high-pressure hose storage in enclosed cabinet installations, the Coxreels E-HP-130 is a spring rewind hose reel from the E Series. This model is supplied with 1/4" I.D. hose, a 30 ft hose length, and a 5000 PSI maximum pressure rating, making it a practical choice for compatible grease and hydraulic oil service where a compact hose size and high working pressure are required at the point of use.

The E Series cabinet format is built for organized single-reel mounting or expandable multiple-reel bank layouts in maintenance shops, fleet facilities, lubrication stations, and production work areas. Its spring rewind mechanism retracts the hose after use, helping reduce loose hose around workstations, while the multi-position lock ratchet holds the hose at the selected working length during service. The enclosed cabinet-style layout helps create a cleaner installation than exposed floor storage or loose coiled hose.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-HP-130 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 30 ft | Max Pressure: 5000 PSI | Service: Grease, Hydraulic Oil | Hose Included: Yes | Max Temperature: 250°F | Reel Inlet: 1/4" FNPT | Hose Outlet: 1/4" MNPT | Swivel Material: Zinc Plated Steel | Seal Type: Nitrile | Overall Dimensions: 7" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 46 lbs

Features:

• 5000 PSI high-pressure rating supports compatible grease and hydraulic oil service when the system pressure, fluid type, and temperature match the reel specifications.
• 1/4" I.D. x 30 ft hose configuration works well for lubrication points, hydraulic service areas, and compact workstation layouts.
• Spring rewind operation retracts hose after use, helping keep high-pressure hose stored off the floor between jobs.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Expandable enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• External fluid path with zinc plated steel 90° full-flow NPT swivel supports hose connection and seal maintenance.
• Nitrile seals support compatible grease and hydraulic oil applications when chemical and temperature compatibility are confirmed.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where high-pressure grease or hydraulic oil hose is needed near lifts, lube bays, and repair stations.
• Industrial maintenance and MRO departments that need enclosed 5000 PSI hose storage close to machinery, benches, or service points.
• Lubrication stations where retractable hose access helps keep grease delivery lines organized between jobs.
• Manufacturing and production facilities using cabinet-mounted reel banks for controlled point-of-use fluid delivery.
• Equipment maintenance areas where a compact 30 ft high-pressure hose reel helps support hydraulic oil service within the reels rated limits.

FAQs:

• Q: Does the Coxreels E-HP-130 include hose?
  A: Yes. The E-HP-130 is supplied with 1/4" I.D. x 30 ft high-pressure hose. Coxreels uses related HPL model designations for less-hose versions.
• Q: What is this high-pressure reel used for?
  A: This model is intended for compatible grease and hydraulic oil service within its 5000 PSI pressure rating. Always confirm fluid type, temperature, fittings, seals, and hose compatibility before installation.
• Q: How is the E-HP-130 different from E-MP models?
  A: The E-HP-130 is a high-pressure model rated to 5000 PSI with 1/4" I.D. hose. E-MP models are medium-pressure reels with different hose sizes and lower pressure ratings.
• Q: What does the lock ratchet do?
  A: The lock ratchet lets the user pull out the hose and hold it at selected working lengths. A controlled pull releases the latch so the spring rewind mechanism can retract the hose back onto the reel.
• Q: When should I choose a 30 ft hose reel?
  A: A 30 ft hose length is a good fit when the reel is mounted near the lubrication point, hydraulic service area, bench, or machine. For larger bays or longer pulls around equipment, confirm the distance from the mounting location to the farthest service point before ordering.
