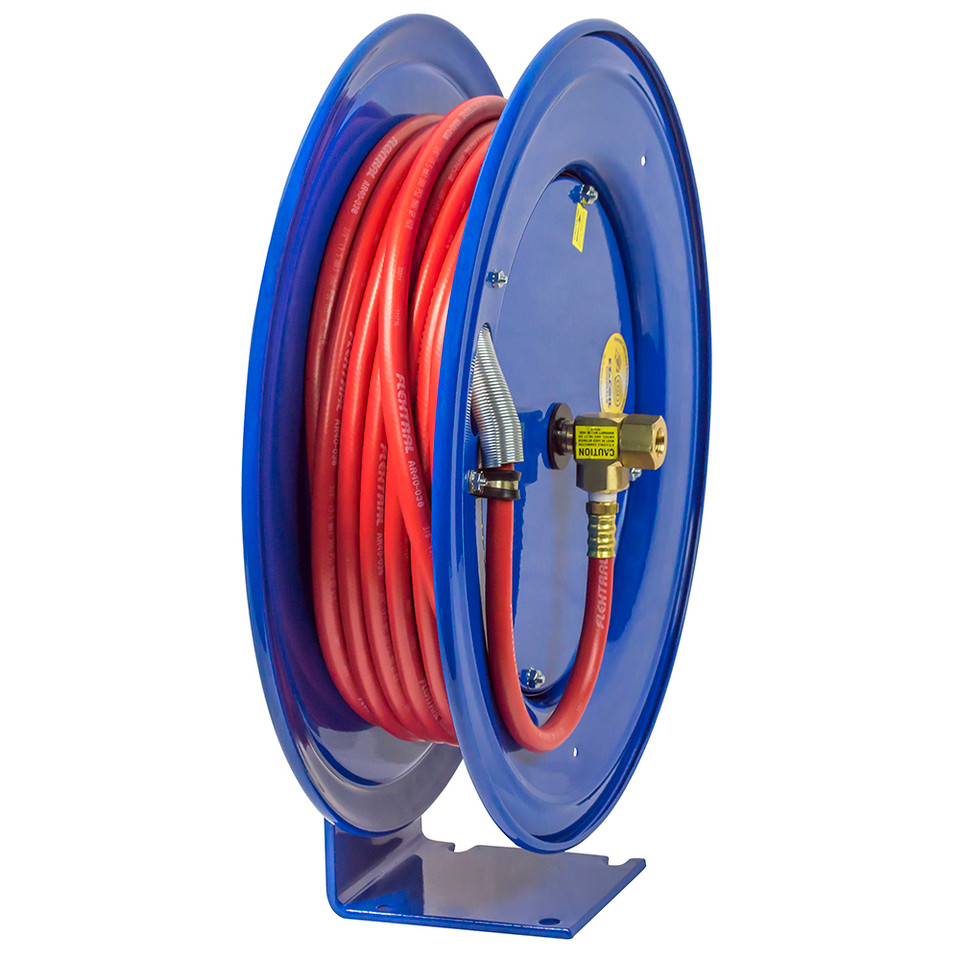

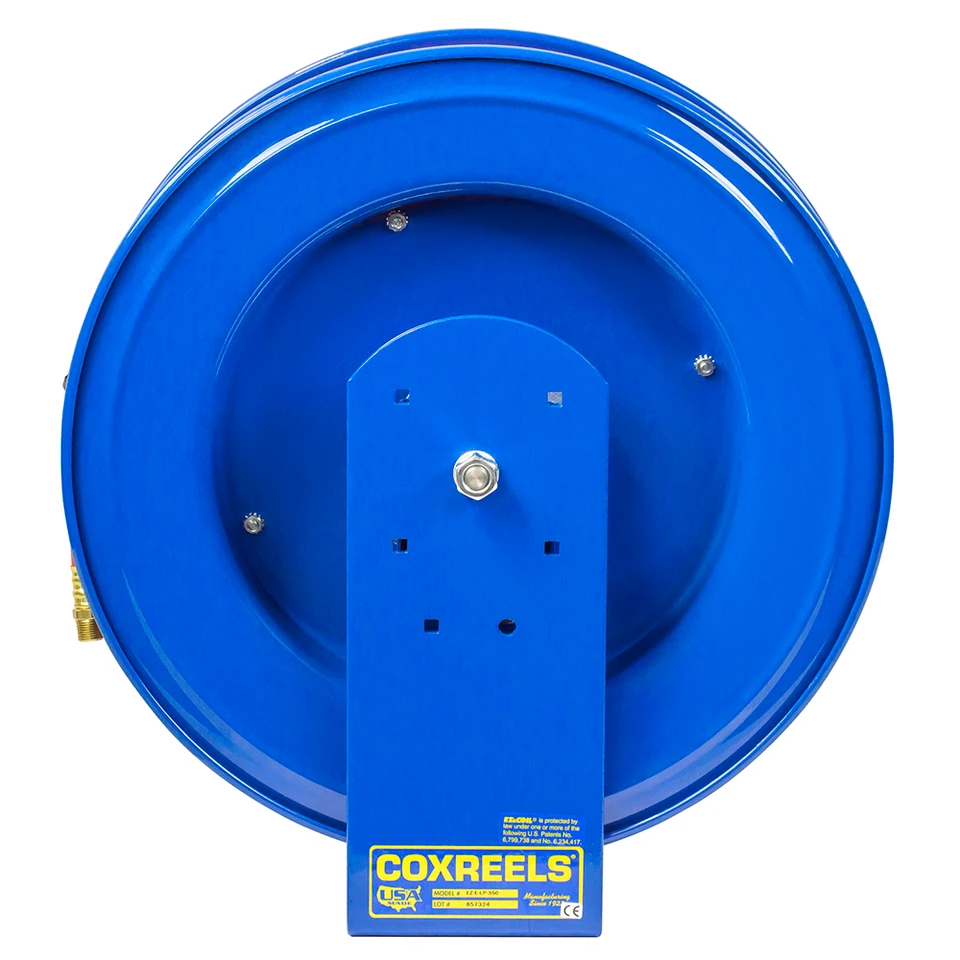

Coxreels EZ-E-MP-430 Spring Rewind Enclosed Cabinet Hose Reel | EZ-E Series | 1/2" Hose Diameter | 30' Hose Length | 2500 Max PSI

Built for controlled medium-pressure hose handling in compact cabinet-style installations, the Coxreels EZ-E-MP-430 is an EZ-Coil spring rewind enclosed cabinet hose reel from the EZ-E Series. This model is supplied with 1/2" I.D. hose, a 30 ft hose length, and a 2500 PSI maximum pressure rating, making it a practical choice for compatible air, water, and oil service where a larger hose diameter is needed in a shorter point-of-use setup.

The EZ-E Series combines Coxreels expandable enclosed cabinet format with EZ-Coil controlled retraction, which slows hose return compared with conventional spring rewind reels. That controlled rewind helps reduce sudden hose snap-back after the latch is released, while the enclosed cabinet gives service bays, maintenance departments, lube stations, and production workstations a cleaner finished appearance than open-frame reel placement. The 1/2" hose size supports greater flow than smaller 3/8" configurations when the supply line, fittings, and connected equipment are sized accordingly.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: EZ-E Series | Model: EZ-E-MP-430 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 30 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Hose Type: Standard One-Wire Braid | Hose Specification: Exceeds SAE R1 | Max Temperature: 250°F | Rewind Type: EZ-Coil Controlled Spring Rewind | Overall Dimensions: 6.13" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 47 lbs

Features:

• EZ-Coil controlled retraction slows hose return up to 80% compared with conventional spring driven reels for more controlled rewind operation.
• Expandable enclosed metal cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• 2500 PSI medium-pressure rating supports compatible air, water, and oil service when system pressure, media, and temperature requirements match the reel.
• 1/2" I.D. hose supports greater flow than smaller 3/8" hose configurations when the supply line and fittings are sized properly.
• 30 ft hose length works well for compact point-of-use installations where the reel is mounted near the work area.
• Standard one-wire braid hose exceeds SAE R1 specifications for medium-pressure service.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports easier seal maintenance and hose installation.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service bays where 1/2" medium-pressure hose is used for compatible air, water, or oil delivery near lifts and workstations.
• Industrial maintenance and MRO areas that need enclosed 2500 PSI hose storage close to machinery, benches, or repair zones.
• Lubrication and fluid service points where retractable hose access helps keep oil or service lines stored cleanly between jobs.
• Manufacturing and production areas using cabinet reel banks to organize service lines at the point of use.
• Garage and workshop installations where controlled rewind and enclosed cabinet storage help reduce loose hose around benches, equipment, and walkways.

FAQs:

• Q: Does the Coxreels EZ-E-MP-430 include hose?
  A: Yes. The EZ-E-MP-430 is supplied with 1/2" I.D. x 30 ft medium-pressure hose. Coxreels uses the related EZ-E-MPL model designation for less-hose versions.
• Q: What is the difference between EZ-E-MP-430 and E-MP-430?
  A: Both models share the same 1/2" x 30 ft medium-pressure configuration and 2500 PSI rating. The EZ-E-MP-430 adds Coxreels EZ-Coil controlled retraction system, which slows hose return compared with the standard E-MP model.
• Q: Why choose a 1/2" hose reel instead of a 3/8" model?
  A: A 1/2" hose can support greater flow than a 3/8" hose when the air, water, or oil system is sized correctly. Choose the larger hose size when flow volume is more important than using the smallest hose possible.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure configuration is listed for air, water, and oil service. Always confirm oil type, temperature, pressure, hose construction, seal compatibility, and fitting requirements before installation.
• Q: When should I choose the 30 ft version instead of a 50 ft reel?
  A: Choose the 30 ft version when the reel is mounted close to the point of use and a shorter hose run keeps the area cleaner. For larger bays or longer pulls around vehicles and equipment, a 50 ft model may provide better reach.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
