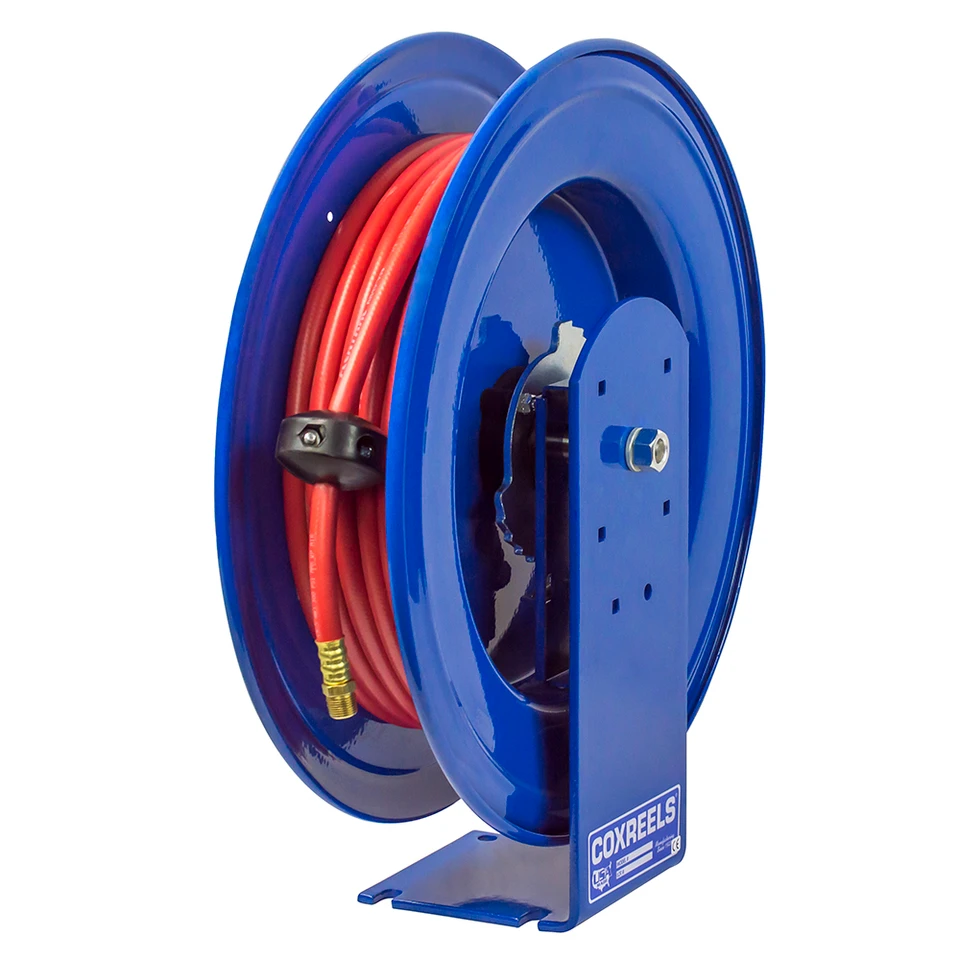

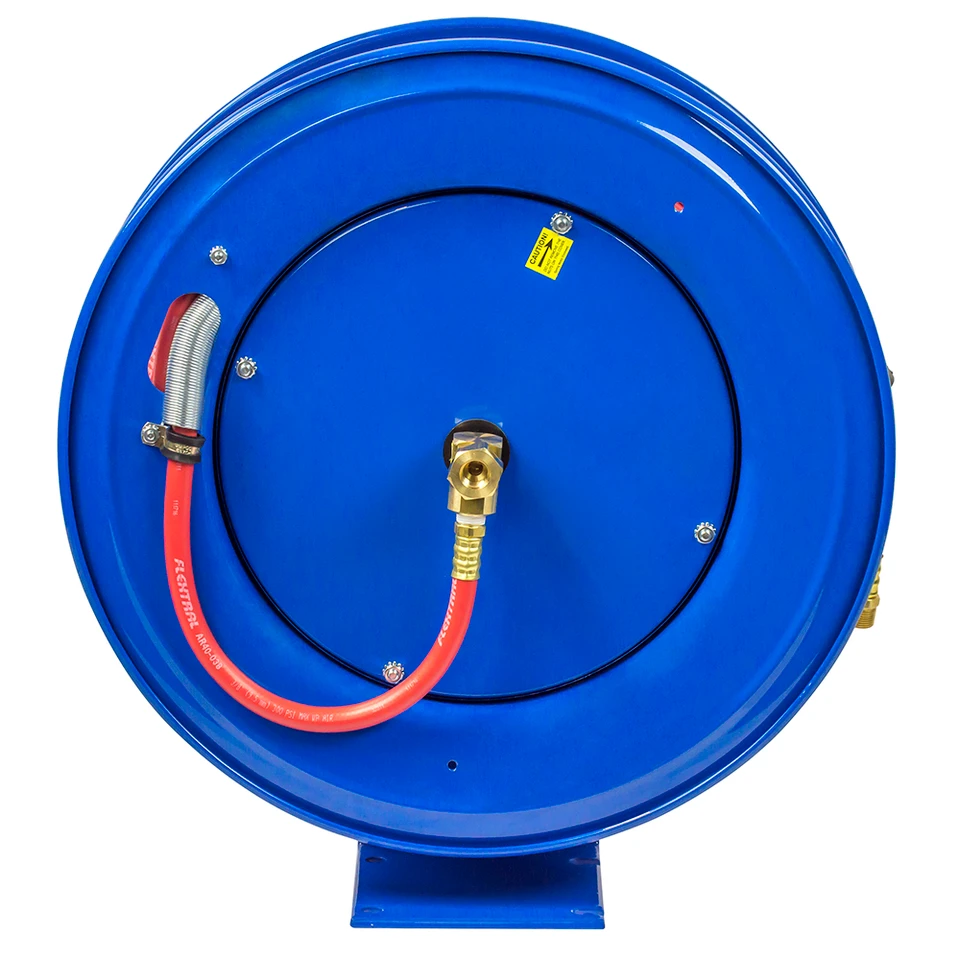

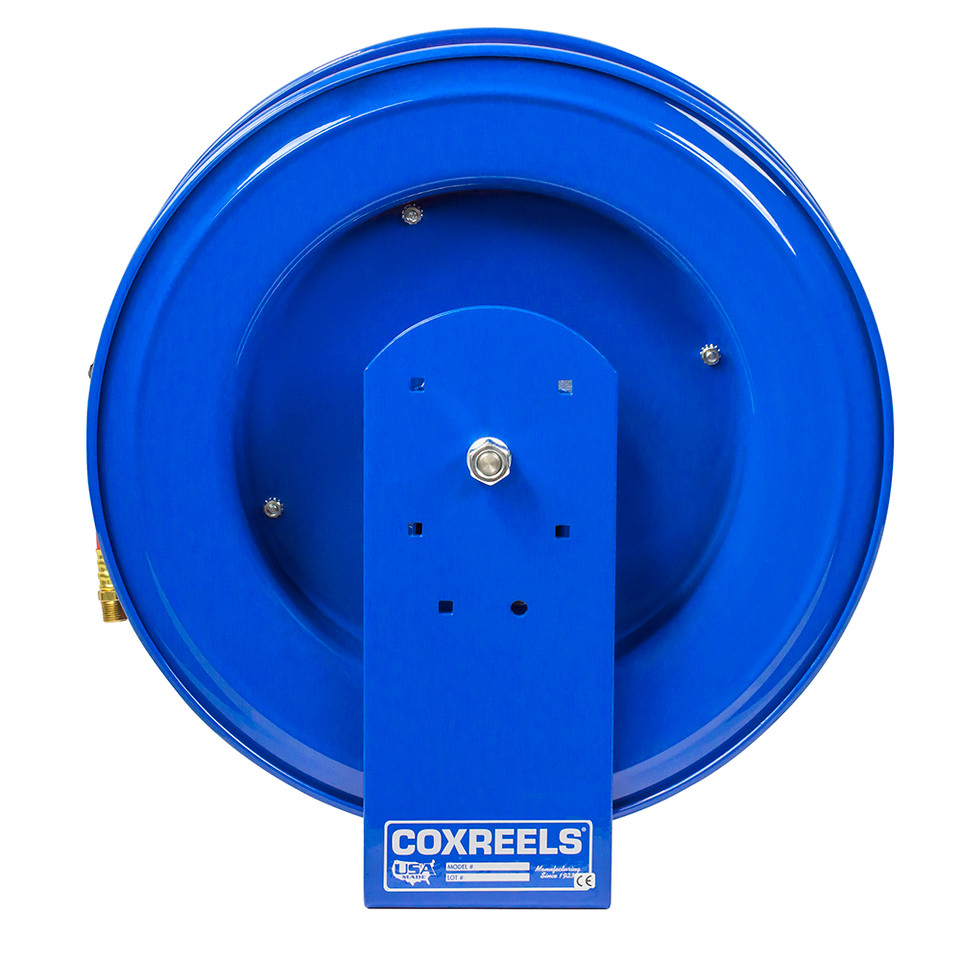

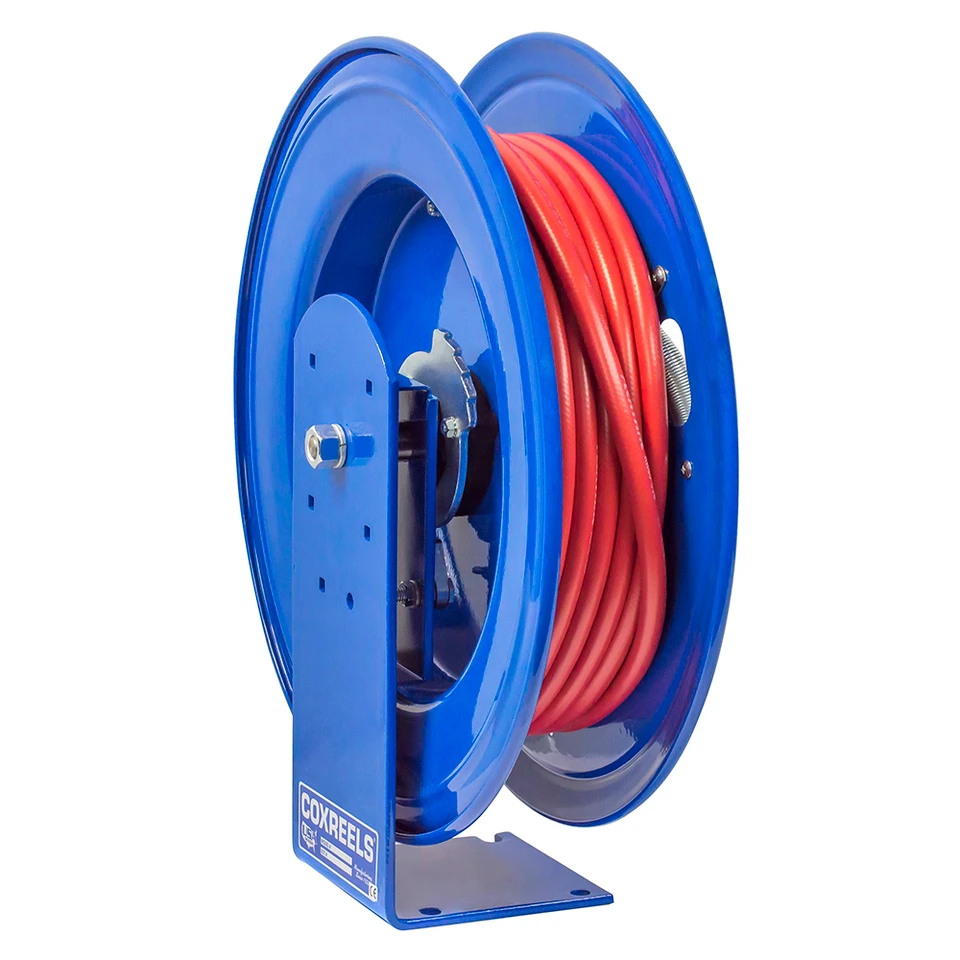

Coxreels E-MPL-430 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/2" Hose Diameter | 30' Hose Length | 2500 Max PSI | Less Hose

Built for medium-pressure hose storage where a larger hose diameter is needed and the buyer wants to install a job-specific hose, the Coxreels E-MPL-430 is a spring rewind enclosed cabinet hose reel from the E Series. This less-hose model is configured for 1/2" I.D. hose, supports a 30 ft hose capacity, and is rated for 2500 PSI maximum pressure, making it a practical reel body for compatible air, water, or oil service when the selected hose, fittings, seals, and media match the application requirements.

The enclosed cabinet format helps create a cleaner installation than an open-frame reel, especially in fleet maintenance bays, lube stations, industrial work areas, and point-of-use service stations. Because this model is supplied less hose, the buyer can select a compatible 1/2" medium-pressure hose based on required fluid type, temperature range, fitting style, and working pressure. The spring rewind mechanism retracts the hose after use, while the lock ratchet holds the hose at selected working lengths during service.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-MPL-430 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 30 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Rewind Type: Spring Rewind | Cabinet Style: Enclosed

Features:

• Less-hose configuration allows the buyer to install a compatible 1/2" medium-pressure hose selected for the application, service media, temperature range, and fitting requirements.
• 2500 PSI medium-pressure rating supports compatible air, water, or oil service when the installed hose and fittings are rated accordingly.
• 1/2" hose capacity supports greater flow than smaller 3/8" configurations when the supply line, fittings, and connected equipment are sized properly.
• 30 ft hose capacity works well for compact point-of-use installations where the reel is mounted near the service area.
• Spring rewind operation retracts hose after use, helping reduce loose hose around lifts, machines, benches, and walkways.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations in service and maintenance areas.
• Cabinet-style reel housing helps present a cleaner finished appearance than exposed hose storage or open-frame reel placement.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service areas where a compact medium-pressure reel is needed for buyer-selected 1/2" air, water, or oil hose.
• Industrial maintenance and MRO stations that need enclosed 2500 PSI hose storage close to benches, machines, repair zones, or lube points.
• Lubrication and fluid service areas where retractable hose management helps keep service lines stored neatly between jobs.
• Manufacturing and production cells using enclosed cabinet reel banks to organize multiple point-of-use service lines.
• Garage and workshop installations where a less-hose reel lets the user choose a compatible 1/2" hose before putting the reel into service.

FAQs:

• Q: Does the Coxreels E-MPL-430 include hose?
  A: No. This is a less-hose model, meaning the reel is supplied without hose installed. The 1/2" diameter and 30 ft listing refers to the compatible hose size and capacity.
• Q: What does less hose mean?
  A: It means the buyer must provide and install a compatible hose separately. The hose must match the reel capacity, 2500 PSI pressure rating, fitting requirements, temperature range, and intended service media.
• Q: How is the E-MPL-430 different from the E-MP-430?
  A: The E-MPL-430 is supplied without hose, while the E-MP-430 is the hose-included version. Both are configured around 1/2" x 30 ft medium-pressure service, but the MPL version gives the buyer flexibility to choose the hose.
• Q: Why choose a 1/2" hose reel instead of a 3/8" model?
  A: A 1/2" hose can support greater flow than a 3/8" hose when the supply line, fittings, and connected equipment are sized correctly. Choose the larger hose size when flow volume matters more than using the smallest possible hose.
• Q: Can this reel be used for oil service?
  A: Yes, when the selected hose, fittings, and seals are compatible with the oil type, temperature, and pressure of the system. Always verify media compatibility before installation.
