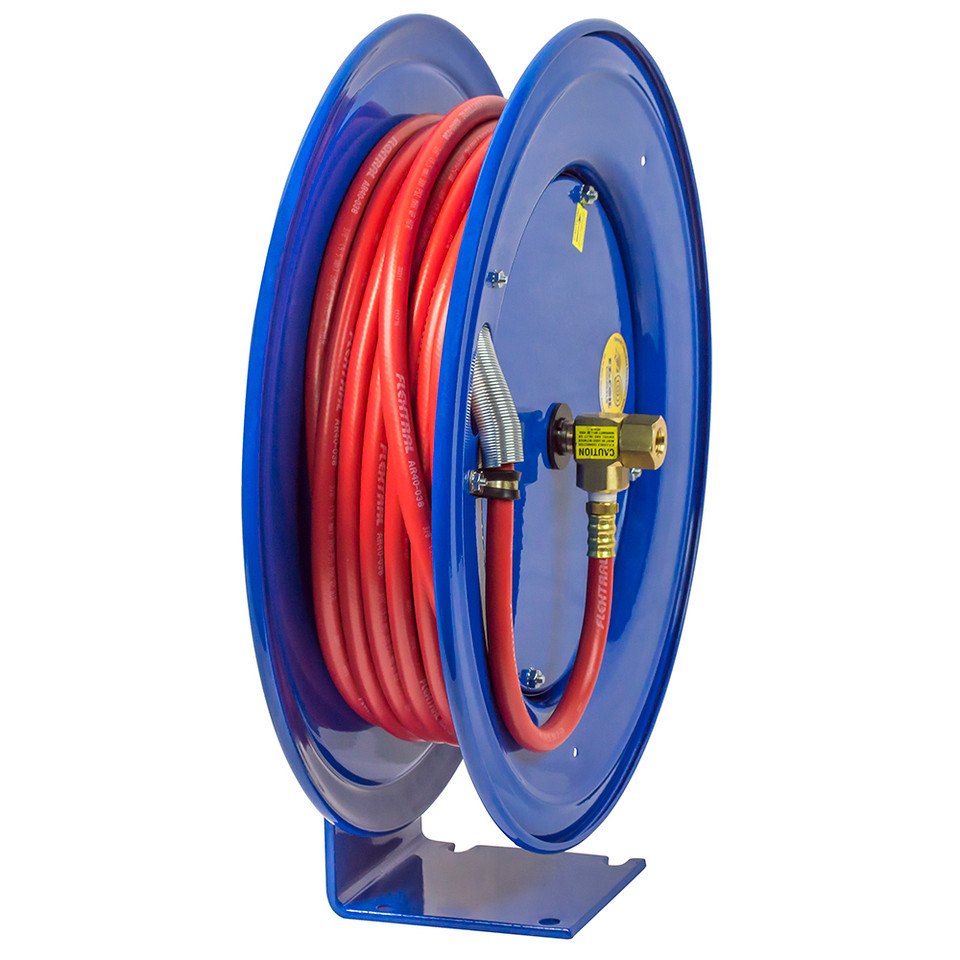

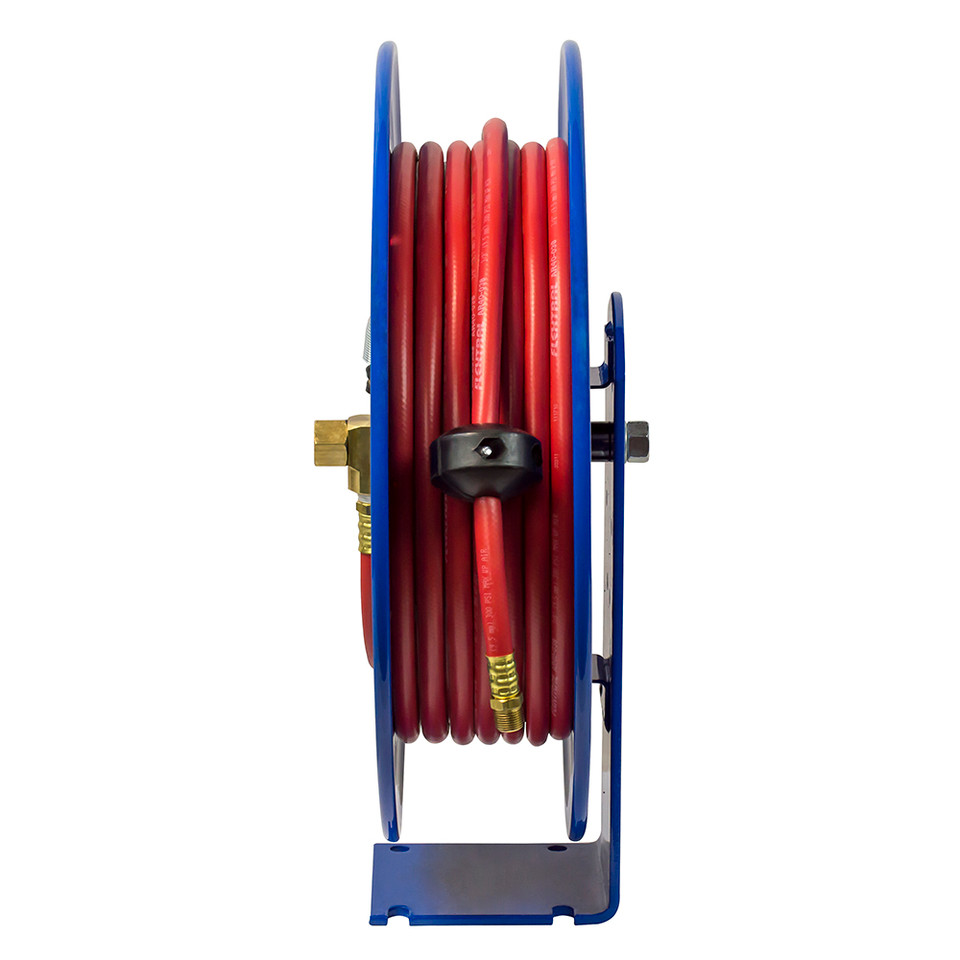

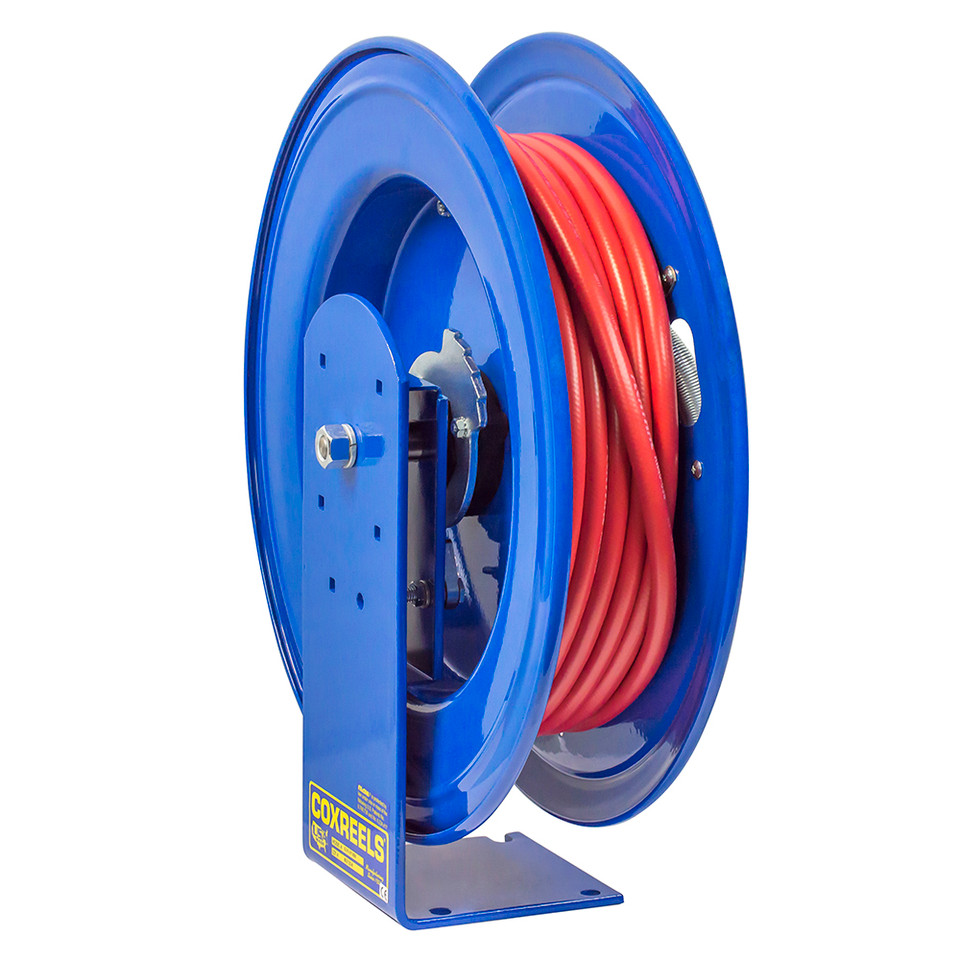

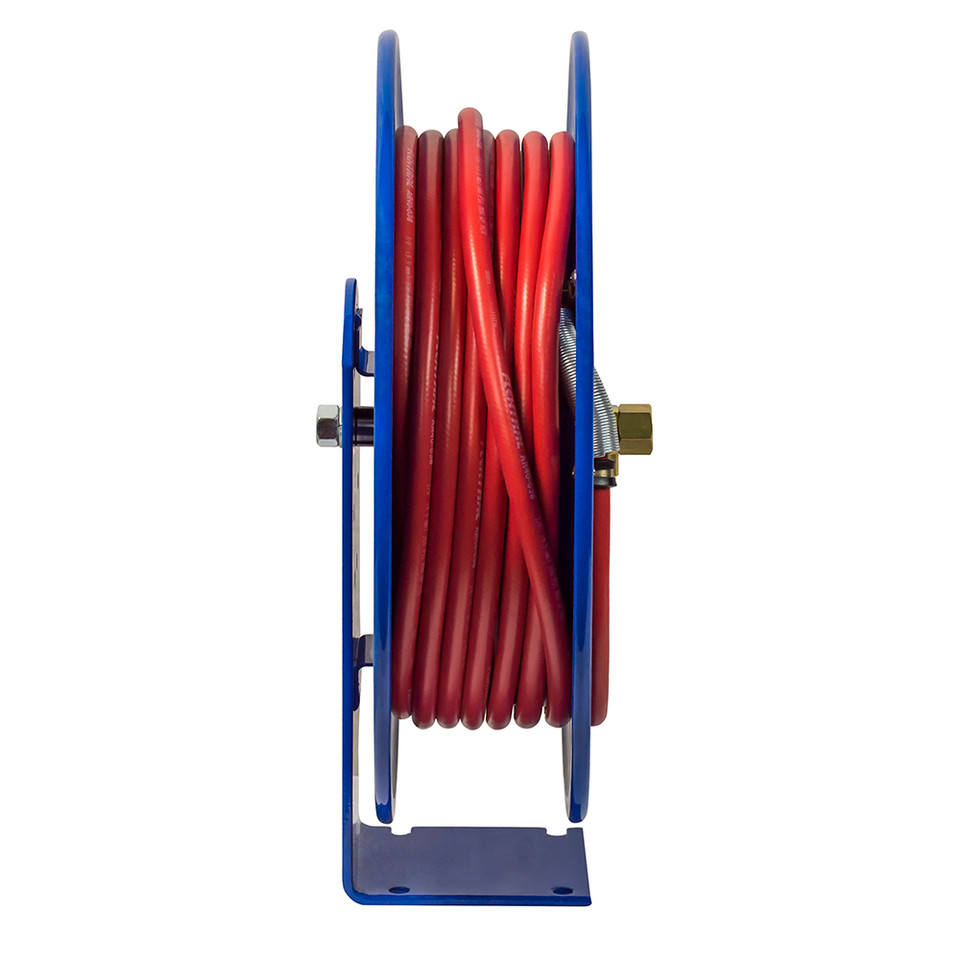

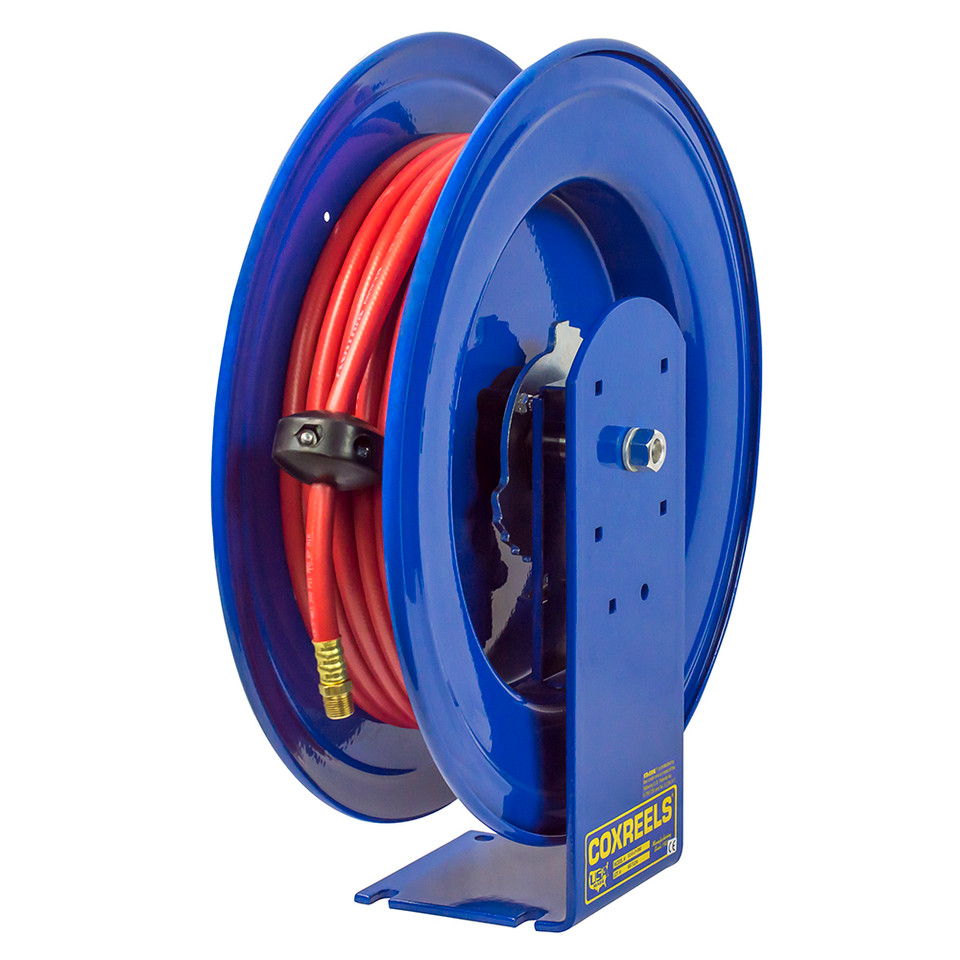

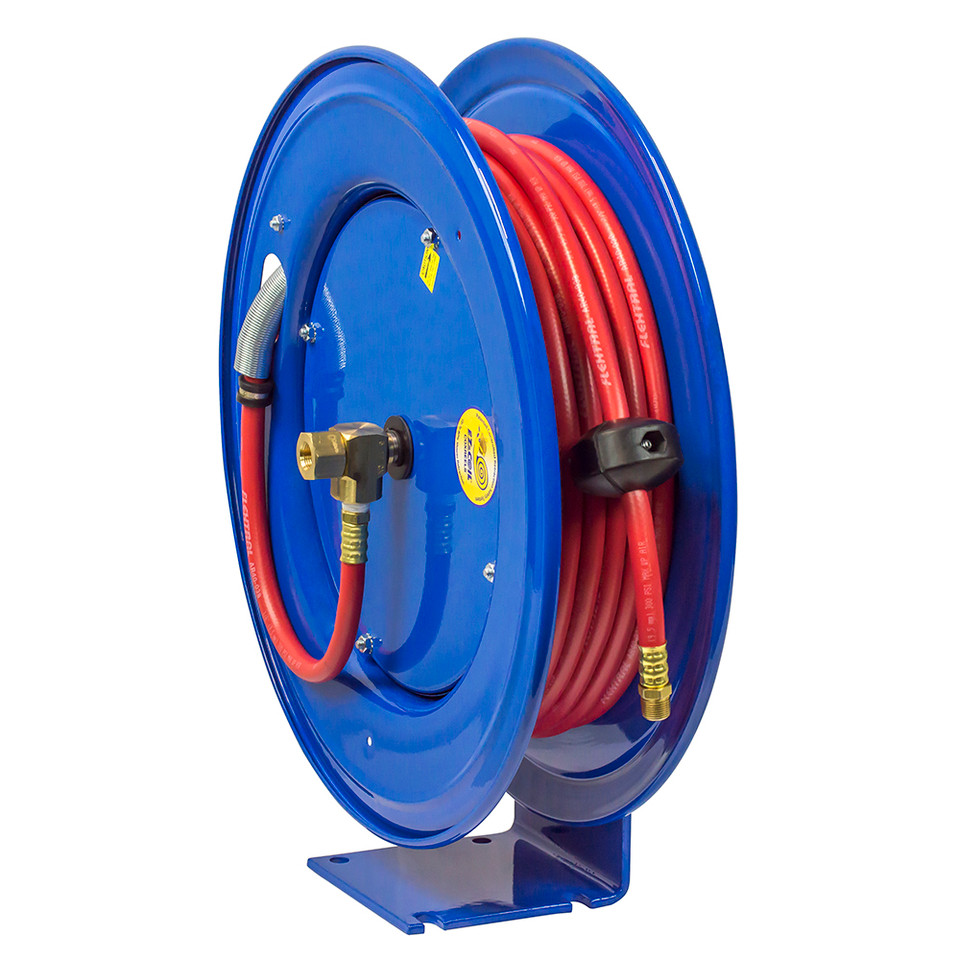

Coxreels EZ-E-HP-130 Spring Rewind Enclosed Cabinet Hose Reel | EZ-E Series | 1/4" Hose Diameter | 30' Hose Length | 5000 Max PSI

Built for controlled high-pressure hose handling in enclosed cabinet installations, the Coxreels EZ-E-HP-130 is an EZ-Coil spring rewind hose reel from the EZ-E Series. This model is supplied with 1/4" I.D. hose, a 30 ft hose length, and a 5000 PSI maximum pressure rating, making it a practical choice for compatible grease and hydraulic oil service where high pressure, compact hose size, and controlled rewind are all required at the point of use.

The EZ-E Series combines Coxreels enclosed cabinet-style reel layout with EZ-Coil controlled retraction, which slows hose return compared with conventional spring rewind reels. That controlled rewind helps reduce sudden hose snap-back after the latch is released, while the enclosed cabinet format keeps the reel installation cleaner and more organized. For lubrication stations, fleet maintenance areas, hydraulic service points, and production workstations, the EZ-E-HP-130 helps keep high-pressure hose stored neatly between service tasks.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: EZ-E Series | Model: EZ-E-HP-130 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 30 ft | Max Pressure: 5000 PSI | Service: Grease, Hydraulic Oil | Hose Included: Yes | Max Temperature: 250°F | Rewind Type: EZ-Coil Controlled Spring Rewind | Reel Inlet: 1/4" FNPT | Hose Outlet: 1/4" MNPT | Swivel Material: Zinc Plated Steel | Seal Type: Nitrile | Overall Dimensions: 7" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 46 lbs

Features:

• EZ-Coil controlled retraction slows hose return up to 80% compared with conventional spring driven reels for more controlled rewind operation.
• 5000 PSI high-pressure rating supports compatible grease and hydraulic oil service when pressure, fluid type, temperature, fittings, and hose requirements match the reel.
• 1/4" I.D. x 30 ft hose configuration works well for lubrication points, hydraulic service stations, and compact point-of-use installations.
• Enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations in service and maintenance areas.
• Spring rewind operation retracts hose after use, helping keep high-pressure hose stored off the floor between service tasks.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• External fluid path with zinc plated steel 90° full-flow NPT swivel supports high-pressure hose connection and seal maintenance.
• Nitrile seals support compatible grease and hydraulic oil applications when chemical and temperature compatibility are confirmed.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where controlled rewind helps manage high-pressure grease or hydraulic oil hose near lifts, lube bays, and repair stations.
• Industrial maintenance and MRO departments that need enclosed 5000 PSI hose storage close to machines, benches, and service points.
• Lubrication stations where retractable hose access helps keep grease delivery lines organized and ready between service tasks.
• Manufacturing and production facilities using cabinet-mounted reel banks for controlled point-of-use fluid delivery.
• Equipment maintenance areas where a compact 30 ft high-pressure hose reel supports hydraulic oil service within the reels rated limits.

FAQs:

• Q: Does the Coxreels EZ-E-HP-130 include hose?
  A: Yes. The EZ-E-HP-130 is supplied with 1/4" I.D. x 30 ft high-pressure hose. Coxreels uses related HPL model designations for less-hose versions.
• Q: What is the difference between EZ-E-HP-130 and E-HP-130?
  A: Both models share the same 1/4" x 30 ft high-pressure configuration and 5000 PSI rating. The EZ-E-HP-130 adds Coxreels EZ-Coil controlled retraction system, which slows hose return compared with the standard E-HP model.
• Q: What is this high-pressure reel used for?
  A: This model is used for compatible grease and hydraulic oil service within its 5000 PSI pressure rating. Always confirm fluid type, system pressure, temperature, hose compatibility, seal compatibility, and fitting requirements before installation.
• Q: Can this reel be used for shop air or water?
  A: This HP configuration is intended for grease and hydraulic oil service. For air or water service, select a compatible Coxreels low-pressure or medium-pressure model with the correct hose, seals, and pressure rating.
• Q: When should I choose the 30 ft version instead of a 50 ft reel?
  A: Choose the 30 ft version when the reel is mounted near the lubrication point, hydraulic service area, bench, or machine. For larger bays or longer pulls around equipment, a 50 ft model may provide better reach.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
