Coxreels E-LPL-450 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/2" Hose Diameter | 50' Hose Length | 300 Max PSI | Less Hose

Built for low-pressure hose storage where a larger hose diameter and longer reach are needed, the Coxreels E-LPL-450 is a spring rewind enclosed cabinet hose reel from the E Series. This less-hose model is configured for 1/2" I.D. hose, supports a 50 ft hose capacity, and is rated for 300 PSI maximum pressure, making it a practical reel body for compatible air, water, or oil service when the installed hose, fittings, and media match the job requirements.

The enclosed cabinet format helps create a clean, professional-looking installation in service bays, maintenance departments, fleet shops, and point-of-use workstations. Because this model is supplied less hose, buyers can choose a compatible 1/2" hose based on the required media, temperature range, fitting style, and pressure rating. The spring rewind mechanism retracts the hose after use, while the lock ratchet lets the user hold the hose at the selected working length during operation.

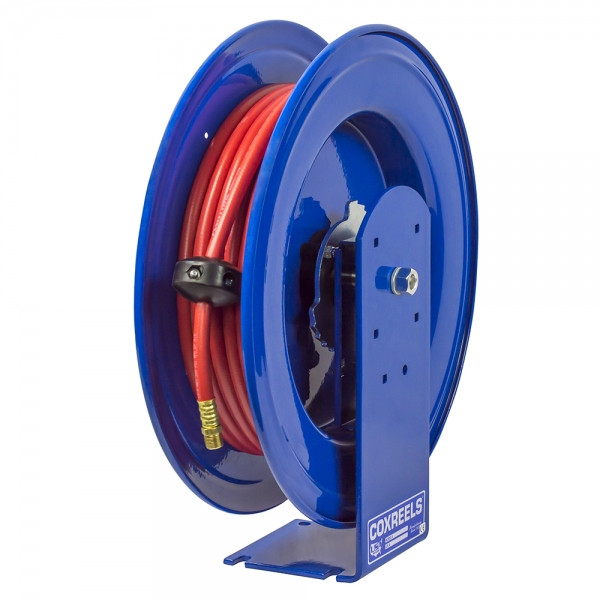

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-LPL-450 | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 50 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Rewind Type: Spring Rewind | Cabinet Style: Enclosed

Features:

• Less-hose configuration allows the buyer to install a compatible 1/2" hose selected for the application, service media, pressure rating, and temperature requirements.
• 50 ft hose capacity provides extended reach for larger service bays, workstations, benches, and nearby equipment areas.
• 300 PSI low-pressure rating supports compatible air, water, or oil service when the installed hose and fittings are rated accordingly.
• Spring rewind operation retracts hose after use, helping reduce loose hose around walkways, machines, service lanes, and work areas.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• 1/2" hose capacity supports greater flow than smaller 3/8" configurations when the supply line, fittings, and connected equipment are sized properly.
• Cabinet-style reel housing helps present a cleaner finished appearance than exposed hose storage or open-frame reel placement.

Made in USA:

2 Year Warranty

Applications:

• Automotive service bays where a 50 ft low-pressure hose reach is needed and the shop wants to select its own compatible 1/2" hose.
• Industrial maintenance and MRO areas that need enclosed hose storage for air, water, or oil service close to benches, machines, or repair zones.
• Fleet service and equipment maintenance shops where retractable hose management helps keep service lanes and work areas cleaner.
• Manufacturing and production cells using cabinet-style reel banks to organize multiple point-of-use service lines.
• Garage and workshop installations where a less-hose reel gives the user flexibility to choose the hose type before putting the reel into service.

FAQs:

• Q: Does the Coxreels E-LPL-450 include hose?
  A: No. This is a less-hose model, meaning the reel is supplied without hose installed. The 1/2" diameter and 50 ft listing refers to the compatible hose size and capacity.
• Q: What does less hose mean?
  A: It means the buyer must provide and install a compatible hose separately. The hose must match the reel capacity, pressure rating, fitting requirements, temperature range, and intended service media.
• Q: Why choose a 1/2" hose reel instead of a 3/8" model?
  A: A 1/2" hose can support greater flow than a 3/8" hose when the supply line, fittings, and connected equipment are sized correctly. Choose the larger hose size when flow volume matters more than using the smallest possible hose.
• Q: Can this reel be used for shop air?
  A: Yes, when the selected 1/2" hose, fittings, and air system stay within the reel's 300 PSI maximum pressure rating. Always verify the installed hose and connection ratings before use.
• Q: Can this reel be used for oil or water?
  A: Yes, this less-hose configuration can be used for compatible air, water, or oil service when the hose, fittings, and seals selected for installation are suitable for the media.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
