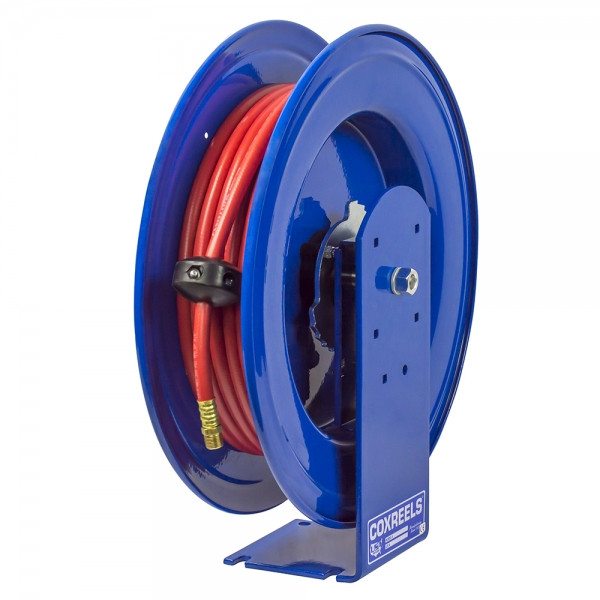

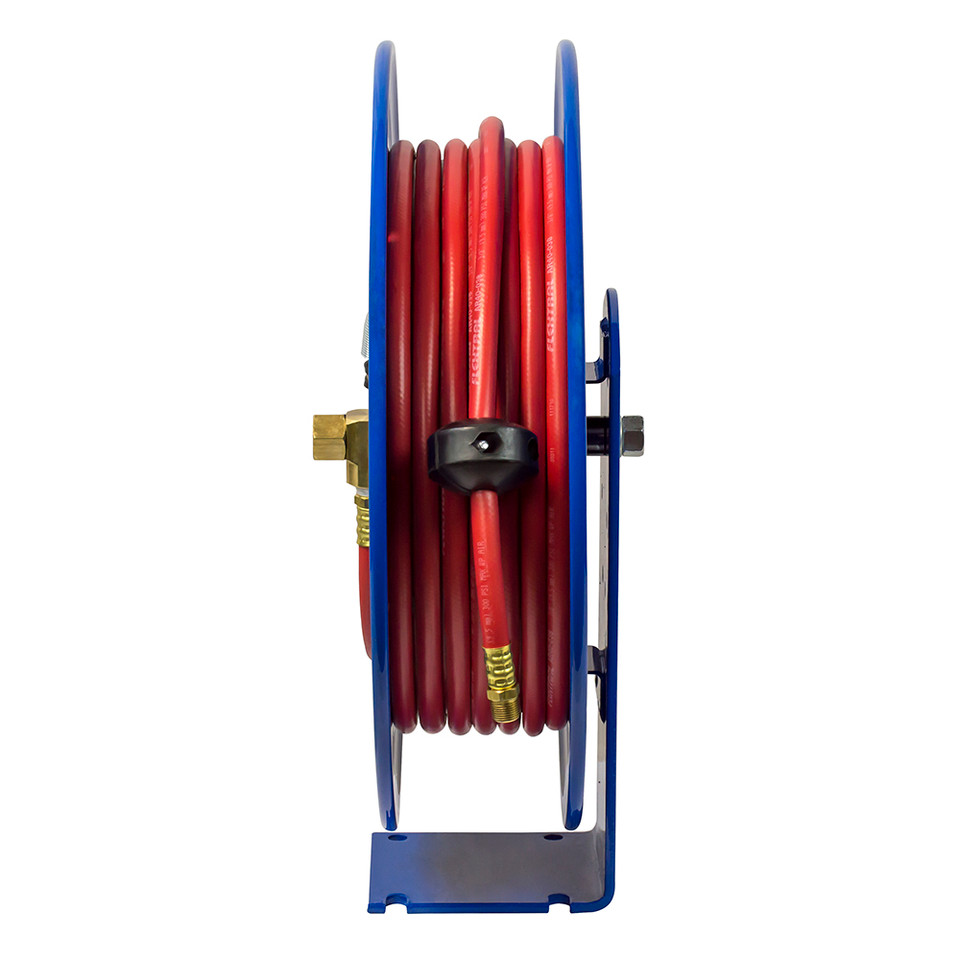

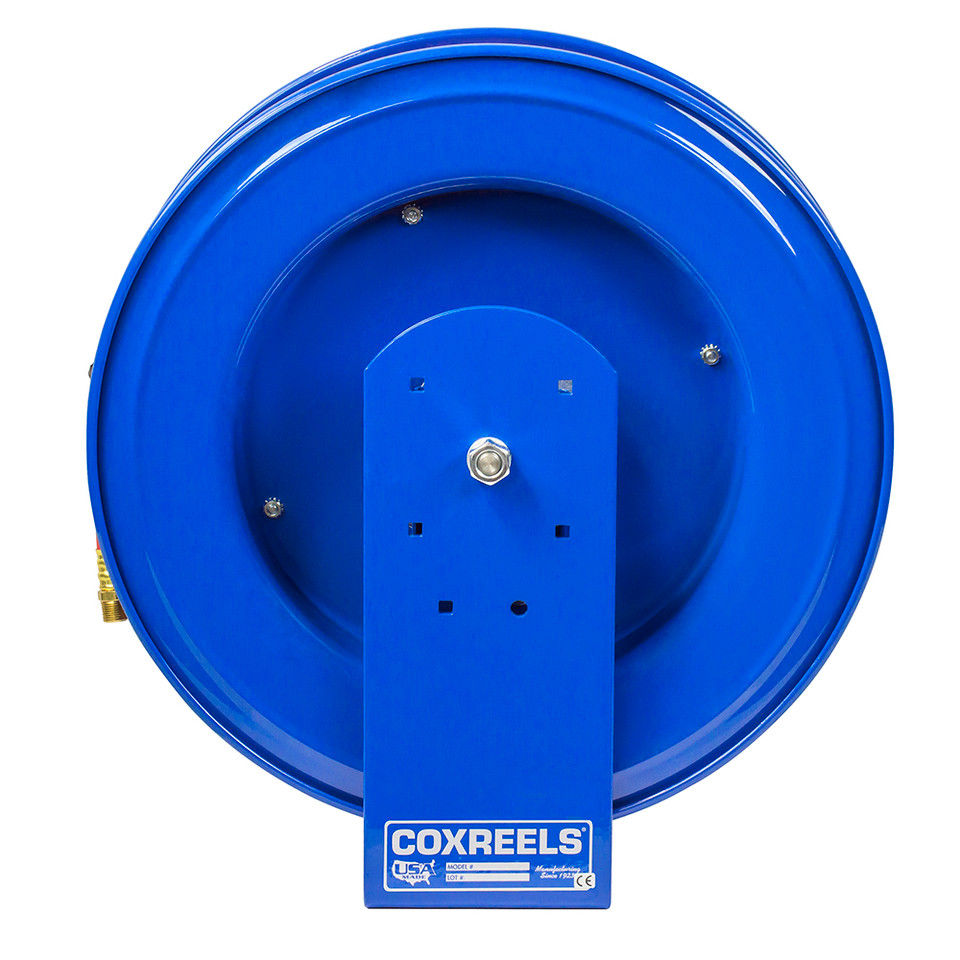

Coxreels E-HP-150 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/4" Hose Diameter | 50' Hose Length | 5000 Max PSI

Built for longer-reach high-pressure hose storage in enclosed cabinet installations, the Coxreels E-HP-150 is a spring rewind hose reel from the E Series. This model is supplied with 1/4" I.D. hose, a 50 ft hose length, and a 5000 PSI maximum pressure rating, making it a practical choice for compatible grease and hydraulic oil service where the reel must reach farther across a bay, lubrication point, or maintenance workstation.

The E Series cabinet format supports organized single-reel mounting or expandable multiple-reel bank layouts in fleet shops, industrial maintenance departments, lubrication stations, and production facilities. Its spring rewind mechanism retracts hose after use to help keep high-pressure lines stored off the floor, while the multi-position lock ratchet lets the user hold the hose at the selected working length. The 50 ft hose length is useful when the reel cannot be mounted directly beside the service point.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-HP-150 | Hose I.D.: 1/4" | Hose O.D.: 9/16" | Hose Length: 50 ft | Max Pressure: 5000 PSI | Service: Grease, Hydraulic Oil | Hose Included: Yes | Max Temperature: 250°F | Reel Inlet: 1/4" FNPT | Hose Outlet: 1/4" MNPT | Swivel Material: Zinc Plated Steel | Seal Type: Nitrile | Overall Dimensions: 9.25" W x 21" H x 19.63" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 60 lbs

Features:

• 5000 PSI high-pressure rating supports compatible grease and hydraulic oil service when pressure, fluid type, fittings, and temperature match the reel specifications.
• 1/4" I.D. x 50 ft hose configuration provides extended reach for lubrication stations, hydraulic oil service points, and maintenance bays.
• Spring rewind operation retracts hose after use, helping reduce loose high-pressure hose around benches, lifts, machinery, and walkways.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Expandable enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.

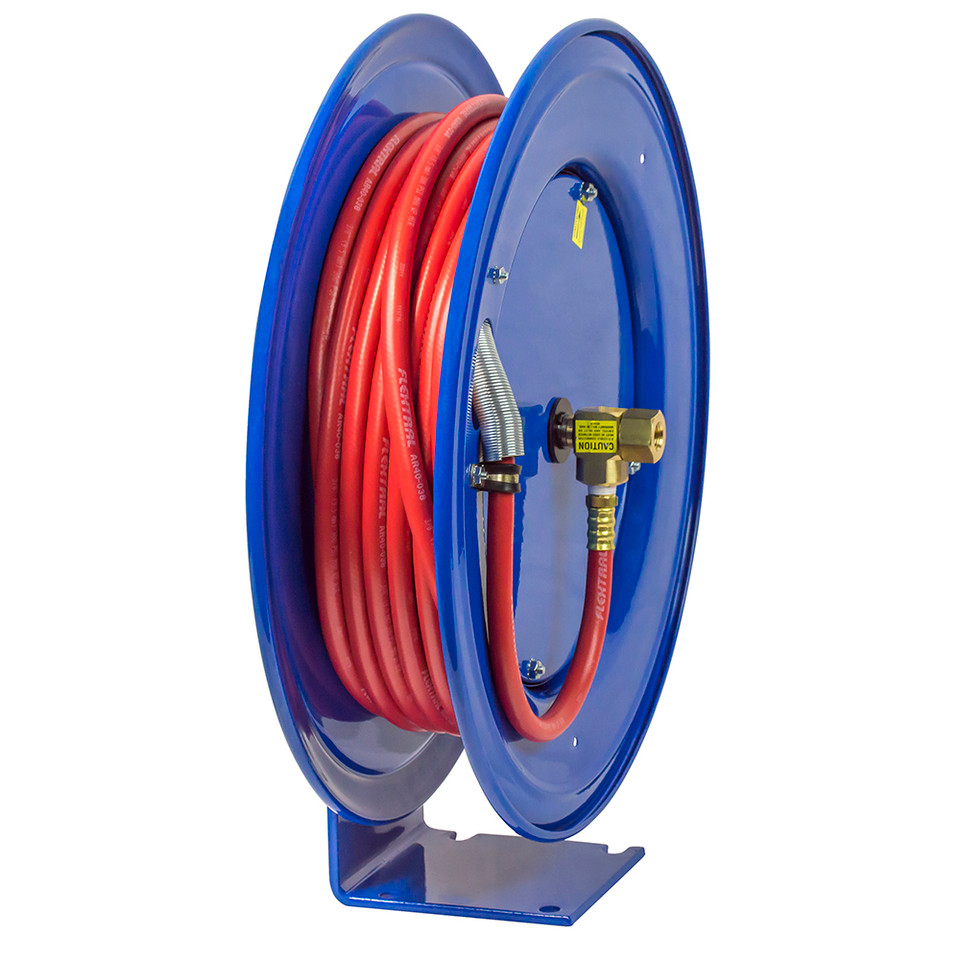

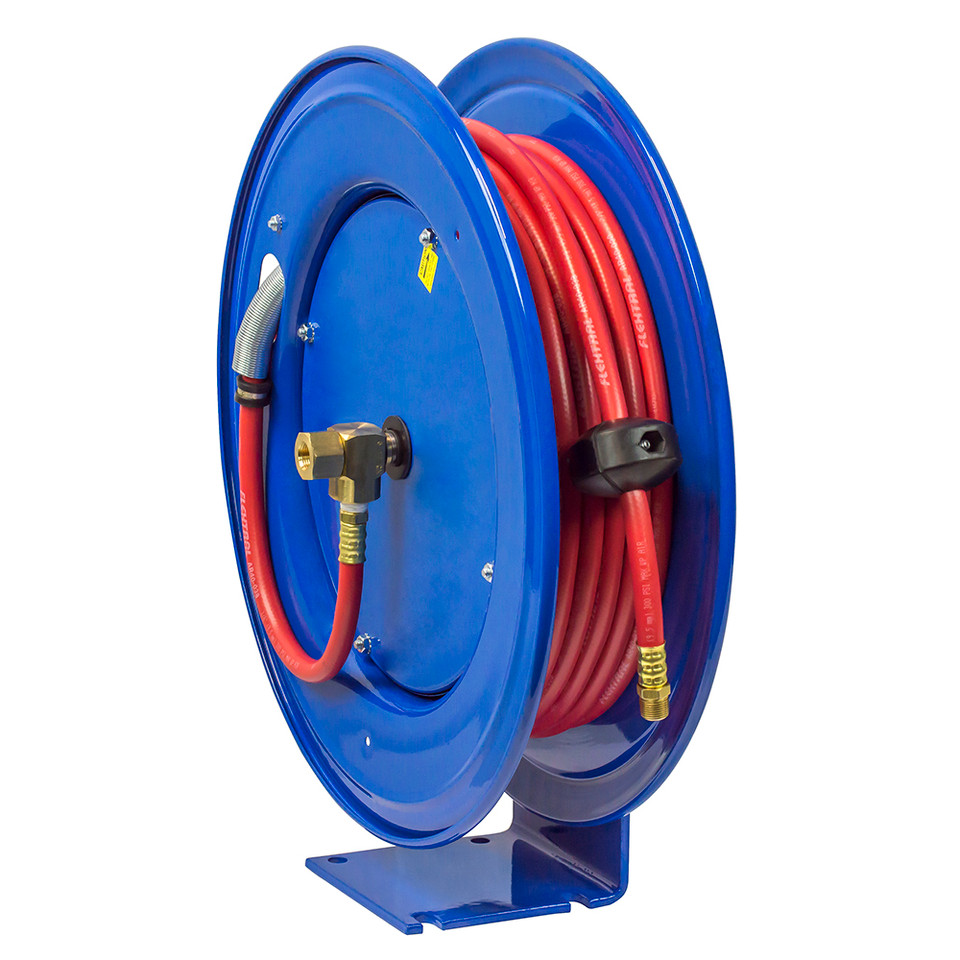

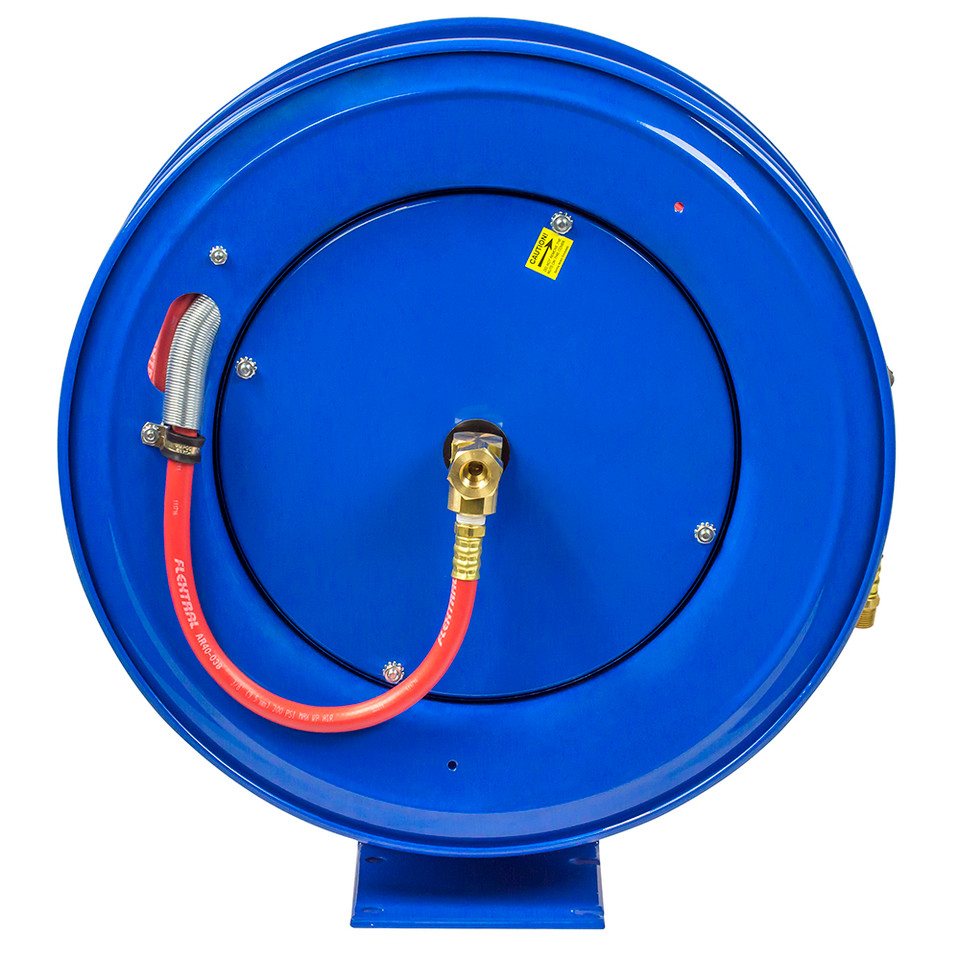

• External fluid path with zinc plated steel 90° full-flow NPT swivel supports high-pressure hose connection and seal maintenance.
• Nitrile seals support compatible grease and hydraulic oil applications when chemical and temperature compatibility are confirmed.
• Solid one-piece steel base and support post, 1" solid steel axle, rolled edges, ribbed discs, lubricated precision bearings, and CPC powder coat finish support everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where 50 ft of high-pressure grease or hydraulic oil hose helps reach around lifts, service lanes, and repair bays.
• Industrial maintenance and MRO departments that need enclosed 5000 PSI hose storage near machinery, benches, or lubrication points.
• Lubrication stations where retractable hose access helps keep grease delivery lines organized between service tasks.
• Manufacturing and production facilities using cabinet-mounted reel banks for controlled point-of-use fluid delivery.
• Equipment maintenance areas where a longer 1/4" high-pressure hose reel supports hydraulic oil service within the reels rated limits.

FAQs:

• Q: Does the Coxreels E-HP-150 include hose?
  A: Yes. The E-HP-150 is supplied with 1/4" I.D. x 50 ft high-pressure hose. Coxreels uses related HPL model designations for less-hose versions.
• Q: What is this high-pressure reel used for?
  A: This model is used for compatible grease and hydraulic oil service within its 5000 PSI pressure rating. Always confirm fluid type, system pressure, temperature, hose compatibility, seal compatibility, and fitting requirements before installation.
• Q: How is the E-HP-150 different from the E-HP-130?
  A: Both models use 1/4" I.D. hose and are rated to 5000 PSI. The E-HP-150 provides 50 ft of hose for longer reach, while the E-HP-130 uses a shorter 30 ft hose length for closer point-of-use mounting.
• Q: Can this reel be used for shop air or water?
  A: This high-pressure HP configuration is intended for grease and hydraulic oil service. For air or water service, select a compatible Coxreels low-pressure or medium-pressure model with the correct hose, seals, and pressure rating.
• Q: When should I choose a 50 ft hose reel?
  A: Choose a 50 ft reel when the mounting location needs to cover larger service bays, equipment areas, or multiple nearby lubrication points. If the reel is mounted directly beside the job, a 30 ft model may keep the installation more compact.
