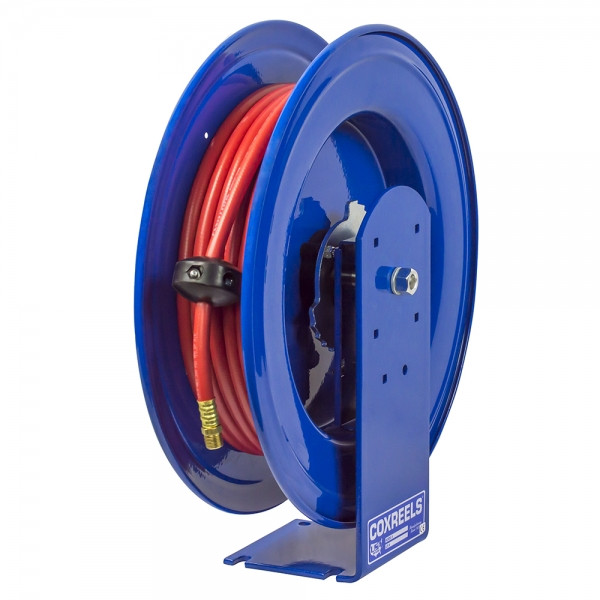

Coxreels E-MP-330 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 3/8" Hose Diameter | 30' Hose Length | 3000 Max PSI

Built for medium-pressure hose access in enclosed cabinet installations, the Coxreels E-MP-330 is a spring rewind hose reel from the E Series. This model is configured with 3/8" I.D. hose, a 30 ft hose length, and a 3000 PSI maximum pressure rating, making it suitable for compatible air, water, and oil service where a higher pressure rating is required than standard low-pressure shop reels can provide.

The E Series cabinet format is built for organized, expandable reel bank installations in service departments, maintenance areas, and production workstations. Its enclosed cabinet helps create a cleaner finished appearance while keeping the reel assembly more contained than an open-frame reel. The spring rewind system retracts the hose after use, and the multi-position lock ratchet holds the hose at the selected working length during operation.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-MP-330 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 30 ft | Max Pressure: 3000 PSI | Service: Air, Water, Oil | Swivel: Solid Brass 90° Full-Flow NPT | Swivel Seals: Nitrile | Max Temperature: 250°F | Overall Dimensions: 6.13" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 47 lbs

Features:

• Enclosed cabinet design supports clean single-reel mounting or organized multiple-reel bank installations.
• 3000 PSI medium-pressure rating supports compatible air, water, and oil service where the selected fluid and system requirements match the reel.
• Spring rewind operation retracts hose after use, helping reduce loose hose around service bays, benches, and workstations.
• Multi-position lock ratchet mechanism lets the user secure the hose at the desired working length during operation.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports straightforward hose connection and seal service.
• Nitrile swivel seals are suited to many air, water, and oil applications when chemical compatibility is confirmed.
• Solid one-piece steel base and support post, 1" solid steel axle, and lubricated precision bearings support smooth reel rotation.
• Rolled edges, ribbed discs, and CPC powder coat finish help protect the reel body during everyday shop and maintenance use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service shops where medium-pressure oil, air, or water hose needs to be kept organized near the work area.
• Industrial MRO departments that require a compact enclosed reel for 3000 PSI service within the reels rated limits.
• Manufacturing plants and facilities using expandable cabinet reel banks for point-of-use fluid or air delivery.
• Equipment maintenance areas where 30 ft of 3/8" hose reach is enough to service machines, benches, and nearby work zones.
• Garage and workshop installations where a cabinet-style reel helps keep higher-pressure hose stored cleanly when not in use.

FAQs:

• Q: What is the difference between the E-MP-330 and low-pressure E Series reels?
  A: The E-MP-330 is a medium-pressure model rated to 3000 PSI. Low-pressure versions are typically rated much lower, so this model is used when the application requires a higher working pressure within Coxreels approved service range.
• Q: Does the Coxreels E-MP-330 include hose?
  A: Yes. This model is listed with 3/8" I.D. x 30 ft hose. Coxreels uses separate less-hose model designations when the reel is supplied without hose.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure configuration is listed for air, water, and oil service. Always verify the oil type, temperature, hose construction, seal compatibility, and pressure requirements before installation.
• Q: What does the lock ratchet do on this hose reel?
  A: The lock ratchet lets the user pull out the hose and hold it at selected lengths instead of keeping constant spring tension on the hose. A controlled pull releases the latch so the reel can retract the hose.
• Q: Is 30 ft enough reach for a service bay?
  A: A 30 ft hose length works well when the reel is mounted close to the point of use, such as near a bench, lift, lube station, or machine. For larger bays or longer pulls around equipment, confirm the distance from the mounting location to the farthest service point before ordering.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
