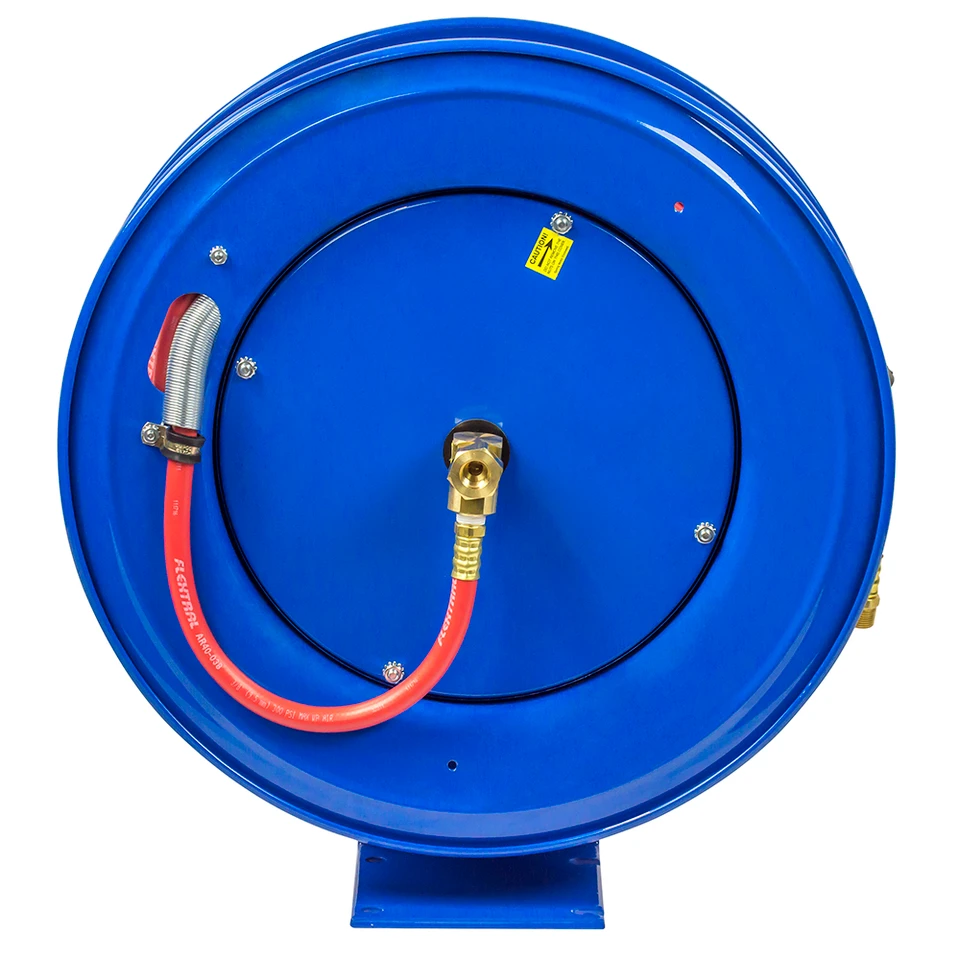

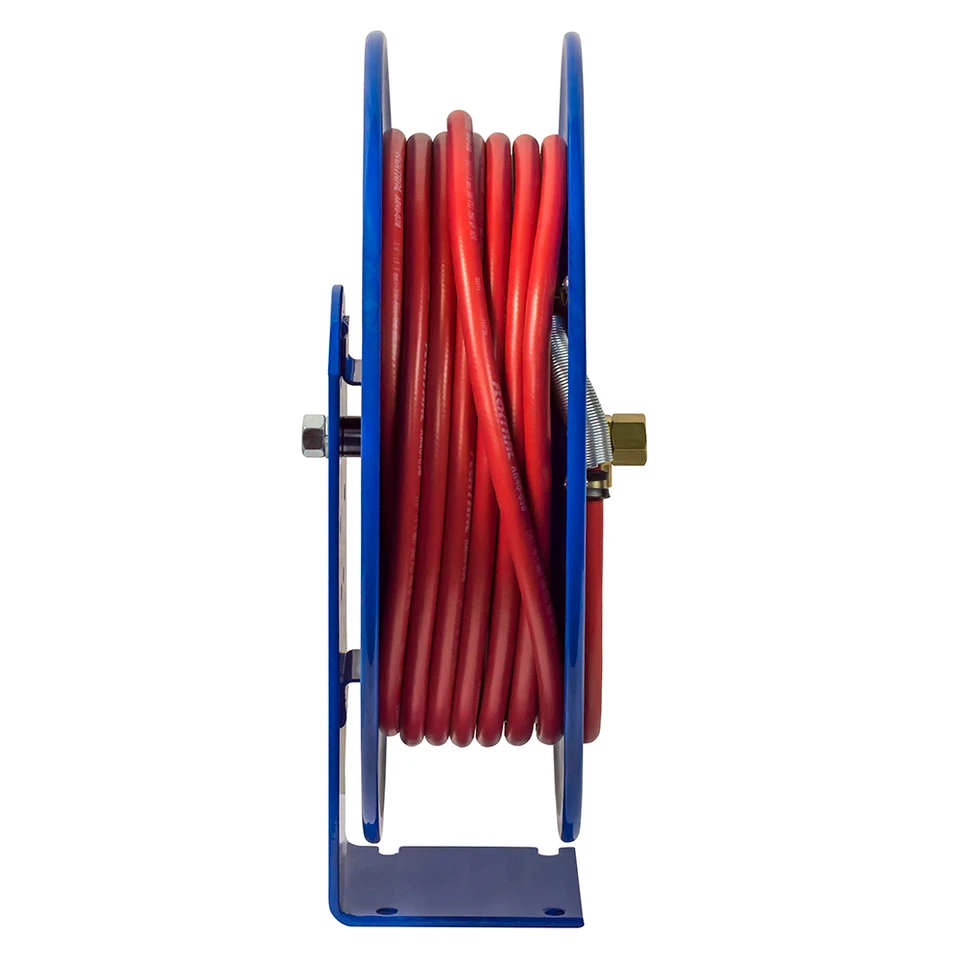

Coxreels E-MP-430 Spring Rewind Enclosed Cabinet Hose Reel | E Series | 1/2" Hose Diameter | 30' Hose Length | 2500 Max PSI

Built for medium-pressure hose management in enclosed cabinet installations, the Coxreels E-MP-430 is a spring rewind enclosed cabinet hose reel from the E Series. This model is supplied with 1/2" I.D. hose, a 30 ft hose length, and a 2500 PSI maximum pressure rating, giving maintenance shops, service bays, and production work areas a compact reel for compatible air, water, and oil applications where higher flow through a 1/2" hose is required.

The enclosed cabinet format helps create a cleaner, more organized installation than an open-frame reel, especially in visible shop areas or multi-reel service stations. Its spring rewind mechanism retracts the hose after use, while the multi-position lock ratchet lets the user hold the hose at the needed working length. The medium-pressure hose is a standard one-wire braid hose that exceeds SAE R1 specifications, which helps support 2500 PSI service when the installed system, media, and fittings are compatible.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: E Series | Model: E-MP-430 | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 30 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Hose Type: Standard One-Wire Braid | Hose Specification: Exceeds SAE R1 | Max Temperature: 250°F | Reel Inlet: 1/2" FNPT | Hose Outlet: 1/2" MNPT | Overall Dimensions: 6.13" W x 18.25" H x 17.25" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 47 lbs

Features:

• Enclosed cabinet design supports clean single-reel installations or organized multiple-reel bank layouts in service and maintenance areas.
• Medium-pressure 2500 PSI rating supports compatible air, water, and oil service where the system pressure and media requirements match the reel.
• 1/2" I.D. hose supports greater flow than smaller 3/8" hose configurations when the supply line and fittings are sized accordingly.
• Spring rewind operation retracts hose after use, helping reduce loose hose around benches, lifts, equipment, and walkways.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Standard one-wire braid hose exceeds SAE R1 specifications for medium-pressure service.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports straightforward hose connection and seal maintenance.
• Solid one-piece steel base and support post, 1" solid steel axle, lubricated precision bearings, rolled edges, ribbed discs, and CPC powder coat finish support everyday shop use.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service areas where a 1/2" medium-pressure hose is needed for air, water, or oil service close to the work bay.
• Industrial maintenance and MRO departments that need compact 2500 PSI hose storage in an enclosed cabinet layout.
• Manufacturing workstations where retractable hose access helps keep point-of-use service lines organized and off the floor.
• Equipment maintenance zones where 30 ft of reach is enough for nearby machines, benches, lubrication points, or washdown-related tasks within rating.
• Garage and workshop installations where a cabinet-style reel provides cleaner hose storage than leaving medium-pressure hose coiled on the floor.

FAQs:

• Q: Does the Coxreels E-MP-430 include hose?
  A: Yes. The E-MP-430 is supplied with 1/2" I.D. x 30 ft medium-pressure hose. Coxreels uses the related E-MPL model designation for the less-hose version.
• Q: What is the difference between the E-MP-430 and E-MP-330?
  A: The E-MP-430 uses a 1/2" I.D. hose rated to 2500 PSI, while the E-MP-330 uses a 3/8" I.D. hose rated to 3000 PSI. Choose the 1/2" model when flow capacity is more important, and choose the 3/8" model when the application calls for the higher pressure rating.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure configuration is listed for air, water, and oil service. Always verify the oil type, temperature, pressure, hose construction, and seal compatibility before installation.
• Q: What does one-wire braid hose mean?
  A: One-wire braid hose uses a wire reinforcement layer to handle medium-pressure service. In this model, the hose exceeds SAE R1 specifications and is rated for the reels 2500 PSI maximum pressure.
• Q: Is a 30 ft hose length suitable for a service bay?
  A: A 30 ft hose length works well when the reel is mounted near the point of use, such as beside a lift, bench, machine, or lube station. For larger bays or longer pulls around equipment, confirm the distance from the mounting location to the farthest service point before ordering.
