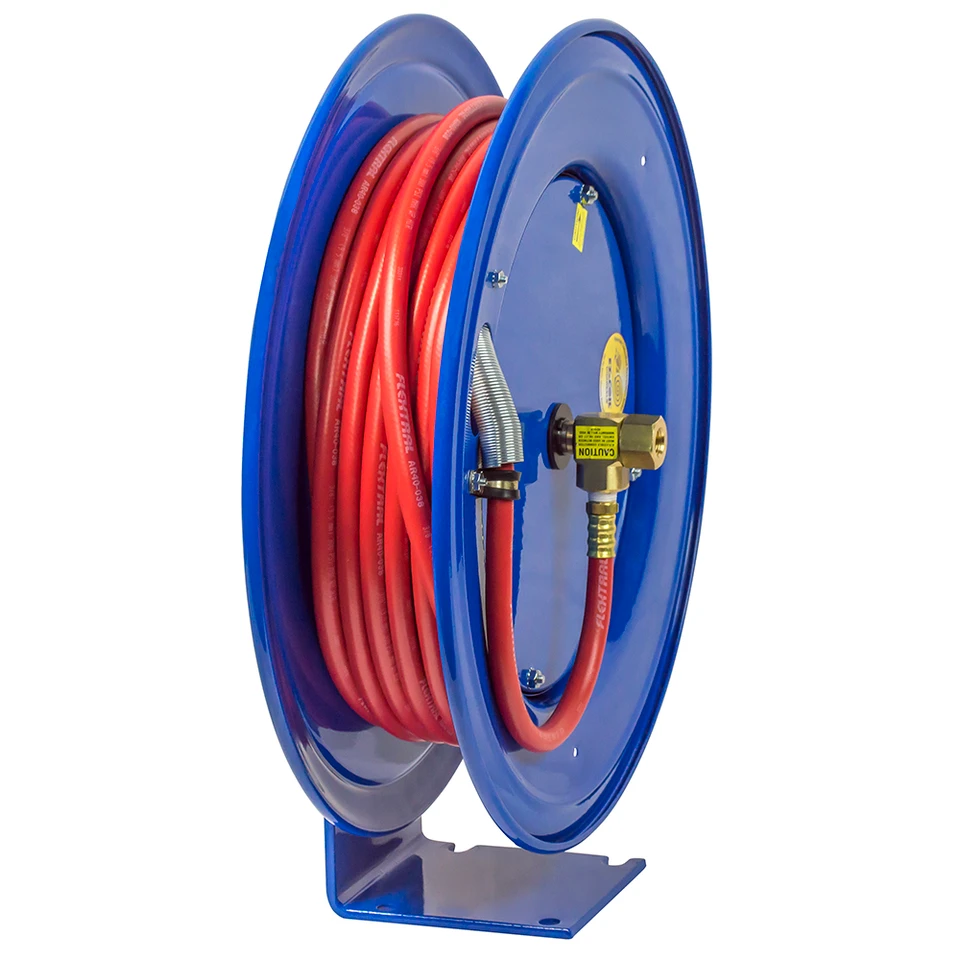

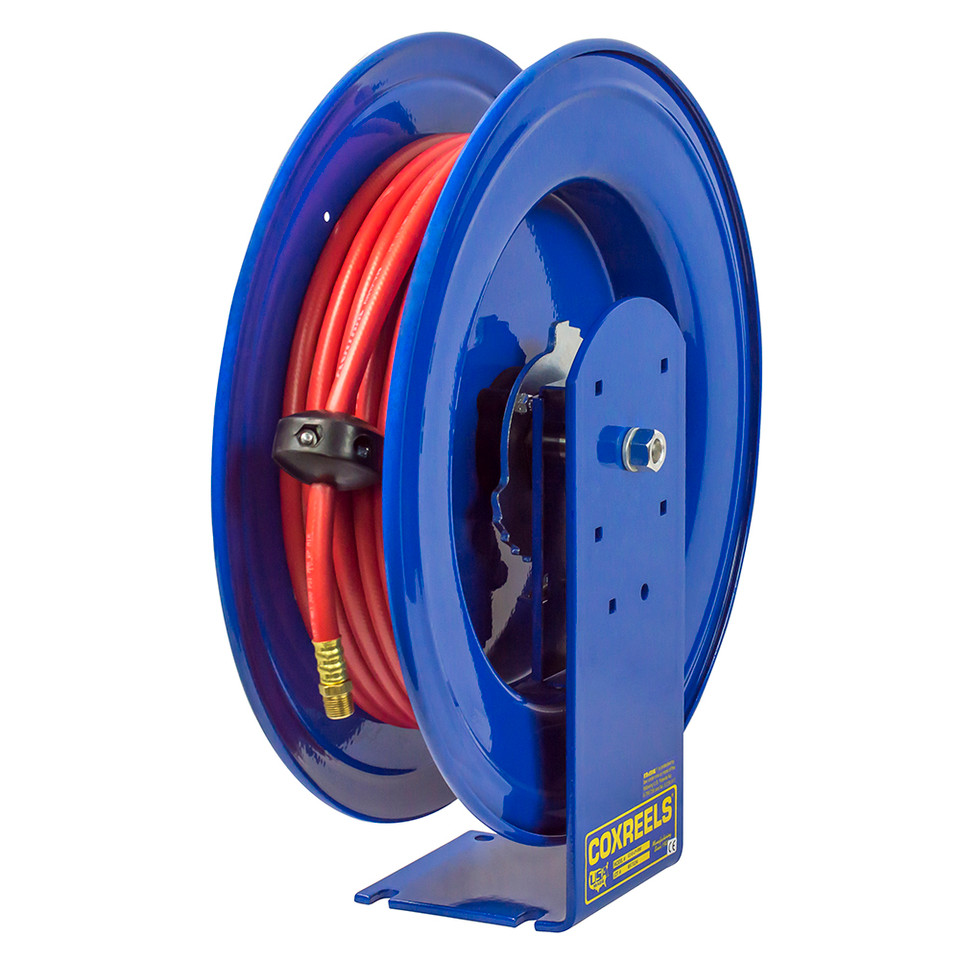

Coxreels EZ-E-LP-350 Spring Rewind Enclosed Cabinet Hose Reel | EZ-E Series | 3/8" Hose Diameter | 50' Hose Length | 300 Max PSI

Built for organized hose access in shops, service bays, and multi-reel workstations, the Coxreels EZ-E-LP-350 is a spring rewind enclosed cabinet hose reel from the EZ-E Series. This low-pressure reel is configured for 3/8" I.D. hose with a 50 ft hose length and 300 PSI maximum pressure rating, giving maintenance teams, mechanics, and production areas a longer-reach reel for compatible air, water, and oil service.

The EZ-E Series cabinet format is built for expandable, interlocking reel banks where a cleaner, more professional installation is preferred. Its enclosed cabinet helps shield the reel assembly while keeping hose delivery organized at the point of use. The spring rewind mechanism retracts the hose after use, while the multi-position lock ratchet allows the user to secure the hose at the desired working length.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: EZ-E Series | Model: EZ-E-LP-350 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Max Pressure: 300 PSI | Service: Air, Water, Oil | Overall Dimensions: 8.75" W x 21" H x 19.63" L | Mounting Pattern: 4" M x 5" N | Base: 5" X x 6" Y | Approx. Ship Weight: 46 lbs

Features:

• Expandable enclosed cabinet design supports clean, organized multiple-reel bank installations in shops and service areas.
• Spring rewind operation retracts hose after use, helping reduce loose hose on the floor and keeping the work area neater between jobs.
• Multi-position lock ratchet mechanism secures the hose at the desired working length for controlled pull-out and use.
• External fluid path with machined solid brass 90° full-flow NPT swivel inlet supports easier seal maintenance and hose installation.
• Enclosed, factory-tuned cartridge-style spring motor is matched to the reel for reliable retraction and serviceability.
• Non-corrosive stainless steel spring, pawl, and zinc-plated ratchet help support dependable rewind performance.
• Rolled edges and ribbed discs add strength and help protect the hose during everyday use.
• CPC powder coat finish helps resist chipping and rust in shop and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive service bays where a 50 ft hose reach helps mechanics cover lifts, benches, and nearby work zones from one reel location.
• Industrial maintenance and MRO stations that need retractable hose access for low-pressure air, water, or oil service.
• Manufacturing cells and assembly work areas where enclosed hose storage supports a cleaner point-of-use setup.
• Fleet service, utility, and equipment maintenance shops where organized hose delivery helps keep floors and service lanes clearer.
• Garage and workshop installations where automatic rewind and enclosed cabinet storage make daily air or water hose use easier to manage.

FAQs:

• Q: What is the benefit of the EZ-E enclosed cabinet design?
  A: The cabinet helps create a cleaner, more finished installation than an open-frame reel. It is especially useful when multiple reels are installed together in a bank system or when the reel is placed in a visible service area.
• Q: Can this reel be used for shop air?
  A: Yes, this model can be used for shop air when the system pressure, hose size, and fittings are compatible with the 3/8" hose I.D. and 300 PSI maximum pressure rating.
• Q: What does the multi-position lock ratchet do?
  A: The lock ratchet lets the user pull the hose out and hold it at selected lengths instead of keeping constant tension on the hose. A controlled pull releases the latch so the spring rewind can retract the hose.
• Q: Is the 50 ft hose length better than the 30 ft version?
  A: The 50 ft version is a better fit when the reel must reach across larger bays, around vehicles, or between nearby workstations. The 30 ft version may be preferable when the reel is mounted close to the point of use and less hose on the floor is desired.
• Q: What fluids can this low-pressure reel handle?
  A: This low-pressure configuration is commonly used for air, water, and oil service when all hose, fitting, seal, and pressure requirements match the application. Always verify media compatibility before using the reel with oils or other fluids.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
