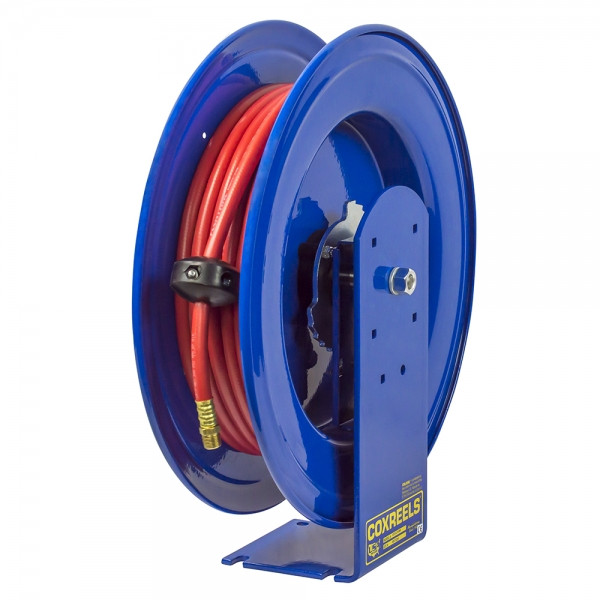

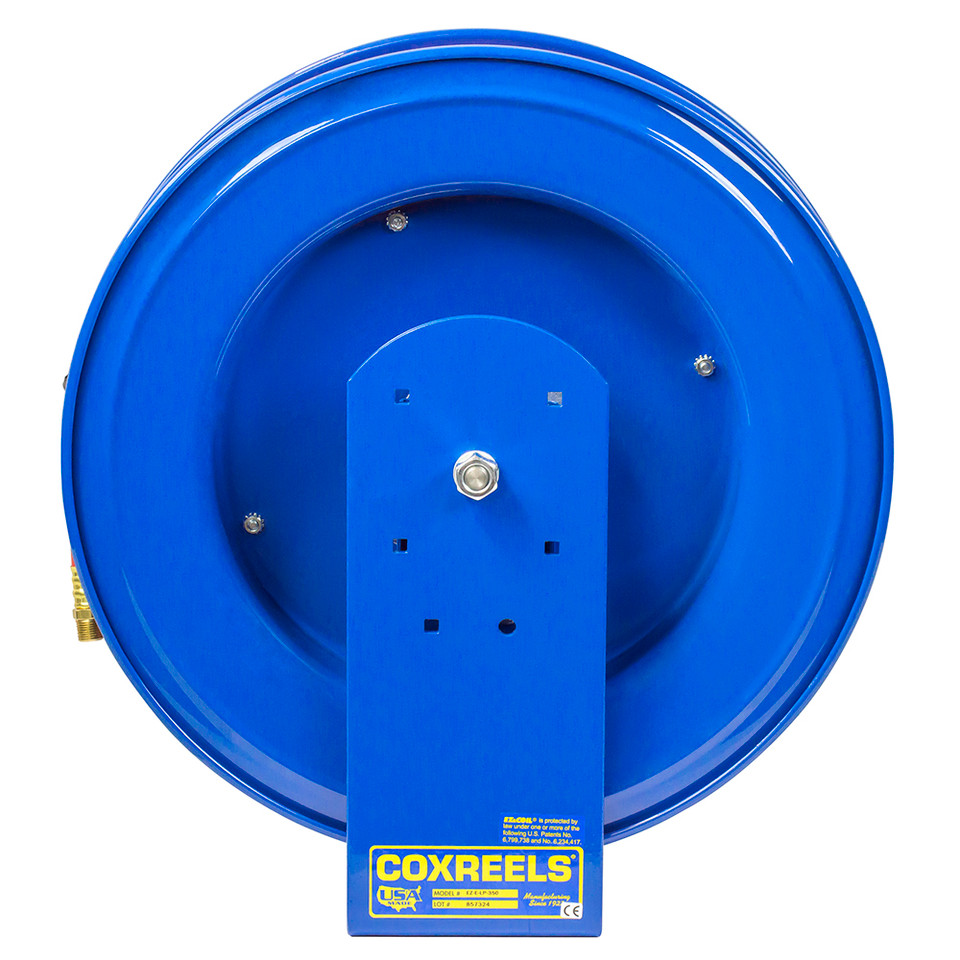

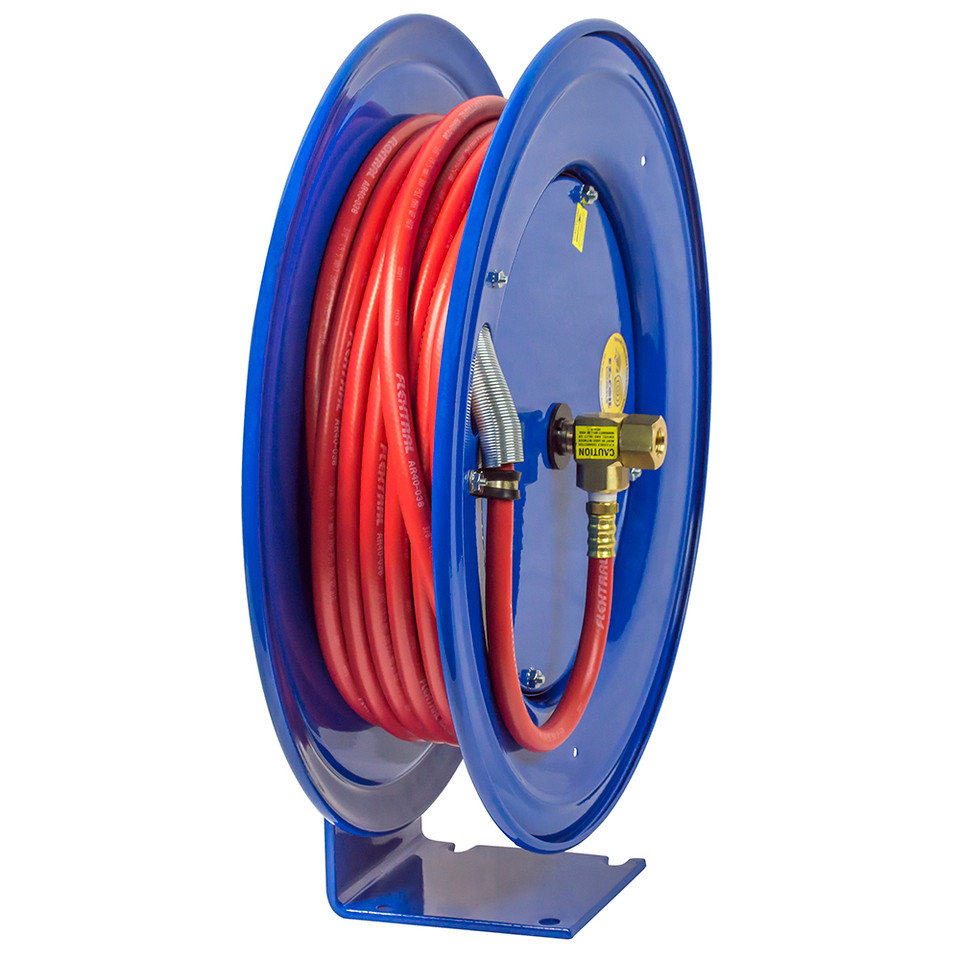

Coxreels EZ-E-MP-350 Spring Rewind Enclosed Cabinet Hose Reel | EZ-E Series | 3/8" Hose Diameter | 50' Hose Length | 3000 Max PSI

Built for longer-reach medium-pressure hose handling in clean cabinet-style installations, the Coxreels EZ-E-MP-350 is an EZ-Coil spring rewind enclosed cabinet hose reel from the EZ-E Series. This model is supplied with 3/8" I.D. hose, a 50 ft hose length, and a 3000 PSI maximum pressure rating, making it a practical choice for compatible air, water, and oil service where a compact hose diameter, higher pressure rating, and extended reach are all required.

The EZ-E Series combines Coxreels enclosed cabinet format with EZ-Coil controlled retraction, which slows hose return compared with conventional spring rewind reels. This controlled rewind helps reduce sudden hose snap-back after the latch is released, while the cabinet design gives service bays, lube stations, maintenance areas, and production workstations a cleaner installation than open-frame reel placement. The 50 ft hose length gives users more working range across bays, benches, and equipment areas without moving the reel.

Type: Spring Rewind Enclosed Cabinet Hose Reel | Series: EZ-E Series | Model: EZ-E-MP-350 | Hose I.D.: 3/8" | Hose Length: 50 ft | Max Pressure: 3000 PSI | Service: Air, Water, Oil | Hose Type: Medium-Pressure Hose | Rewind Type: EZ-Coil Controlled Spring Rewind | Configuration: Enclosed Cabinet Hose Reel

Features:

• EZ-Coil controlled retraction slows hose return for more controlled rewind operation compared with conventional spring driven reels.
• Enclosed cabinet design supports clean single-reel installations or organized multiple-reel bank systems in professional service areas.
• 3000 PSI medium-pressure rating supports compatible air, water, and oil service when system pressure, temperature, and media requirements match the reel.
• 3/8" I.D. hose configuration provides a compact hose size for medium-pressure service where maneuverability and pressure rating both matter.
• 50 ft hose length provides extended reach across larger bays, workstations, benches, and equipment maintenance areas.
• Spring rewind operation retracts hose after use, helping reduce loose hose around walkways, lifts, machines, and service lanes.
• Multi-position lock ratchet mechanism lets the user secure the hose at selected working lengths during operation.
• Enclosed reel construction helps present a cleaner finished appearance than open-frame reel installations in visible shop or customer-facing areas.

Made in USA:

2 Year Warranty

Applications:

• Fleet maintenance and vehicle service bays where 50 ft of 3/8" medium-pressure hose helps reach around vehicles, lifts, and service lanes.
• Industrial maintenance and MRO workstations that need enclosed 3000 PSI hose storage for compatible air, water, or oil service.
• Lubrication and fluid service areas where retractable hose access helps keep oil or service lines stored cleanly between jobs.
• Manufacturing and production facilities using enclosed reel banks to organize service lines at the point of use.
• Garage and workshop installations where controlled rewind, longer reach, and cabinet-style storage improve daily hose handling.

FAQs:

• Q: Does the Coxreels EZ-E-MP-350 include hose?
  A: Yes. The EZ-E-MP-350 is listed as a hose-included medium-pressure model with 3/8" I.D. x 50 ft hose. Coxreels uses related MPL model designations for less-hose versions.
• Q: What is the difference between EZ-E-MP-350 and EZ-E-MP-330?
  A: Both models are EZ-Coil medium-pressure enclosed cabinet reels with 3/8" hose and a 3000 PSI rating. The EZ-E-MP-350 provides 50 ft of hose for longer reach, while the EZ-E-MP-330 uses a shorter 30 ft hose length for closer point-of-use installations.
• Q: What does EZ-Coil controlled retraction do?
  A: EZ-Coil is Coxreels controlled rewind system that slows hose return after the latch is released. This helps make rewind more controlled and reduces the sudden snap-back associated with standard spring rewind reels.
• Q: Can this reel be used for oil service?
  A: Yes, this medium-pressure configuration is listed for air, water, and oil service. Always verify oil type, temperature, pressure, hose construction, seal compatibility, and fitting requirements before installation.
• Q: When should I choose the 50 ft version instead of the 30 ft reel?
  A: Choose the 50 ft version when the reel must reach across larger bays, around vehicles, or between nearby workstations. A 30 ft reel may be better when the mounting location is close to the job and less hose on the floor is preferred.
