Built for medium-pressure air, water, and oil applications where hose selection needs to remain flexible, the Coxreels MPL-N-450 Heavy Duty Spring Rewind Hose Reel provides capacity for up to 50 ft of 1/2" I.D. hose and carries a maximum working pressure of 2,500 PSI. Part of the MP Series, this less-hose configuration allows the buyer to install compatible hose separately while retaining automatic spring-powered retrieval. The 50-foot capacity provides useful reach around maintenance areas, manufacturing equipment, service facilities, and vehicle-mounted installations.
The MPL-N-450 incorporates Coxreels' Super Hub dual axle support system, which increases stability during operation, reduces vibration, and strengthens the structural integrity of the reel. Its external fluid path uses a machined solid brass 90-degree full-flow NPT swivel inlet with NITRILE seals, while a solid steel axle and lubricated precision bearings support smooth rotation. The multi-position guide arm accommodates wall, floor, vehicle, and overhead mounting positions, and the lock ratchet secures compatible hose at the desired working length before automatic rewind.

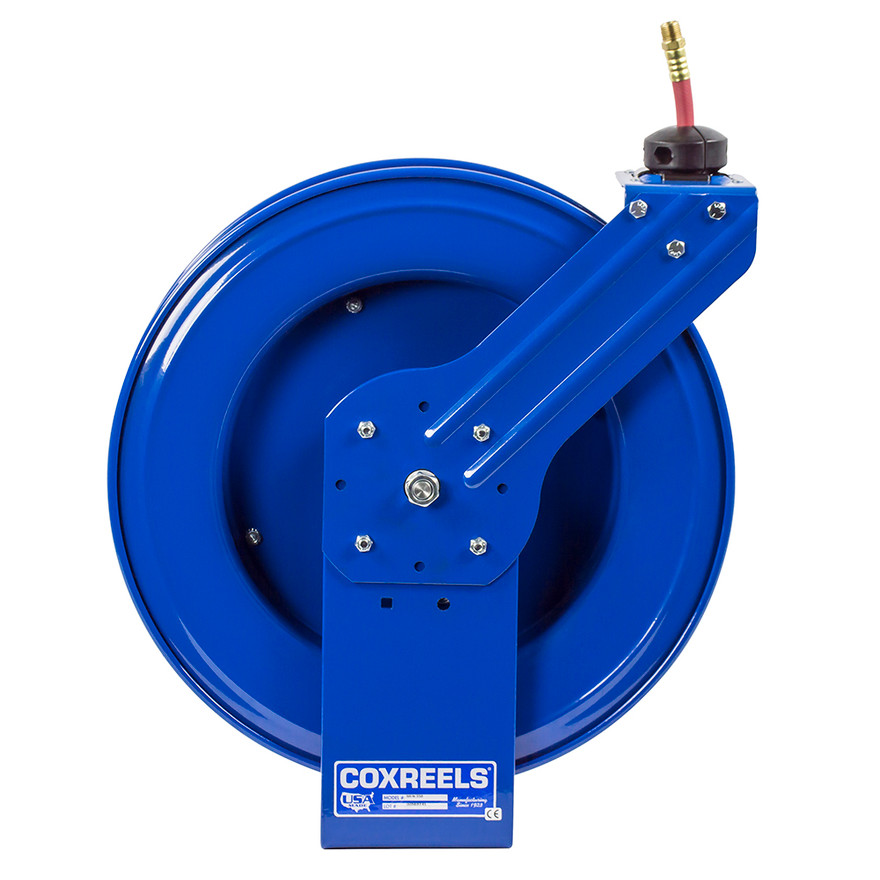

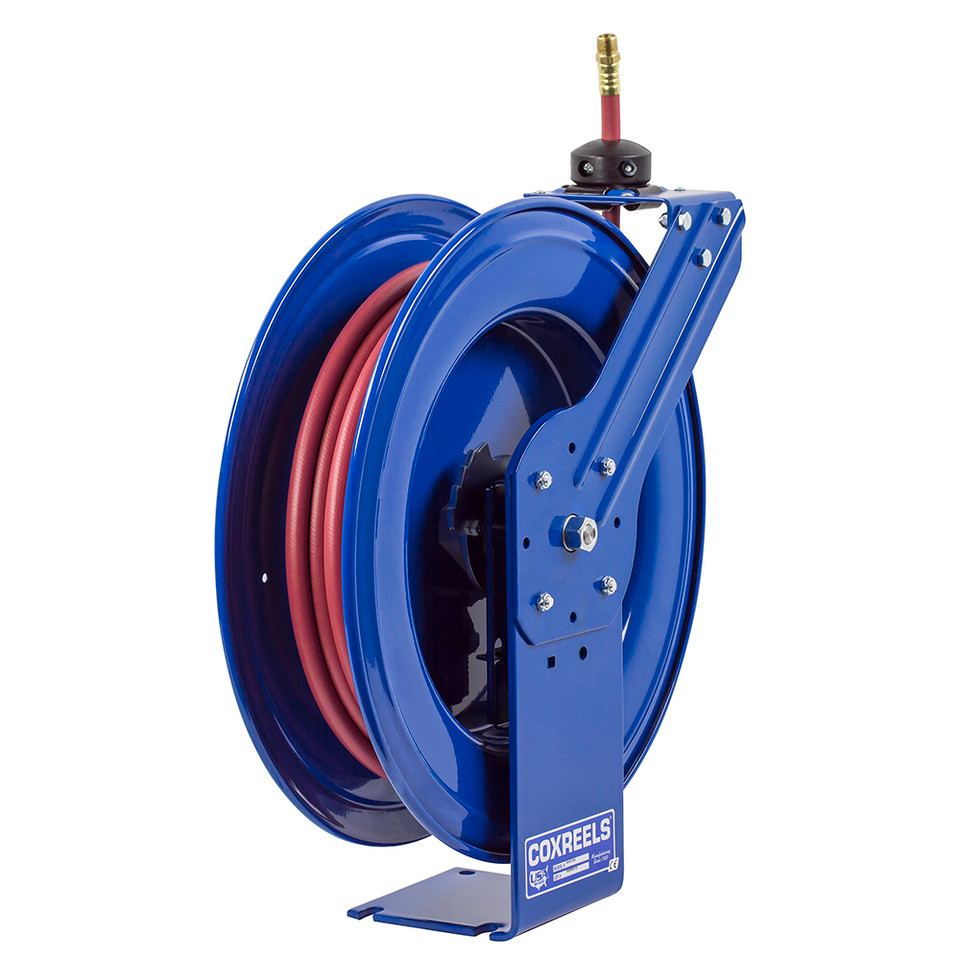

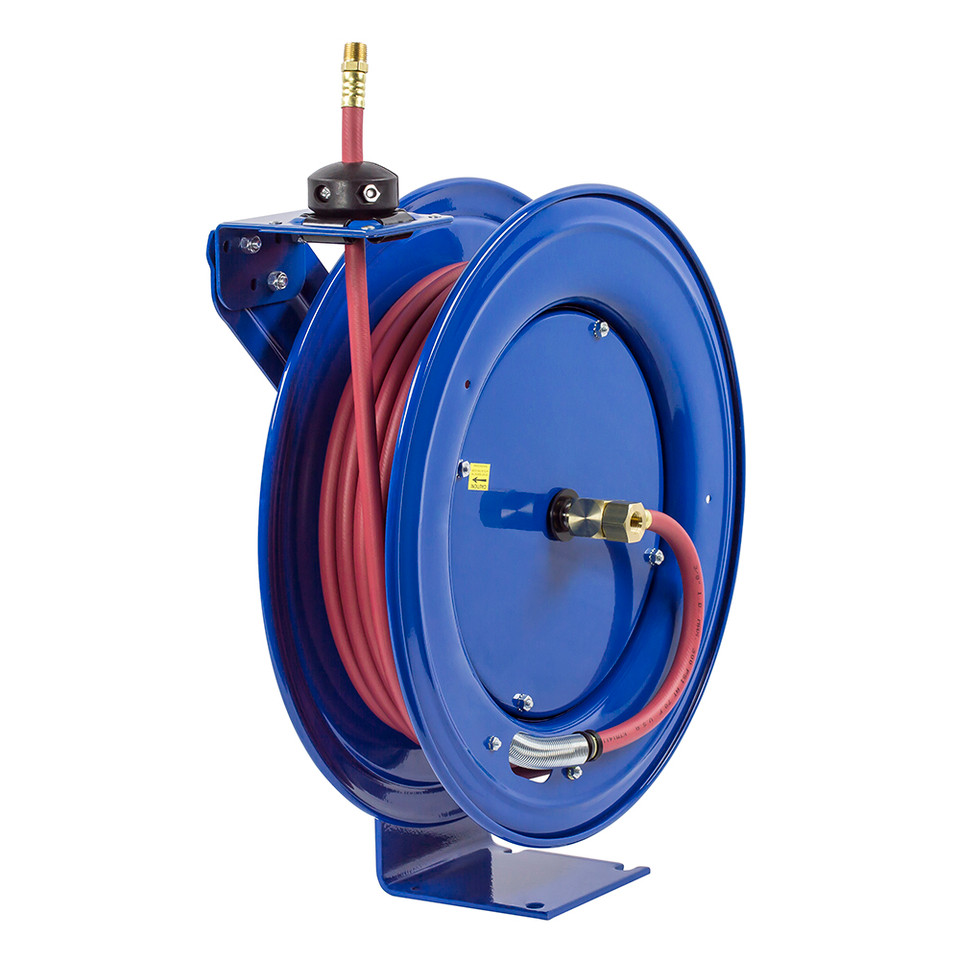

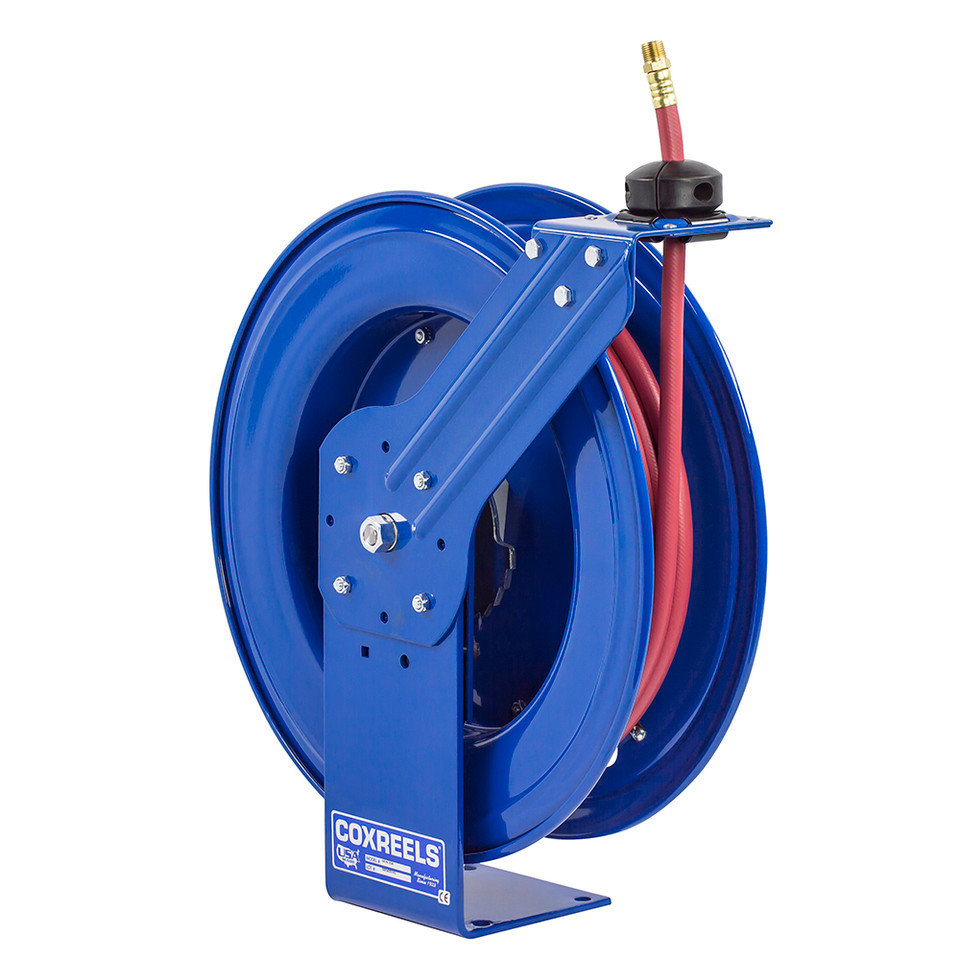

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Medium Pressure Spring Rewind Hose Reel | Series: MP Series | Model: MPL-N-450 | Hose I.D.: 1/2" | Hose O.D.: 13/16" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 2,500 PSI | Approx. Weight: 53 lbs
Features:
- Less-hose configuration provides capacity for up to 50 feet of compatible 1/2-inch I.D. hose.
- Super Hub dual axle support system increases stability during operation, reduces vibration, and strengthens structural integrity.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel inlet.
- NITRILE swivel seals support the reel's fluid-handling configuration.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions.
- Solid one-piece, heavy-gauge 1/4-inch steel base and support post provide maximum stability.
- 1-inch solid steel axle and lubricated precision bearings support smooth reel rotation.
- Enclosed, factory-tuned and matched cartridge-style spring motor provides automatic hose retraction.
- Non-corrosive stainless steel spring and pawl with a zinc-plated ratchet support the rewind mechanism.
- Multi-position lock ratchet mechanism secures compatible hose at the desired working length.
Made in USA:
Applications:
- Air, water, and oil applications using separately selected compatible medium-pressure hose.
- Maintenance, repair, and operations departments requiring automatic storage for hose around equipment and service areas.
- Manufacturing plants and facilities managing medium-pressure hose at fixed workstations.
- Service, mechanic, and utility vehicles requiring organized hose payout and automatic spring rewind.
- Applications operating within the reel's manufacturer-specified 2,500 PSI maximum working pressure.
FAQs:
- Q: Does the Coxreels MPL-N-450 include hose?
A: No. The MPL-N-450 is supplied as a less-hose reel. It provides capacity for up to 50 feet of compatible 1/2-inch I.D. hose with a maximum outside diameter of 13/16 inch. - Q: What services can the MPL-N-450 be used for?
A: Coxreels specifies less-hose models in this series for air, water, or oil applications. The separately selected hose and connected components must be compatible with the intended service and operating conditions. - Q: What is the maximum working pressure of the MPL-N-450?
A: The reel is rated for a maximum working pressure of 2,500 PSI. Any hose installed on the reel must also be appropriately rated for the intended application. - Q: Can the MPL-N-450 be mounted in different positions?
A: Yes. The guide arm can be adjusted for wall, floor, vehicle, and overhead mounting positions. - Q: What is the corresponding MP Series model supplied with hose?
A: The MP-N-450 is the corresponding hose-equipped configuration, while the MPL-N-450 is supplied without hose.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
