Built for high-pressure grease and hydraulic oil service, the Coxreels HPL-N-140 Heavy Duty Spring Rewind Hose Reel gives maintenance teams a reel-only platform for organizing customer-supplied high-pressure hose. This HP Series model is configured less hose and supports 1/4" I.D. hose with up to 40 ft hose capacity and a 5,000 PSI maximum pressure rating, making it useful when hose material, working temperature, end fittings, or assembly specifications need to be selected separately. The HPL-N-140 uses Coxreels’ Super Hub dual axle support system, which adds support at the center shaft to help stabilize the reel during payout and rewind. The spring rewind mechanism retracts the installed hose after use, while the multi-position lock ratchet lets the operator hold the hose at the working length needed for the job. Because this model is supplied without hose, it is a practical choice for hydraulic repair areas, lubrication stations, service trucks, and maintenance departments that already stock approved 1/4" high-pressure hose.

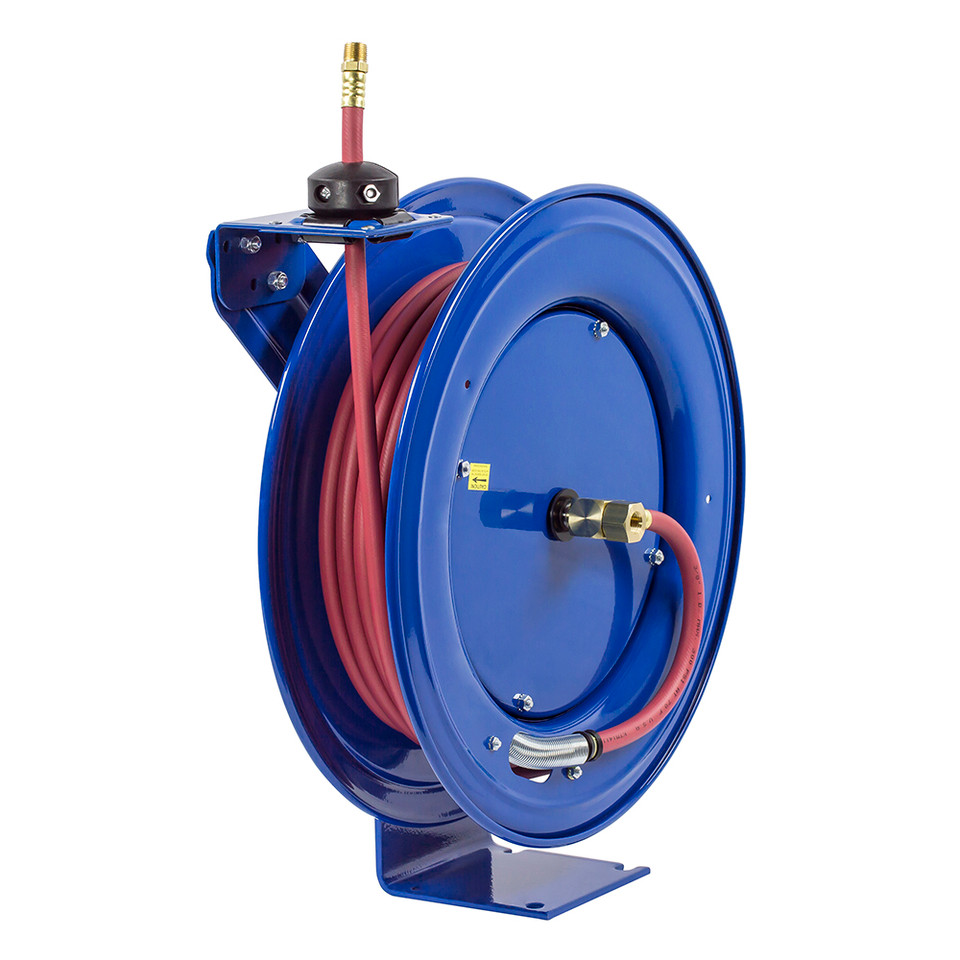

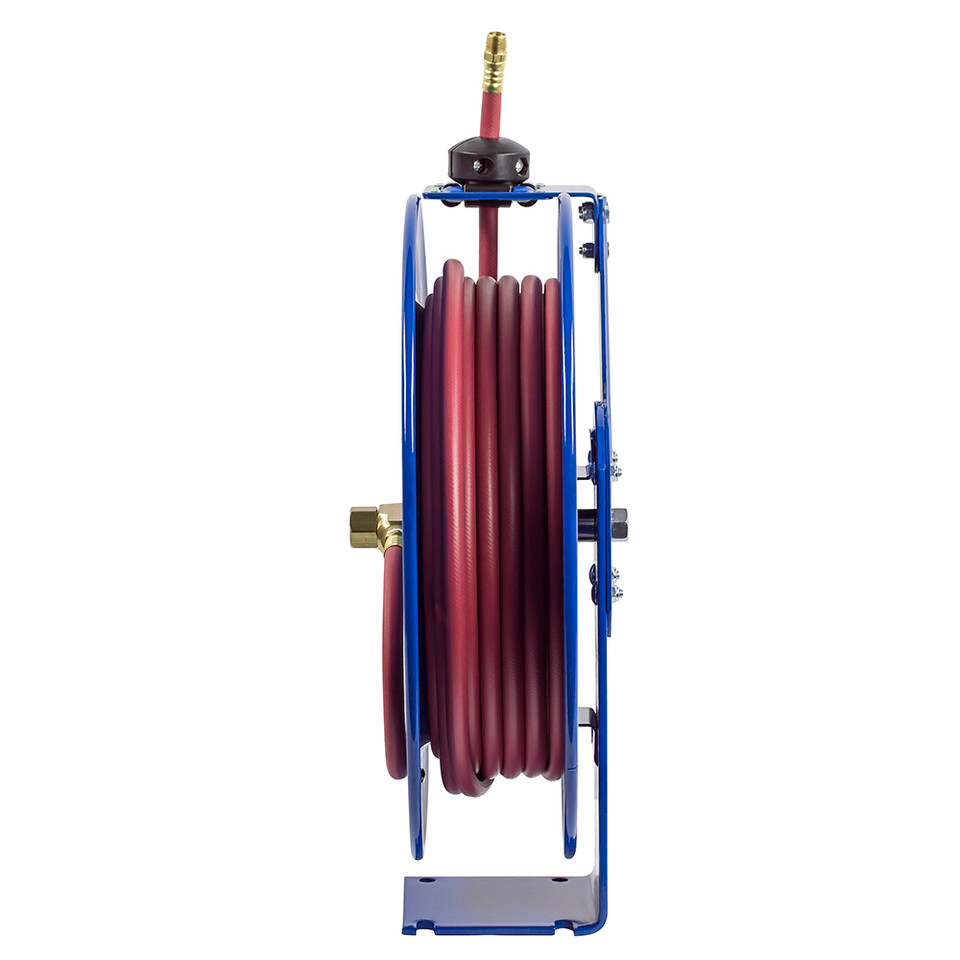

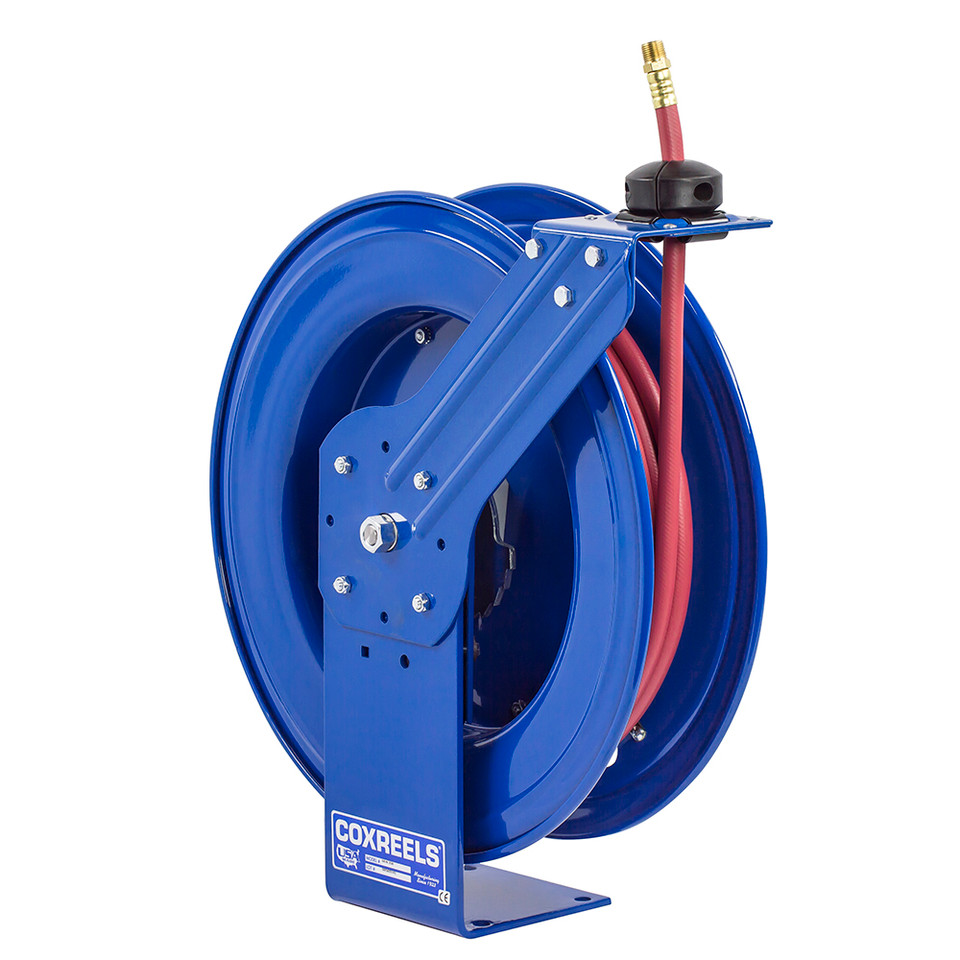

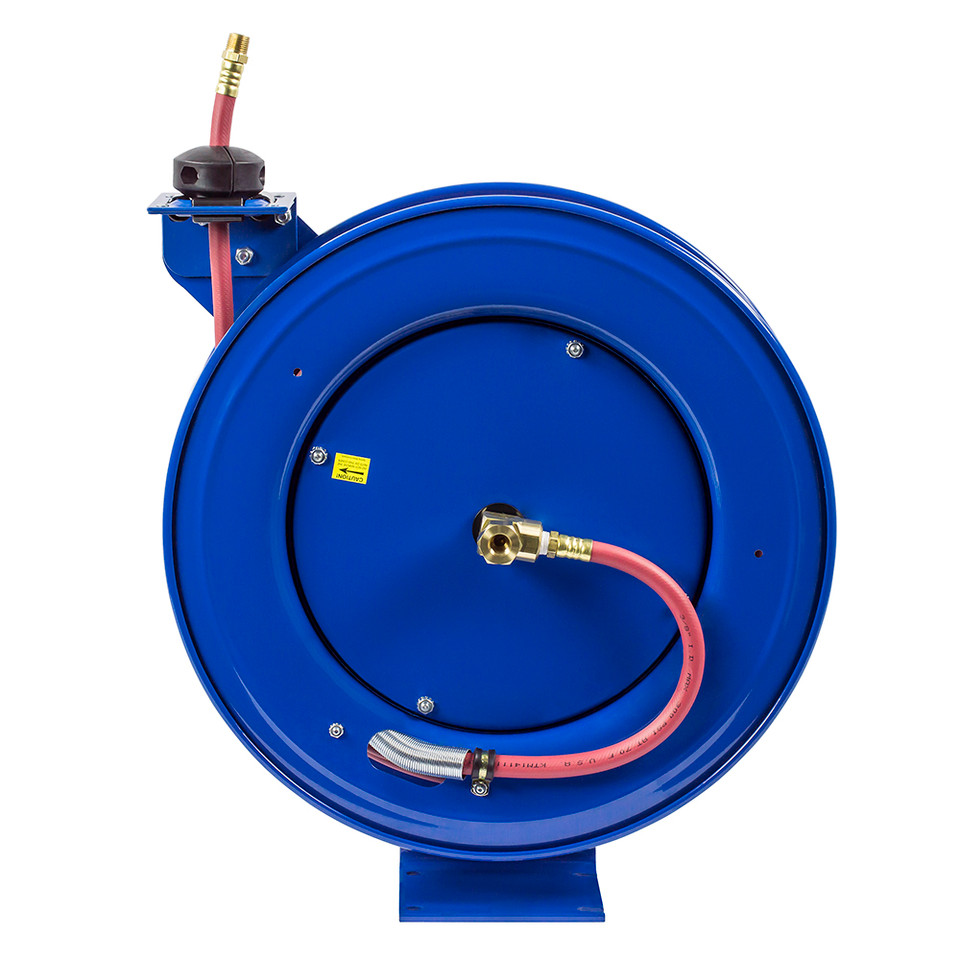

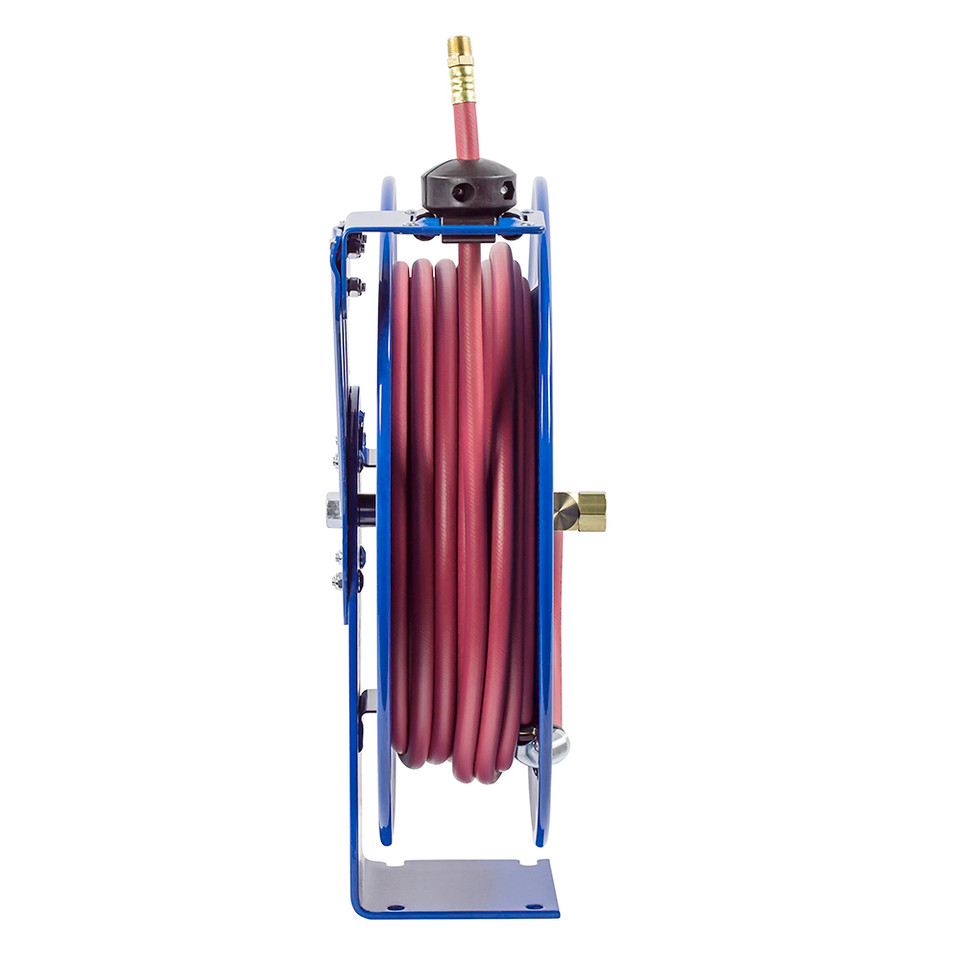

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Hose Reel | Series: HP Series | Configuration: Less Hose | Pressure Class: High Pressure | Hose I.D.: 1/4" | Maximum Hose O.D.: 9/16" | Hose Capacity: 40 ft | Max Pressure: 5,000 PSI | Service: Grease, Hydraulic Oil | Approx. Weight: 58 lbs | Overall Dimensions: 8-3/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Less-hose configuration allows the buyer to install compatible 1/4" high-pressure hose separately for the intended grease or hydraulic oil application.
- Spring rewind operation retracts the installed hose after use, helping reduce loose hose around service bays, lubrication points, and mobile equipment.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- External fluid path uses a machined 90° full-flow NPT swivel inlet, with zinc plated steel swivel construction on HP models.
- Nitrile swivel seals support the listed grease and hydraulic oil service applications.
- Guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to support fixed shop or mobile installations.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during hose payout and rewind.
Made in USA:
Applications:
- Hydraulic repair shops using 1/4" high-pressure hose for oil service on cylinders, pumps, lifts, jacks, and related equipment.
- Fleet and automotive maintenance centers managing grease or hydraulic oil lines near lifts, lubrication points, and service bays.
- Mobile mechanic, utility, and service trucks where hose selection is handled separately to match field service requirements.
- Manufacturing plants installing high-pressure hose reels near hydraulic power units, equipment service stations, or maintenance work cells.
- Industrial MRO teams that need compact, retractable storage for 40 ft of customer-supplied high-pressure hose.
FAQs:
- Q: What does “less hose” mean on the Coxreels HPL-N-140?
A: It means the reel is supplied without hose installed. The buyer must provide compatible hose separately, staying within the listed 1/4" I.D., 9/16" maximum O.D., 40 ft capacity, and 5,000 PSI pressure rating. - Q: What fluids is this reel intended for?
A: The HP Series high-pressure configuration is listed for grease and hydraulic oil applications. Confirm compatibility with the installed hose, swivel, seals, fittings, and fluid before placing the reel into service. - Q: What does the 5,000 PSI rating mean?
A: The 5,000 PSI rating is the maximum listed pressure for the reel configuration. The hose, pump, fittings, couplers, and accessories used with the reel should all be rated for the working pressure of the system. - Q: Can this reel be mounted on a wall, floor, or service truck?
A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, provided the reel is securely mounted to a suitable structure. - Q: How is HPL-N-140 different from HP-N-140?
A: HPL-N-140 is the less-hose version and does not include hose. HP-N-140 is the corresponding hose-included model in the same HP Series size configuration.
Available Variations and Specifications
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. | EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. | SIZE INDEX |
|---|---|---|---|---|---|---|---|---|---|
| LOW PRESSURE — Models with hose are for air water service with a maximum temperature 150°F. Models less hose can be used for air, water or oil. | |||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | SHL-N-160 | 45 | 1 | |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | SHL-N-360 | 46 | 2 | |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | SHL-N-435 | 43 | 2 | |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | SHL-N-440 | 45 | 2 | |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | SHL-N-535 | 47 | 5 | |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
| MEDIUM PRESSURE — Reels are furnished with standard one wire braid hose suitable for air, water or oil applications. Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. | |||||||||
| MP-N-340 | 3/8" | 11/16" | 40 | 3,000 | 63 | MPL-N-340 | 53 | 2 | |
| MP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | MPL-N-435 | 51 | 2 | |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | MPL-N-440 | 51 | 2 | |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | MPL-N-525 | 51 | 5 | |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | MPL-N-535 | 54 | 5 | |
| HIGH PRESSURE — Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F. | |||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | HPL-N-140 | 53 | 7 | |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | HPL-N-160 | 56 | 7 | |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | HPL-N-335 | 52 | 7 | |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | HPL-N-340 | 54 | 7 | |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
