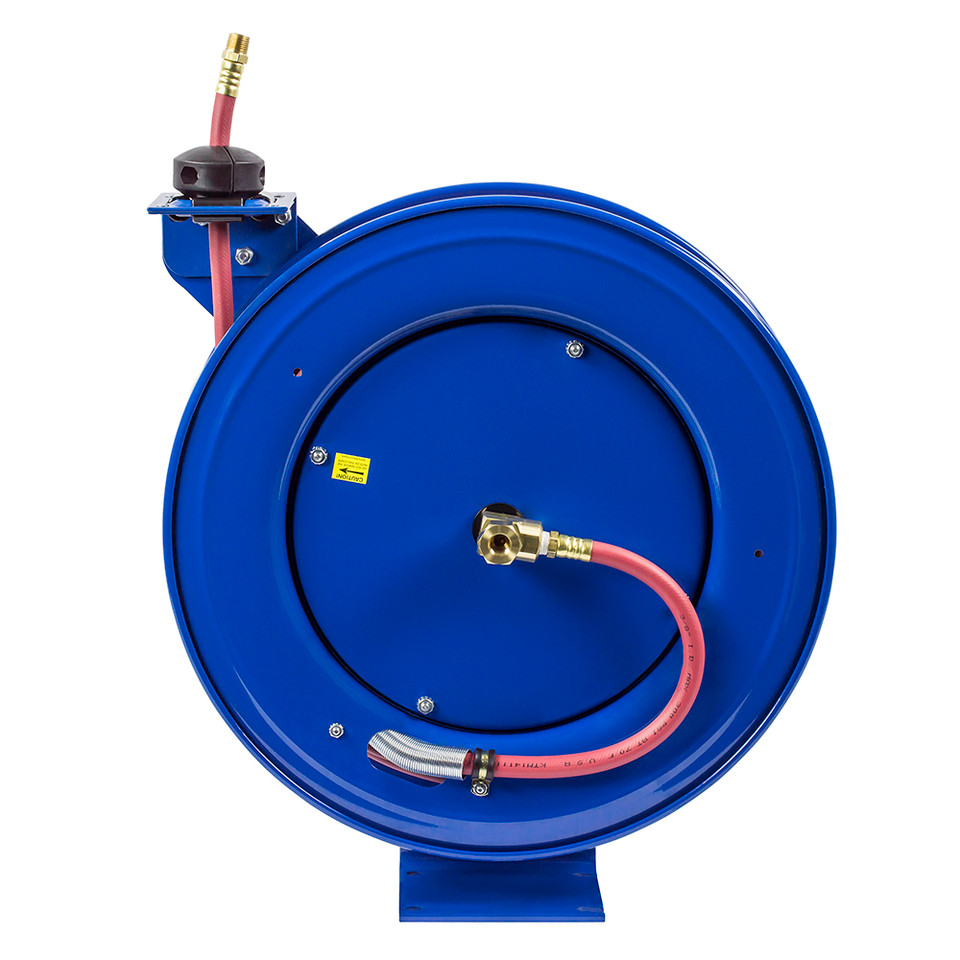

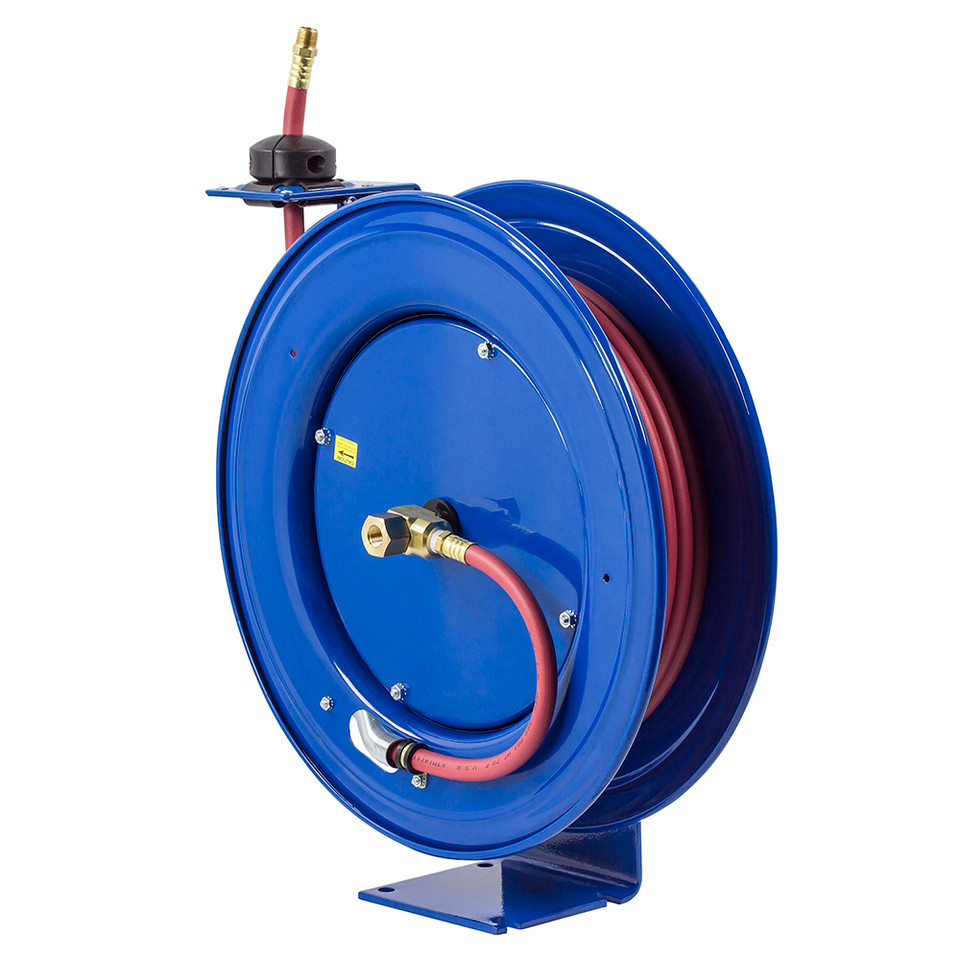

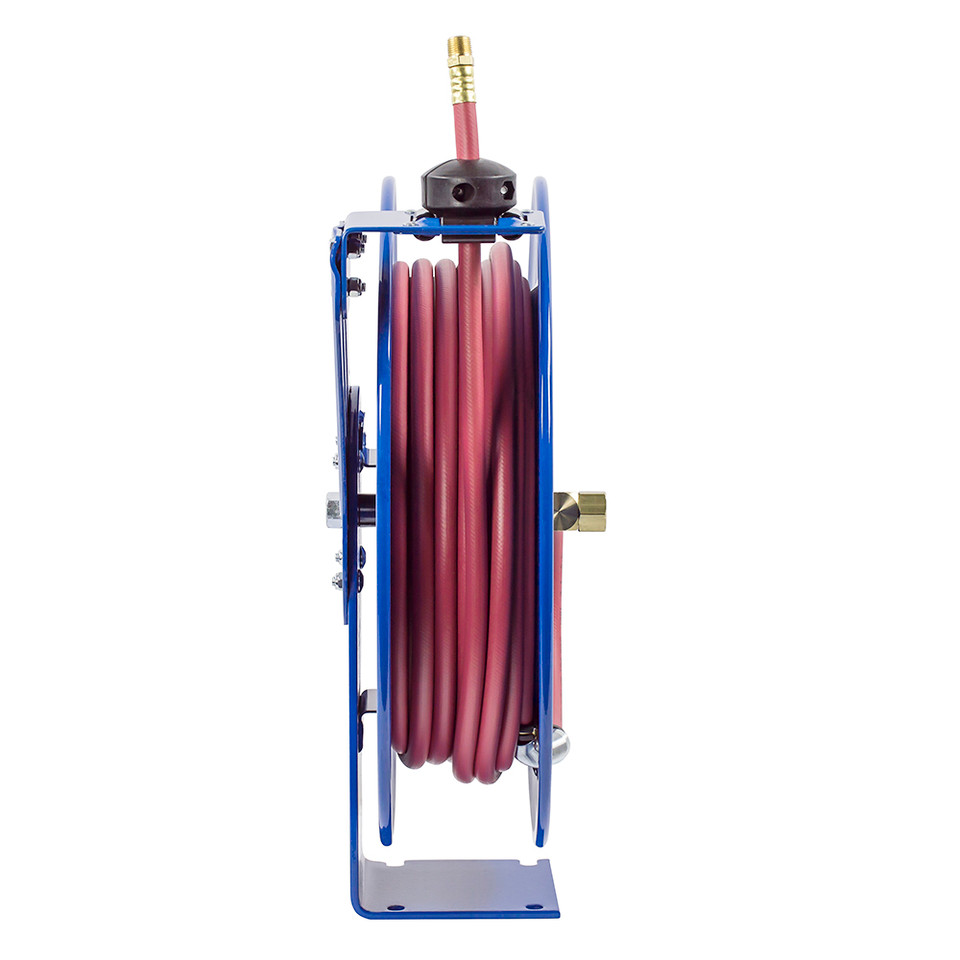

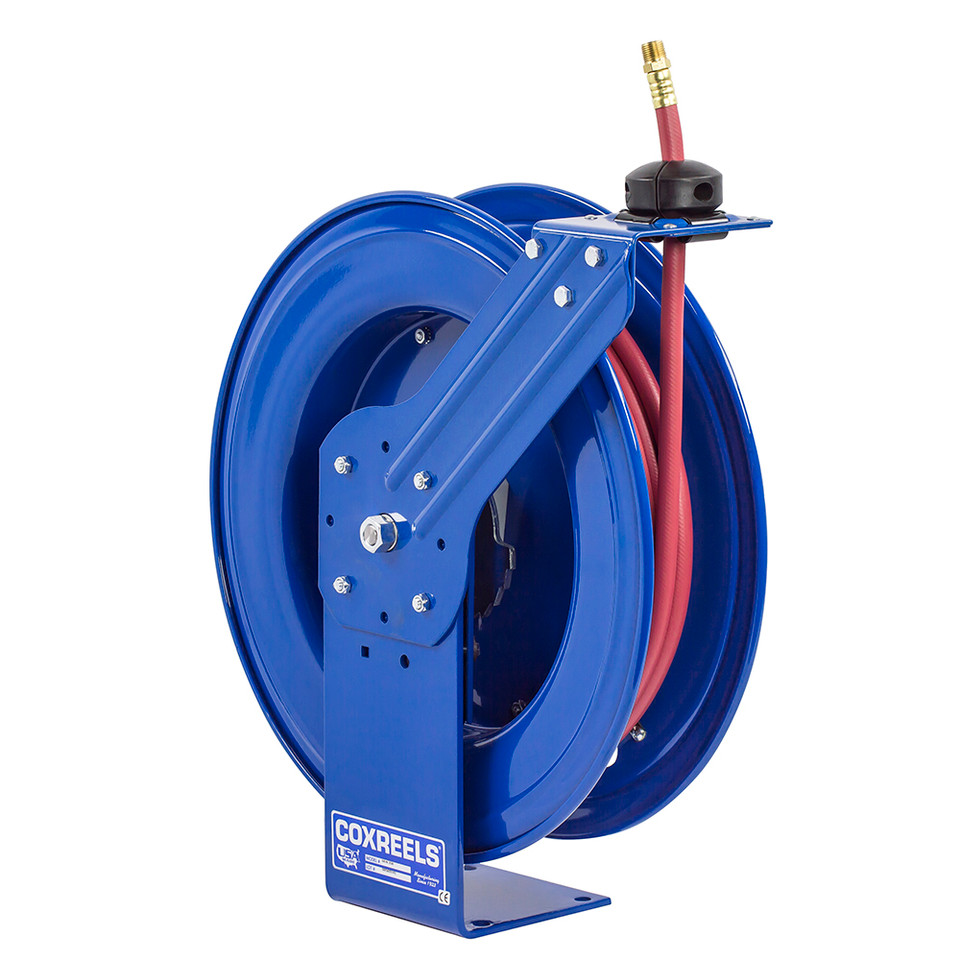

When high-pressure grease or hydraulic oil lines need to stay accessible without creating trip hazards, the Coxreels HP-N-335 Heavy Duty Spring Rewind Hose Reel provides controlled hose storage for service bays, lubrication points, field service vehicles, and plant maintenance areas. This HP Series reel includes a 3/8" I.D. x 35 ft hose rated to 4,000 PSI, giving technicians a larger high-pressure hose diameter than 1/4" configurations while keeping the hose length compact for localized service work. The HP-N-335 is part of Coxreels’ SH, MP & HP Series platform, using the Super Hub™ dual axle support system to improve reel stability during payout and rewind. The spring rewind mechanism retracts the hose after use, while the multi-position lock ratchet secures the hose at the desired working length. For hydraulic repair areas, lubrication stations, and mobile service setups, this reel combines high-pressure hose capacity, steel construction, and flexible mounting options in a compact 35 ft configuration.
Type: Spring Rewind Hose Reel | Series: HP Series | Pressure Class: High Pressure | Hose Included: Yes | Hose I.D.: 3/8" | Hose O.D.: 11/16" | Hose Length: 35 ft | Max Pressure: 4,000 PSI | Max Temperature: 250°F | Service: Grease, Hydraulic Oil | Approx. Weight: 61 lbs | Overall Dimensions: 8-3/4" W x 21-1/4" H x 19-1/2" L | Base Dimensions: 6" x 6" | Mounting Pattern: 4" x 5"
Features:
- Spring rewind design automatically retracts the hose after use to help keep work areas clear and organized.
- Super Hub™ dual axle support system increases stability during operation, reduces vibration, and strengthens the reel structure.
- External fluid path uses a machined 90° full-flow NPT swivel inlet, with zinc plated steel swivel construction on HP models.
- Nitrile swivel seals support the listed grease and hydraulic oil service applications.
- Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation in shop or mobile layouts.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting foundation.
- 1" solid steel axle and lubricated precision bearings support smooth drum rotation during hose payout and rewind.
- Non-corrosive stainless steel spring, pawl, and zinc plated ratchet support dependable reel operation in service environments.
Made in USA:
Applications:
- Hydraulic service and repair areas using 3/8" hose for controlled high-pressure oil handling.
- Fleet and automotive maintenance shops managing grease or hydraulic oil lines near lifts, benches, and service bays.
- Mobile mechanic, service, and utility vehicles that need compact high-pressure hose storage for field repairs.
- Manufacturing plants and facilities placing retractable hose reels at lubrication points or hydraulic equipment stations.
- Industrial MRO teams servicing presses, cylinders, jacks, lifts, pumps, and other fluid power components.
FAQs:
- Q: Does the Coxreels HP-N-335 come with hose installed?
A: Yes. The HP-N-335 is the hose-included version and is supplied with a 3/8" I.D. x 35 ft high-pressure hose. The corresponding less-hose model is HPL-N-335. - Q: What media is this reel intended to handle?
A: The HP Series high-pressure configuration is listed for grease and hydraulic oil applications. Confirm fluid compatibility with the hose, seals, swivel, and system components before using it with any other media. - Q: What does the 4,000 PSI rating mean for installation?
A: The reel is rated for a maximum pressure of 4,000 PSI. The pump, hose, fittings, couplers, and accessories used with the reel should all be rated for the working pressure of the system. - Q: Can the HP-N-335 be mounted on a wall or service truck?
A: Yes. The guide arm adjusts for wall, floor, vehicle, and overhead mounting positions, so the reel can be installed in fixed shop locations or on mobile service equipment when properly mounted. - Q: Is this an EZ-Coil controlled rewind reel?
A: No. The HP-N-335 is a standard spring rewind model. Coxreels identifies EZ-Coil controlled rewind models with an “EZ-” prefix.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Heavy Duty Spring Rewind Hose Reel
- Series
- HP Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 11/16
- Hose Length (ft.)
- 35
- Hose Included
- Yes
- Maximum Working Pressure (PSI)
- 4000
