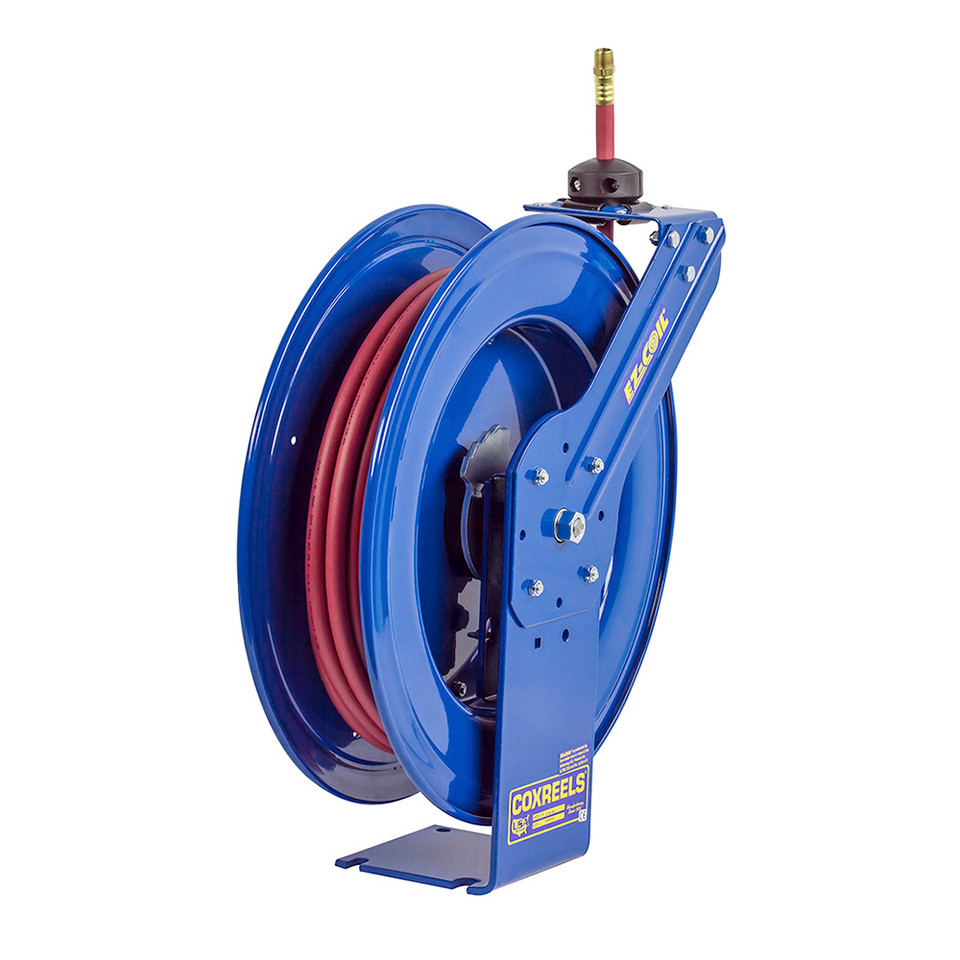

Built for air and water hose management where a slower, more controlled rewind is preferred, the Coxreels EZ-SH-350 Super Hub Spring Rewind Hose Reel combines 50 ft of 3/8" I.D. hose with a 300 PSI maximum working pressure. Part of the EZ-SH Series, this model incorporates Coxreels' patented EZ-Coil safety system, which retracts the hose up to 80% slower than conventional spring rewind reels. This controlled return helps manage hose retrieval around maintenance areas, service bays, manufacturing facilities, and mobile equipment while the spring-driven mechanism automatically stores the hose after use.
The EZ-SH-350 also incorporates Coxreels' Super Hub dual axle support system, which increases reel stability, reduces vibration, and strengthens structural integrity. Its single-pedestal construction uses a solid one-piece, heavy-gauge steel base and support post, while a multi-position guide arm accommodates wall, floor, vehicle, and overhead mounting arrangements. An external fluid path with a machined solid brass 90-degree full-flow NPT swivel supports efficient flow through the reel, and the multi-position lock ratchet allows the hose to remain extended at the desired working length.
Type: Super Hub Spring Rewind Hose Reel | Series: EZ-SH Series | Model: EZ-SH-350 | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 300 PSI | Ship Weight: 50 lbs
Features:
- Patented EZ-Coil safety system retracts the hose up to 80% slower than conventional reels for a more controlled return.
- Super Hub dual axle support system increases reel stability, reduces vibration, and strengthens structural integrity.
- Spring-driven rewind automatically retrieves and stores the hose after use.
- External fluid path incorporates a machined solid brass 90-degree full-flow NPT swivel.
- Multi-position guide arm supports wall, floor, vehicle, and overhead mounting configurations.
- Solid one-piece, heavy-gauge steel base and support post provide a stable reel mounting structure.
- Solid steel axle and lubricated precision bearings support smooth reel rotation.
- Multi-position lock ratchet mechanism secures the hose at the desired working length.
- Rolled edges and ribbed discs provide added strength and safety.
- CPC powder coat process helps protect the steel reel components against chips and rust.
Made in USA:
Applications:
- Manufacturing and maintenance facilities managing compressed air or water hose around equipment and workstations.
- Automotive and fleet service areas using hose for pneumatic tools and general air service.
- Service and utility vehicles requiring automatic hose storage with a more controlled rewind speed.
- Repair shops and MRO departments where spring rewind helps keep hose organized between jobs.
- Air and water applications operating within the manufacturer's specified 300 PSI maximum pressure rating.
FAQs:
- Q: What does the EZ-Coil system do on the EZ-SH-350?
A: Coxreels' patented EZ-Coil system controls the spring rewind speed, retracting the hose up to 80% slower than conventional reels. This provides a slower and more controlled hose return. - Q: What is the difference between the EZ-SH-350 and a standard SH Series reel?
A: The EZ-SH-350 incorporates the EZ-Coil controlled rewind system in addition to the Super Hub support design. Standard SH Series models use conventional spring rewind without the EZ-Coil® slow-retraction feature. - Q: What does the Super Hub system do?
A: The Super Hub dual axle support system increases stability, reduces vibration, and strengthens the structural integrity of the reel during operation. - Q: Can the Coxreels EZ-SH-350 be mounted in different positions?
A: Yes. The multi-position guide arm supports wall, floor, vehicle, and overhead mounting arrangements, allowing the reel to be configured for different installation requirements. - Q: What services is the EZ-SH-350 intended to handle?
A: Coxreels specifies this low-pressure EZ-SH Series configuration for air and water service with a maximum working pressure of 300 PSI.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSUREModels with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| SH-N-160 | 1/4" | 1/2" | 60 | 300 | 50 | - | SHL-N-160 | 45 | 1 |
| SH-N-350 | 3/8" | 5/8" | 50 | 300 | 50 | EZ-SH-350 | SHL-N-350 | 44 | 2 |
| SH-N-360 | 3/8" | 5/8" | 60 | 300 | 53 | - | SHL-N-360 | 46 | 2 |
| SH-N-375 | 3/8" | 5/8" | 75 | 300 | 68 | EZ-SH-375 | SHL-N-375 | 59 | 3 |
| SH-N-3100 | 3/8" | 5/8" | 100 | 300 | 71 | EZ-SH-3100 | SHL-N-3100 | 60 | 3 |
| SH-N-435 | 1/2" | 3/4" | 35 | 300 | 49 | - | SHL-N-435 | 43 | 2 |
| SH-N-440 | 1/2" | 3/4" | 40 | 300 | 52 | - | SHL-N-440 | 45 | 2 |
| SH-N-450 | 1/2" | 3/4" | 50 | 300 | 54 | EZ-SH-450 | SHL-N-450 | 46 | 2 |
| SH-N-475 | 1/2" | 3/4" | 75 | 300 | 68 | EZ-SH-475 | SHL-N-475 | 57 | 4 |
| SH-N-4100 | 1/2" | 3/4" | 100 | 300 | 81 | EZ-SH-4100 | SHL-N-4100 | 66 | 4 |
| SH-N-525 | 3/4" | 1-1/16" | 25 | 300 | 52 | EZ-SH-525 | SHL-N-525 | 45 | 5 |
| SH-N-535 | 3/4" | 1-1/16" | 35 | 300 | 57 | - | SHL-N-535 | 47 | 5 |
| SH-N-550 | 3/4" | 1-1/16" | 50 | 300 | 69 | EZ-SH-550 | SHL-N-550 | 56 | 6 |
|
MEDIUM PRESSUREReels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| MP-N-340 | 3/8" | 1-1/16" | 40 | 3,000 | 63 | - | MPL-N-340 | 53 | 2 |
| MP-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 65 | EZ-MP-350 | MPL-N-350 | 53 | 2 |
| MP-N-435 | 1/2" | 13/16" | 35 | 2,500 | 61 | - | MPL-N-435 | 51 | 2 |
| MP-N-440 | 1/2" | 13/16" | 40 | 2,500 | 62 | - | MPL-N-440 | 51 | 2 |
| MP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 67 | EZ-MP-450 | MPL-N-450 | 53 | 7 |
| MP-N-525 | 3/4" | 1-1/16" | 25 | 1,500 | 61 | - | MPL-N-525 | 51 | 5 |
| MP-N-535 | 3/4" | 1-1/16" | 35 | 1,500 | 68 | - | MPL-N-535 | 54 | 5 |
|
HIGH PRESSUREReels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| HP-N-140 | 1/4" | 9/16" | 40 | 5,000 | 62 | - | HPL-N-140 | 53 | 7 |
| HP-N-150 | 1/4" | 9/16" | 50 | 5,000 | 64 | EZ-HP-150 | HPL-N-150 | 53 | 7 |
| HP-N-160 | 1/4" | 9/16" | 60 | 5,000 | 70 | - | HPL-N-160 | 56 | 7 |
| HP-N-335 | 3/8" | 11/16" | 35 | 4,000 | 61 | - | HPL-N-335 | 52 | 7 |
| HP-N-340 | 3/8" | 11/16" | 40 | 4,000 | 64 | - | HPL-N-340 | 54 | 7 |
| HP-N-350 | 3/8" | 11/16" | 50 | 4,000 | 65 | EZ-HP-350 | HPL-N-350 | 53 | 8 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Spring Rewind Hose Reel
- Series
- EZ-SH Series
- Hose Inside Diameter (in.)
- 3/8
- Hose Outside Diameter (in.)
- 5/8
- Hose Length (ft.)
- 50
- Maximum Working Pressure (PSI)
- 300
- Hose Included
- Yes
- Width (in.)
- 8.25
- Height (in.)
- 21.25
- Length (in.)
- 19.5
- Mounting Pattern (in.)
- 4M
- Mounting Pattern (in.)
- 5N
- Base (in.)
- 6X
- Base (in.)
- 6Y
