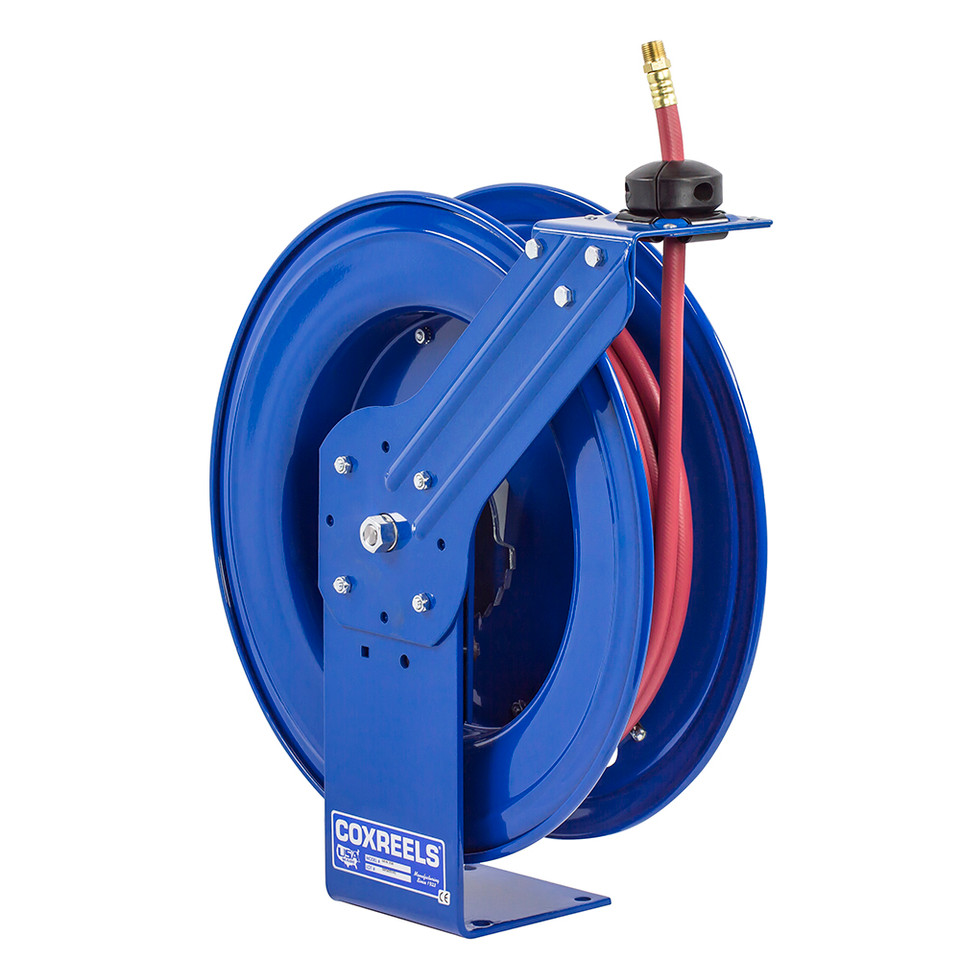

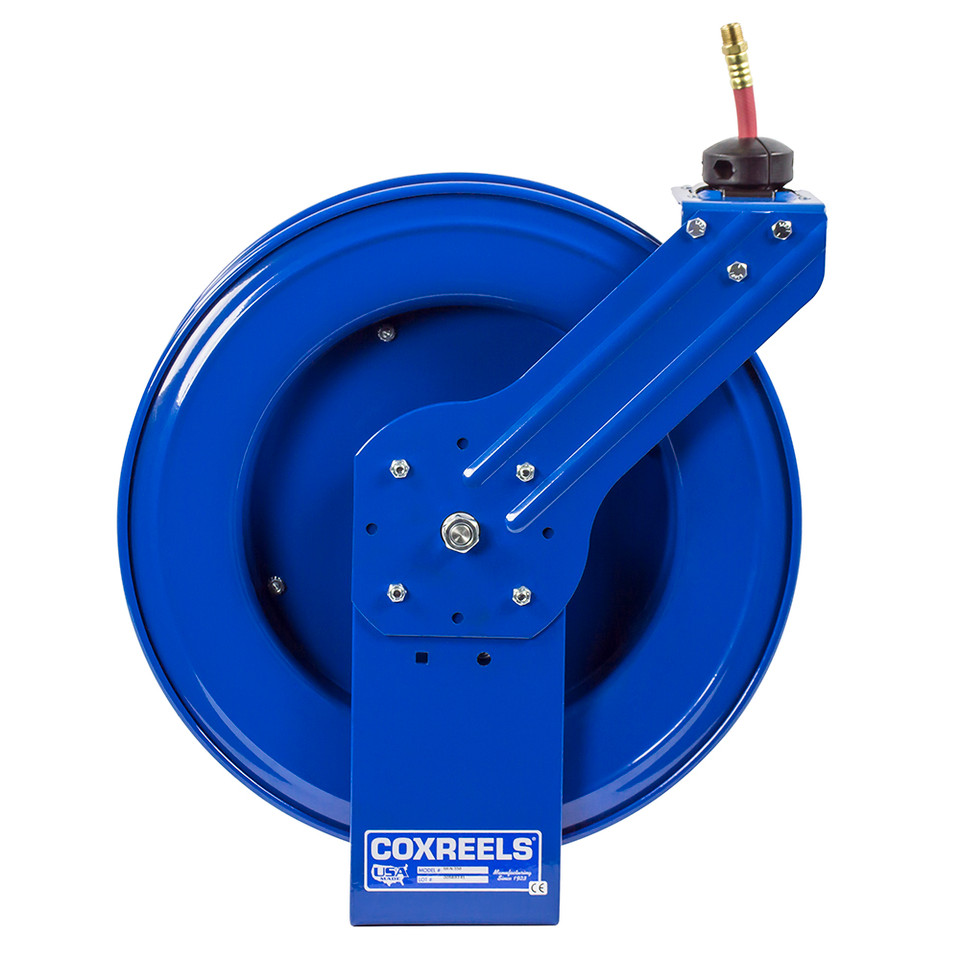

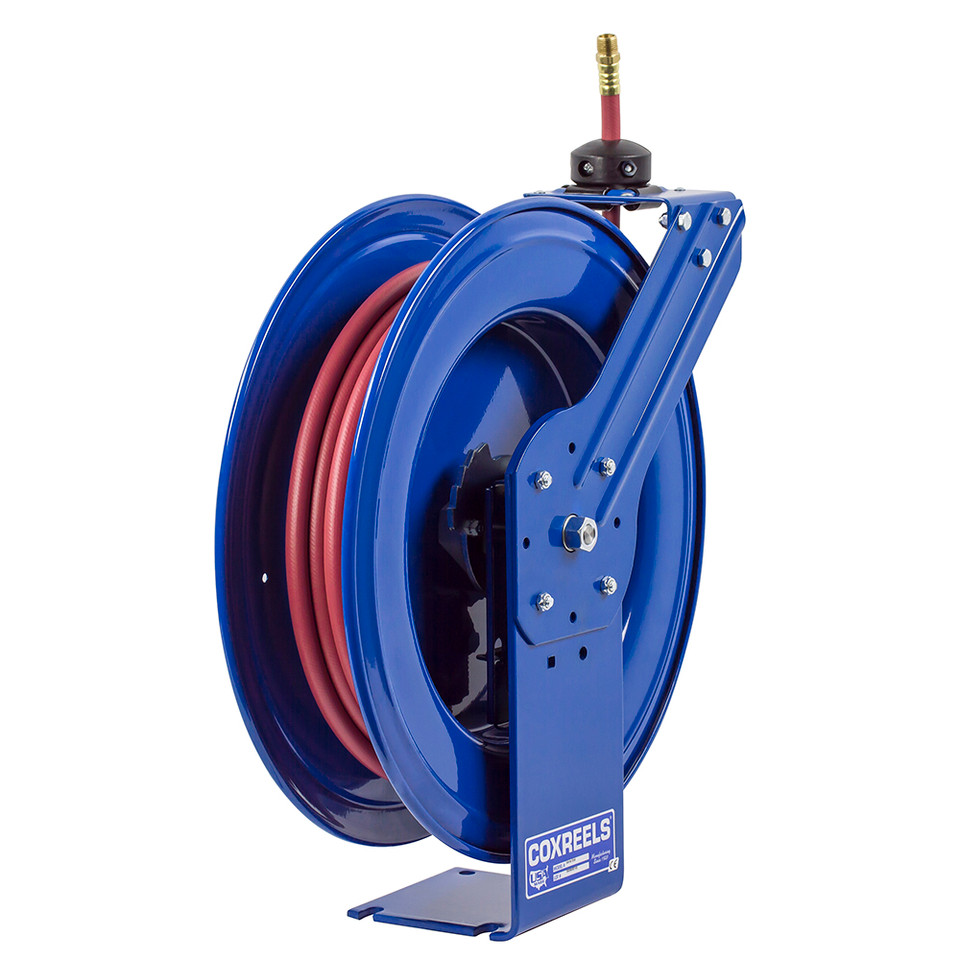

Coxreels SH-N-440 Low Pressure Spring Rewind Hose Reel | SH Series | 1/2" Hose Diameter | 40' Hose Length | 300 Max PSI

When a work bay needs a larger air or water hose without a long loose coil on the floor, the Coxreels SH-N-440 provides controlled storage and spring powered rewind in a compact SH Series frame. This low pressure hose reel is supplied with a 1/2" I.D. x 40 ft hose, giving operators a higher-flow hose size than smaller 3/8" reel setups while keeping reach manageable for shop air stations, service areas, washdown points, and utility vehicle installations. The 300 PSI pressure rating supports standard low pressure air and water service, while the Super Hub™ dual axle support system helps stabilize the reel during extension and retraction. The SH Series uses a larger chassis and frame than compact reel families, making it a strong fit where hose diameter and daily use matter more than minimum reel size. Its spring rewind mechanism draws the hose back after use, and the multi-position lock ratchet holds the hose at the selected working length so technicians can work without fighting constant spring tension.

Type: Low Pressure Spring Rewind Hose Reel | Series: SH Series | Model: SH-N-440 | Hose Included: Yes | Hose I.D.: 1/2" | Hose O.D.: 3/4" | Hose Length: 40 ft | Max Pressure: 300 PSI | Service: Air and Water | Temperature Range: -15°F to +150°F | Overall Dimensions: 8.25" W x 21.2" H x 19.5" L | Mounting Pattern: 4" x 5" | Base Size: 6" x 6" | Approx. Ship Weight: 52 lbs

Features:

• Super Hub™ dual axle support system increases reel stability, reduces vibration, and strengthens the reel structure during operation.
• Spring driven rewind helps return the hose to the reel after use, reducing floor clutter and improving hose management.
• Larger SH Series chassis accommodates larger hose diameters for applications that need more flow than smaller hose reels can provide.
• External fluid path with machined from solid brass 90° full-flow NPT swivel inlet supports efficient routing into the reel.
• NITRILE swivel seals are suited to standard low pressure air and water service within the reel rating.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions.
• Solid one-piece, heavy gauge steel base and support post provide a stable mounting foundation.
• 1" solid steel axle and lubricated precision bearings help the drum rotate smoothly during pull-out and rewind.
• Multi-position lock ratchet allows the hose to be secured at the desired working length.
• Enclosed factory tuned cartridge-style spring motor keeps the rewind spring protected inside the reel assembly.
• Stainless steel spring and pawl with zinc plated ratchet help protect key rewind and locking components from corrosion.
• Rolled edges and ribbed discs add reel strength while reducing sharp exposed edges around the drum.
• CPC™ powder coat finish helps protect the steel reel body in shop, plant, and service vehicle environments.

Made in USA:

2 Year Warranty

Applications:

• Automotive and fleet maintenance: Supplying retractable air or water hose at service bays, tire areas, vehicle lifts, and mechanic workstations.
• Manufacturing and facility service: Keeping utility hose organized at production support areas, plant maintenance stations, and general MRO locations.
• Service trucks and mobile equipment: Providing a compact 40 ft hose reach where controlled storage matters on mechanic, utility, and field service vehicles.
• Pneumatic tool connection points: Feeding compatible low pressure air tools when the tool, compressor, hose size, and pressure requirements match the reel rating.
• Washdown and cleanup areas: Managing low pressure water hose for general cleanup tasks within the listed 300 PSI and temperature limits.
• Garage and workshop use: Keeping air hose accessible for inflation, light pneumatic tool use, and general repair work without leaving hose across the floor.

FAQs:

• Q: Does the Coxreels SH-N-440 come with hose installed?
  A: Yes. The SH-N-440 is supplied with a 1/2" I.D. x 40 ft hose for low pressure air and water service.
• Q: Why choose a 1/2" hose reel instead of a 3/8" hose reel?
  A: A 1/2" hose has a larger internal diameter, which can help support higher air or water flow over the same distance. It is commonly selected when the connected equipment benefits from more volume than a smaller hose can provide.
• Q: Can this reel be used with a standard shop air compressor?
  A: Yes, when the compressor output, pressure setting, hose size, and connected tool requirements are compatible with the reel’s 300 PSI maximum pressure rating.
• Q: What mounting options does the SH Series support?
  A: The adjustable guide arm allows the reel to be positioned for wall, floor, vehicle, or overhead mounting. Always mount the reel to a solid surface using hardware appropriate for the load and installation location.
• Q: What does spring rewind mean?
  A: Spring rewind means the reel uses an internal spring motor to retract the hose after use. The lock ratchet holds the hose at the chosen working length until the operator releases it for rewind.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
